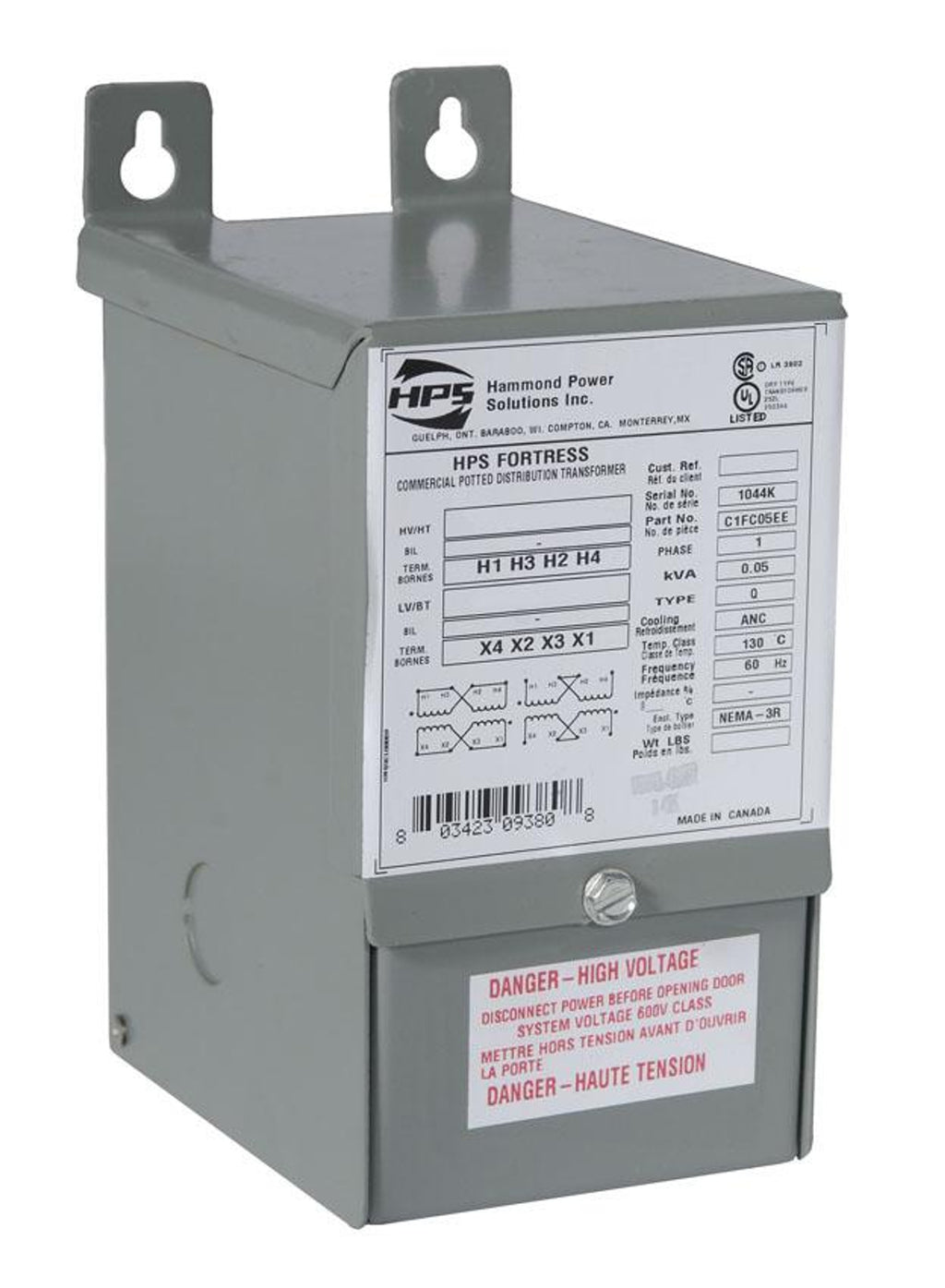

Hammond Power Solutions C1F002CES - Transformer 2kVA 277V-120/240V Copper

C1F002CES

Hammond Power Solutions C1F002CES is a general duty transformer designed for voltage conversion applications requiring reliable power distribution. This single-phase unit features a 277V primary voltage with series connection and provides flexible 120/240V secondary output through parallel/series-N configuration, delivering 2 kVA capacity at 50/60Hz frequency. Constructed with copper windings and rated for 135°C temperature rise with 180°C insulation class, the transformer is housed in a Type 3R/IP24 enclosure with ANSI 61 grey finish measuring 11.75" H × 7.06" W × 6.25" D. The unit complies with IBC 2018 seismic standards (Sds=2.0, z/h=1, lp=1.5) and operates at 45dBA sound levels per NEMA ST-20. Typical applications include industrial control systems, lighting circuits, and commercial power distribution where voltage step-down from 277V systems is required. Key Features & Specifications

• Type: Single-Phase General Duty Transformer
• Voltage: 277V Primary, 120/240V Secondary
• Current: 2 kVA Capacity
• Frequency: 50/60Hz
• Material: Copper Windings
• Enclosure: Type 3R/IP24, ANSI 61 Grey
• Temperature Rise: 135°C
• Insulation Class: 180°C
• Dimensions: 11.75" H × 7.06" W × 6.25" D
• Sound Level: 45dBA
• Seismic Compliance: IBC 2018

Specifications

• Part Number: C1F002CES
• Manufacturer : Hammond Power Solutions
• Brand : Hammond Power Solutions
• Category : Transformer
• Phase : 1
• Enclosure Grade : Standard
• Fortress : 1ph 2kVA 277V-120/240V 50/60Hz CU
• Duty : General Duty
• KVA Rating : 2 kVA
• Frequency : 50/60Hz
• Primary Voltage : 277
• Primary Connection : Series (V)
• Primary FCAN (NPL) : None
• Primary FCBN (NPL) : None
• Secondary Voltage : 120/240
• Secondary Connection : Parallel/Series-N (V/2V)
• Material : Copper
• Temperature Rise : 135°C
• Insulation Class : 180°C
• EKVA : 2
• Efficiency Regulation : No Efficiency Specification
• Seismic Compliance : IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
• Sound Level : 45dBA (NEMA ST-20)
• Impedance (Std) : 1% - 5%
• Termination (NPL) : Wire Leads
• Secondary Termination (NPL) : Wire Leads
• Enclosure Type : Type 3R / IP24
• Enclosure Finish : ANSI 61 Grey, UL50
• Enclosure PN (NPL) : NQ4-N3R
• Enclosure Dimensions : 11.75in/299mm(H), 7.06in/180mm(W), 6.25in/159mm(D)
• Electrostatic Shield : Single
• Nameplate : Standard
• Standard kVA : 2
• Vector Configuration : 0°
• Seismic Standard Value : IBC 2018
• OSHPD : No
• Seismic IP : lp=1.5
• Seismic ZH : z/h=1
• Seismic SDS Value : Sds=2.0
• Enclosure IR Window : No

Product Data

• UPC : 803423092443
• Weight : 40
• Certification : CSA, UL
