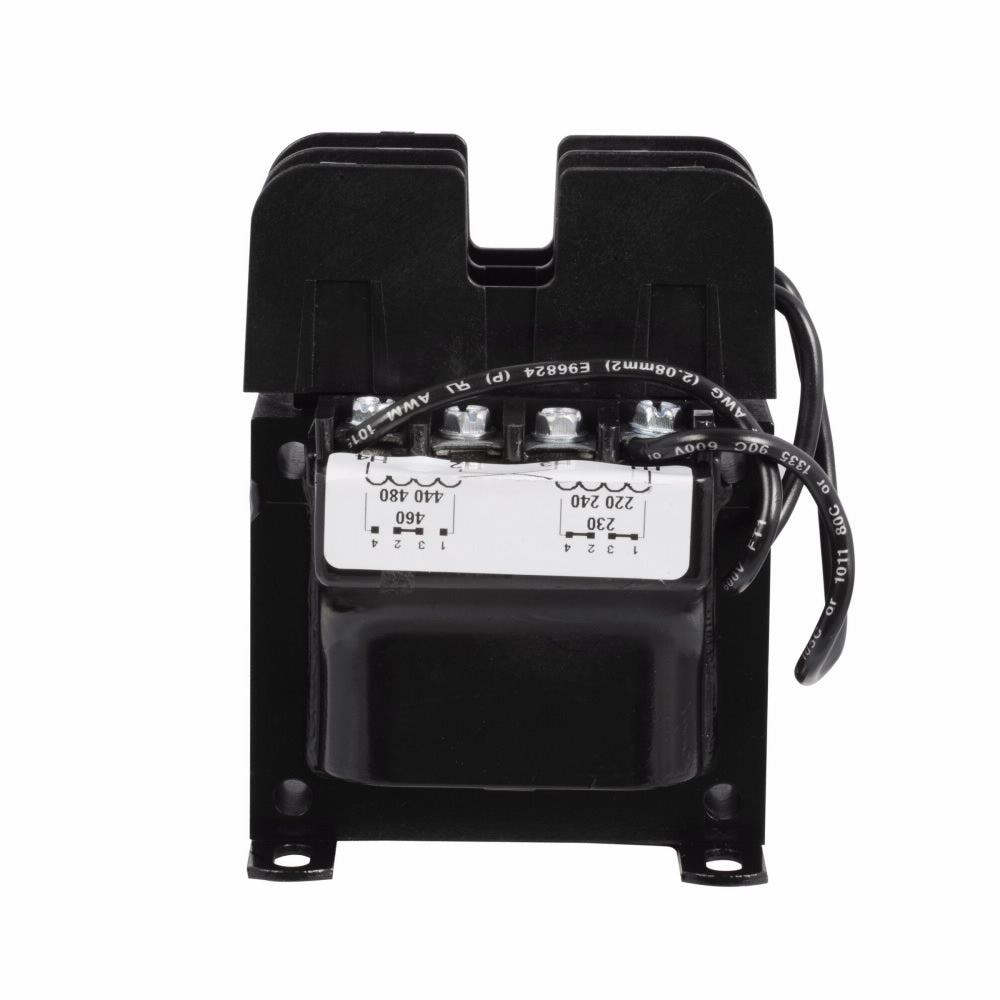

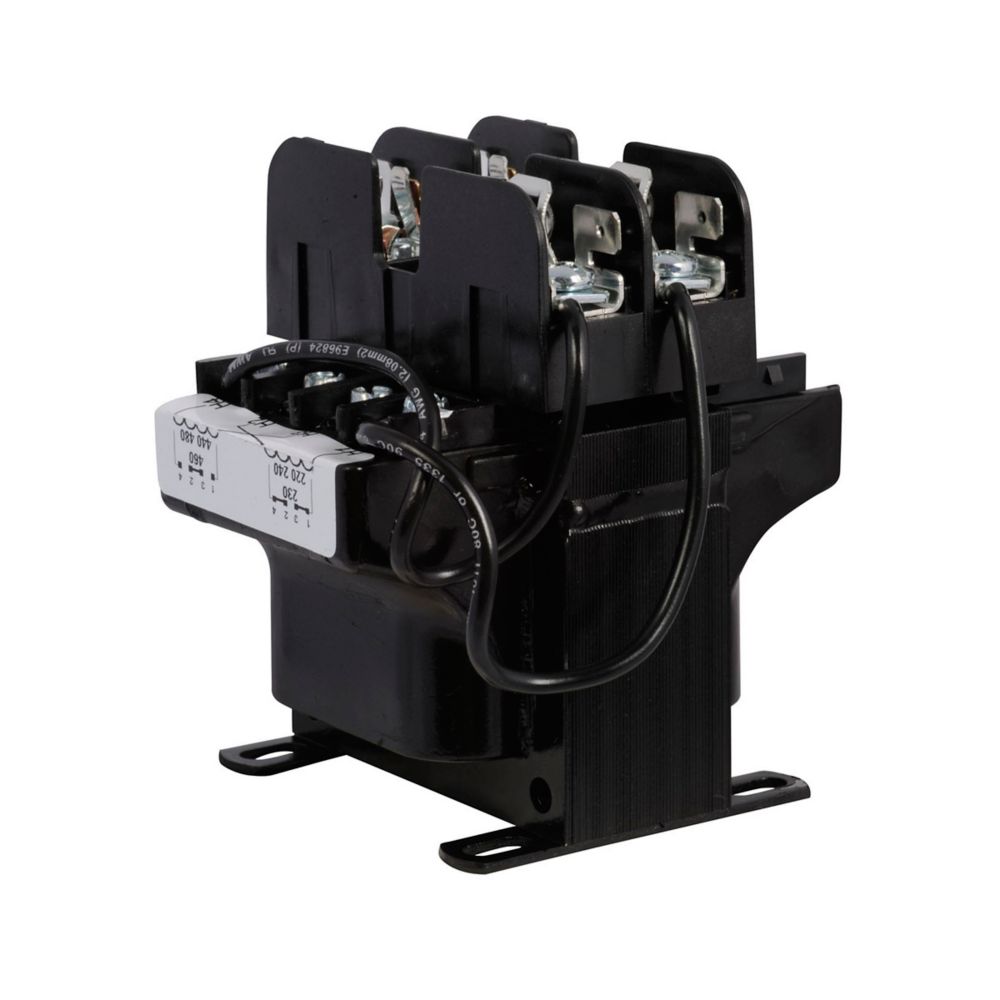

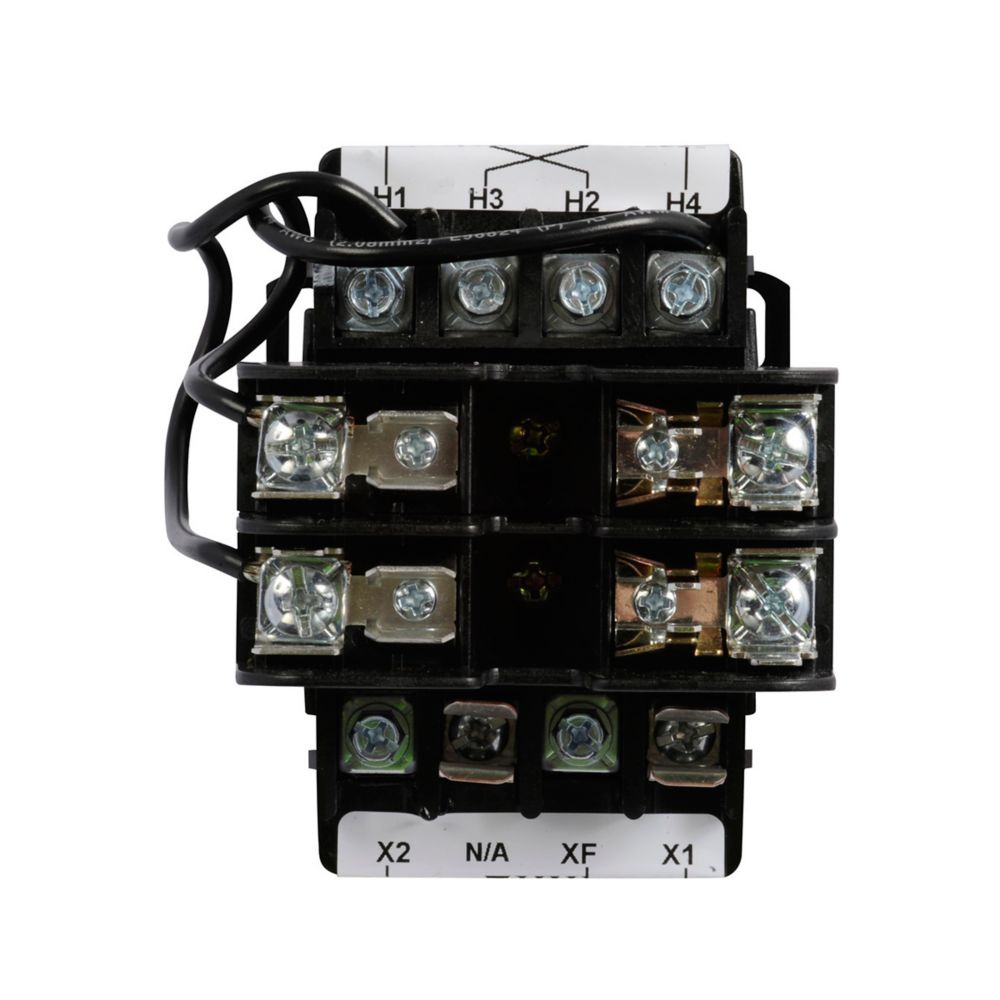

C0150E2AFB - Eaton 150 VA Industrial Control Transformer, 240/480V Primary, 120/115/110V Secondary, Type MTE, 1 Phase, 55°C

C0150E2AFB

C0150E2AFB is an Eaton Type MTE industrial control transformer designed for reliable voltage conversion in industrial applications.This transformer features a 150 VA power rating with primary voltage options of 220 x 440 V, 230 x 460 V, and 240 x 480 V, and secondary voltages of 120/115/110 V. It operates at 50/60 Hz frequency and is rated for 55°C temperature. The unit includes copper windings, epoxy encapsulated coils for moisture and contaminant protection, and molded-in terminals for durability. It also has a factory-mounted two-pole primary fuse block for non-rejection type fuses. The transformer is CSA Certified, UL Listed, cUL Certified, and RoHS compliant.

Key Specifications
• Power Rating: 150 VA
• Primary Voltage: 220 x 440 V, 230 x 460 V, 240 x 480 V
• Secondary Voltage: 120/115/110 V
• Phase: 1
• Frequency: 50/60 Hz
• Temperature Rating: 55°C
• Coil Material: Copper windings
• Special Features: Factory-mounted two-pole primary fuse block
• Type: Industrial Control Transformer, Type MTE
• Certifications: CSA Certified, UL Listed, cUL Certified
• Compliance: RoHS Compliant
• Construction: Epoxy encapsulated coils, molded-in terminals
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: C0150E2AFB
• Manufacturer : Eaton
• Brand : Eaton
• Category : Transformer
• Item Subcategory : Industrial Control
• Family : Type MTE
• Type : C
• Phase : 1
• KVA Rating : 0.15
• Primary Voltage : 230X460
• Secondary Voltage : 115



Product Data

• UPC : 786680420863
• GTIN : 00786680420863
• Dimensions : 3.88 in x 4.67 in x 3.75 in (Length/Depth x Height x Width)
• Weight : 5.3 lb
