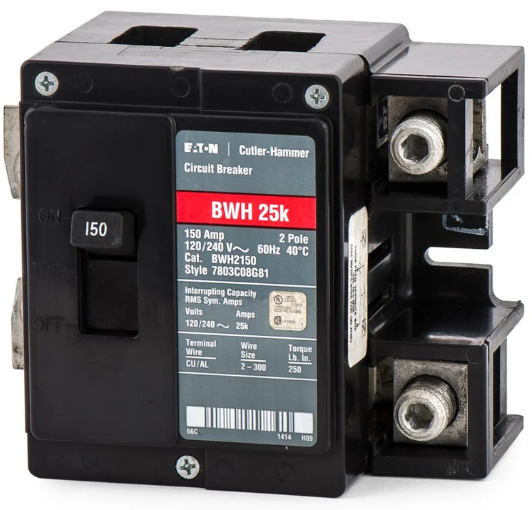

BWH2150 - Cutler Hammer 150 Amp 2 Pole 120/240V Bolt-On Molded Case Circuit Breaker, BWH Series, Thermal Magnetic Trip, 25 kAIC, UL 489

BWH2150

BWH2150 is a Cutler Hammer 150 Amp, 2-pole, 120/240V bolt-on molded case circuit breaker designed for reliable residential and light commercial service.

This main circuit breaker features a thermal magnetic trip mechanism, a robust BWH frame, and is compatible with MHM150P, MHM150B, MHR150P, and MHR150B load centers. It is certified to UL 489 and meets Federal Specifications Classification W-C375, ensuring safety and compliance for your electrical distribution needs.

Key Specifications
• Part Number: BWH2150
• Manufacturer: Cutler Hammer (Eaton)
• Amperage: 150A
• Voltage: 120/240V
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 25 kAIC at 120/240V
• Series/Frame: BWH
• Trip Unit: Thermal Magnetic
• Certifications: UL 489, Federal Specifications Classification W-C375
• Wire Size: #2 AWG–300 kcmil Cu/Al
• Warranty: Limited lifetime residential, 1 year commercial
• Application: Main circuit breaker for compatible load centers

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BWH2150
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BWH Series
• Type : BWH
• Voltage : 240
• Amperage : 150
• Phase : 1
• Poles : 2
• AIC rating : 25kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786676460453
• GTIN : 00786676460453
• Country of Origin : Dominican Republic
• Dimensions : 6.25 in x 5.25 in x 5.25 in (Length/Depth x Height x Width)
• Weight : 2.75
• Certification : UL 489,Federal Specifications Classification W-C375
• Wire Size : AWG 2 to 300KCmil, Cu/Al
