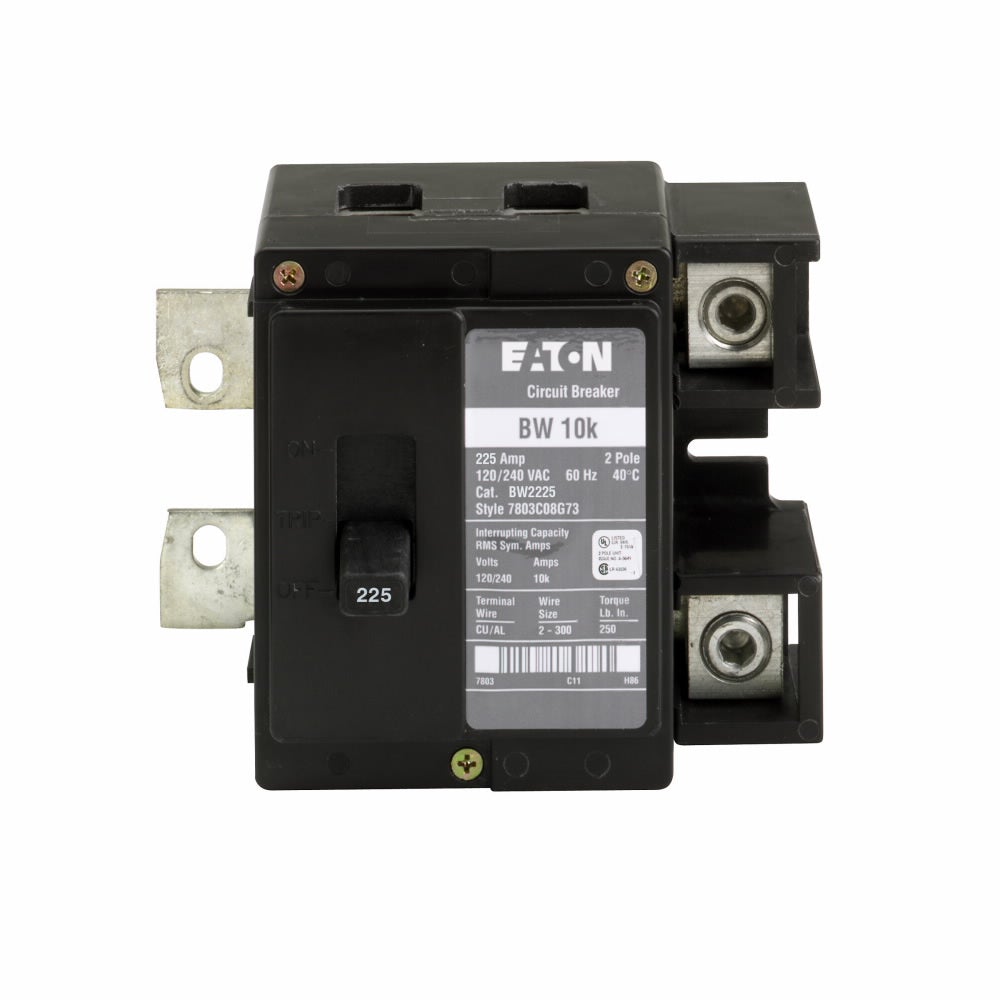

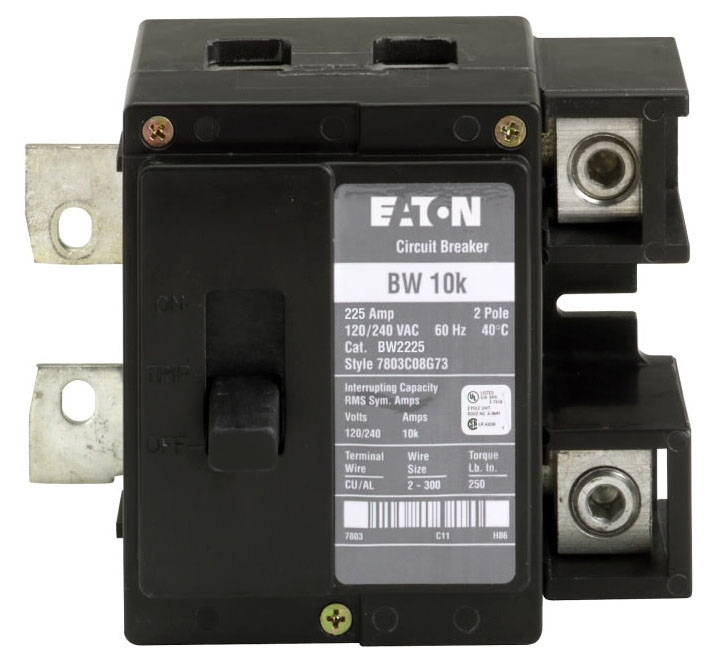

BW2225 - Cutler Hammer 225A 120/240V 2-Pole BW Frame Circuit Breaker Plug-On 10kAIC

BW2225

BW2225 is a Cutler Hammer 2-pole circuit breaker with a 225 amp rating and 120/240 volt voltage rating designed for BW frame plug-on applications.This Eaton Type BW circuit breaker features a 10 kA interrupt rating, plug-on connection, and is compatible with BR main breakers and ECB unit enclosures. It supports wire sizes from #2 AWG to 300 kcmil copper/aluminum and meets UL 489 certification standards. The breaker is suitable for use as a main or branch disconnect device and includes a 5-year warranty.

• Amperage: 225 A
• Voltage: 120/240 V AC
• Poles: 2
• Frame Type: BW
• Interrupt Rating: 10 kAIC
• Connection Type: Plug-on
• Compatible with BR main breakers
• Wire Size Range: #2 AWG to 300 kcmil Cu/Al
• UL 489 Certified
• 5-Year Warranty
• Meets Federal Spec Classification W-C375

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BW2225
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BW Series
• Type : BW
• Voltage : 240
• Amperage : 225
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679122556
• GTIN : 00786679122556
• Country of Origin : Dominican Republic
• Dimensions : 6.25 in x 5 in x 5.25 in (Length/Depth x Height x Width)
• Weight : 2.75
• Certification : UL 489
• Wire Size : #2 AWG to 300KCmil CU/AL
