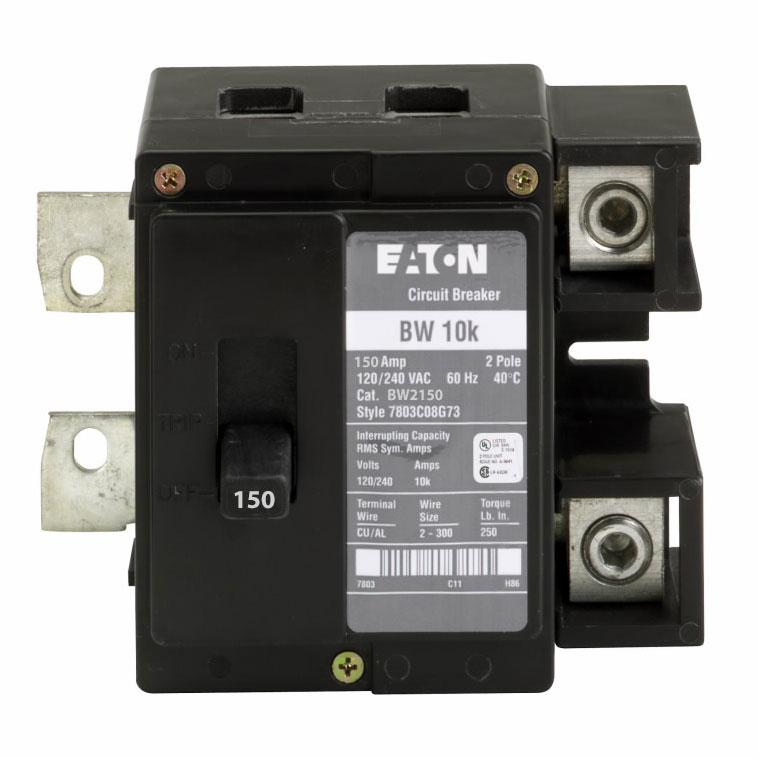

BW2150 - Cutler Hammer 150A 120/240V 2 Pole Bolt-On Circuit Breaker Type BW

BW2150

BW2150 is a Cutler Hammer 150 Amp, 120/240 Volt, 2 Pole bolt-on circuit breaker designed for reliable thermal magnetic protection.This Type BW molded case circuit breaker features a 10kA interrupting rating at 240V, long-time and instantaneous trip functions, and UL certification. It supports wire sizes from AWG 2 to 300 Kcmil copper or aluminum and is compatible with Type ECB unit enclosures.

Key Specifications
• Amperage: 150A
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 10kAIC at 240V
• Series/Frame: BW
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
• Certifications: UL Listed
• Connection Type: Bolt-On
• Wire Gauge Range: AWG 2 to 300 Kcmil Cu/Al
• Compatible Enclosures: Type ECB Unit Enclosures
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: BW2150
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BW Series
• Type : BW
• Voltage : 240
• Amperage : 150
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Protection : Thermal Magnetic



Product Data

• UPC : 786676460408
• GTIN : 00786676460408
• Country of Origin : Dominican Republic
• Dimensions : 5.25 in x 5.25 in x 6.5 in (Length/Depth x Height x Width)
• Weight : 2.8
• Certification : UL 489
• Wire Size : AWG 2 to 300KCmil, Cu/Al
