Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Motor Control Part And Accessory
Description
BRS39BW461ACA

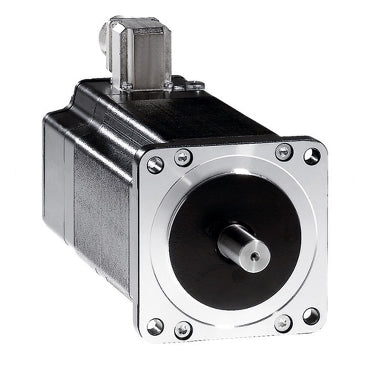

BRS39BW461ACA is a Schneider Electric 3-phase stepper motor delivering 6.78 Nm torque with a 14mm shaft diameter and 128mm length, designed for precise motion control applications.This motor features a 6-pole design optimized for Lexium SD3 motion control systems, operating at 2.25 A current and 230 VAC/325 VDC voltage. It offers robust, maintenance-free performance with a winding resistance of 6.5 Ohms and a time constant of 10 ms. The motor shaft supports radial forces up to 110 N on the first end and 50 N on the second, with tensile force capacity of 175 N and force pressure of 30 N. It is supplied without a brake and includes connection options suitable for integration with compact drives.
- Torque: 6.78 Nm
- Current: 2.25 A
- Voltage: 230 VAC / 325 VDC
- Poles: 6
- Shaft Diameter: 14 mm
- Length: 128 mm
- Winding Resistance: 6.5 Ohm
- Time Constant: 10 ms
- Radial Force (Shaft End 1): 110 N
- Radial Force (Shaft End 2): 50 N
- Tensile Force: 175 N
- Force Pressure: 30 N
Specifications
- Part Number: BRS39BW461ACA
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Motor Control Part And Accessory
- Section : Motor
Product Data
- UPC : 038911922410
- GTIN : 03389119224109
- Country of Origin : Denmark
- Weight : 12.436
- Certification : EN 50347-IEC 60072-1
