BRPSURGE - Eaton 2 Pole 10 kA Circuit Breaker Surge Protective Device Plug-On Neutral Type BR

BRPSURGE

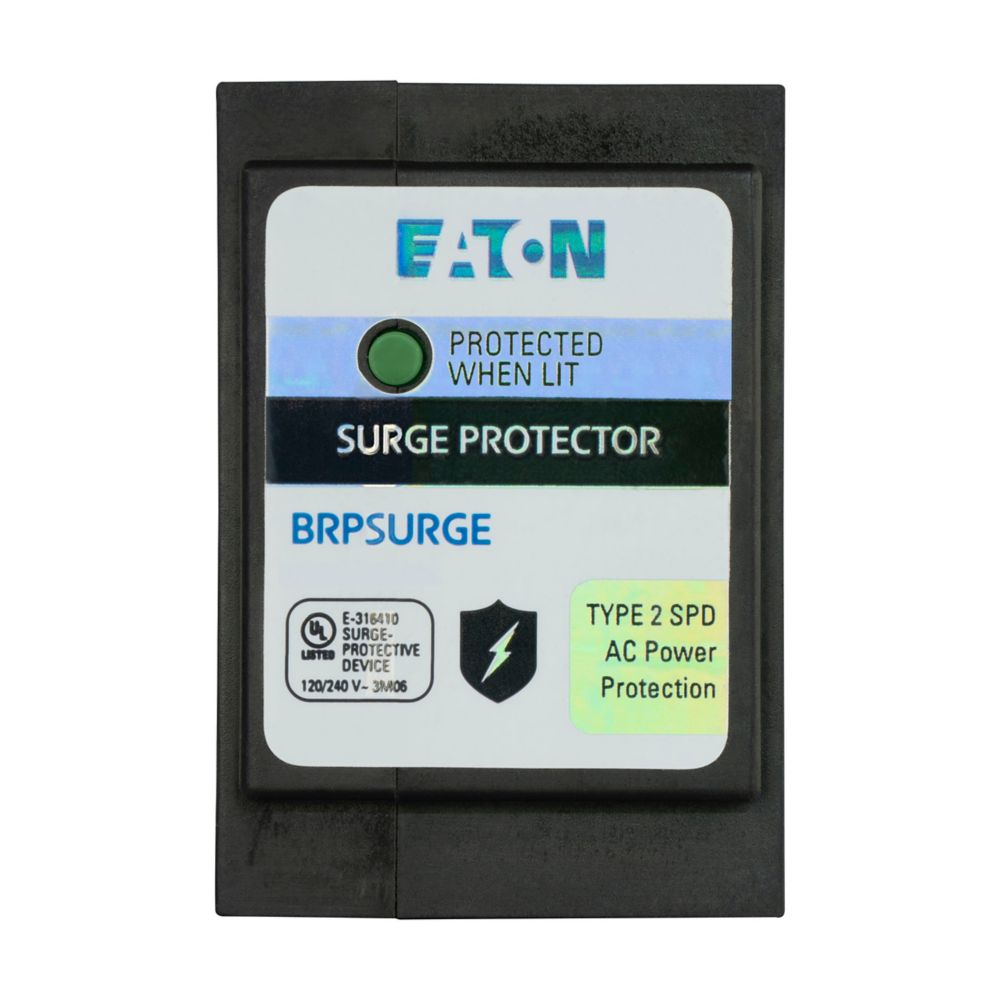

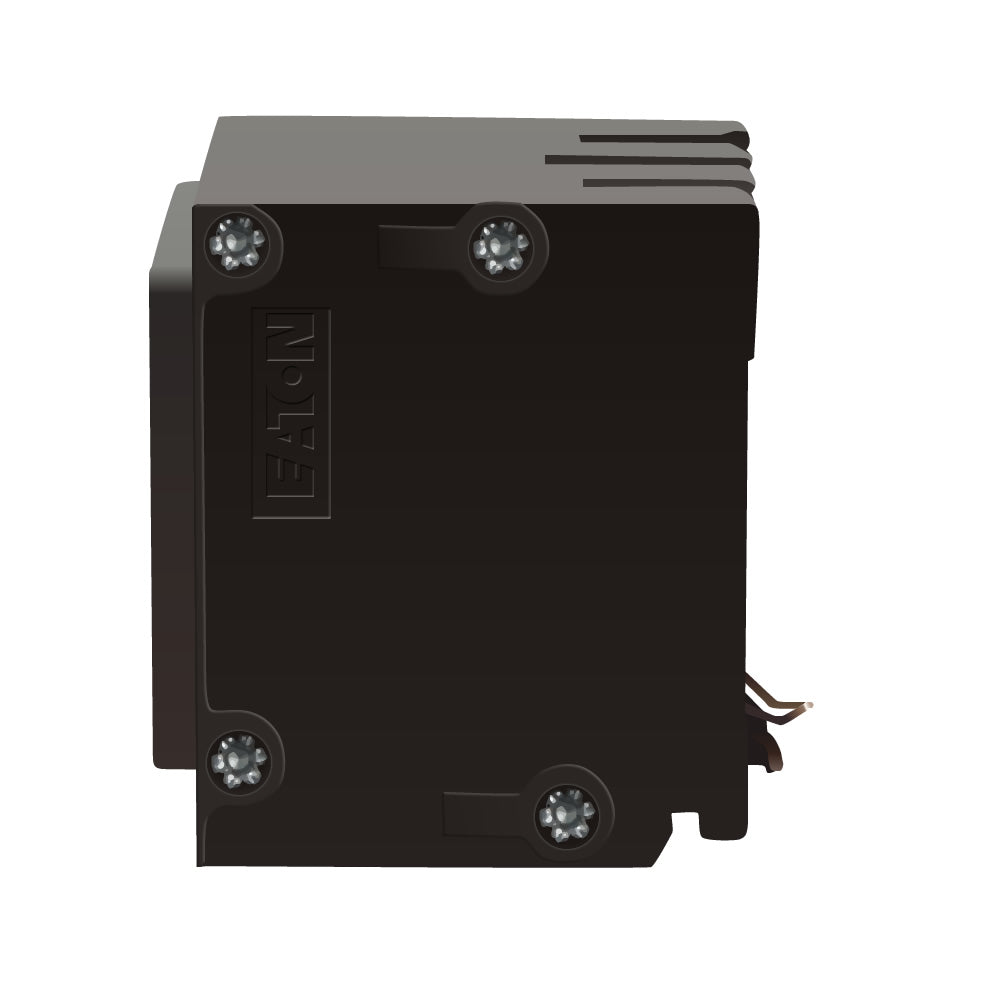

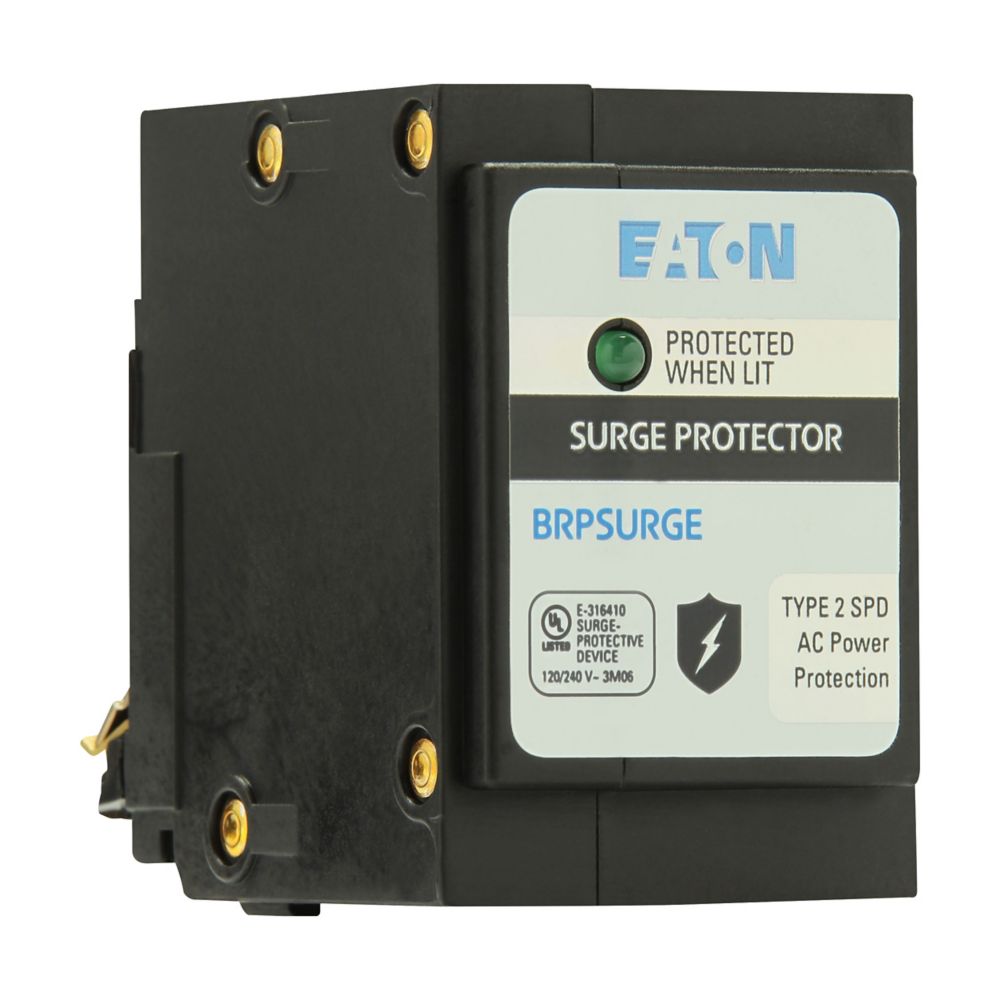

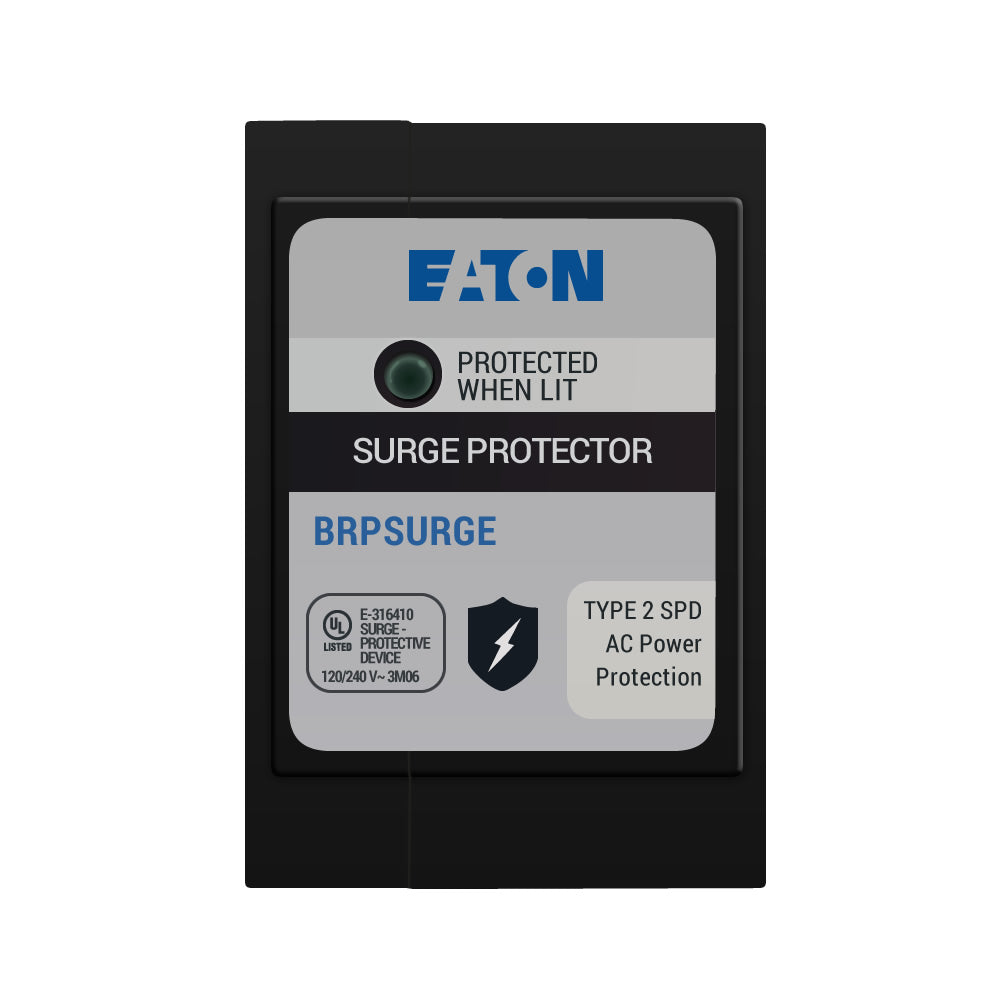

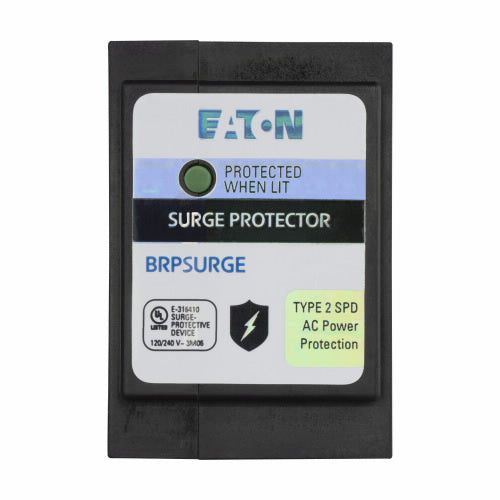

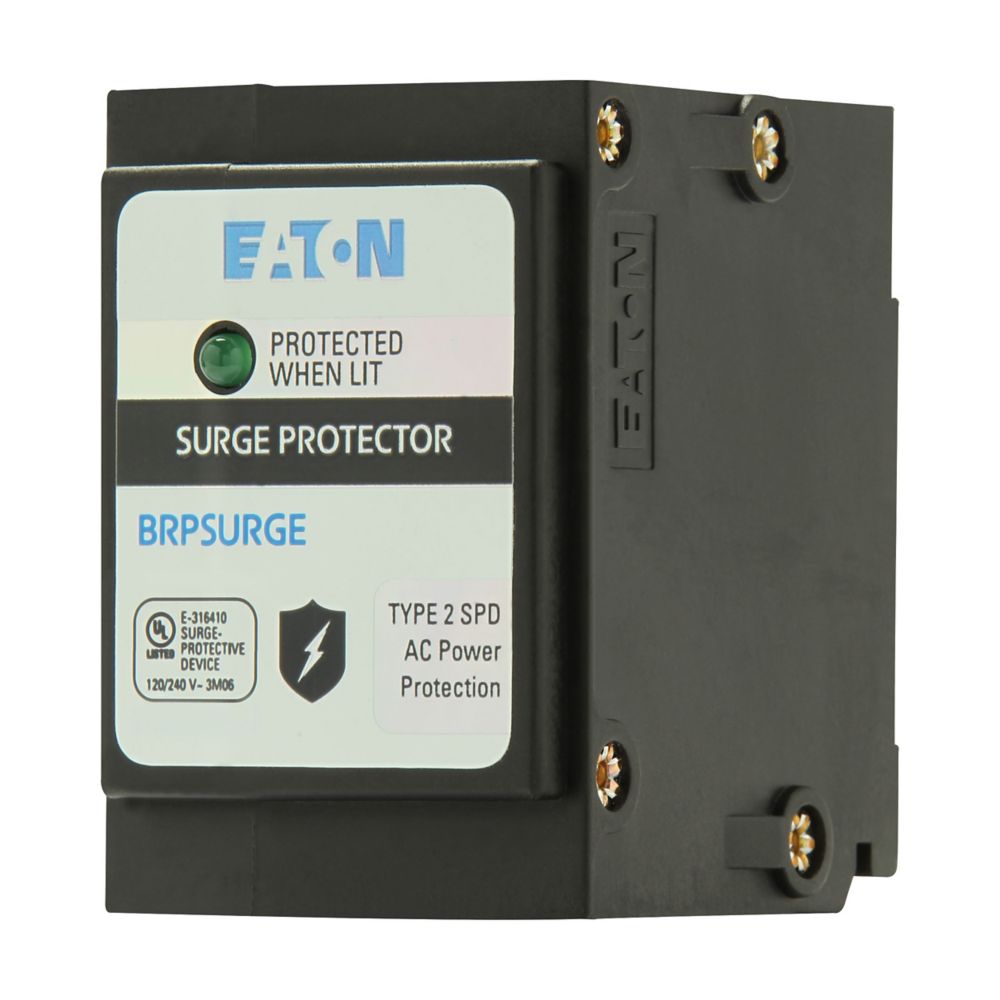

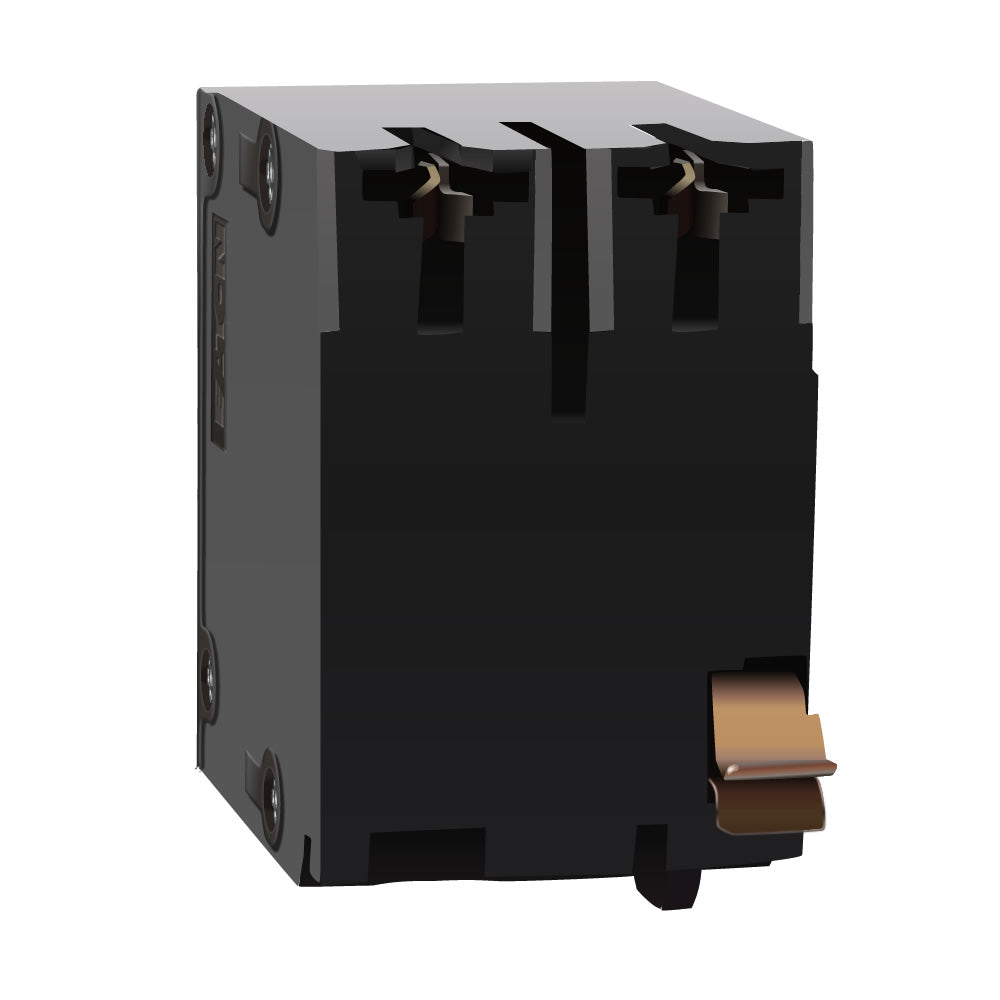

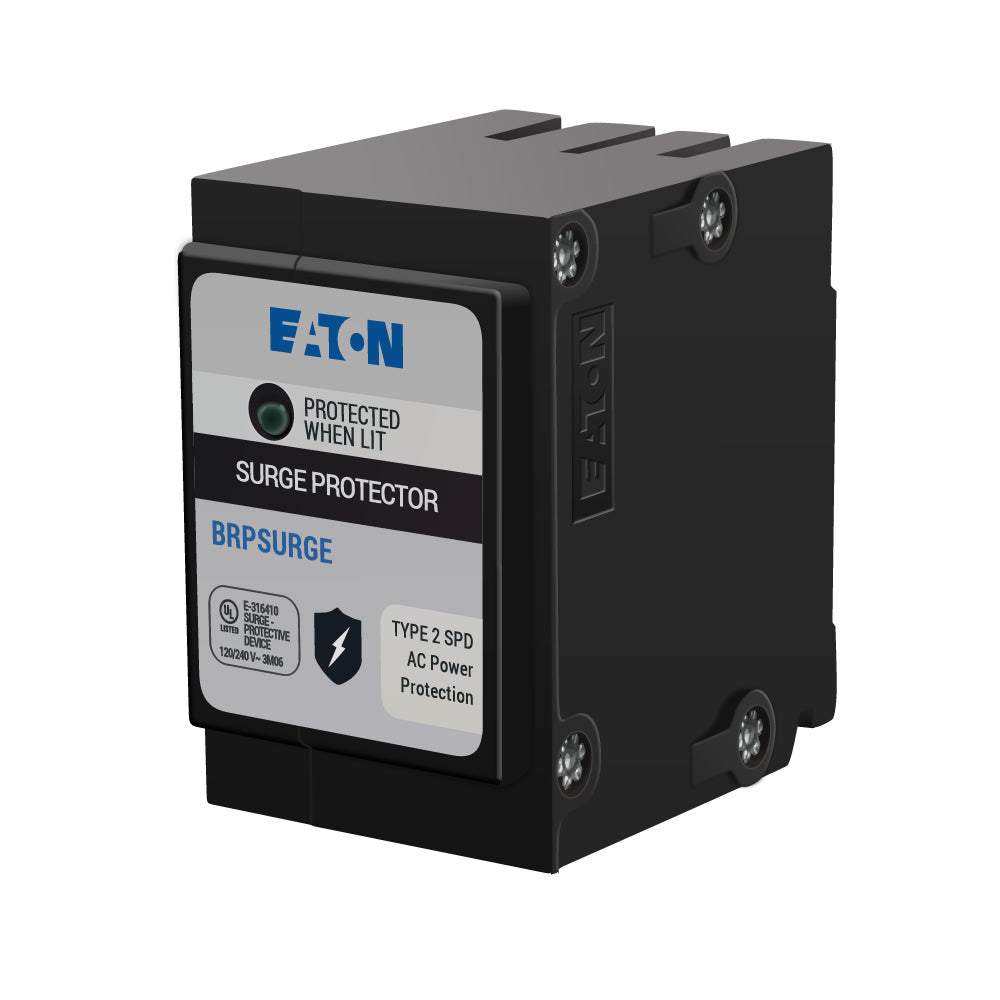

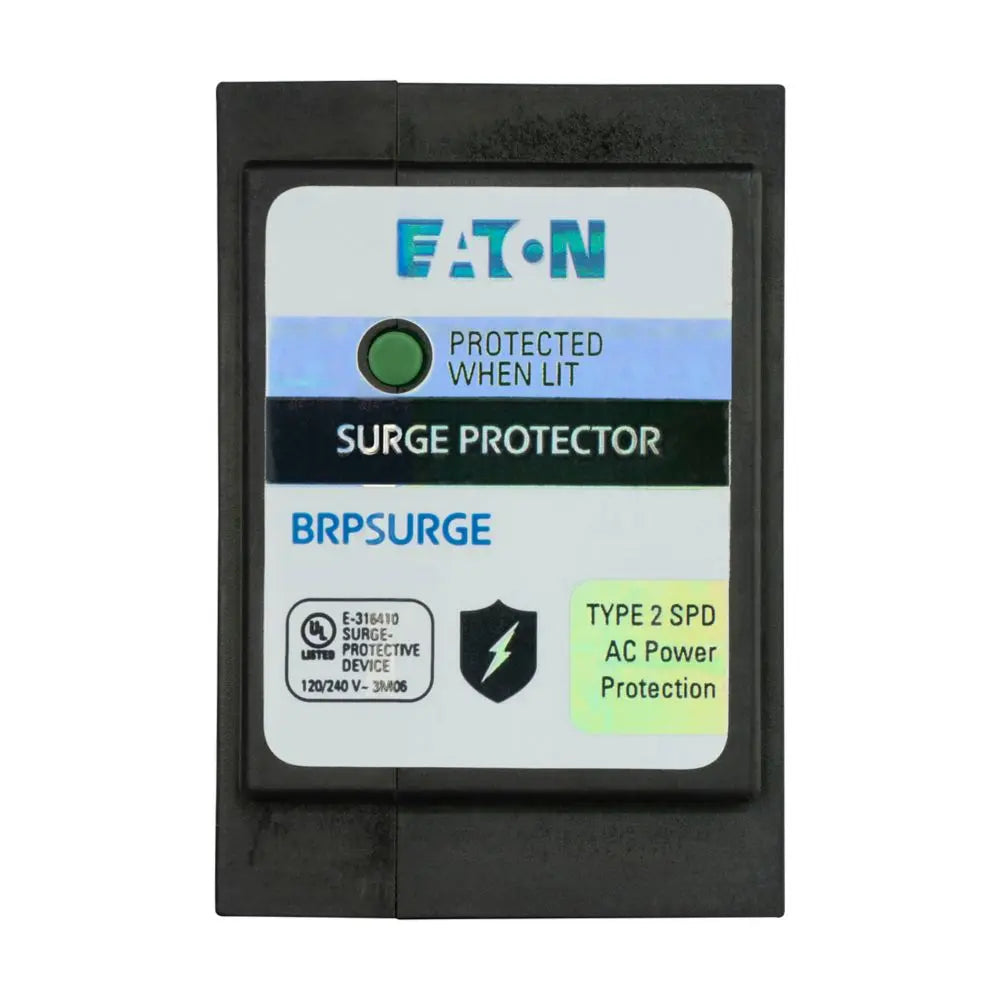

BRPSURGE is an Eaton Type BR two-pole circuit breaker surge protective device designed for plug-on neutral residential load centers.

This surge protector provides whole-house surge protection by plugging directly into a Type BR load center, occupying two spaces like a double-pole breaker. It features a 10 kA interrupt rating, 18 kA surge current capacity, and is UL 1449 and cUL certified. The device protects against surges on line-to-neutral and line-to-line circuits with a maximum continuous operating voltage of 150 V L-N and 300 V L-L, making it suitable for single-phase 120/240 Vac systems at 50/60 Hz.

Key Specifications
• Manufacturer: Eaton
• Type: BR Plug-On Neutral Surge Protective Device
• Poles: 2
• Interrupt Rating: 10 kA
• Surge Current Capacity: 18 kA
• Maximum Continuous Operating Voltage: 150 V L-N, 300 V L-L
• Measured Limiting Voltage: 500 V
• Frequency: 50/60 Hz
• Phase: Single-phase
• Certifications: UL 1449, cUL Certified
• Dimensions: 3.6 in depth x 2.4 in height x 3.5 in width
• Weight: 0.35 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BRPSURGE
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BR Series
• Type : BR
• Voltage : 120/240VAC
• Amperage : 18000
• Phase : 1
• Poles : 2
• AIC rating : 10kAIC
• Connection : Plug-on
• Compatible Frames : BR

Product Data

• UPC : 078668935364
• GTIN : 00786689353643
• Dimensions : 3.6 in x 2.4 in x 3.5 in (Length/Depth x Height x Width)
• Weight : 0.35
• Certification : UL, CUL
