Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
BRN230GF

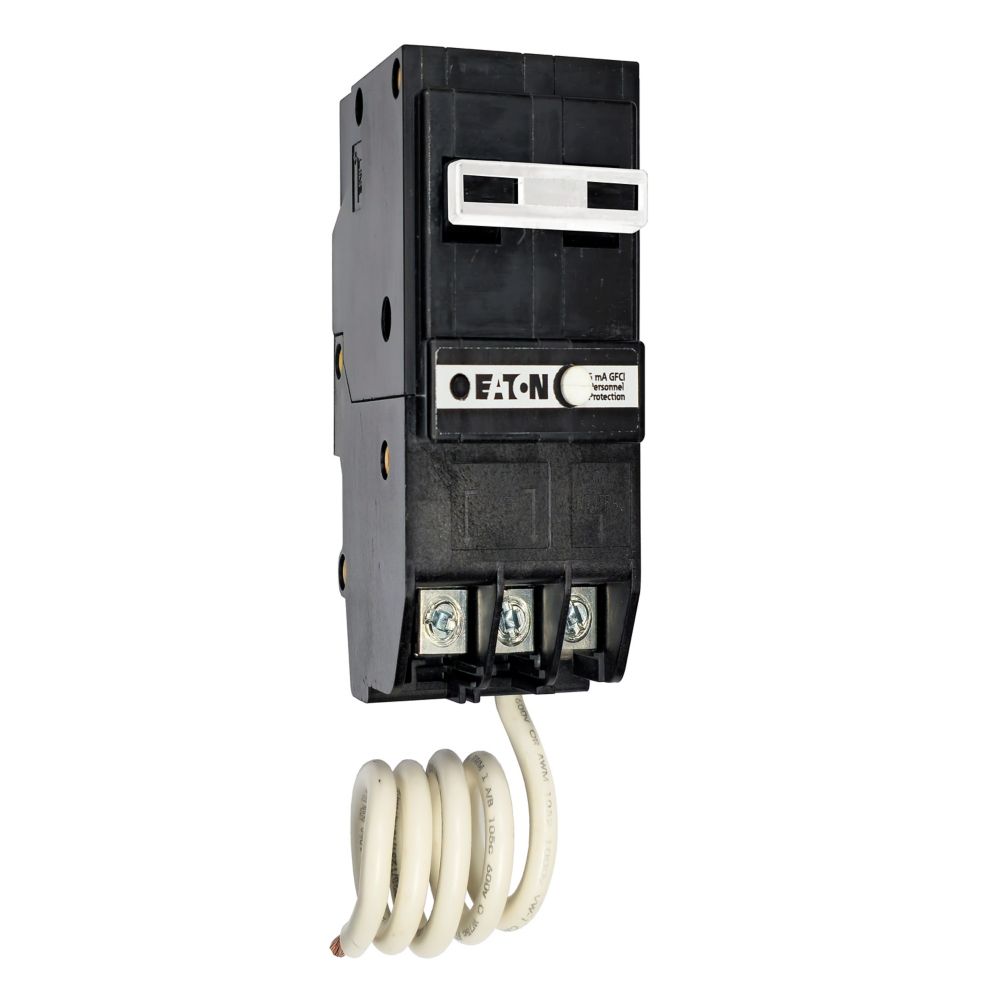

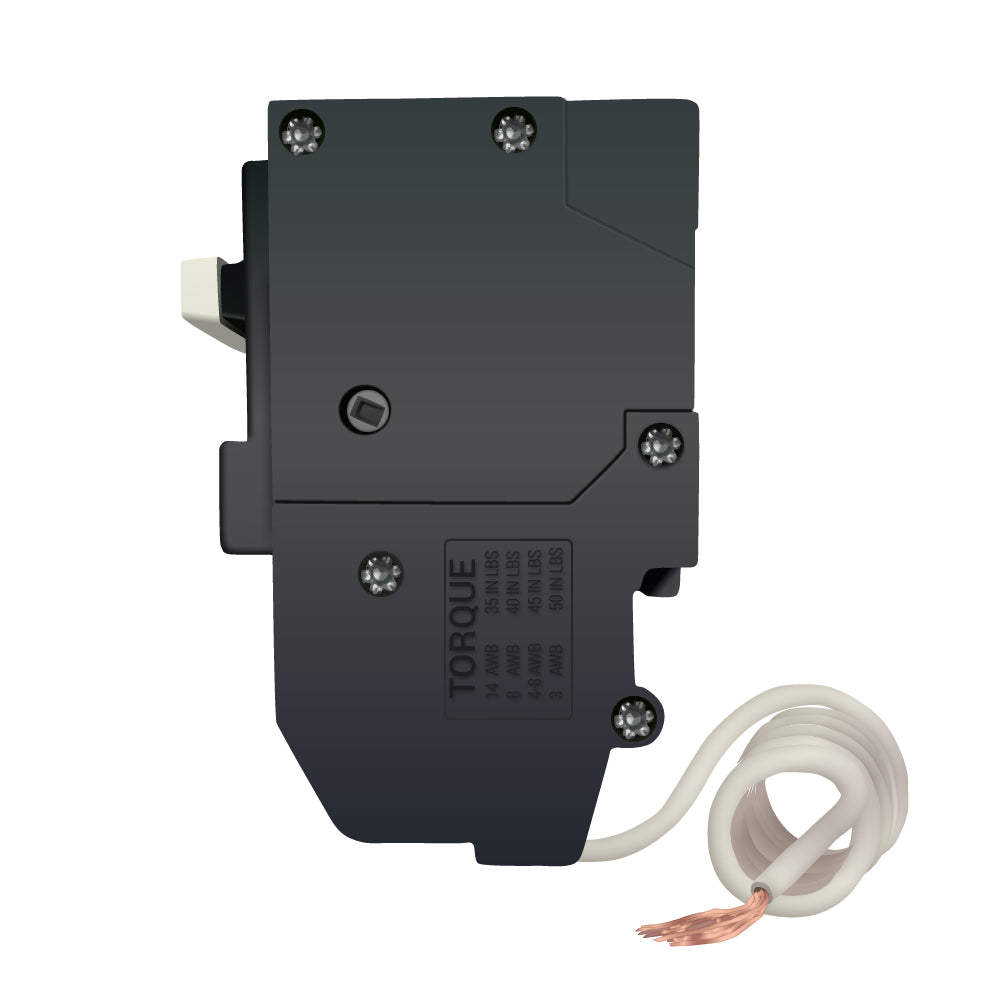

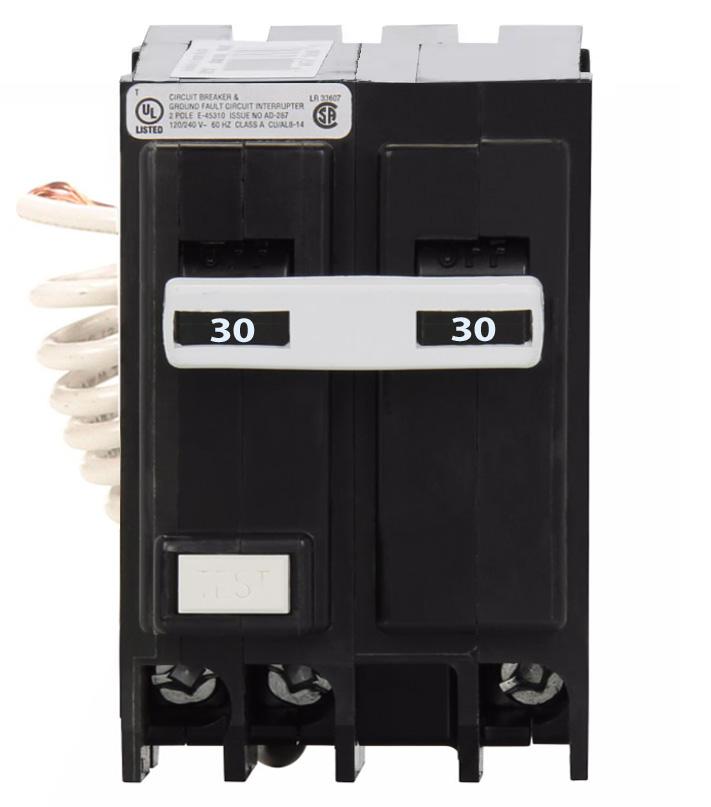

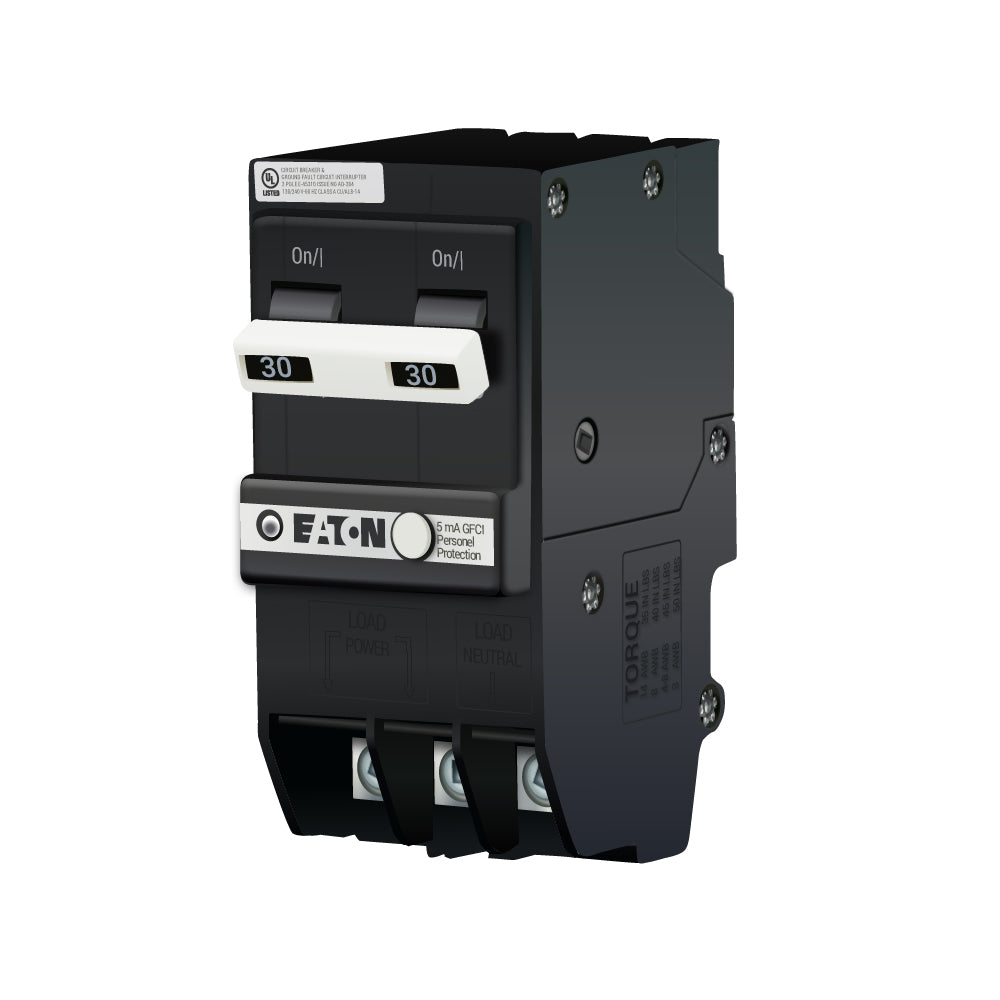

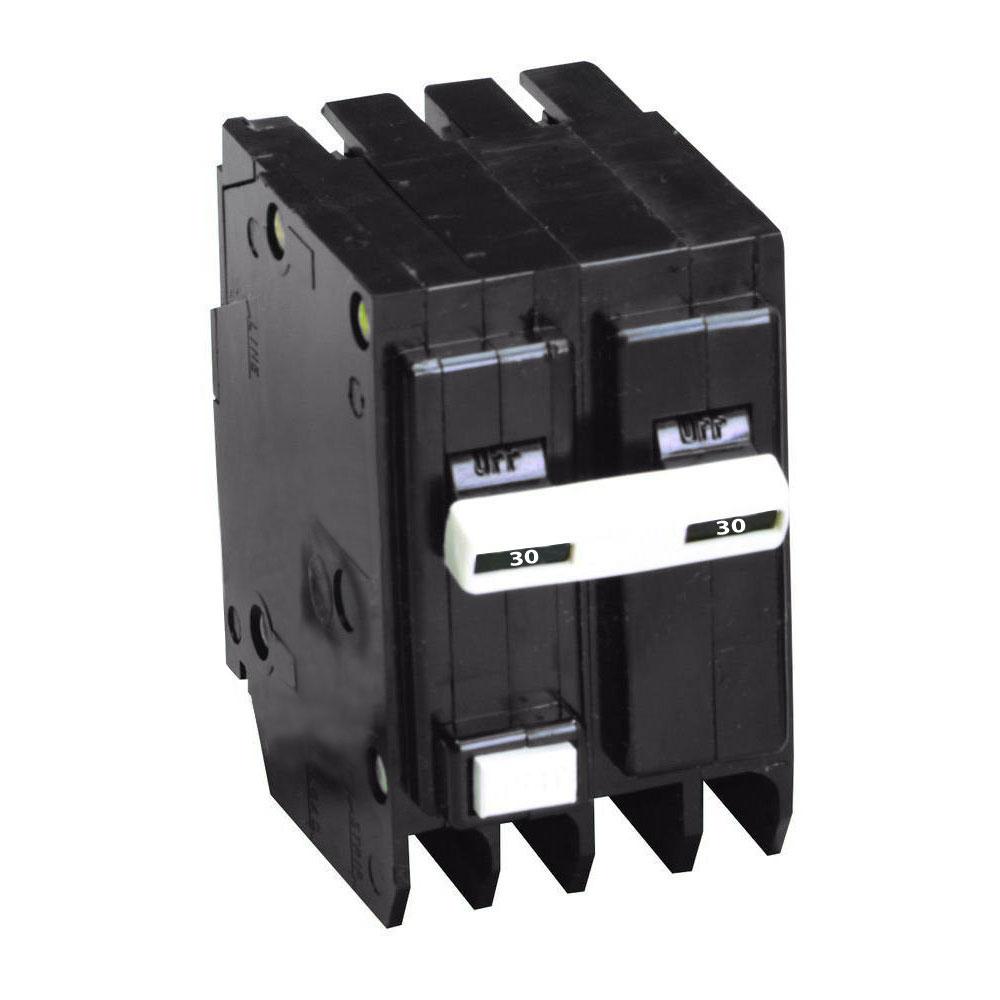

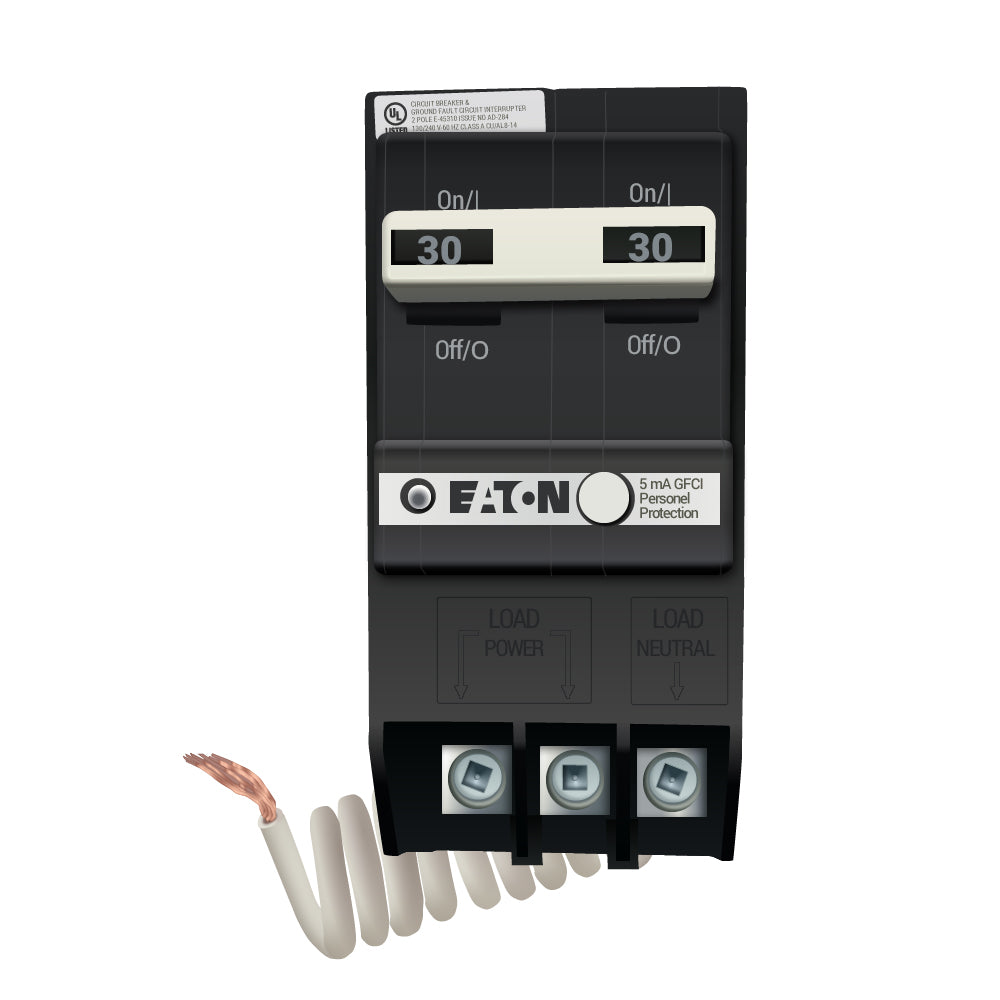

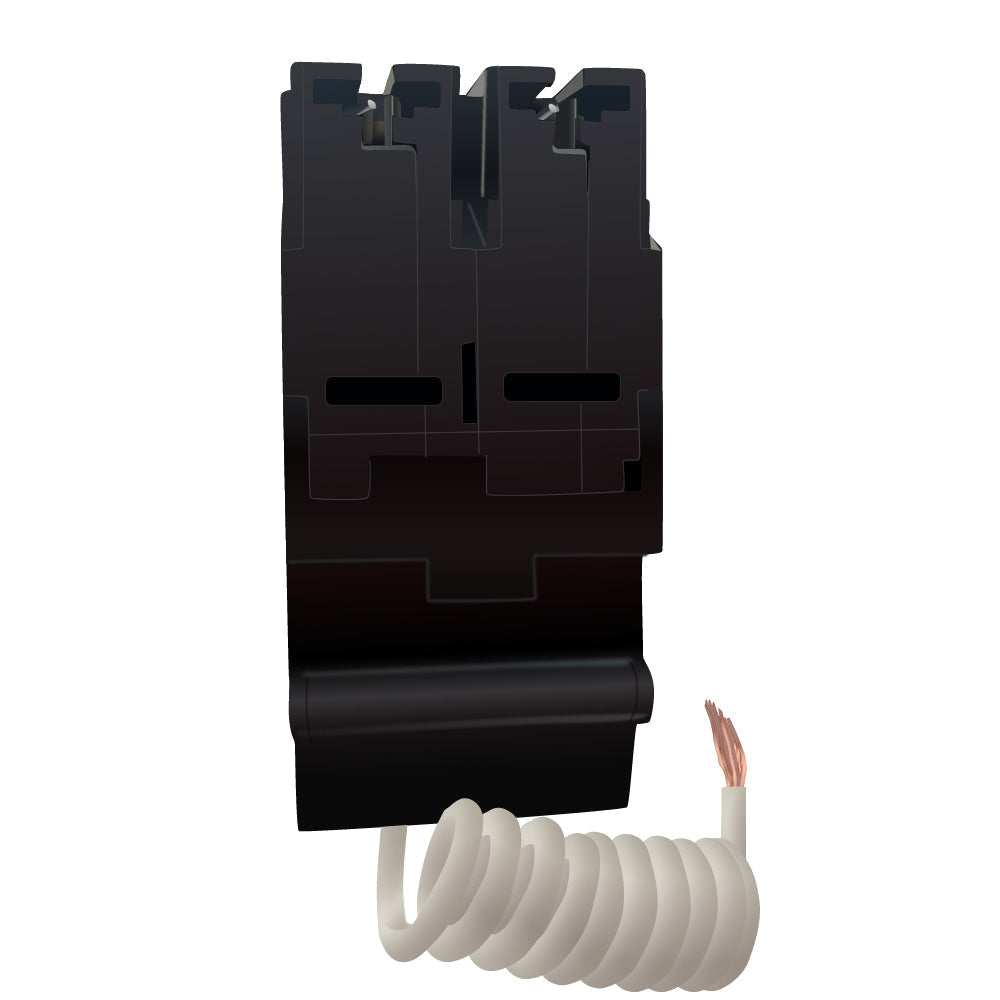

BRN230GF is a 2 pole, 30 amp ground fault circuit breaker from Eaton designed for 120/240V AC systems with a BRN frame.This Eaton BRN230GF breaker features a plug-in connection type, thermal magnetic protection with long time and instantaneous trip functions, and a 10kA interrupting rating at 120V. It provides personnel protection with a 5 mA trip sensitivity and meets UL 489, UL 943, UL 1053, and UL 1998 certifications. The breaker supports wire gauges from AWG 14 to AWG 4 and is suitable for single-phase applications.
- Key Specifications
- Manufacturer: Eaton
- Part Number: BRN230GF
- Amperage: 30 Amps
- Voltage: 120/240 VAC
- Poles: 2
- Interrupting Rating: 10 kAIC at 120V
- Frame Type: BRN
- Connection Type: Plug-In
- Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
- Trip Sensitivity: 5 mA (personnel protection)
- Wire Gauge Range: AWG 14 to AWG 4
- Certifications: UL Listed, cUL Approved
Specifications
- Part Number: BRN230GF
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BR Series
- Type : BRN
- Voltage : 240
- Amperage : 30
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : Long Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 78667604380
- GTIN : 00786676043809
- Dimensions : 4.25 in x 2 in x 3 in (Length/Depth x Height x Width)
- Weight : 1 lb
- Wire Size : AWG 14 to AWG 4
