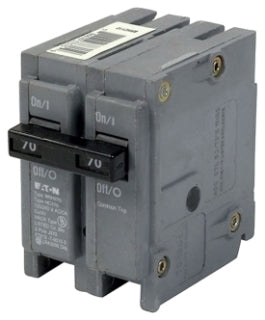

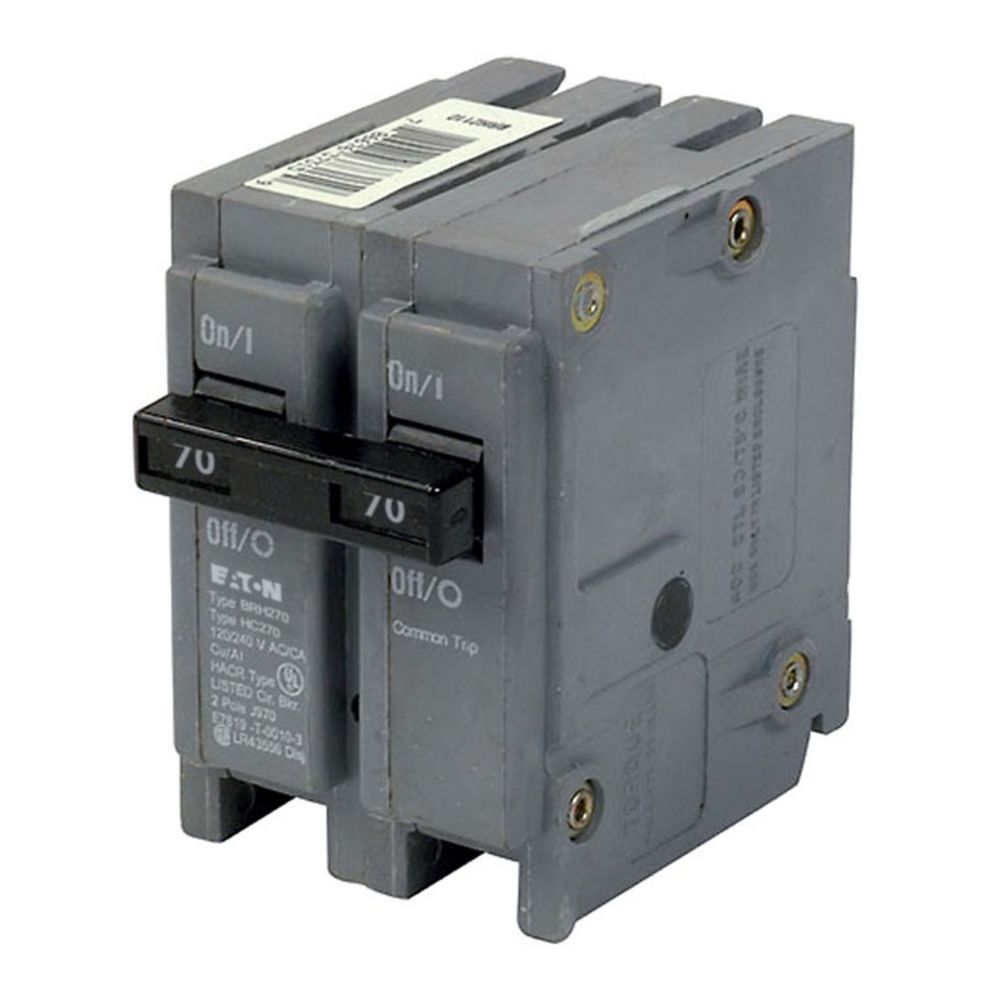

BRH270 - Cutler Hammer 2 Pole 70A 240V Plug-In Circuit Breaker

BRH270

BRH270 is a 2 pole, 70 amp rated molded case circuit breaker from the BR Series family designed for use in load centers and panelboards. This plug-in style breaker features thermal magnetic protection with long time and instantaneous trip functions, rated for 120/240VAC operation with a 22kA interrupting capacity at 240V. Key Specifications

• Part Number: BRH270
• Manufacturer: Cutler Hammer (Eaton)
• Series: BR
• Amperage: 70A
• Voltage: 120/240VAC
• Poles: 2
• Phase: 1
• Mounting Type: Plug-In
• Interrupting Rating: 22kAIC at 240V
• Wire Gauge: AWG 4 to AWG 1/0, Cu/Al
• Protection Type: Thermal Magnetic
• Certifications: UL, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BRH270
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BR Series
• Type : BRH
• Voltage : 240
• Amperage : 70
• Phase : 1
• Poles : 2
• AIC rating : 22kA@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786676373807
• GTIN : 00786676373807
• Country of Origin : Dominican Republic
• Dimensions : 3 in x 3 in x 2 in (Length/Depth x Height x Width)
• Weight : 0.6
• Certification : UL 490,Federal Specifications Classification W-C376
• Wire Size : AWG 4 to AWG 1/0, Cu/Al
