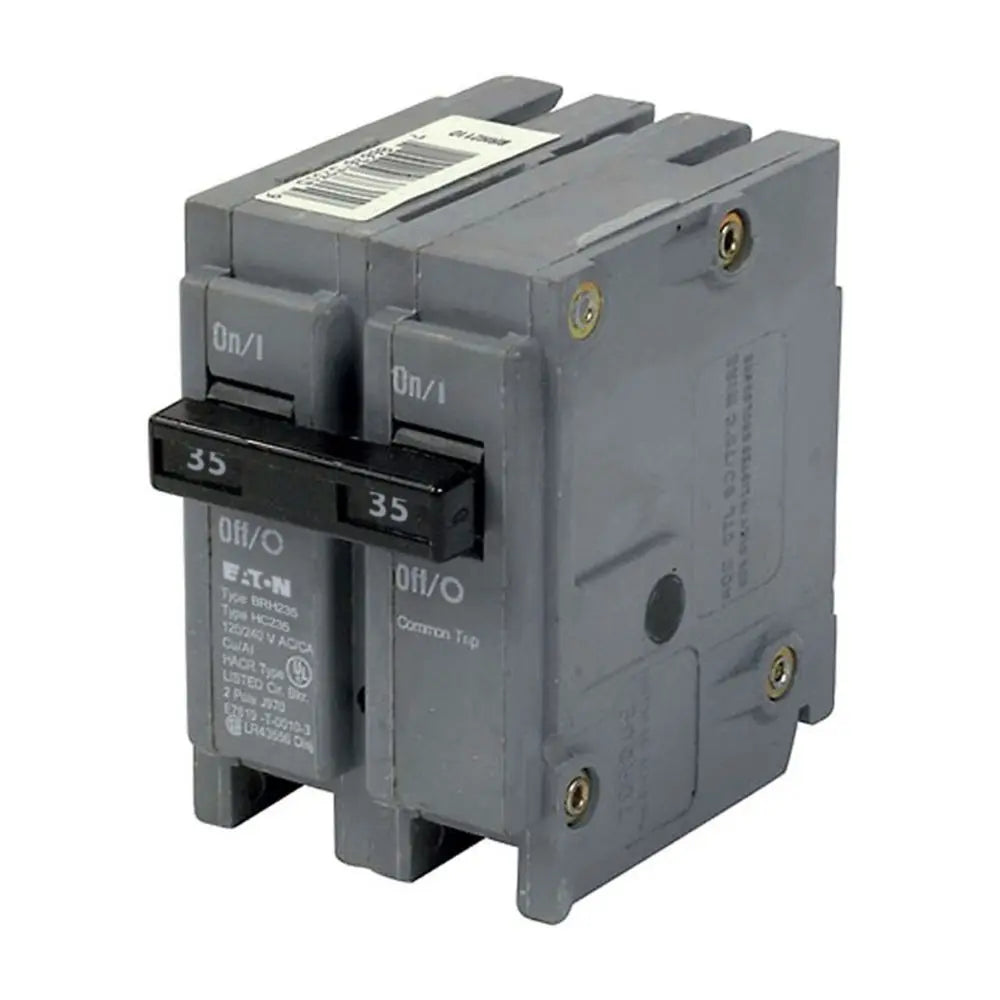

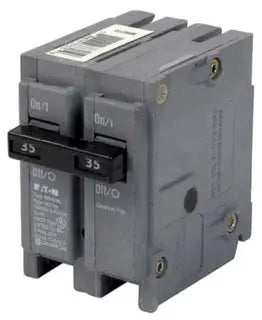

BRH235 - Cutler Hammer 35A 2-Pole 120/240V Type BR Plug-On Circuit Breaker, 22kA Interrupt Rating, Thermal Magnetic Trip, UL 490 Certified

BRH235

BRH235 is a Cutler Hammer 2-pole, 35A, 120/240V circuit breaker designed for Type BR loadcenters.

This thermal magnetic molded case circuit breaker features a plug-on mounting style, common trip mechanism, and is rated for 22kA interrupting capacity. It is UL 490 certified and suitable for both copper and aluminum wire sizes #14-4 AWG. The BRH235 is ideal for residential and light commercial applications requiring reliable circuit protection.

Key Specifications

• Part Number: BRH235
• Manufacturer: Cutler Hammer (Eaton)
• Amperage: 35A
• Voltage: 120/240V
• Poles: 2
• Mounting Type: Plug-on
• Interrupt Rating: 22kAIC
• Series/Frame: Type BR
• Trip Unit: Thermal magnetic, common trip
• Certifications: UL 490
• Wire Size: #14-4 AWG Cu/Al
• Product Dimensions: 3" x 3" x 2"
• Warranty: Limited lifetime residential, 1 year commercial

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BRH235
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BR Series
• Type : BRH
• Voltage : 240
• Amperage : 35
• Phase : 1
• Poles : 2
• AIC rating : 22kA@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 782114372159
• GTIN : 00782114372159
• Country of Origin : Dominican Republic
• Dimensions : 3 in x 3 in x 2 in (Length/Depth x Height x Width)
• Weight : 0.6
• Certification : UL 490,Federal Specifications Classification W-C376
• Wire Size : AWG 14 to AWG 4, Cu/Al
