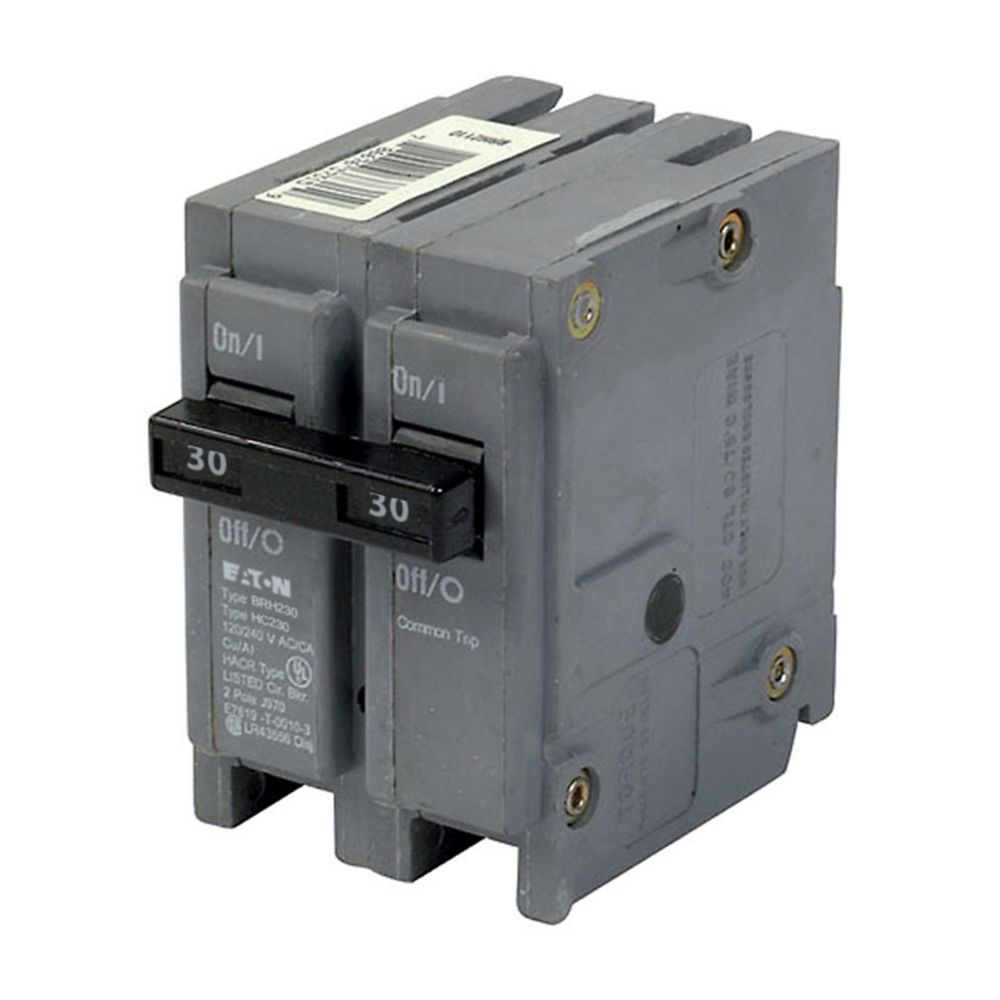

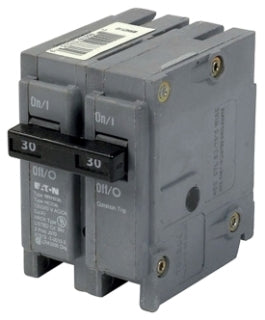

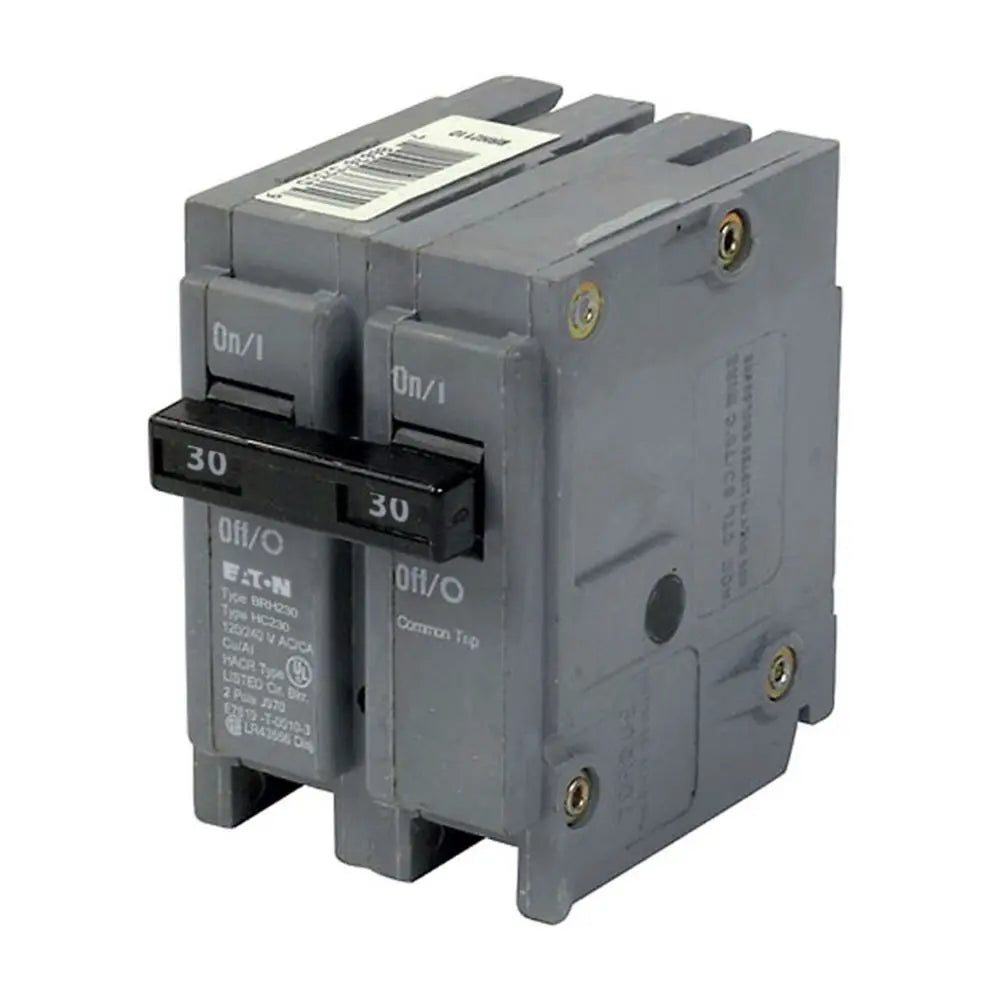

BRH230 - Cutler Hammer 30A 120/240V 2-Pole Plug-On BR Thermal Magnetic Circuit Breaker 22kAIC

BRH230

BRH230 is a Cutler Hammer 2-pole thermal magnetic circuit breaker rated for 30 amps and 120/240 volts, designed for plug-on mounting in Type BR loadcenters.This BRH230 breaker features a high-magnetic trip unit with a common breaker trip, an interrupt rating of 22 kAIC, and supports wire sizes from #14 to 4 AWG copper or aluminum. It complies with UL 490 and Federal Specifications Classification W-C376.

• Amperage Rating: 30 A
• Voltage Rating: 120/240 V
• Number of Poles: 2
• Mounting Type: Plug-On
• Interrupt Rating: 22 kAIC
• Trip Type: Common breaker trip
• Wire Size: #14-4 AWG Cu/Al
• Series/Frame: BRH
• Circuit Breaker Type: BR Thermal Magnetic
• Certifications: UL 490
• Compliance: Federal Specifications W-C376
• Used With: Type BR Loadcenters

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BRH230
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BR Series
• Type : BRH
• Voltage : 240
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 22kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 786676373609
• GTIN : 00786676373609
• Country of Origin : United States
• Dimensions : 3 in x 3 in x 2 in (Length/Depth x Height x Width)
• Weight : 0.6
• Certification : UL 490,Federal Specifications Classification W-C376
