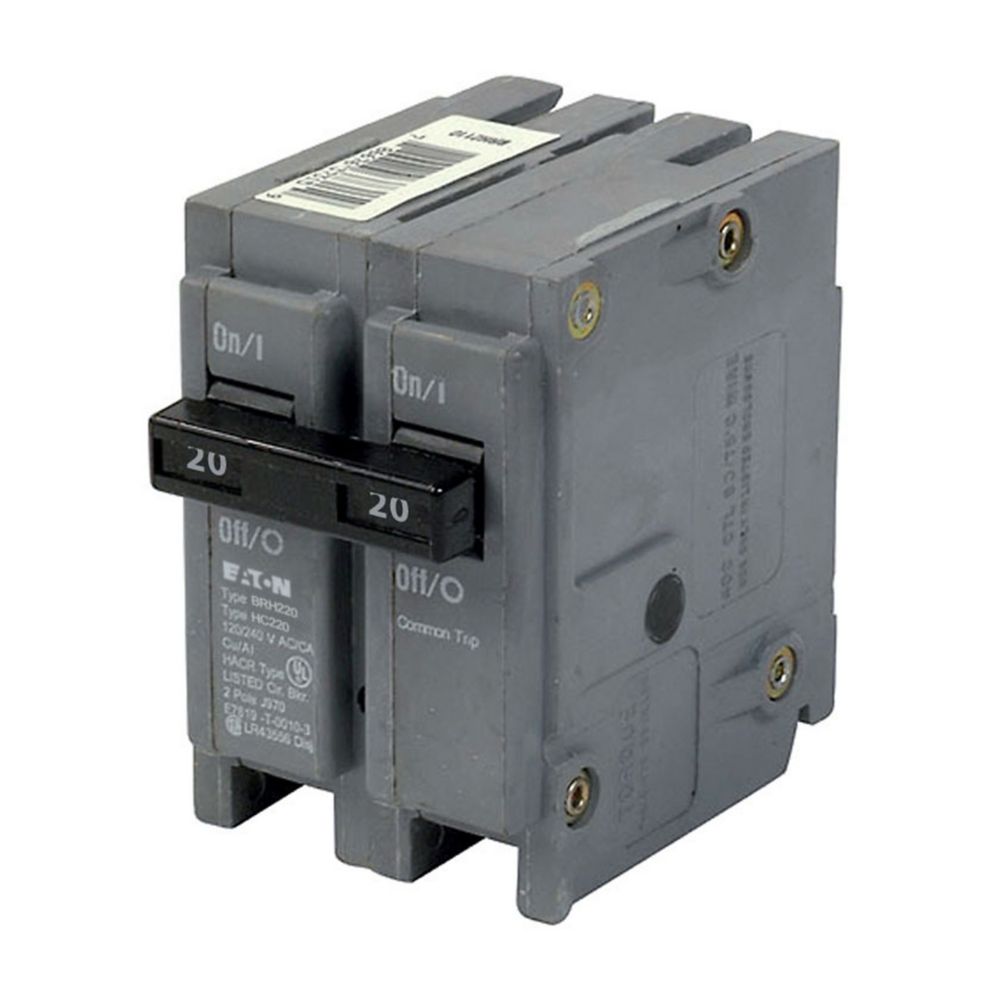

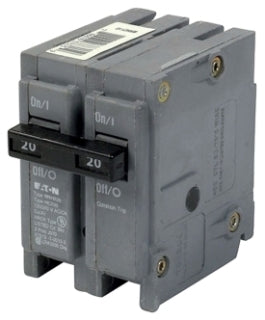

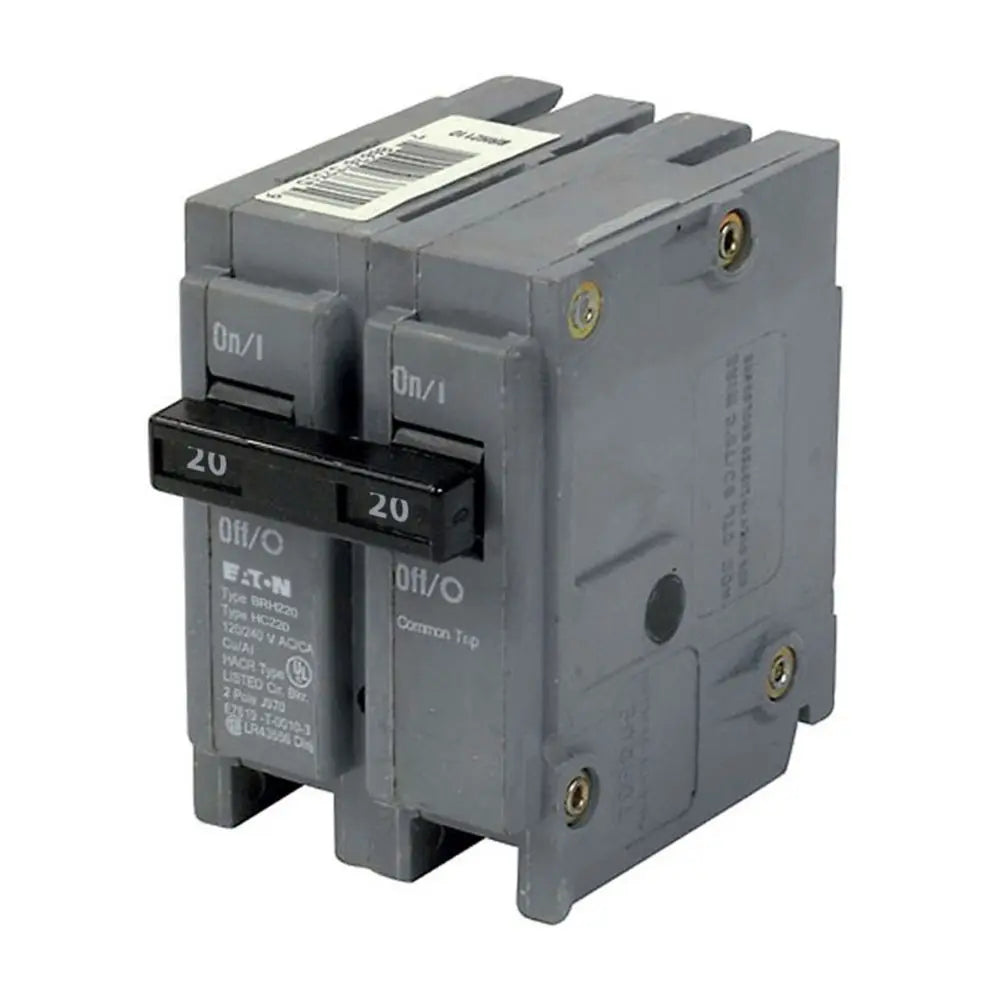

BRH220 - Cutler Hammer 20A 2-Pole 240V Molded Case Circuit Breaker, 22kAIC, Plug-In Mount, BR Series, Thermal Magnetic Trip

BRH220

BRH220 is a Cutler Hammer molded case circuit breaker designed for reliable circuit protection in residential and light commercial applications.

This 2-pole, 20A, 240V breaker features a thermal magnetic trip unit for both overload and short-circuit protection, with a 22kA interrupting rating at 240V. It is plug-in mounted for easy installation in BR Series load centers and supports both copper and aluminum wire connections.

Key Specifications
• Part Number: BRH220
• Manufacturer: Cutler Hammer (Eaton)
• Amperage: 20A
• Voltage: 120/240V
• Poles: 2
• Mounting Type: Plug-In
• Interrupt Rating: 22kA at 240V
• Series/Frame: BR Series, Type BRH
• Trip Unit: Thermal Magnetic, Common Trip
• Wire Range: #14-4 AWG Cu/Al
• Phase: 1
• Certifications: Not specified in available data

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BRH220
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BR Series
• Type : BRH
• Voltage : 240
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 22kA@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786676373500
• GTIN : 00786676373500
• Country of Origin : Dominican Republic
• Dimensions : 3 in x 3 in x 2 in (Length/Depth x Height x Width)
• Weight : 0.6
• Certification : UL 490,Federal Specifications Classification W-C376
• Wire Size : AWG 14 to AWG 4, Cu/Al
