BR2030 - Cutler Hammer 20/30 Amp 1-Pole 120V Plug-On Thermal Magnetic Circuit Breaker, Type BR, 10kAIC, UL 489 Listed, CSA Certified

BR2030

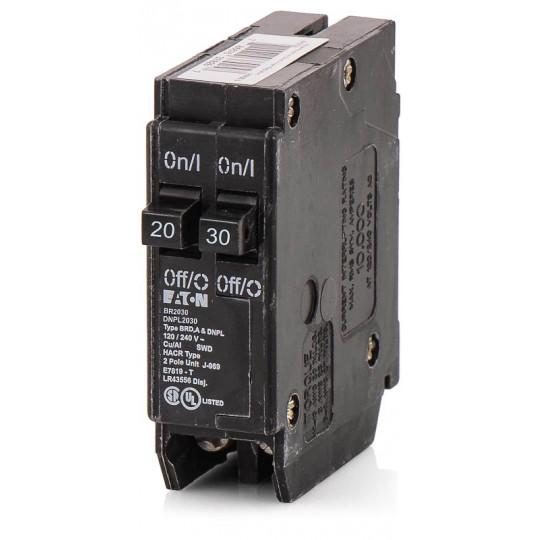

BR2030 is a Cutler Hammer (Eaton) 1-inch plug-on, thermal magnetic circuit breaker designed for Type BR loadcenters.

This duplex breaker features two independent poles—20A on the outside and 30A on the inside—providing flexible circuit protection in a compact, space-saving design. It is rated for 120VAC, supports copper or aluminum wire sizes #14–4 AWG, and is UL 489 listed and CSA certified for safety and reliability.

Key Specifications

• Part Number: BR2030
• Manufacturer: Cutler Hammer (Eaton)
• Amperage: 20A (outside pole), 30A (inside pole)
• Voltage: 120VAC
• Poles: 2 (duplex, 1-inch width)
• Mounting Type: Plug-on
• Interrupt Rating: 10,000 AIC
• Series/Frame: Type BR
• Trip Unit: Thermal magnetic, common trip
• Certifications: UL 489 Listed, CSA Certified
• Wire Size: #14–4 AWG Cu/Al
• Approvals: Federal Specifications Classification W-C375

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BR2030
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BR Series
• Type : BR
• Voltage : 120
• Amperage : 30
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 786676006606
• GTIN : 00786676006606
• Country of Origin : Dominican Republic
• Dimensions : 3 in x 3 in x 1 in (Length/Depth x Height x Width)
• Weight : 0.3 lb
• Certification : UL 489,Federal Specifications Classification W-C375
• Wire Size : AWG 14 to AWG 4, Cu/Al
