2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Cutler Hammer
Description
BR2024B100R

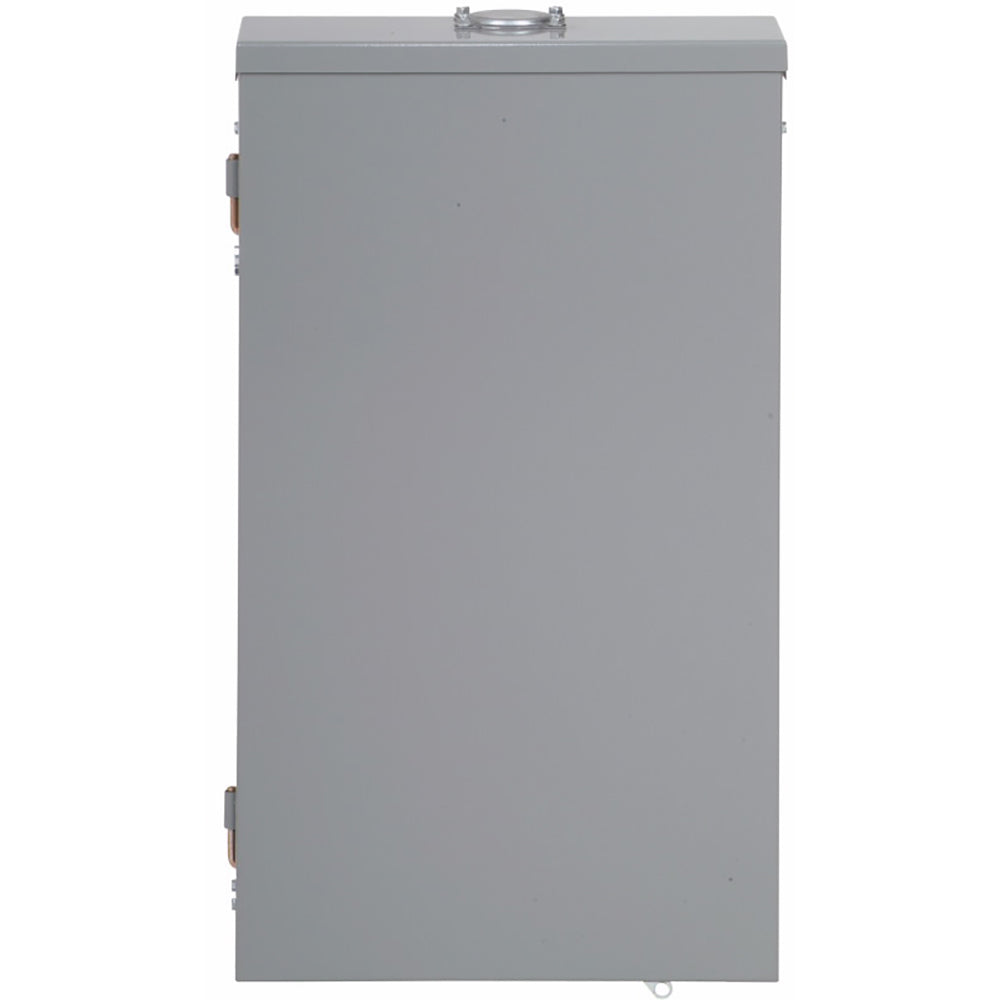

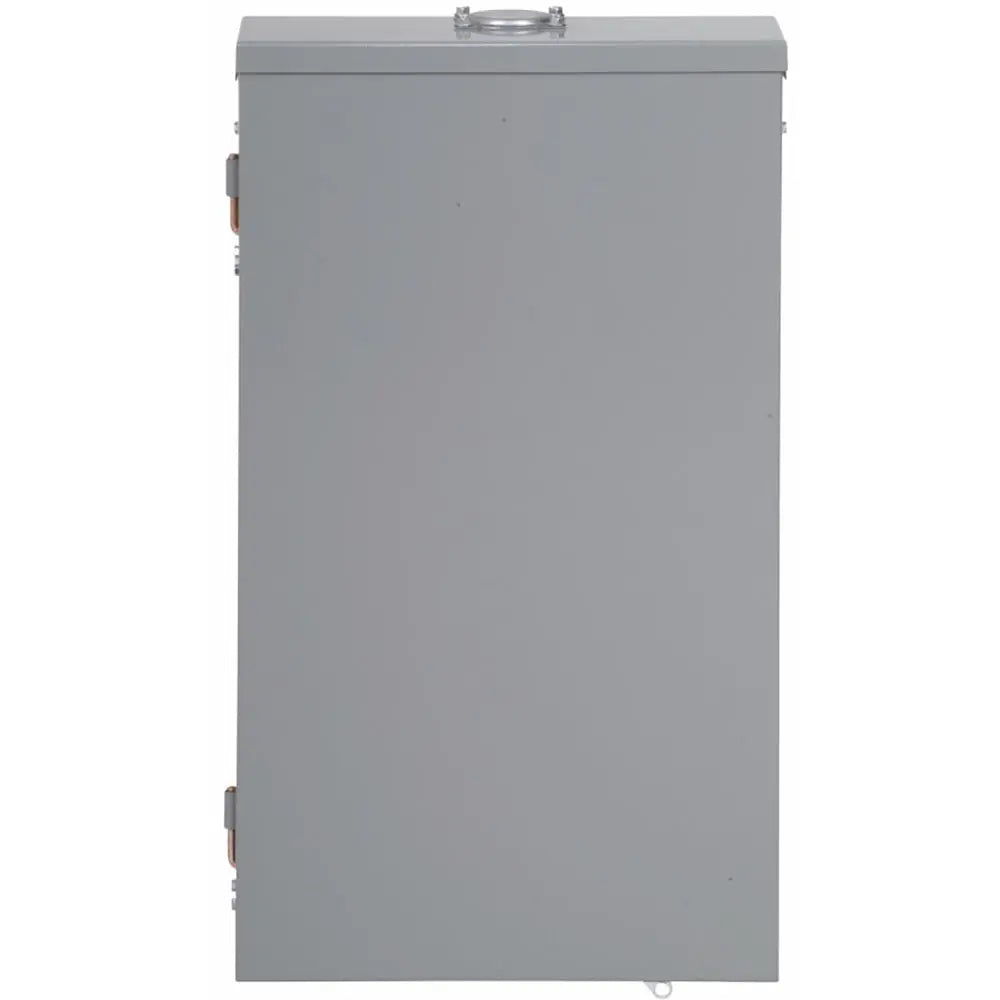

BR2024B100R is a Cutler Hammer BR series main breaker load center designed for reliable power distribution in residential and light commercial applications. This load center features a 100A main breaker, 24-pole configuration, and 20 spaces for circuit breakers, supporting up to 24 circuits. It is built with an aluminum bus bar and comes with a NEMA 3R outdoor-rated enclosure for surface mounting. The unit includes a cover and main breaker, and is rated for 120/240V single-phase service with a 10 kAIC interrupt rating. No feed-thru lugs are included, making it ideal for straightforward installations. Key Specifications
- Part Number: BR2024B100R
- Manufacturer: Cutler Hammer
- Series/Frame: BR
- Amperage Rating: 100A
- Voltage Rating: 120/240V
- Number of Poles: 24
- Number of Spaces: 20
- Number of Circuits: 24
- Mounting Type: Surface
- Interrupt Rating: 10 kAIC
- Enclosure Type: NEMA 3R
- Bus Bar Material: Aluminum
- Special Features: No feed-thru lugs, cover included
Specifications
- Part Number: BR2024B100R
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
Product Data
- UPC : 786676444354
- GTIN : 00786676000000
- Dimensions : 26.7 in x 6 in x 16.5 in (Length/Depth x Height x Width)
- Weight : 30.6
