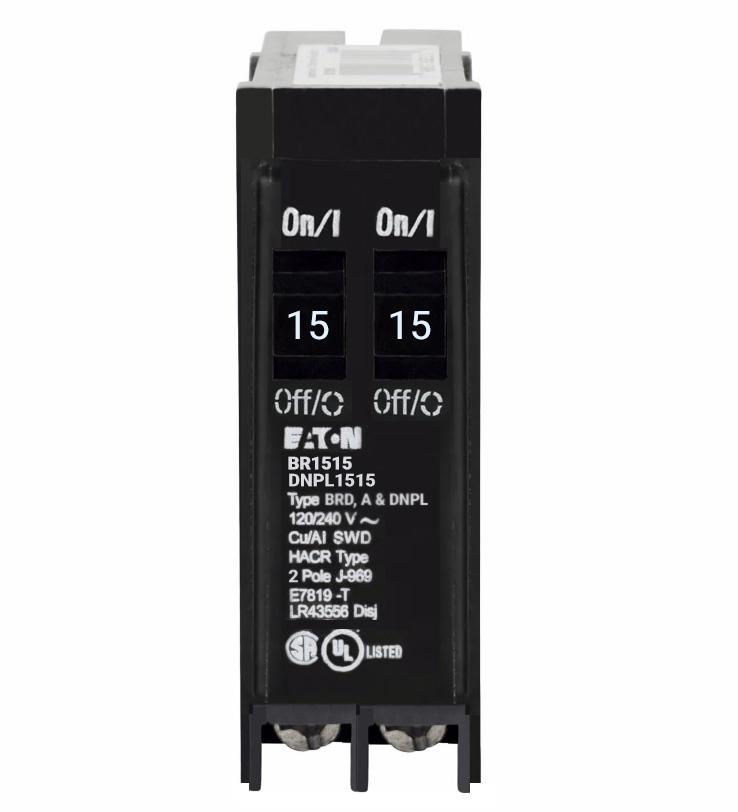

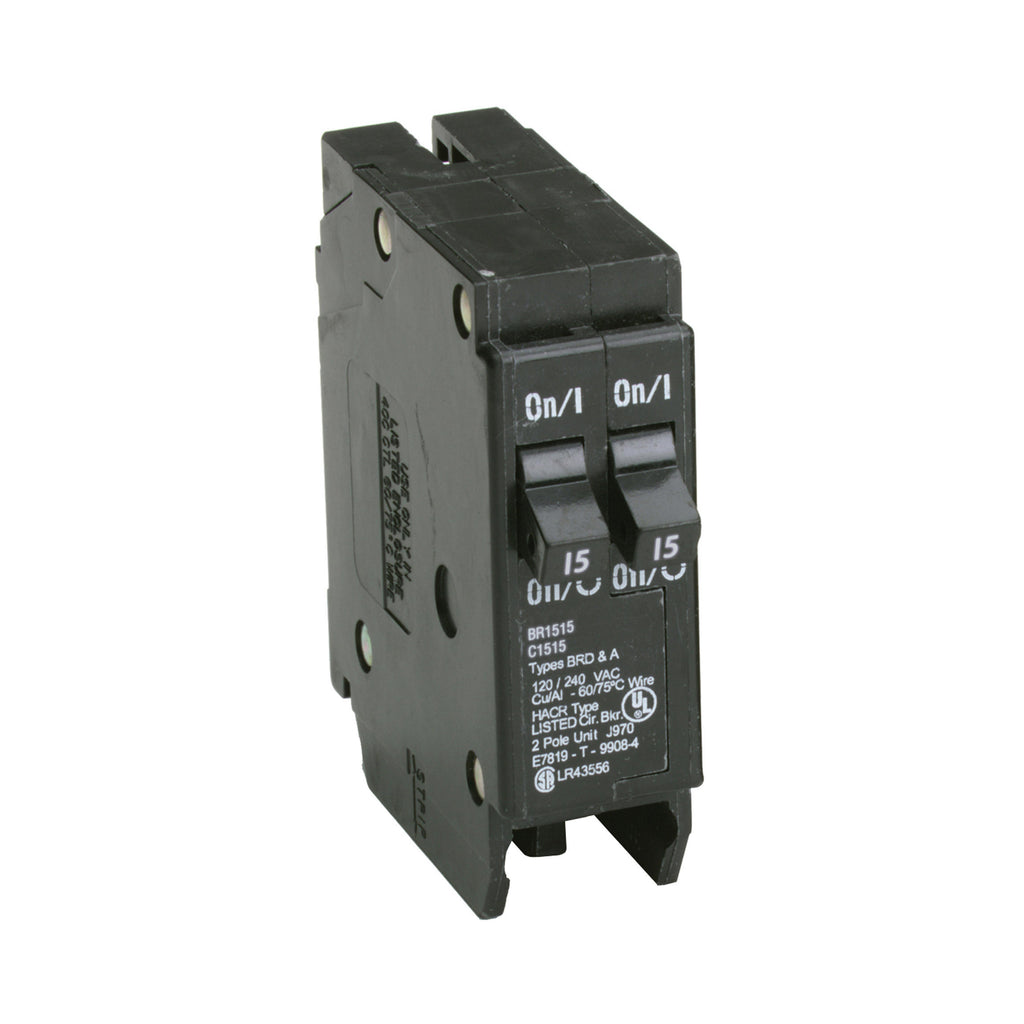

BR1515 - Eaton Cutler-Hammer 15/15 Amp Tandem Single Pole Plug-On Circuit Breaker, 120/240V, 10kAIC, Type BR, Thermal Magnetic Trip

BR1515

BR1515 is an Eaton Cutler-Hammer tandem single pole circuit breaker designed for reliable circuit protection in residential and light commercial applications.

This thermal magnetic circuit breaker features two 15 amp circuits in a single-pole, plug-on design, offering space-saving installation in Type BR loadcenters. It provides both long-time and instantaneous trip functions for enhanced safety and is rated for 120/240V operation with a 10kA interrupting capacity.

Key Specifications
• Part Number: BR1515
• Manufacturer: Eaton, Cutler-Hammer
• Amperage: (2) 15A
• Voltage: 120/240V
• Poles: Single-pole (tandem)
• Mounting Type: Plug-on
• Interrupt Rating: 10 kAIC at 120V
• Series/Frame: Type BR
• Trip Unit: Thermal magnetic
• Certifications: HACR Rated (contact manufacturer for details)
• Conductor Size: 14-4 AWG
• Dimensions: 3" x 1" x 3"

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BR1515
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BR Series
• Type : BR
• Voltage : 120
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 4 AWG (Cu/Al)
• Breaker Type : BR
• Protection : Thermal Magnetic

Product Data

• UPC : 786676370059
• GTIN : 00786676370059
• Country of Origin : United States
• Dimensions : 1 in x 2.5 in x 2.9 in (Length/Depth x Height x Width)
• Weight : 0.35
• Panel Type : Type BR Loadcenters
• Standards : UL 489
• Certification : UL 489
• Wire Size : AWG 14 to 4 AWG, Cu/Al
