BR130 - Eaton 30 Amp 1 Pole 120/240V Type BR Plug-On Circuit Breaker, 10kAIC, Thermal Magnetic Trip, UL Listed

BR130

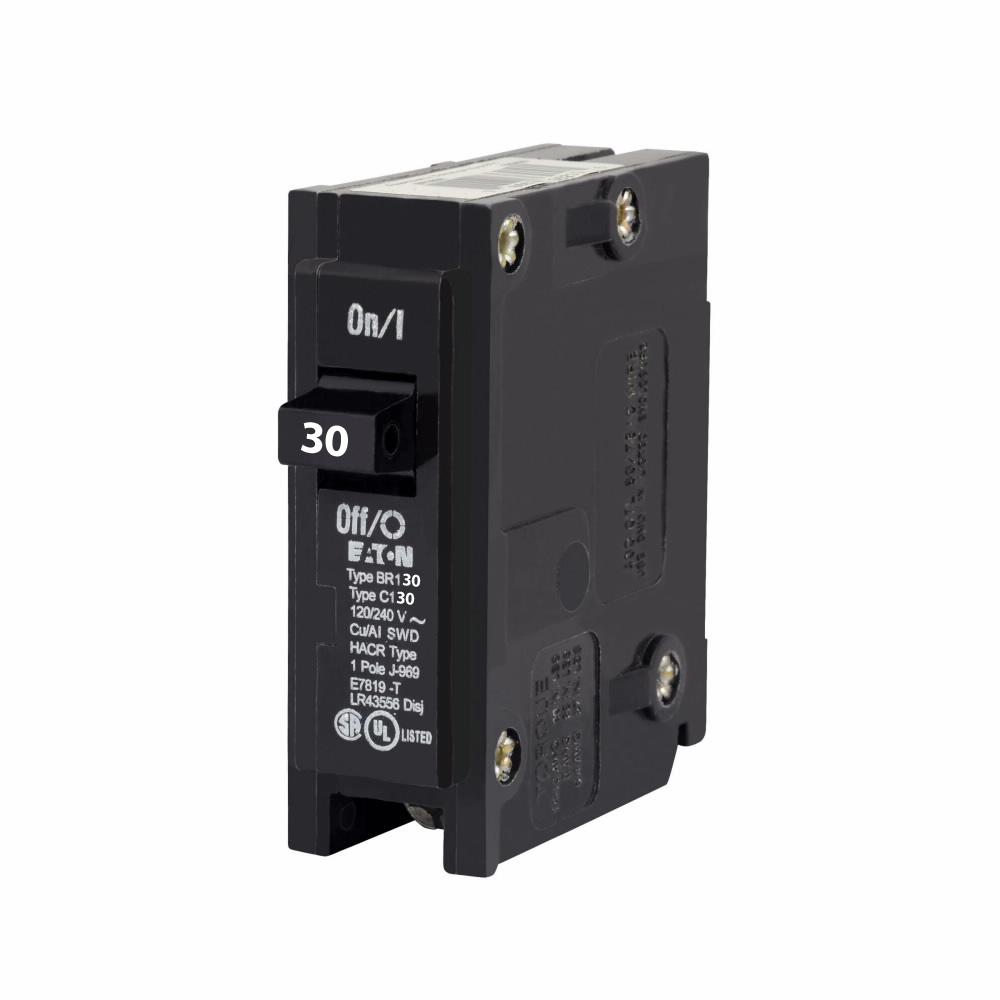

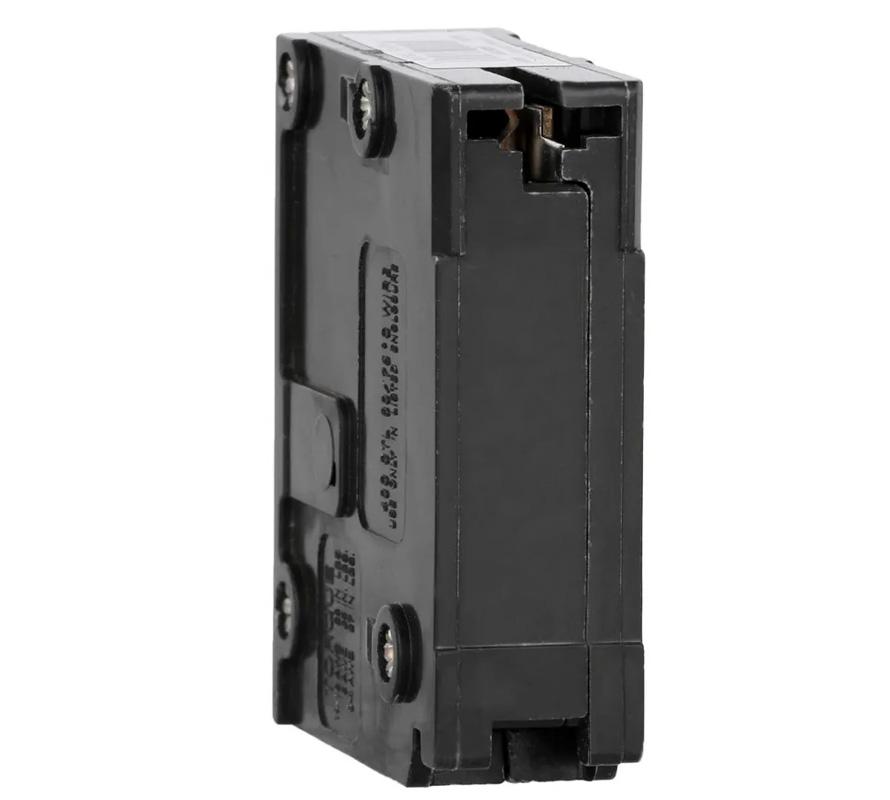

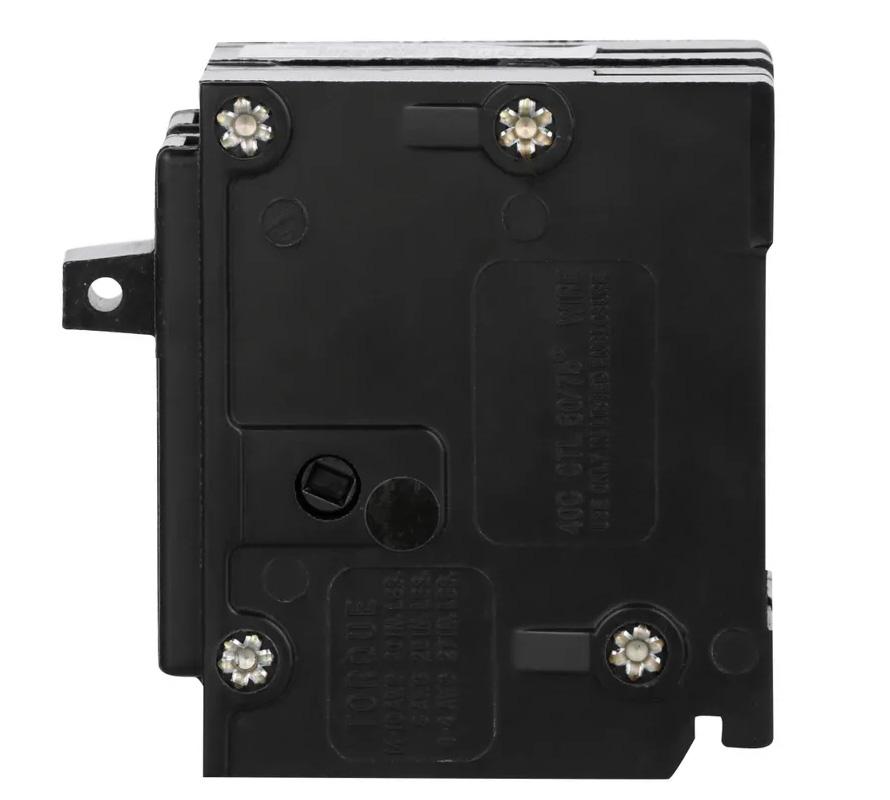

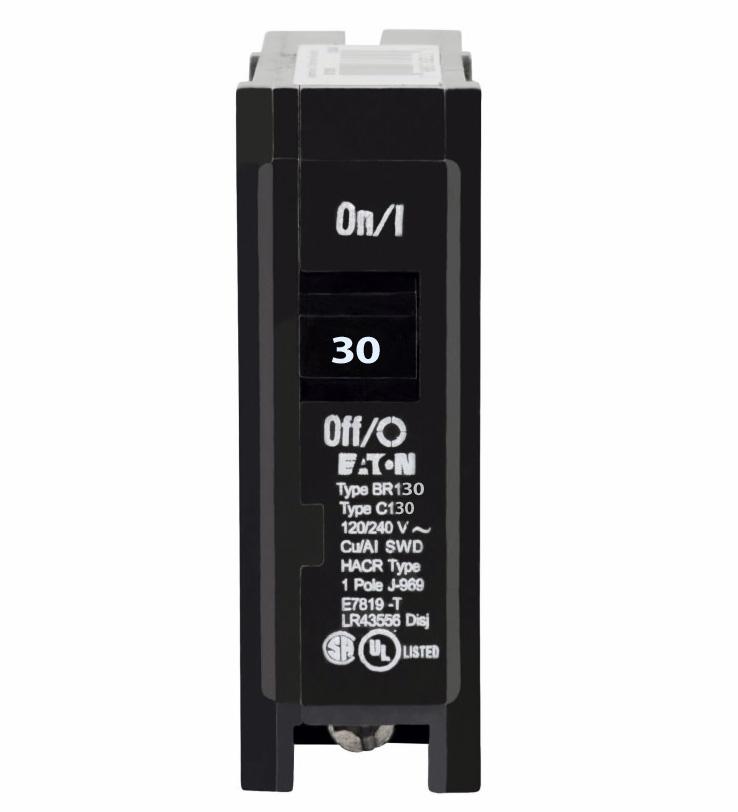

BR130 is a single-pole, plug-on circuit breaker from Eaton, designed for reliable circuit protection in residential and light commercial applications.

This thermal magnetic circuit breaker features a 30 Amp current rating, 120/240V voltage rating, and a 10kAIC interrupting capacity. It is compatible with Type BR loadcenters and supports copper or aluminum wire sizes from 14 to 4 AWG. The BR130 is UL listed and offers both long-time and instantaneous trip protection for enhanced safety.

Key Specifications

• Part Number: BR130
• Manufacturer: Eaton
• Amperage: 30 A
• Voltage: 120/240 VAC
• Poles: 1
• Mounting Type: Plug-On
• Interrupt Rating: 10 kAIC at 120V
• Series/Frame: Type BR
• Trip Unit: Thermal Magnetic (LI)
• Certifications: UL Listed
• Wire Size: 14 to 4 AWG Cu/Al
• Actuator Type: Toggle
• Dimensions: Approx. 1"W x 2.88"L x 2.56"D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BR130
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BR Series
• Type : BR
• Voltage : 7
• Amperage : 30
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 4 AWG (Cu/Al)
• Breaker Type : BR
• Protection : Thermal Magnetic

Product Data

• UPC : 786676362207
• GTIN : 00786676362207
• Country of Origin : United States
• Dimensions : 3 in x 3 in x 1 in (Length/Depth x Height x Width)
• Weight : 0.293
• Panel Type : Type BR Loadcenters
• Standards : UL 489
• Certification : UL 489
• Wire Size : AWG 14 to AWG 4, Cu/Al
