Description
BQD6320

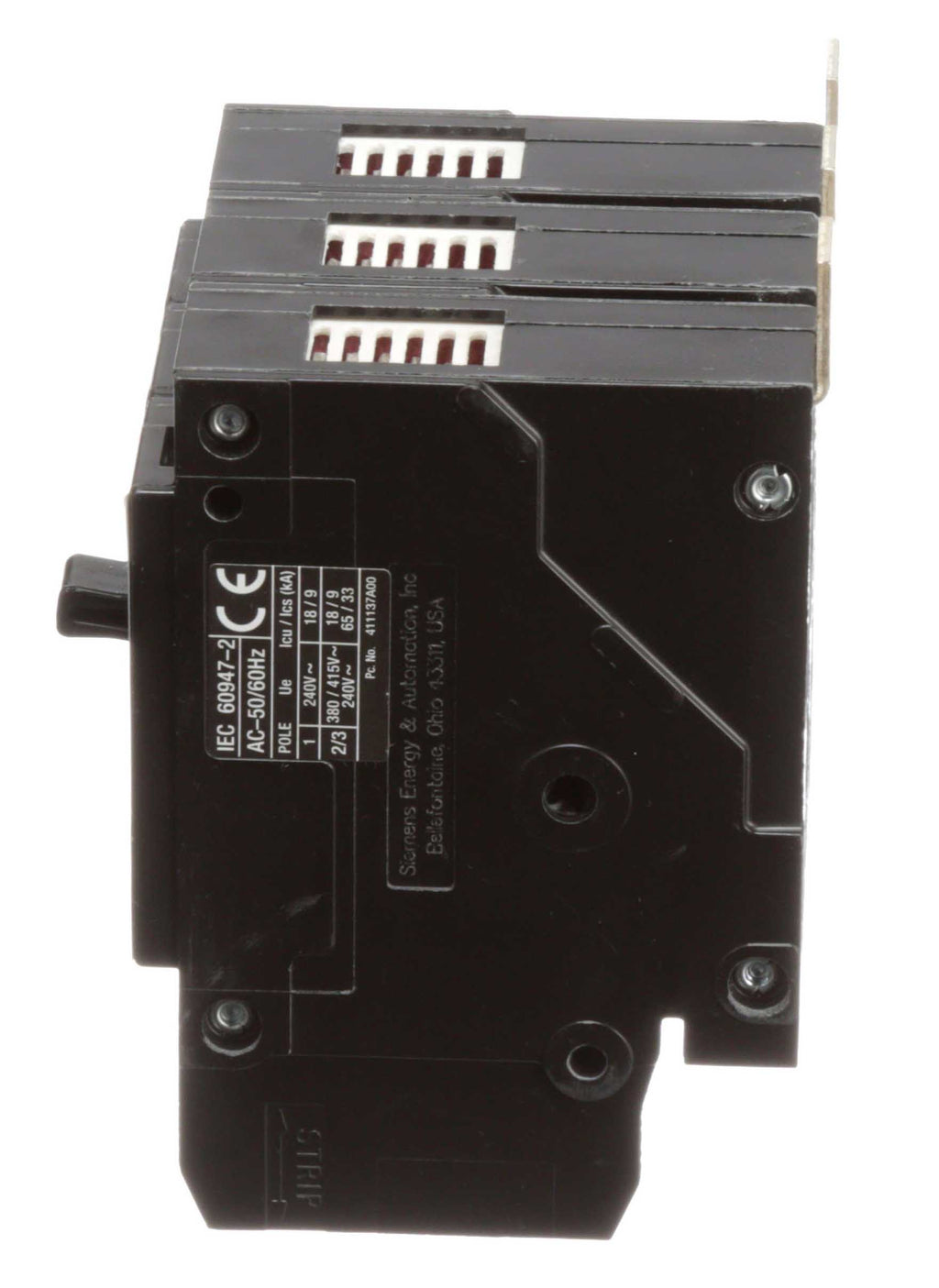

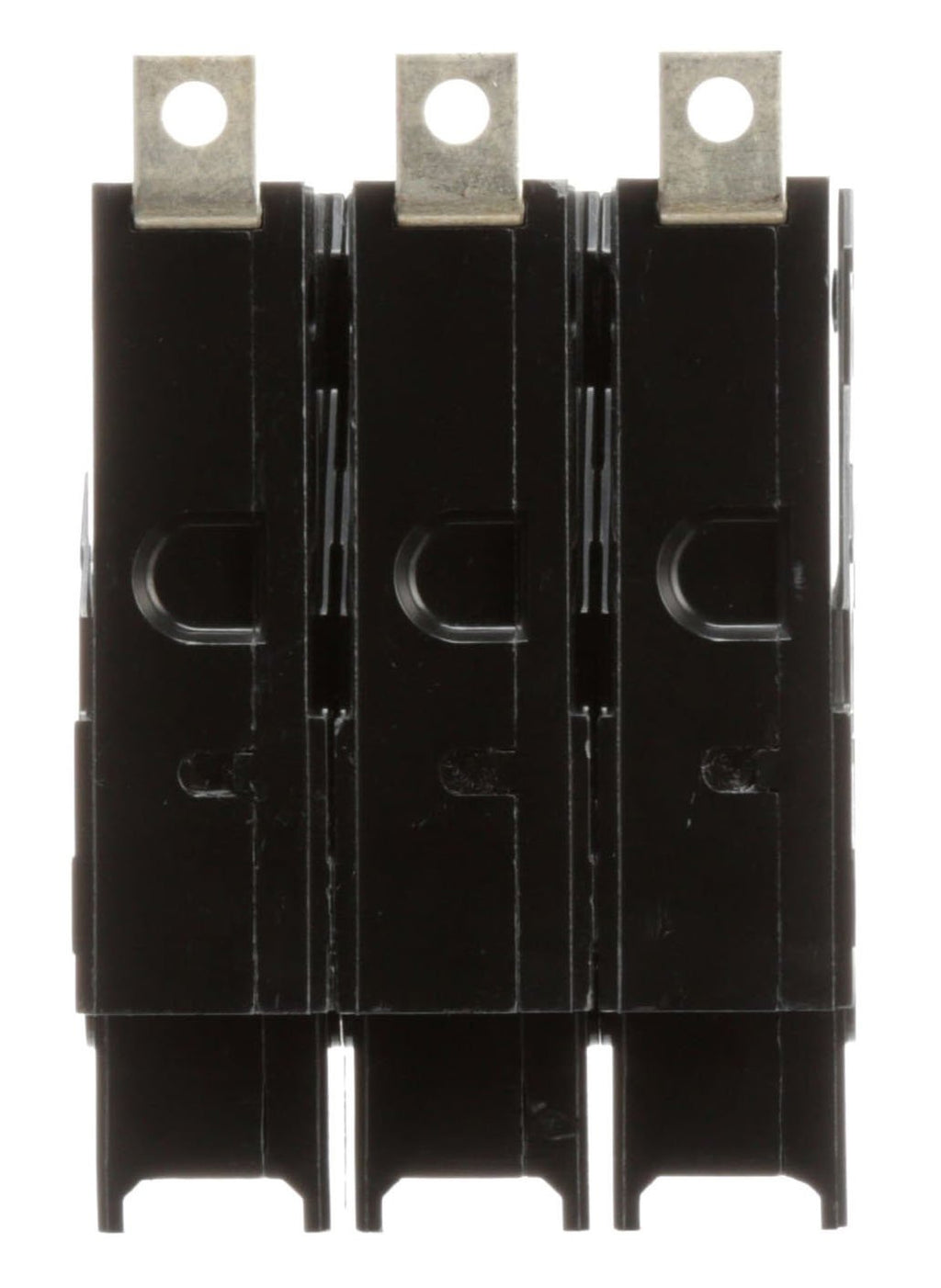

BQD6320 is a Siemens 3-pole, 20 amp, 600/347 VAC molded case circuit breaker from the BQD Series designed for panelboard mounting. The Siemens BQD6320 features thermal magnetic protection with a 10kA interrupt rating at 600 VAC, suitable for commercial and industrial applications. It includes LI (Long-Time and Instantaneous) trip functionality and meets UL 489 and CSA C22.2 standards.
- Key Specifications
- Amperage: 20 Amps
- Voltage Rating: 600/347 VAC
- Poles: 3
- Mounting Type: Panelboard Mounting
- Interrupt Rating: 10 kA @ 600 VAC
- Series/Frame: BQD Series, Frame 100A
- Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous)
- Connection Type: Low Tab
- Certifications: UL 489, CSA C22.2
- Dimensions: 4.00" x 3.00" x 3.00"
- Weight: 0.9 lbs
Specifications
- Part Number: BQD6320
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BQD Series
- Type : BQD6
- Voltage : 600
- Amperage : 20
- Phase : 3
- Poles : 3
- AIC rating : 10kA@600V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- Breaker Type : Standard
- Protection : Thermal Magnetic
Product Data
- UPC : 783643304543
- GTIN : 00783643304543
- Country of Origin : Mexico
- Weight : 1.671
- Panel Type : Siemens P1 Panelboards
- Wire Size : AWG 14 to AWG 6, AWG 12 to AWG 6
