Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
BQD130

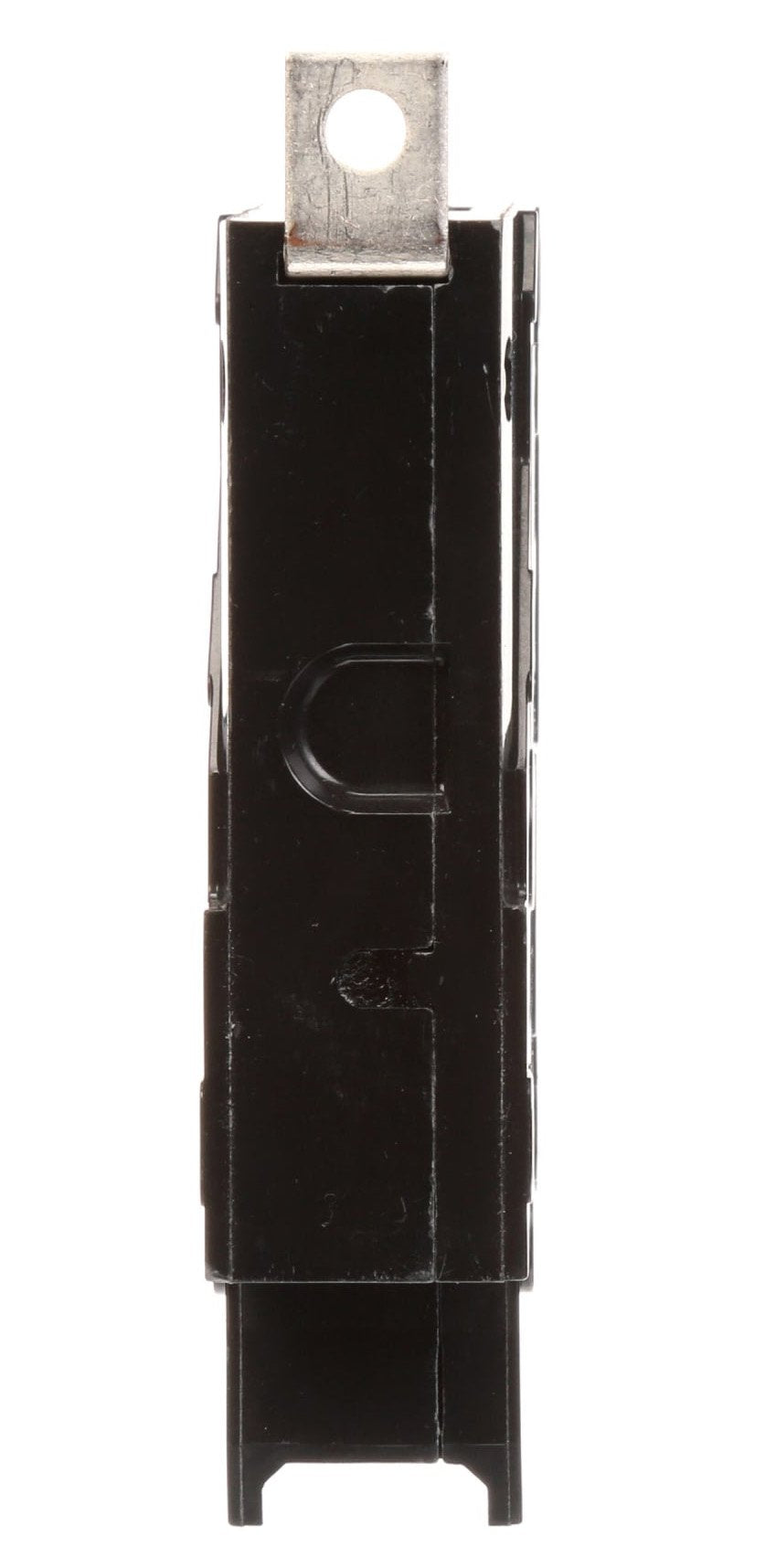

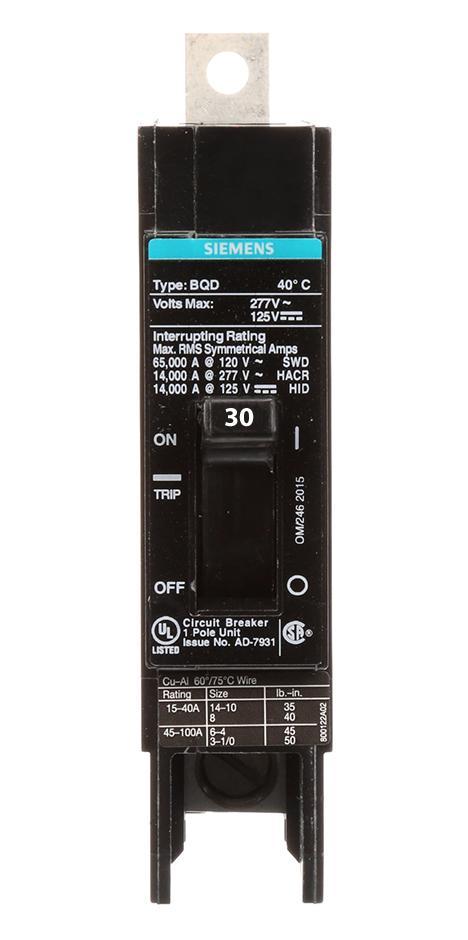

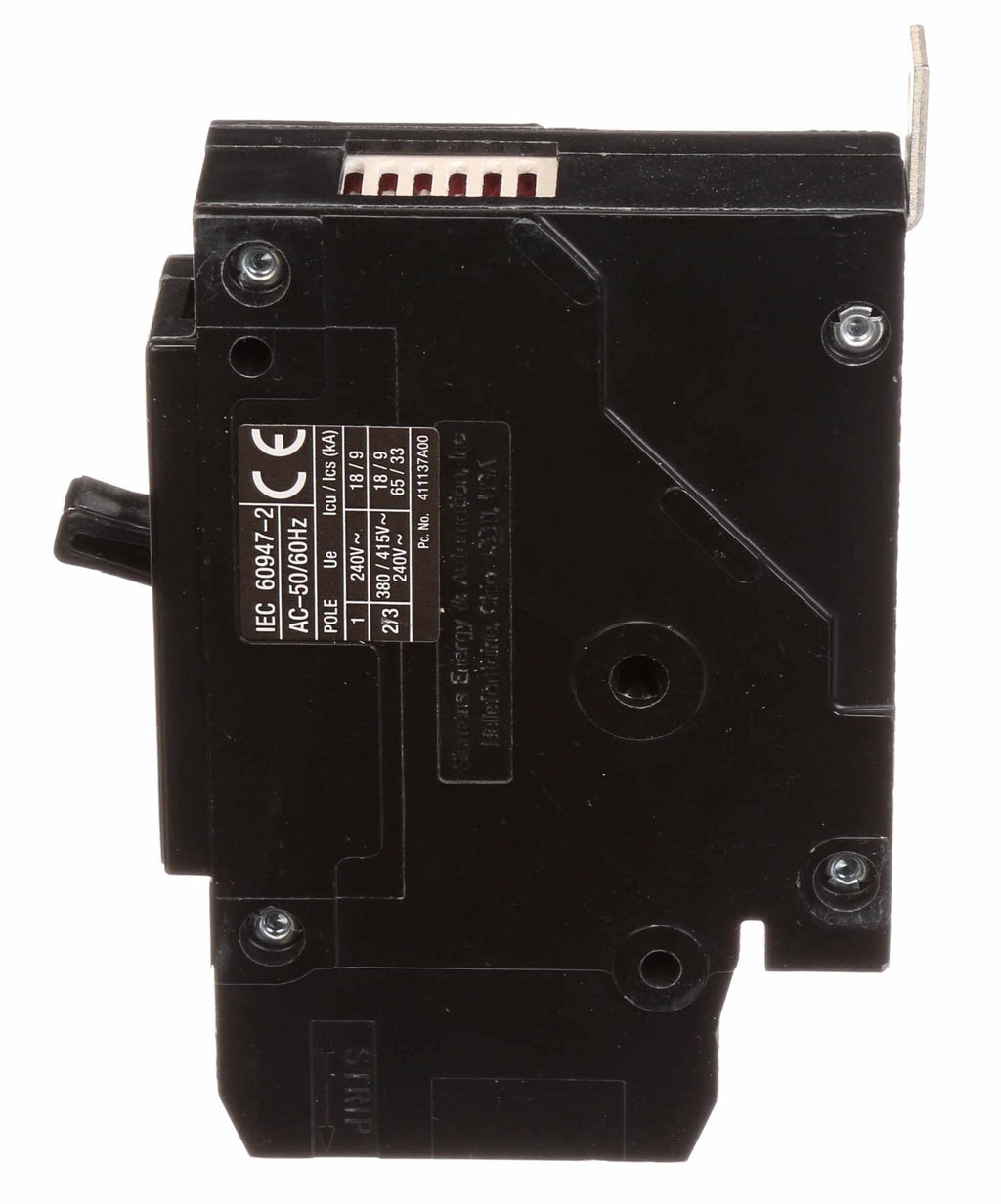

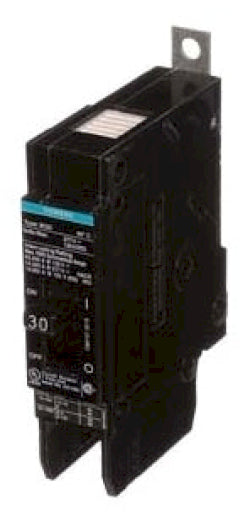

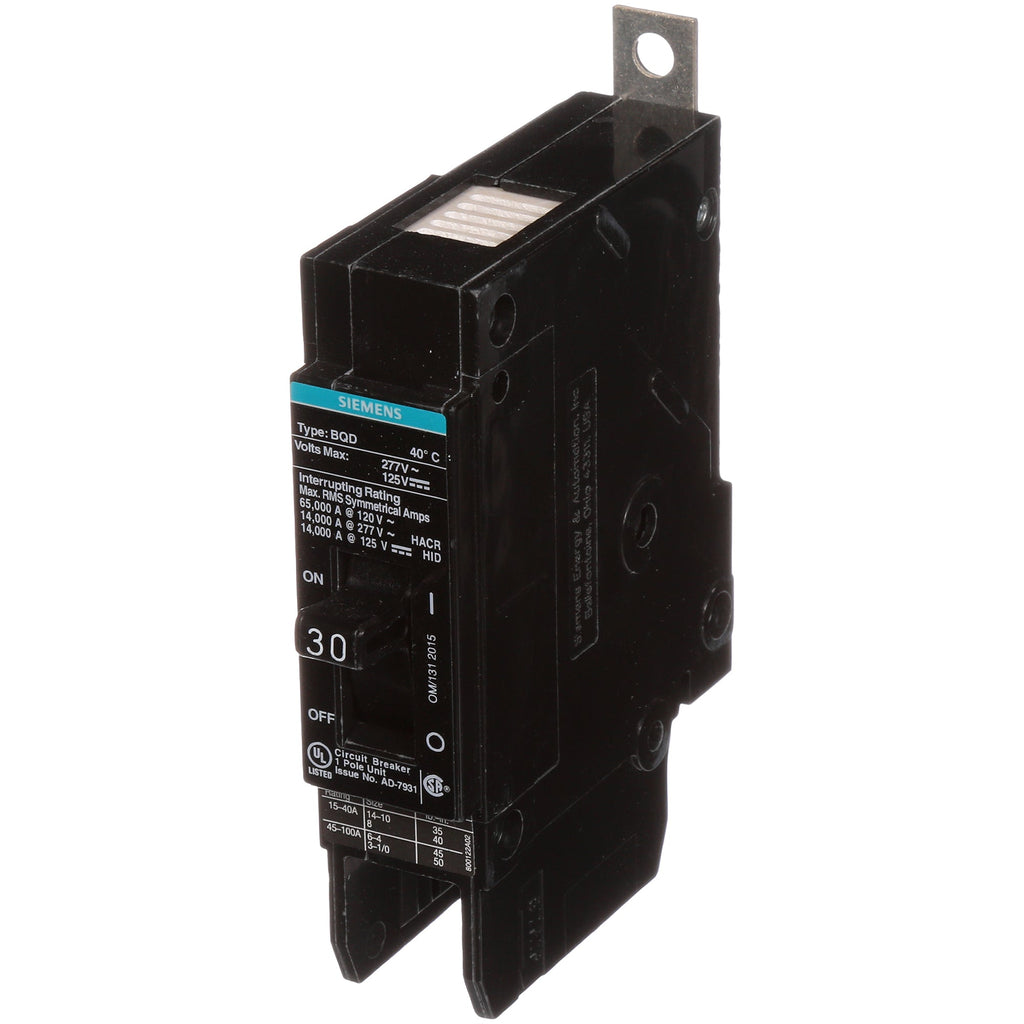

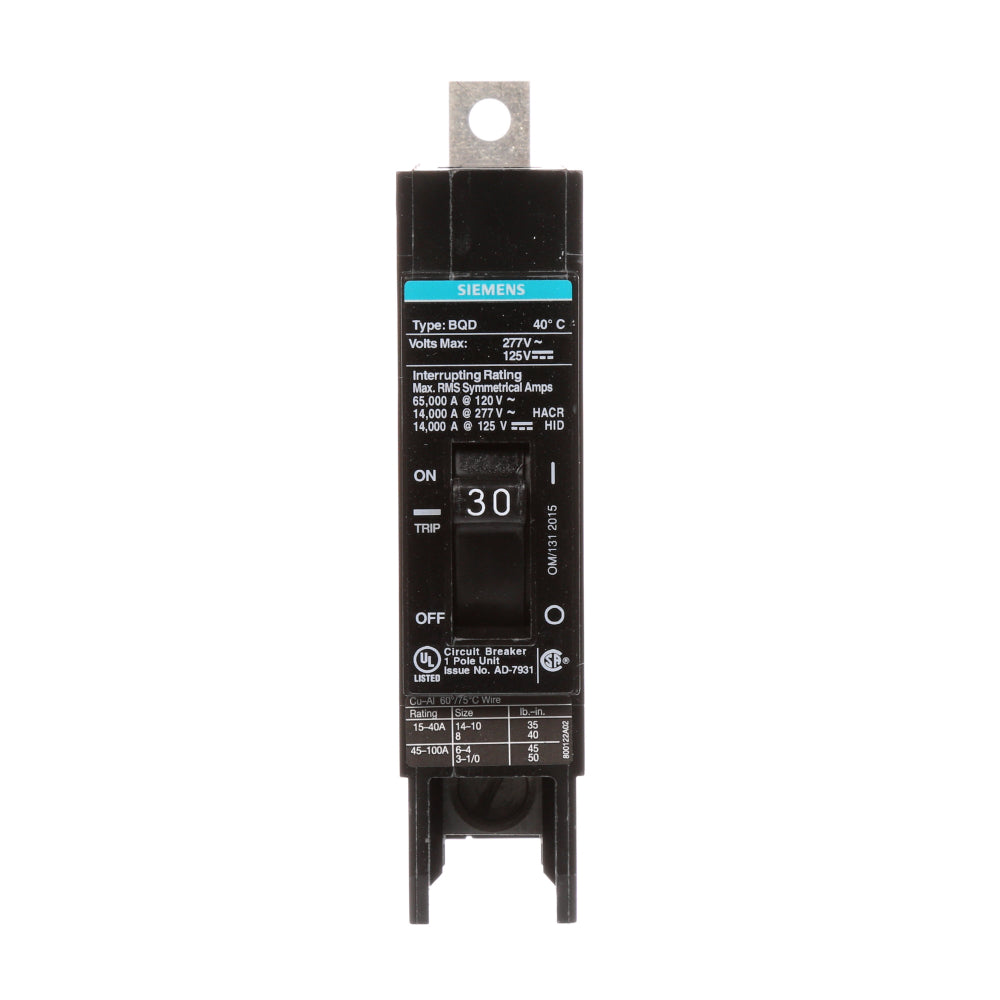

BQD130 - Siemens 1-pole, 30 Amp molded case circuit breaker with thermal-magnetic trip, rated for 277VAC bolt-on mounting.The Siemens BQD130 features a BQD frame, thermal-magnetic protection with long-time and instantaneous trip functions (LI), and bolt-on connection for P1 panelboards. It provides reliable overcurrent protection at 277VAC/125VDC with 14kAIC interrupting rating at 277V, toggle actuator, and wire compatibility from 14-6 AWG Cu or 12-6 AWG Al.
- Part Number: BQD130
- Manufacturer: Siemens
- Amperage: 30A
- Voltage: 277VAC, 125VDC
- Poles: 1
- Mounting Type: Bolt-On
- Frame/Series: BQD
- Trip Unit: Thermal-Magnetic (LI)
- Interrupt Rating: 14kAIC at 277V
- Certifications: UL, CSA, HACR
- Frequency: 60 Hz
- Wire Size: 14-6 AWG Cu, 12-6 AWG Al
Specifications
- Part Number: BQD130
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BQD Series
- Type : BQD
- Voltage : 277
- Amperage : 30
- Phase : 1
- Poles : 1
- AIC rating : 14kA@277V
- Connection : Bolt-on
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 100A/BQD
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
Product Data
- UPC : 783643277113
- GTIN : 00783643277113
- Country of Origin : Mexico
- Dimensions : 1 in x 4.49 in x 4.49 in
- Weight : 0.589
- Panel Type : Siemens P1 Panelboards
- Standards : CSA-C22.2,UL 494
- Certification : CSA-C22.2,UL 494
