Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
BQ2B125HL

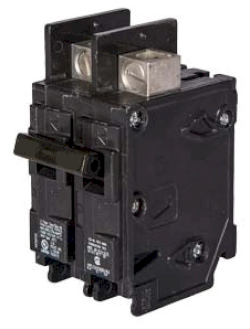

BQ2B125HL is a Siemens 125 Amp, 2 Pole, 120/240 Volt bolt-on circuit breaker from the BQ Series.This Siemens BQ2B125HL circuit breaker features a thermal magnetic trip unit with long-time and instantaneous trip functions. It has a 10,000 Amp interrupting rating at 120/240 VAC and is designed for single-phase applications. The breaker mounts with a bolt-on connection and includes load side lugs for wiring. It is UL listed and CSA approved, ensuring compliance with safety standards.
- Key Specifications
- Manufacturer: Siemens
- Series: BQ
- Amperage: 125 Amp
- Voltage Rating: 120/240 VAC
- Number of Poles: 2
- Mounting Type: Bolt-On
- Interrupting Rating: 10,000 Amps
- Trip Unit: Thermal Magnetic
- Phase: Single Phase
- Approvals: UL Listed, CSA Approved
- Part Number: BQ2B125HL
- Manufacturer : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BQ Series
- Type : BQH
- Voltage : 240
- Amperage : 125
- Phase : 1
- Poles : 2
- AIC rating : 22kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Lug
- Protection : Thermal Magnetic
- UPC : 783643515932
- GTIN : 00783643515932
- Country of Origin : Mexico
- Weight : 0.992
- Panel Type : Siemens Panelboards
- Standards : HACR Rated, UL Listed
- Certification : CSA, HACR, UL
