Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
BQ2B100H

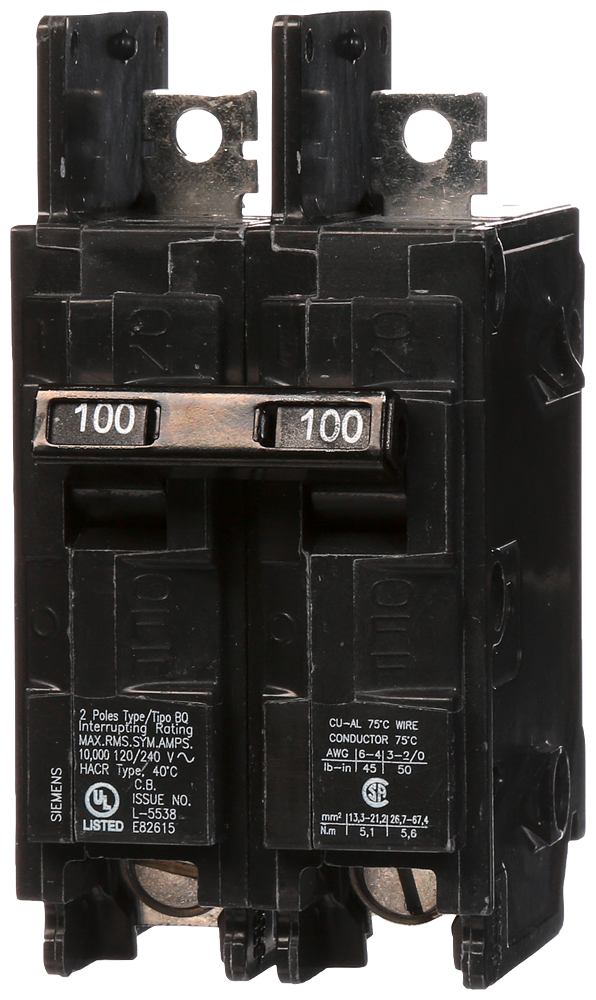

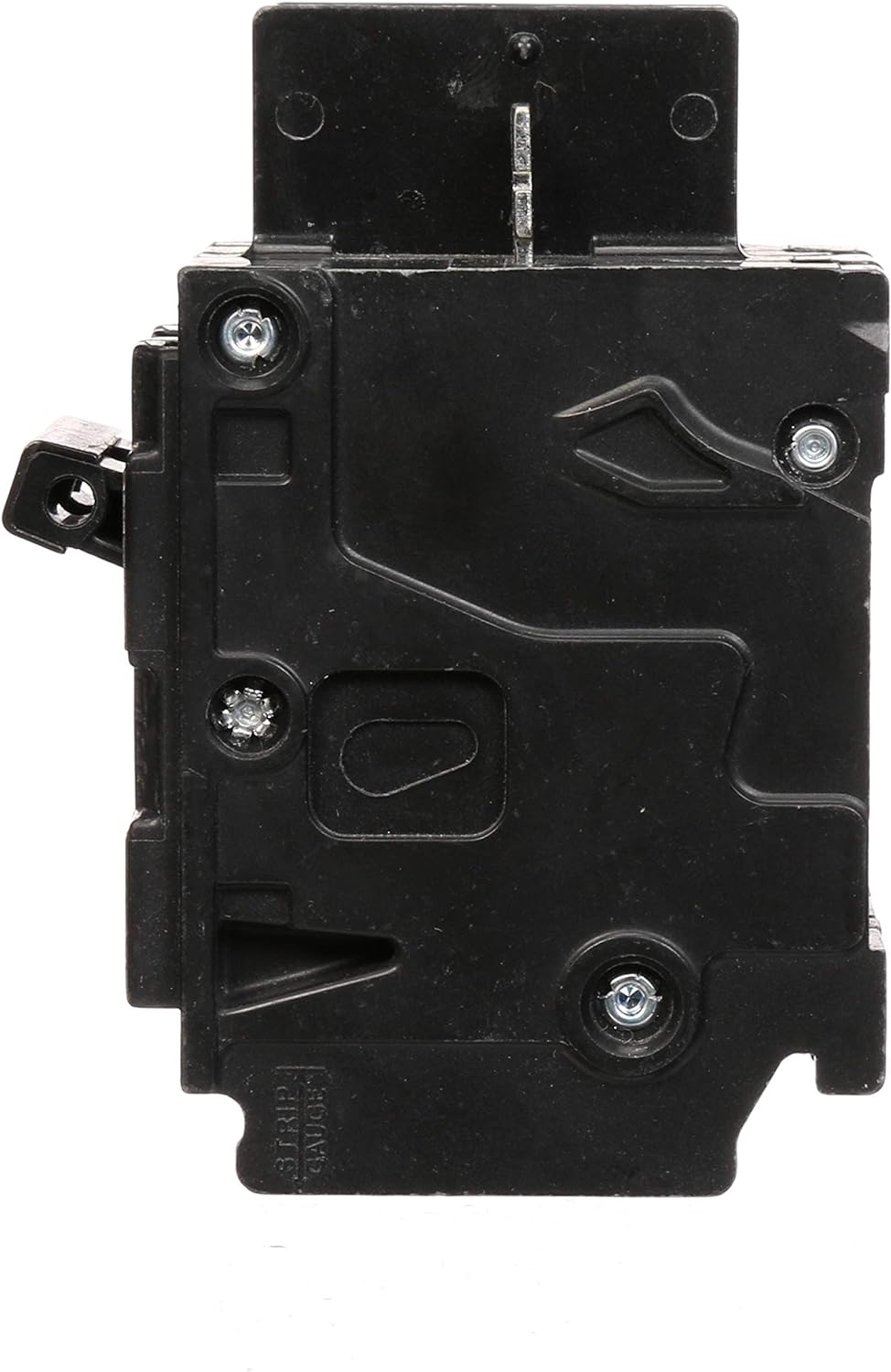

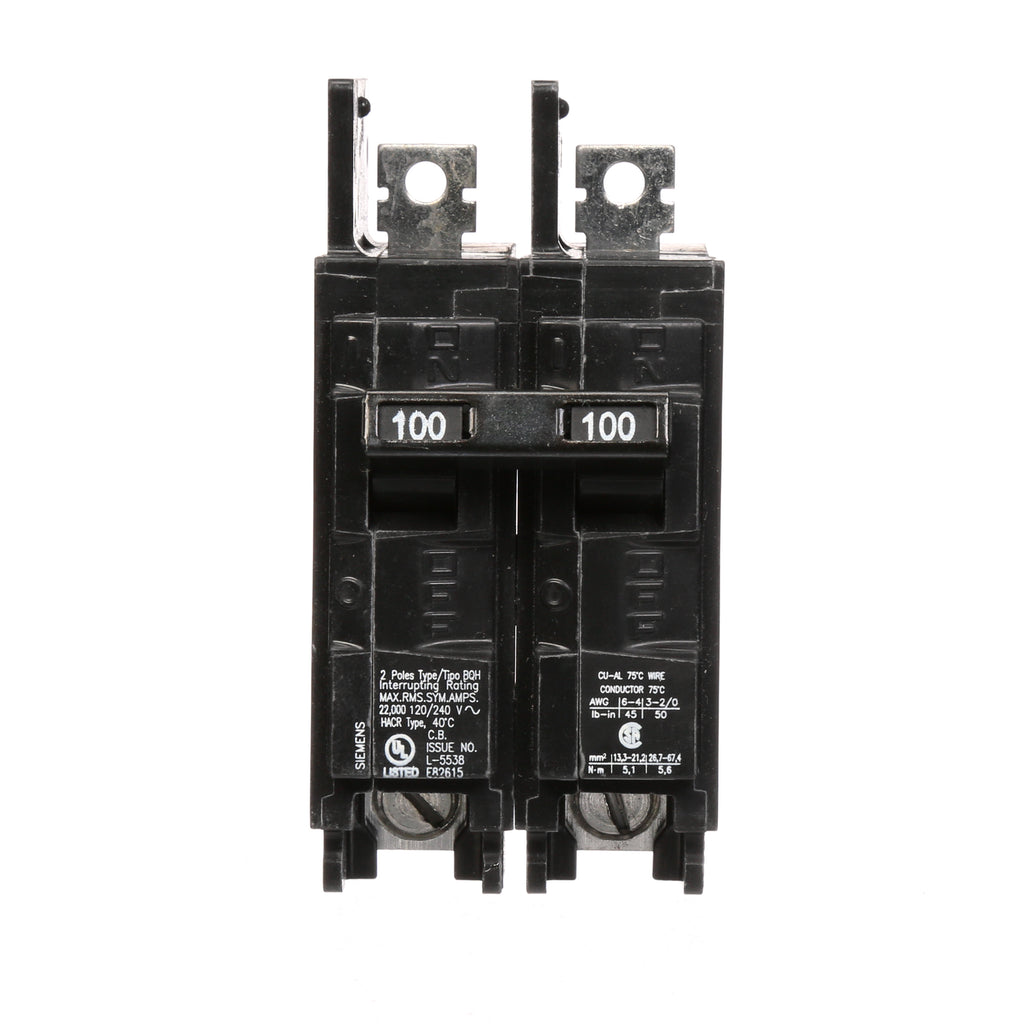

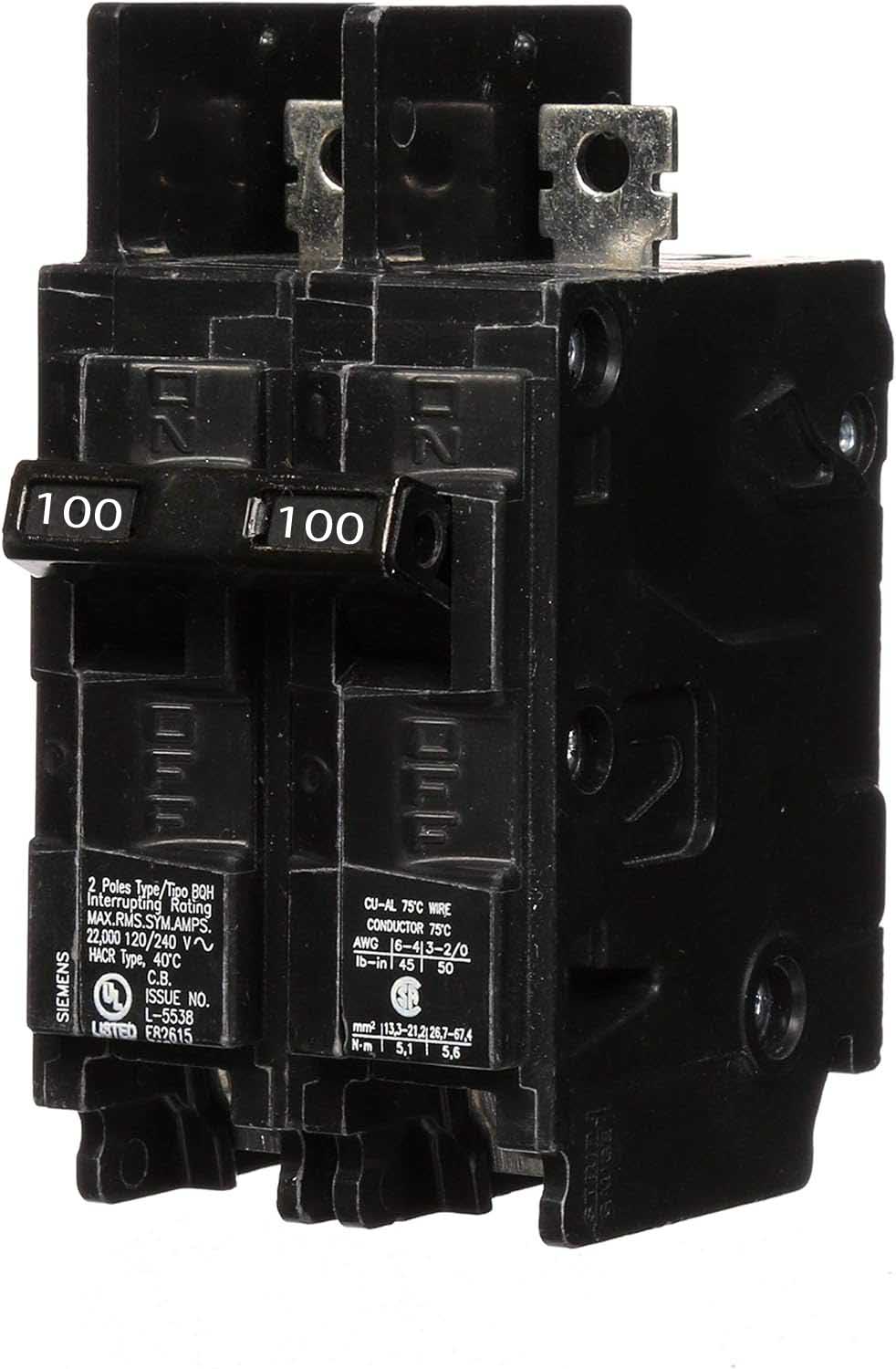

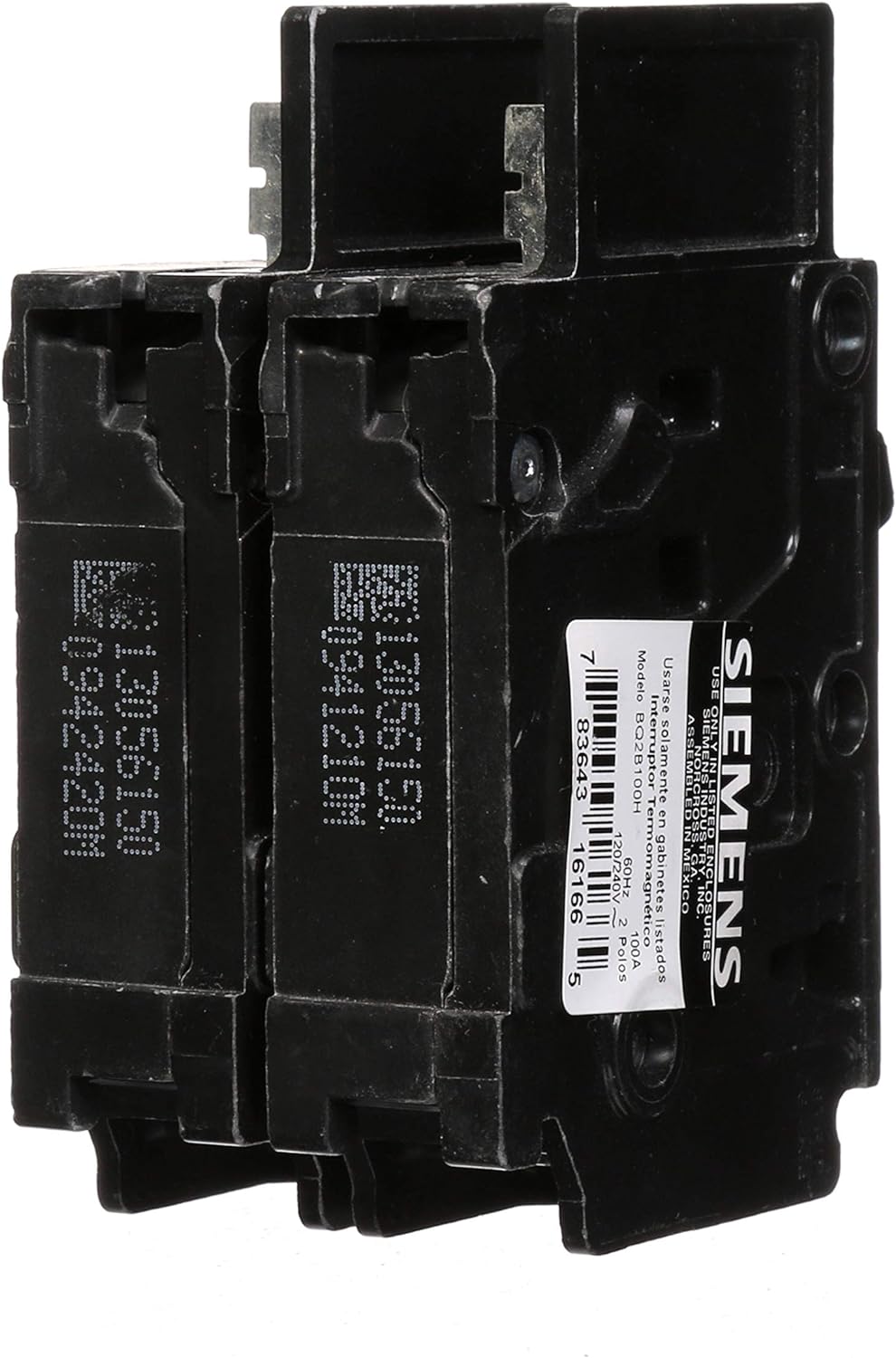

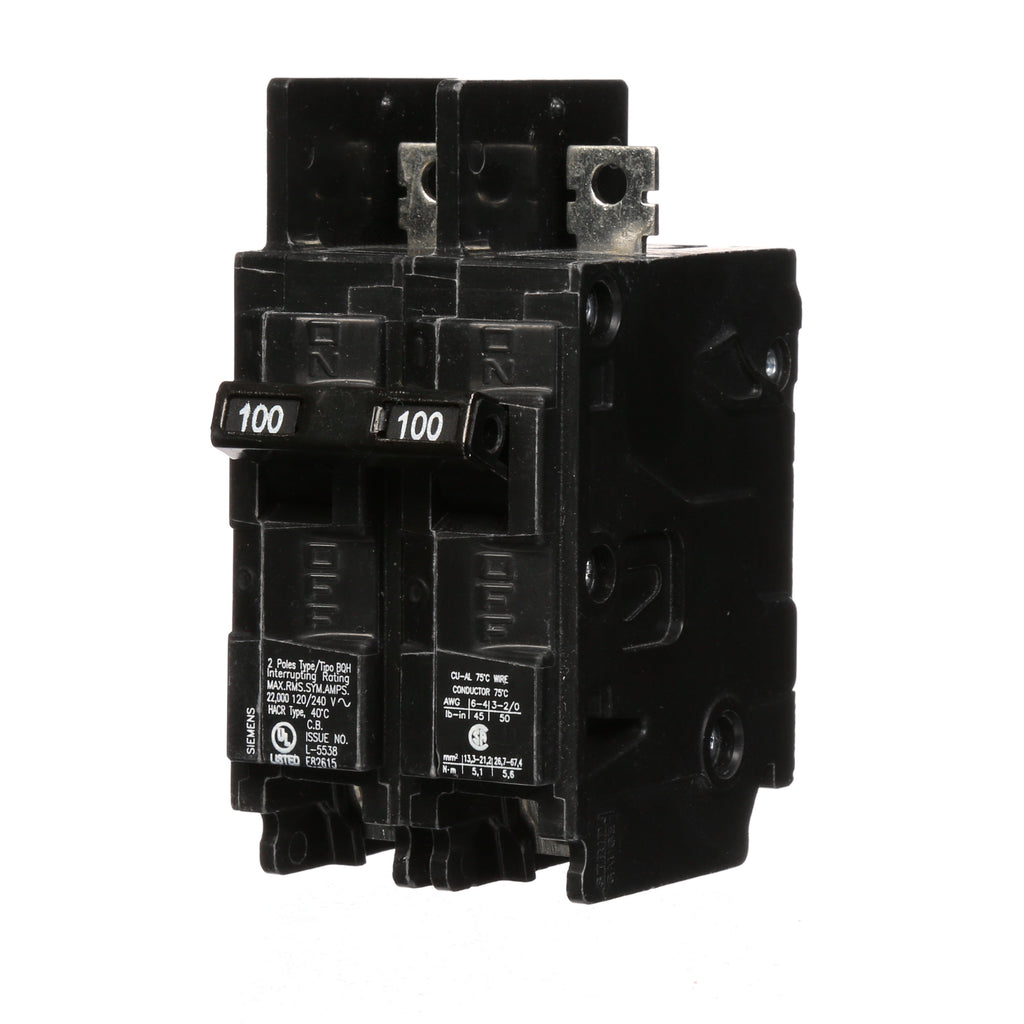

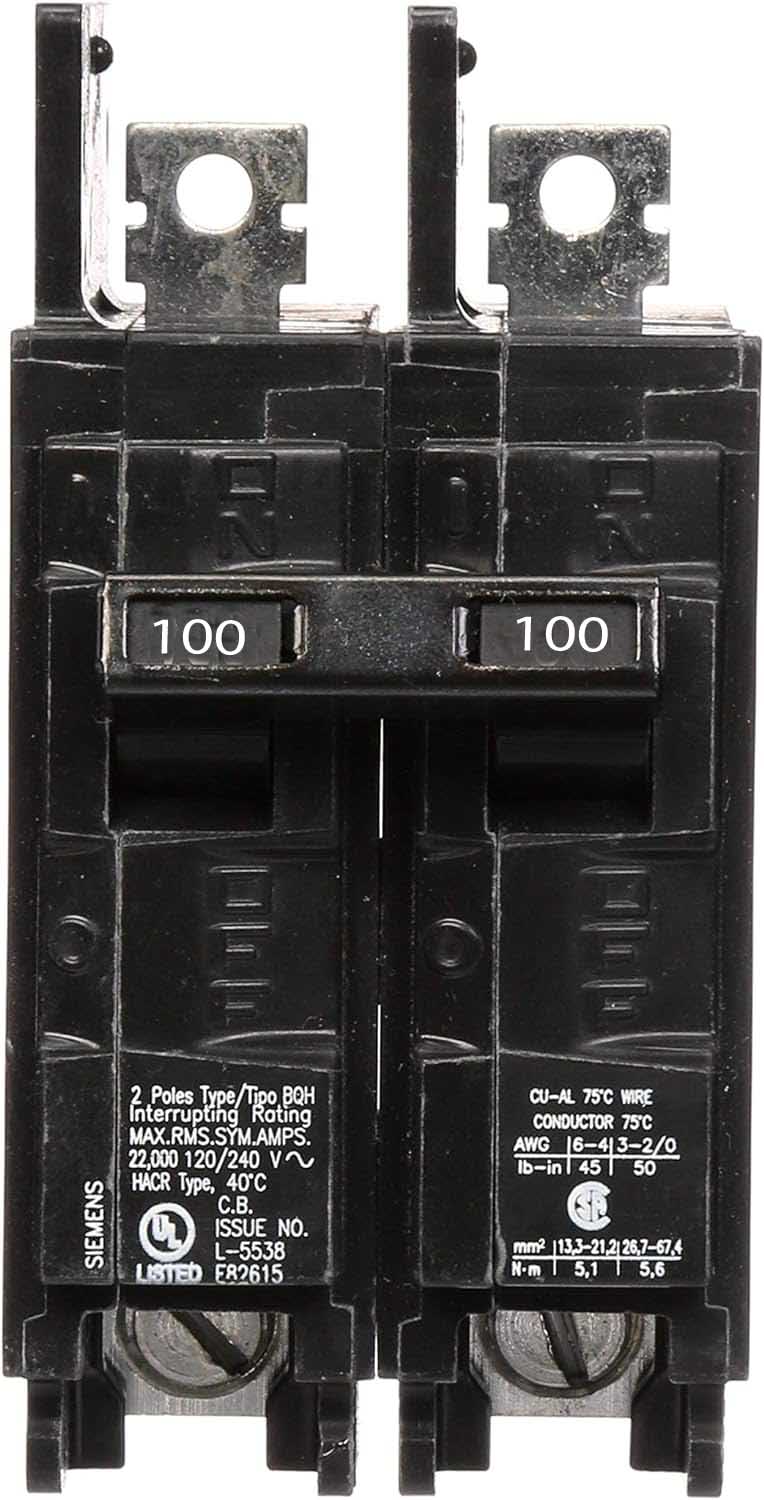

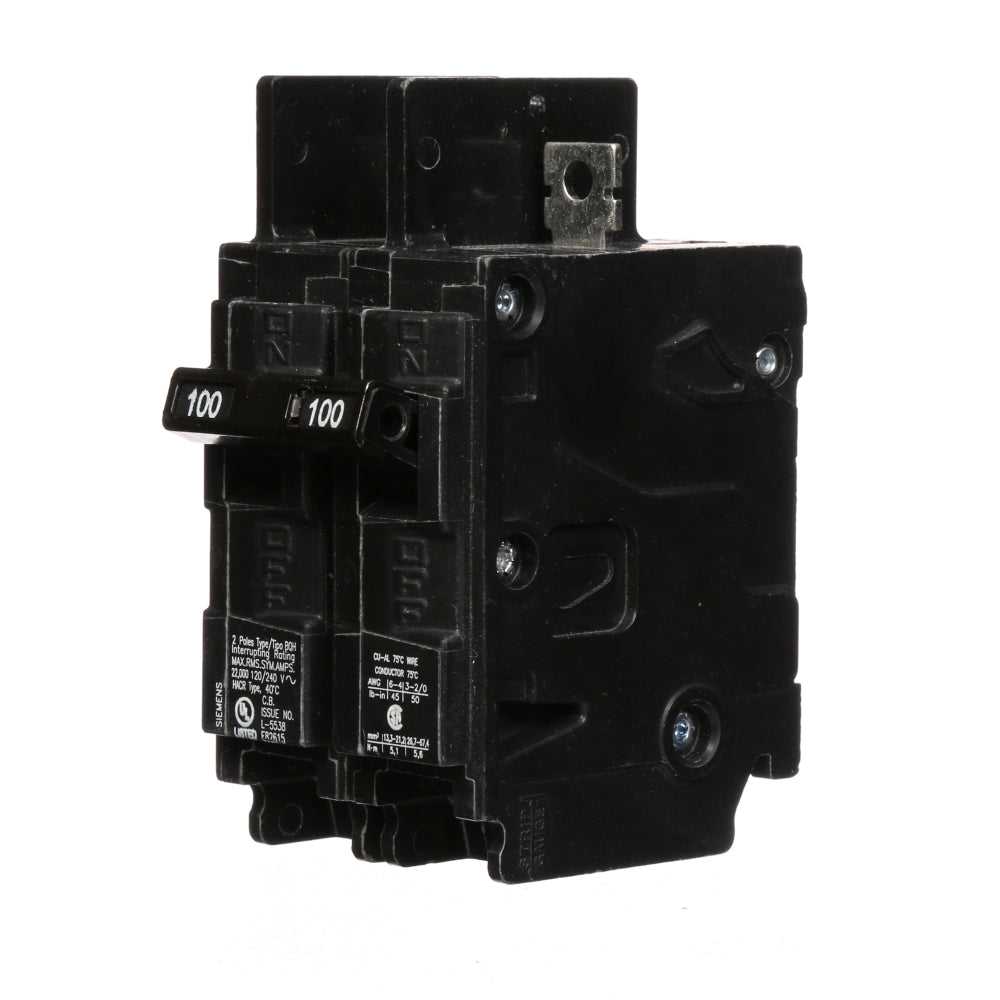

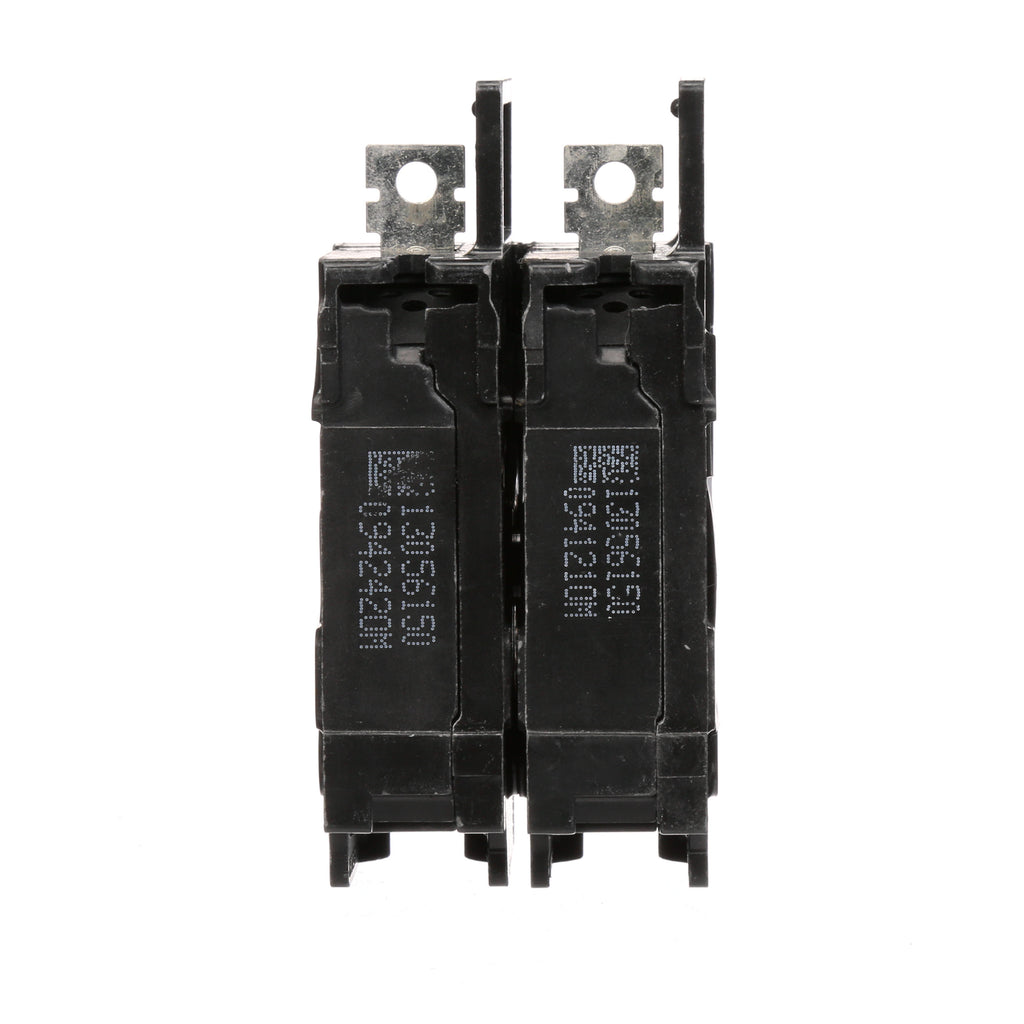

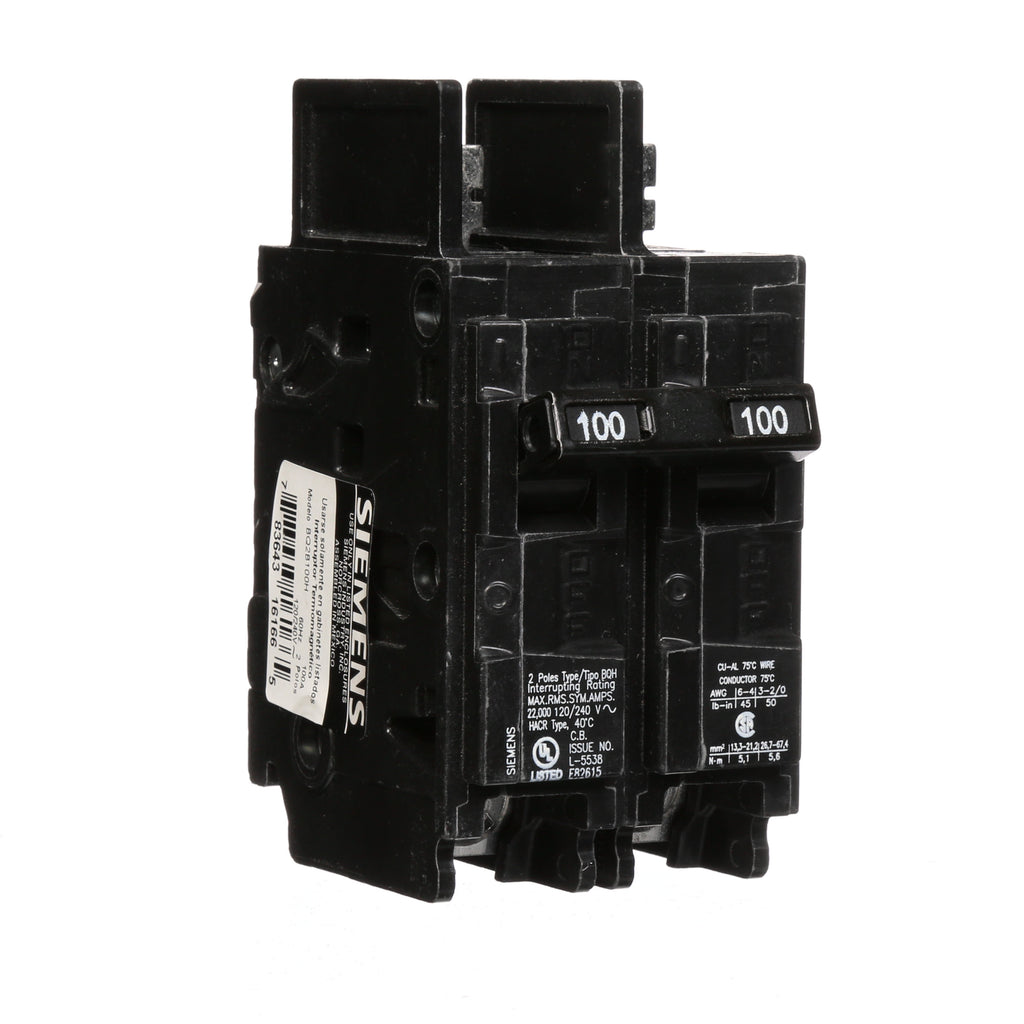

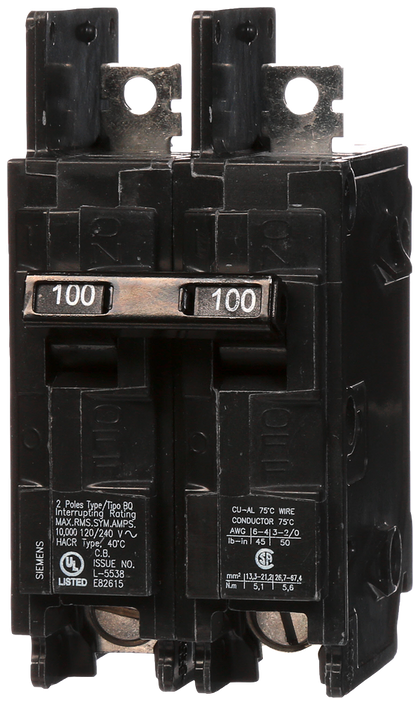

BQ2B100H is a Siemens 2 pole molded case circuit breaker rated for 100 amps and 120/240 volts AC with bolt-on mounting.This Siemens BQ2B100H circuit breaker features thermal magnetic trip technology, a 22kA interrupt rating at 240V, and is designed for general purpose circuit protection in low voltage applications. It has a bolt-on stud terminal connection and is part of the BQ series.
- Key Specifications
- Amperage: 100 A
- Voltage Rating: 120/240 VAC
- Number of Poles: 2
- Mounting Type: Bolt-On
- Interrupt Rating: 22kA at 240V
- Trip Unit: Thermal Magnetic
- Series/Frame: BQ
- Terminal Connection: Bolt-On Stud
- Phase: Single Phase
- Certification: UL Listed
Specifications
- Part Number: BQ2B100H
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BQ Series
- Type : BQH
- Voltage : 120/240
- Amperage : 100
- Phase : 1
- Poles : 2
- AIC rating : 22kA@240V
- Connection : Bolt-on
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 125A/BQH
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- MCM Size : Min. Wire Size 2 AWG (Al), 4 AWG (Cu) Max. Wire Size 1/0 AWG
- Breaker Type : High Interrupting Capacity
- Protection : Thermal Magnetic
Product Data
- UPC : 783643161665
- GTIN : 00783643161665
- Country of Origin : Mexico
- Dimensions : 3.937 x 2.756 x 1.969 inch
- Weight : 0.595
- Panel Type : Siemens Panelboards
- Standards : HACR Rated, UL Listed
- Certification : CSA, HACR, UL
