Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
BQ2B090H

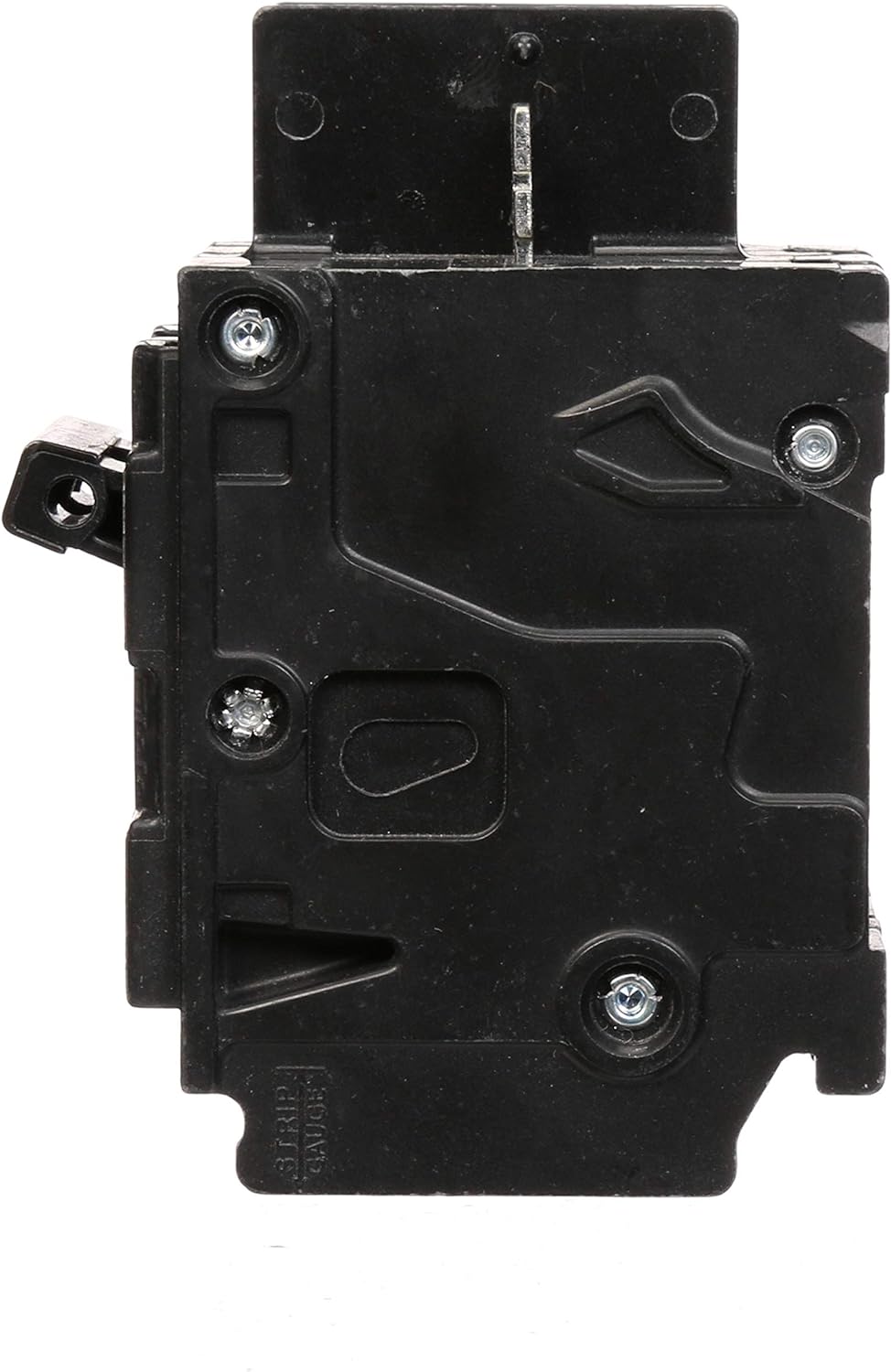

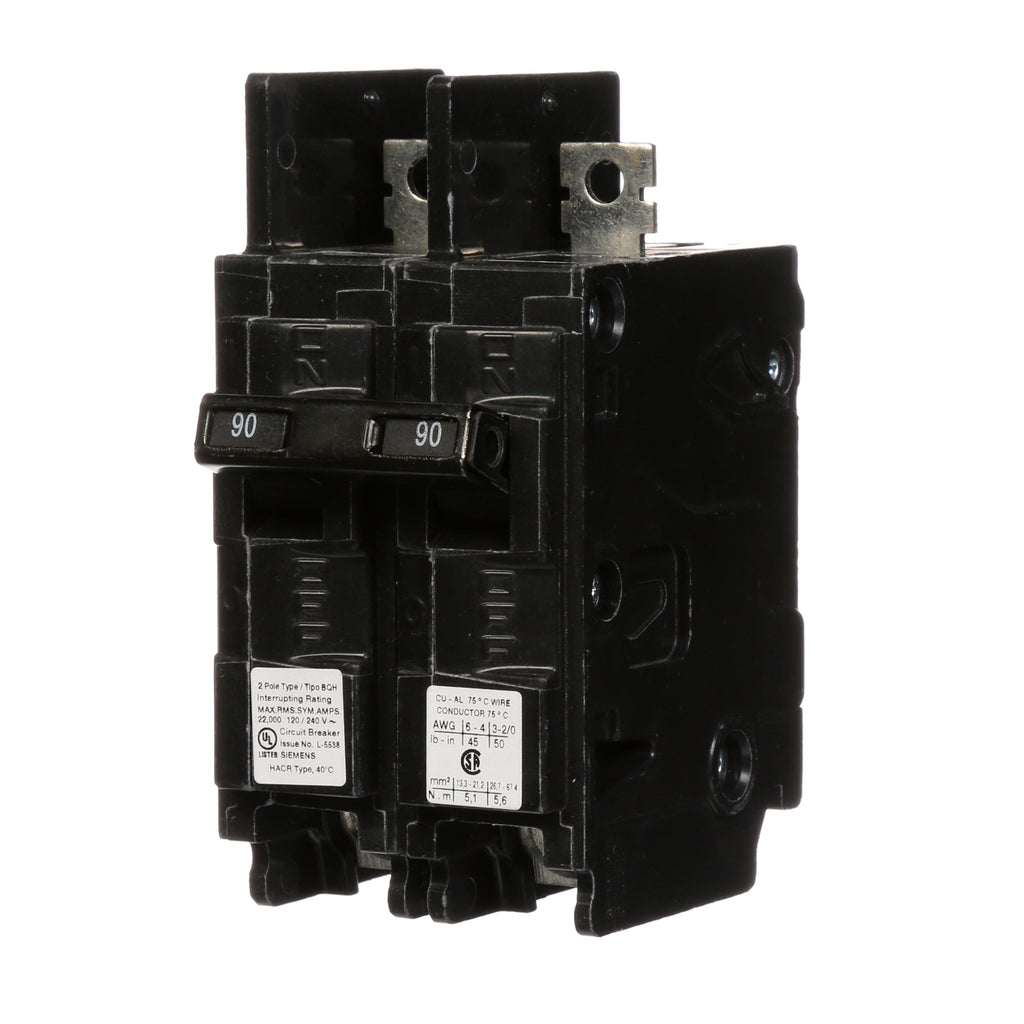

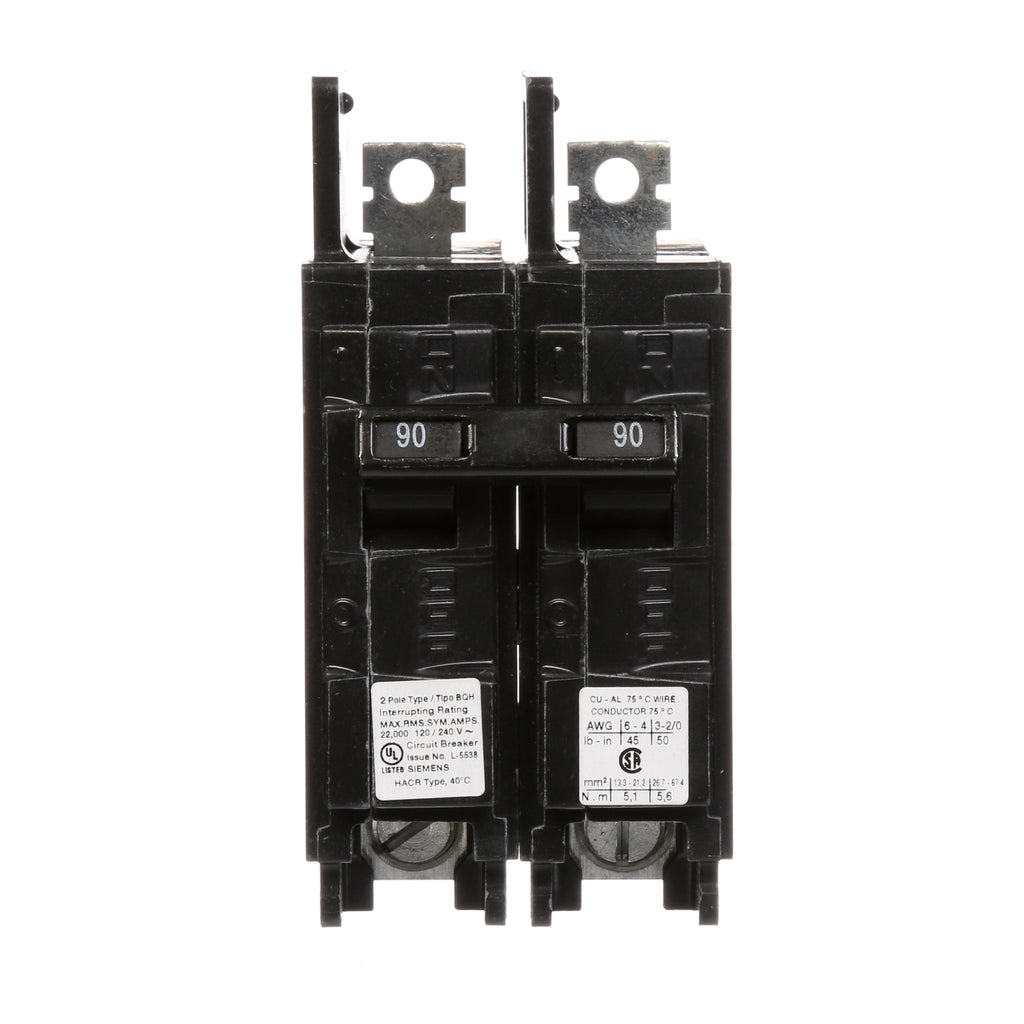

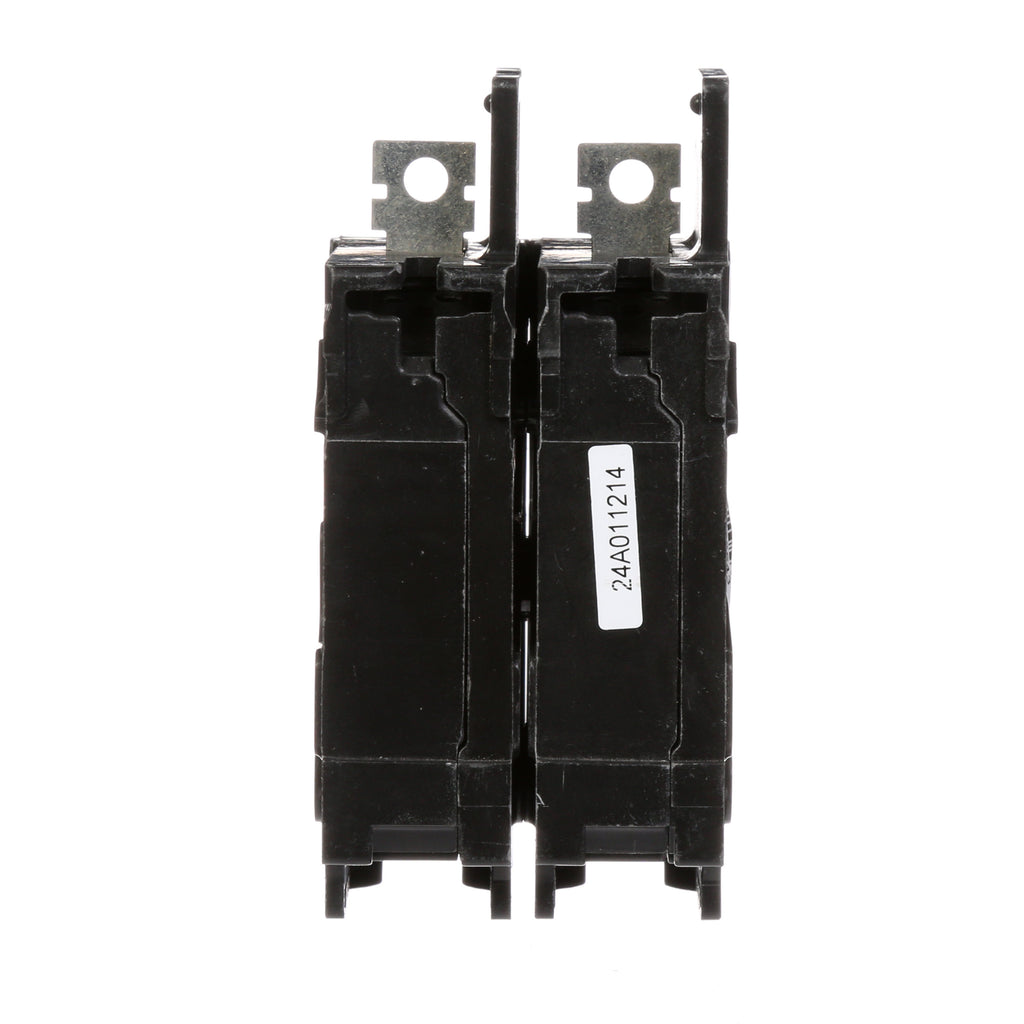

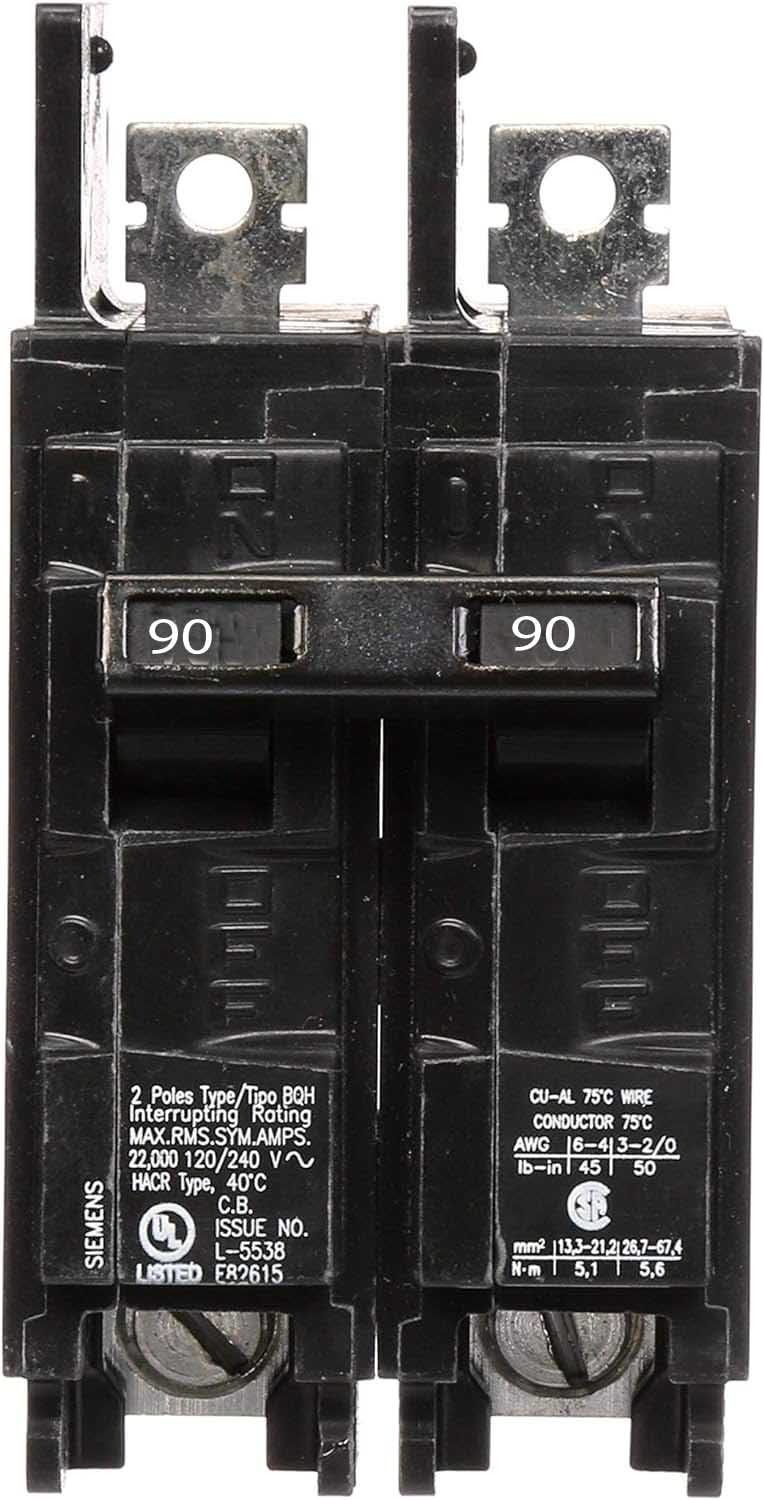

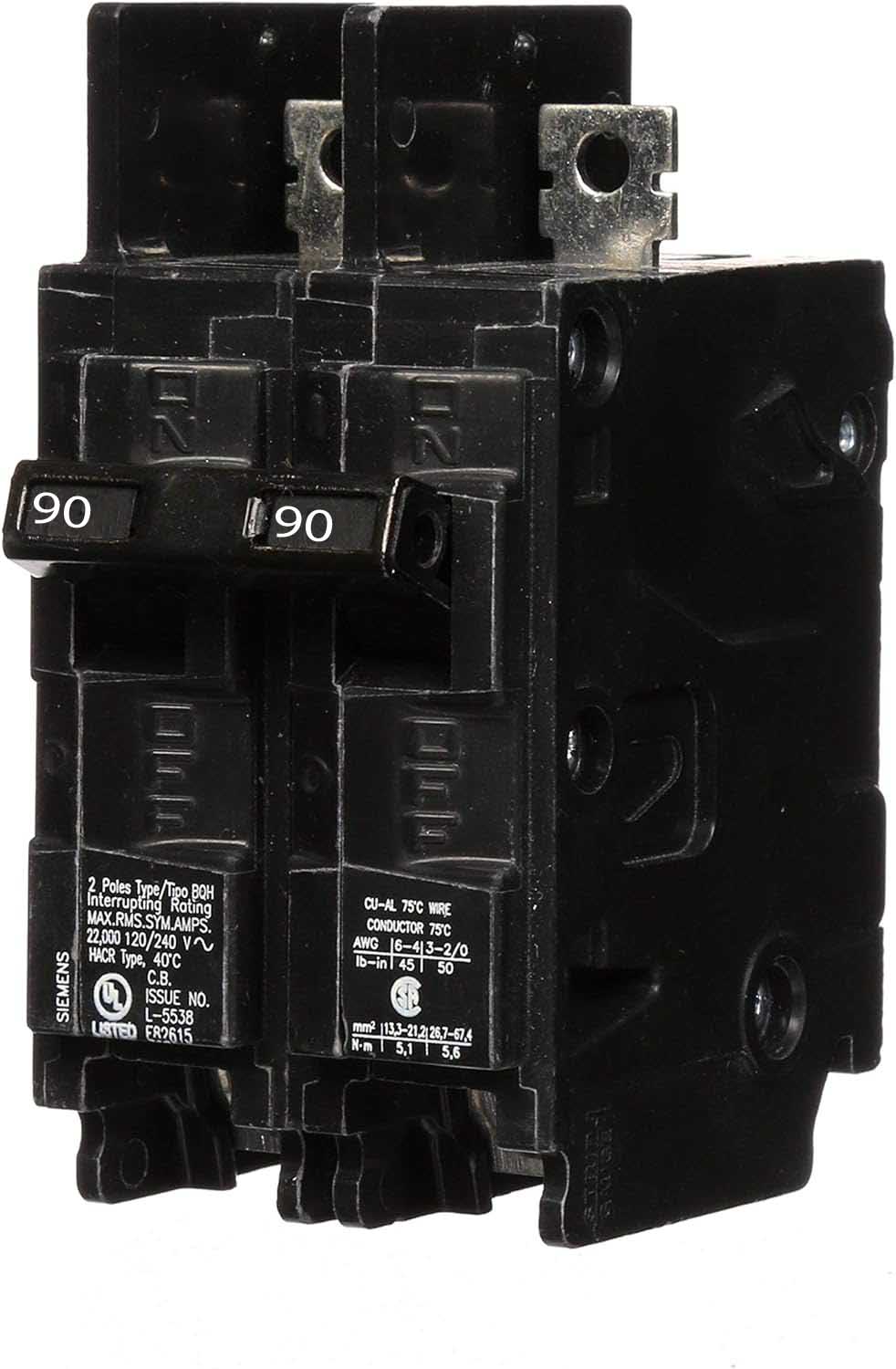

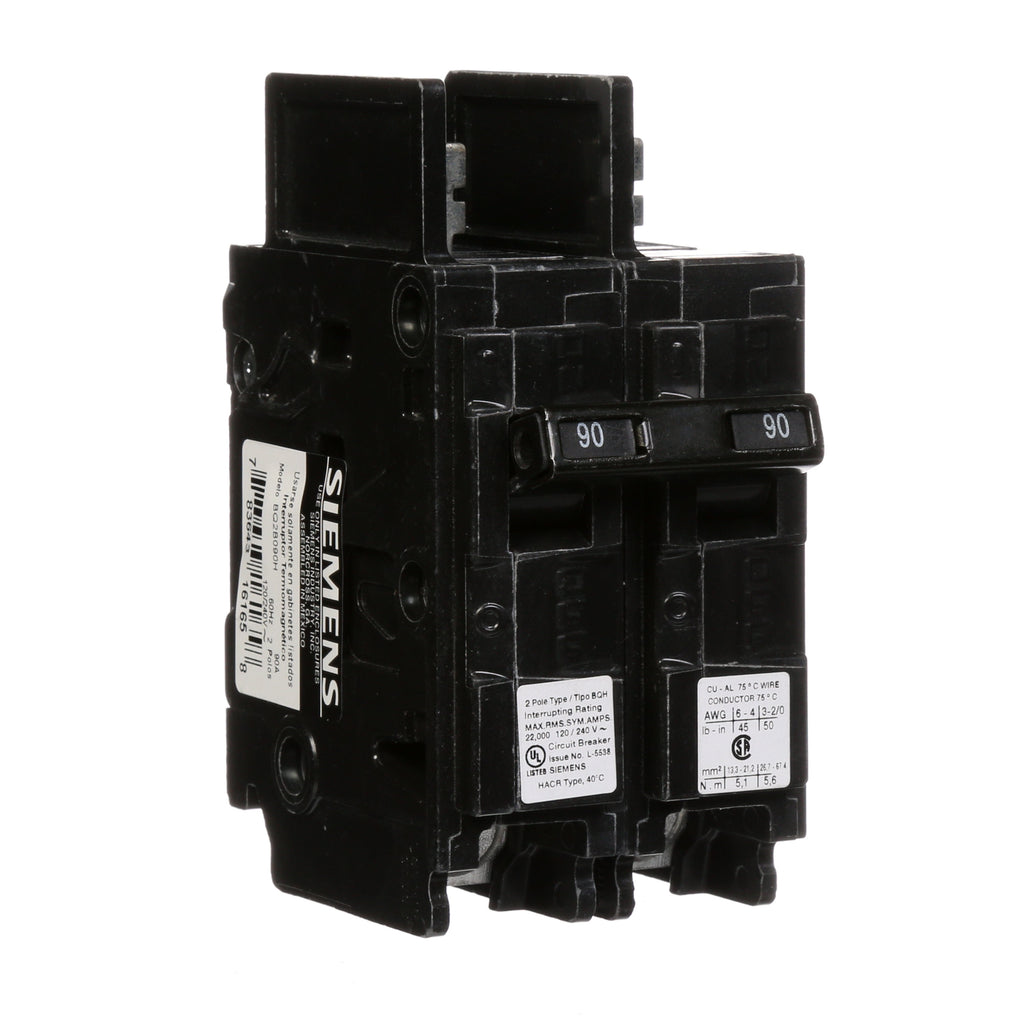

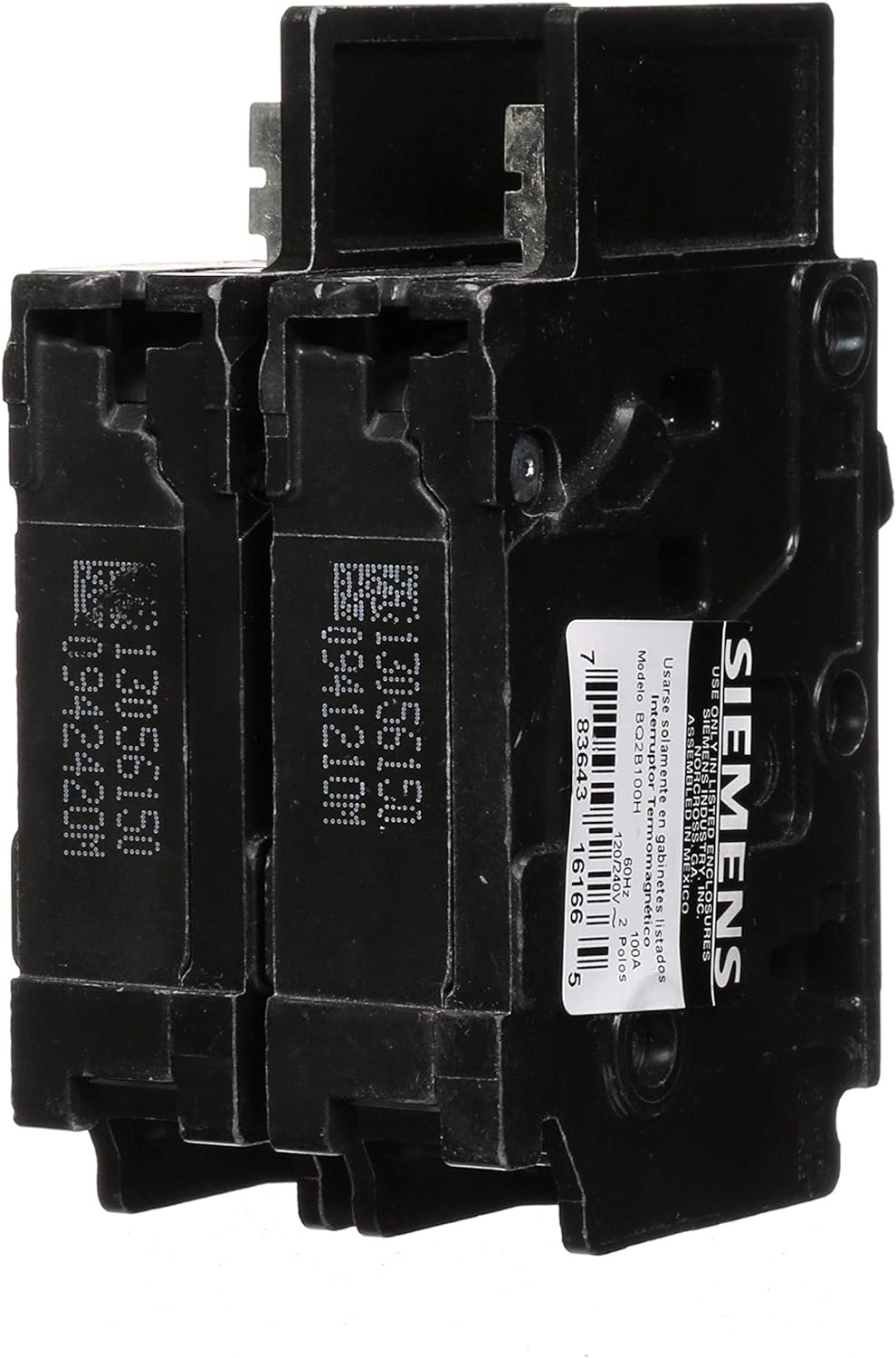

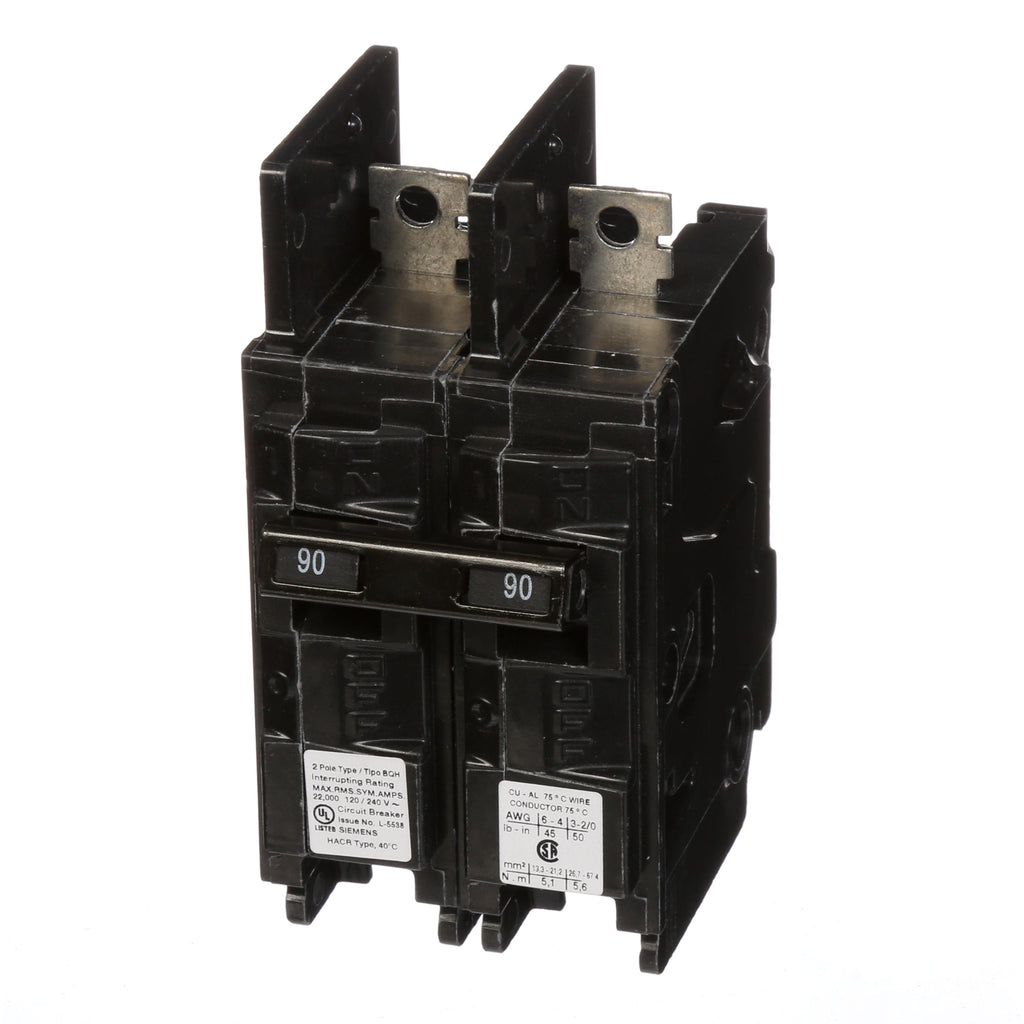

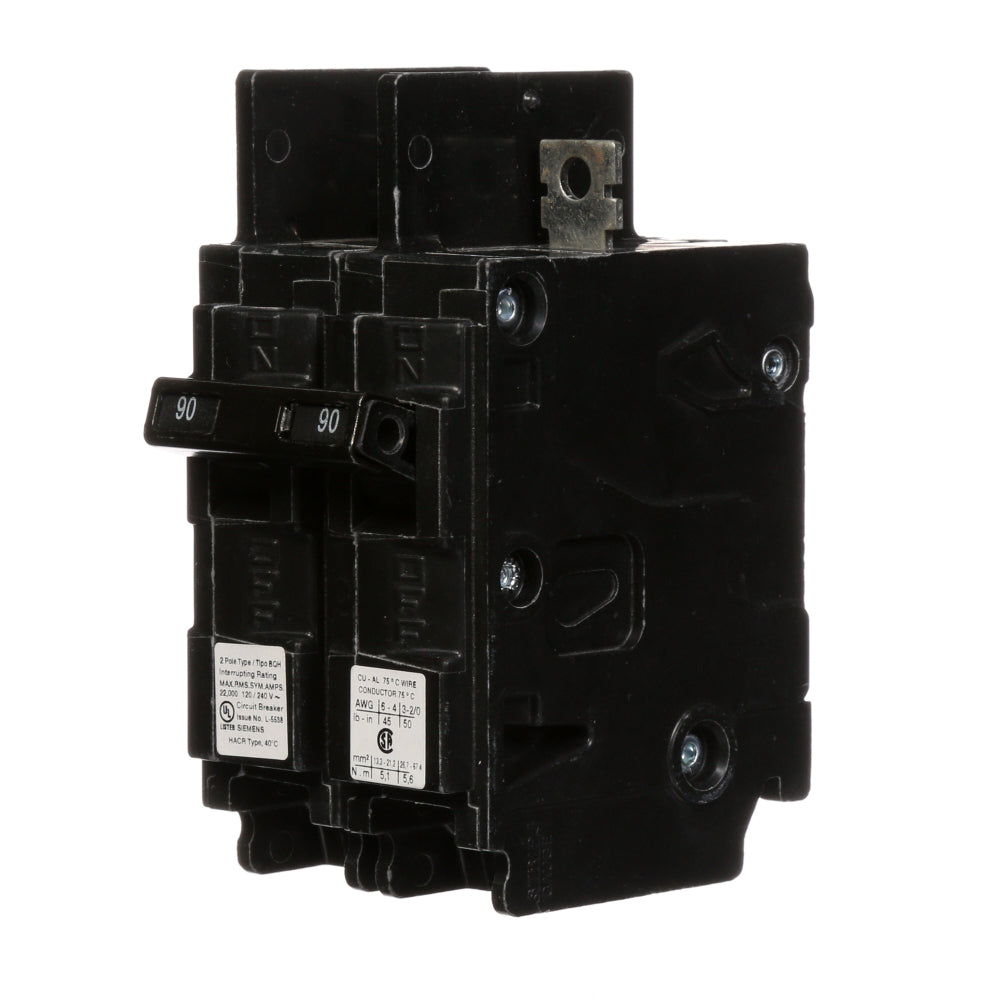

BQ2B090H is a Siemens 2 pole, 90 amp, 240 volt bolt-on circuit breaker designed for reliable circuit protection.This Siemens BQ2B090H circuit breaker features a BQ frame with thermal magnetic trip unit, suitable for single-phase applications. It has a 22kA interrupting rating at 240 volts AC, ensuring high fault current interruption capability. The breaker mounts with a bolt-on style for secure installation and meets industry certifications for safety and performance.
- Key Specifications
- Amperage: 90 Amps
- Voltage: 240 Volts AC
- Poles: 2
- Frame Type: BQ
- Mounting Type: Bolt-On
- Interrupting Rating: 22,000 AIC @ 240V
- Trip Unit: Thermal Magnetic
- Phase: Single Phase
- Manufacturer: Siemens
- Certifications: Industry Standard Compliant
- Part Number: BQ2B090H
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BQ Series
- Type : BQH
- Voltage : 240
- Amperage : 90
- Phase : 1
- Poles : 2
- AIC rating : 22kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Lug
- Protection : Thermal Magnetic
- UPC : 783643161658
- GTIN : 00783643161658
- Country of Origin : Mexico
- Dimensions : 3.937 x 2.756 x 1.969 inch
- Weight : 0.705
- Panel Type : Siemens Panelboards
- Standards : HACR Rated, UL Listed
- Certification : CSA, HACR, UL
