Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
BQ2B080H

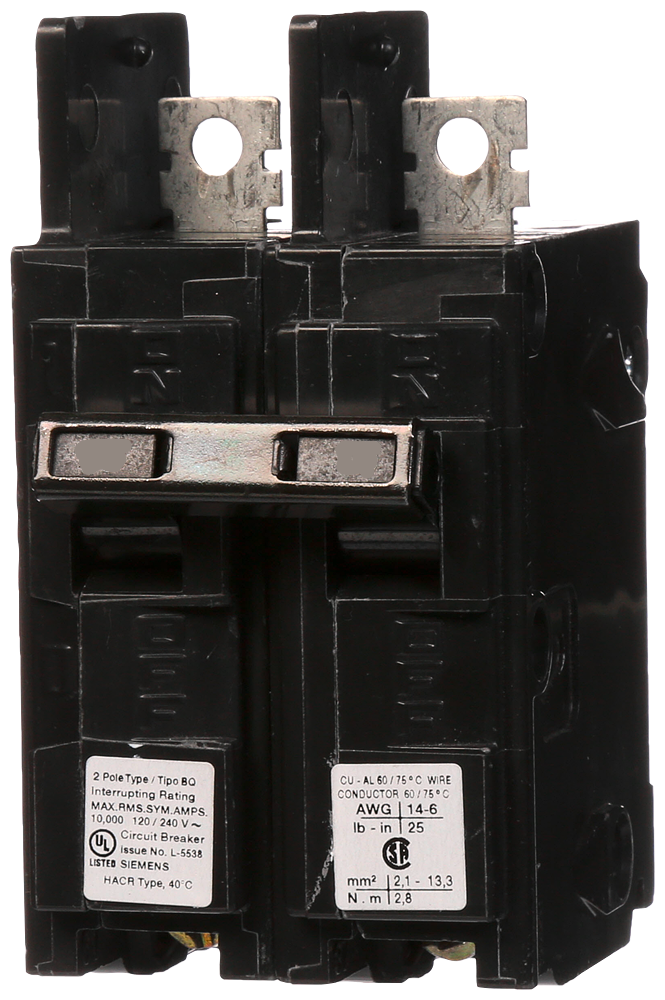

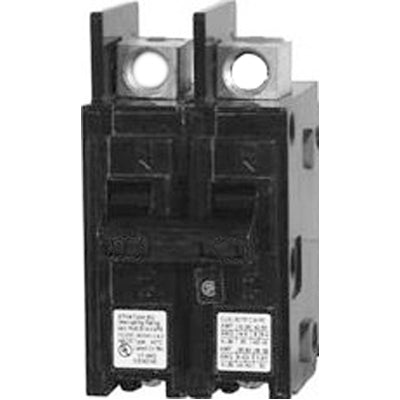

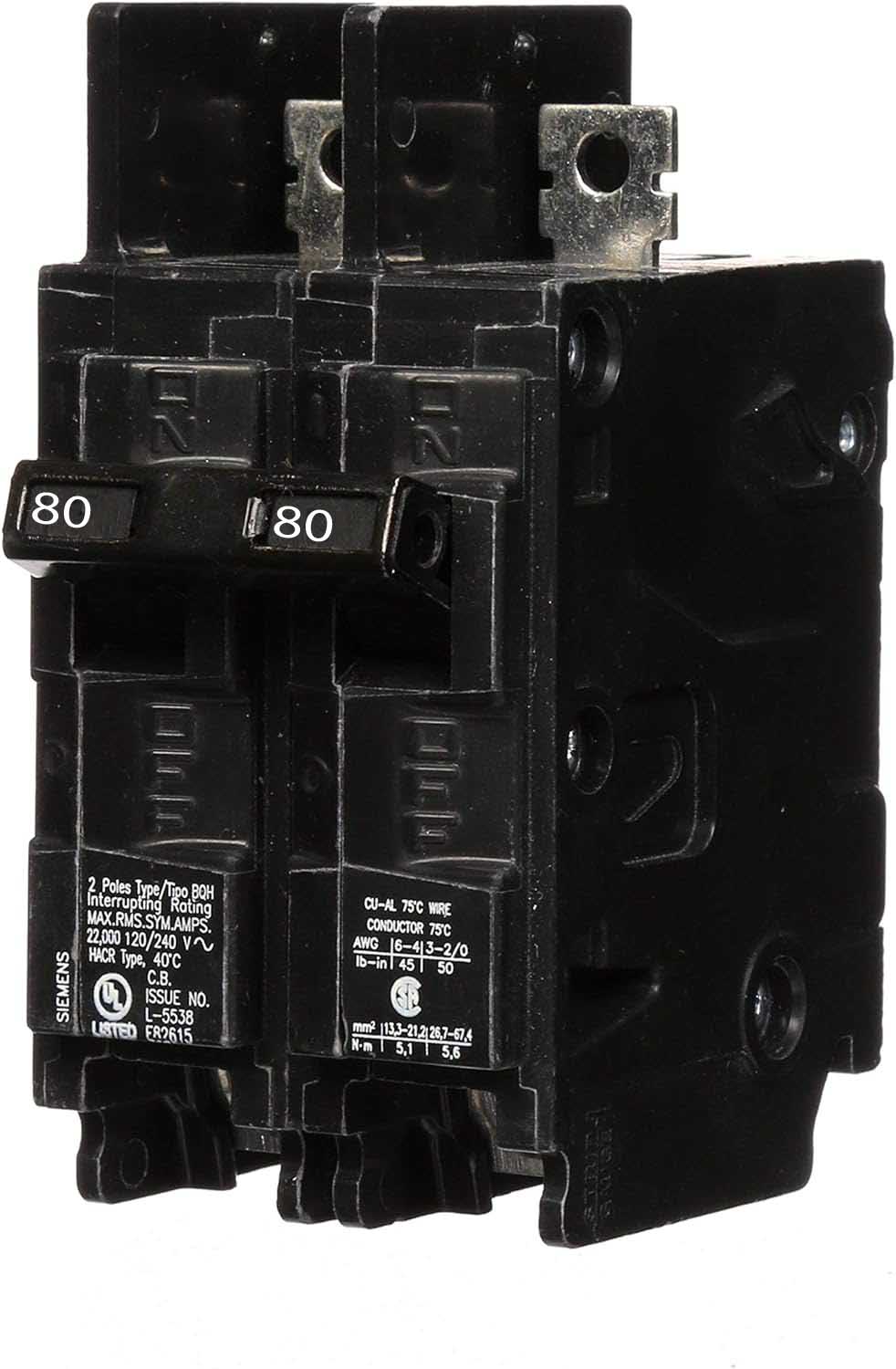

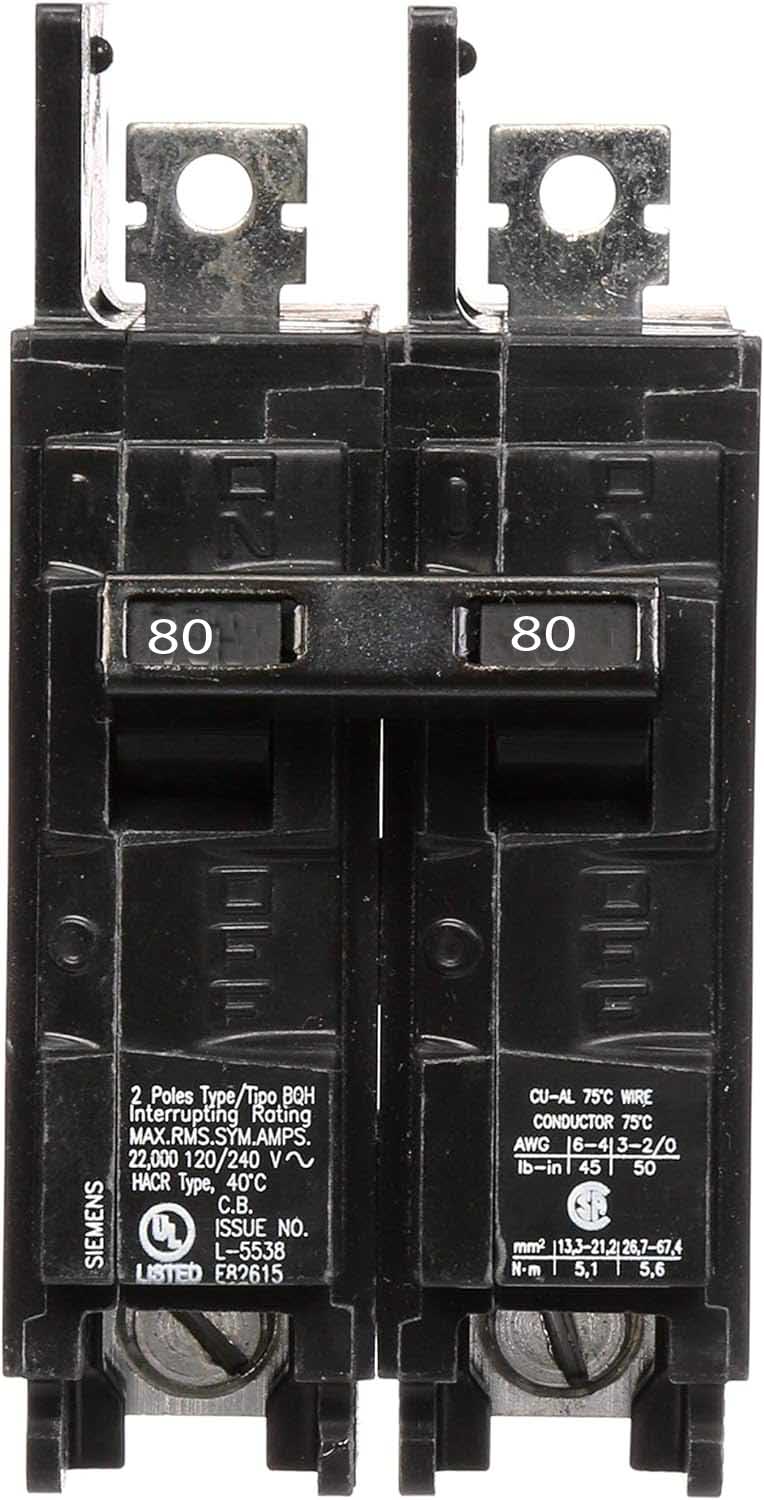

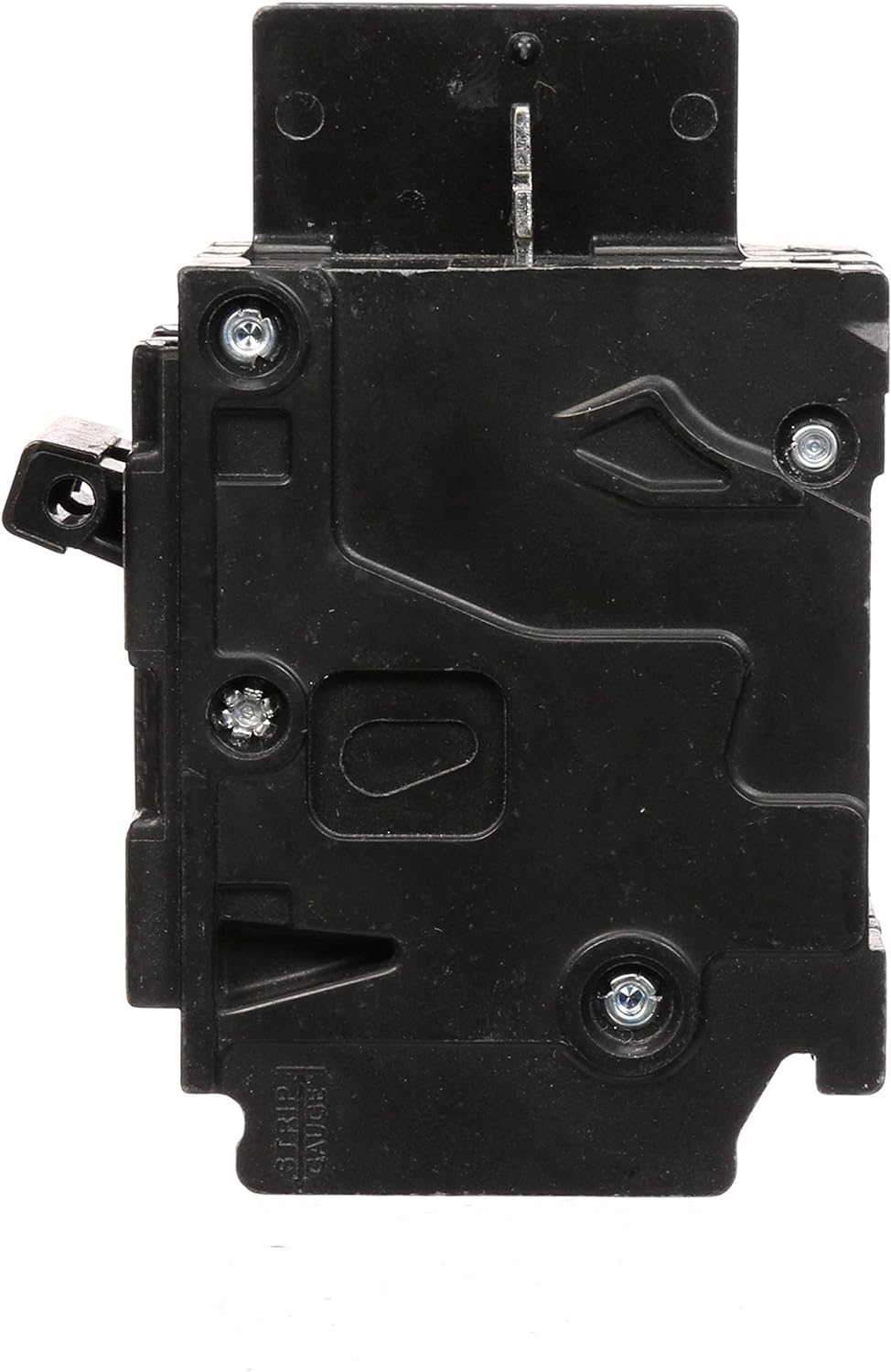

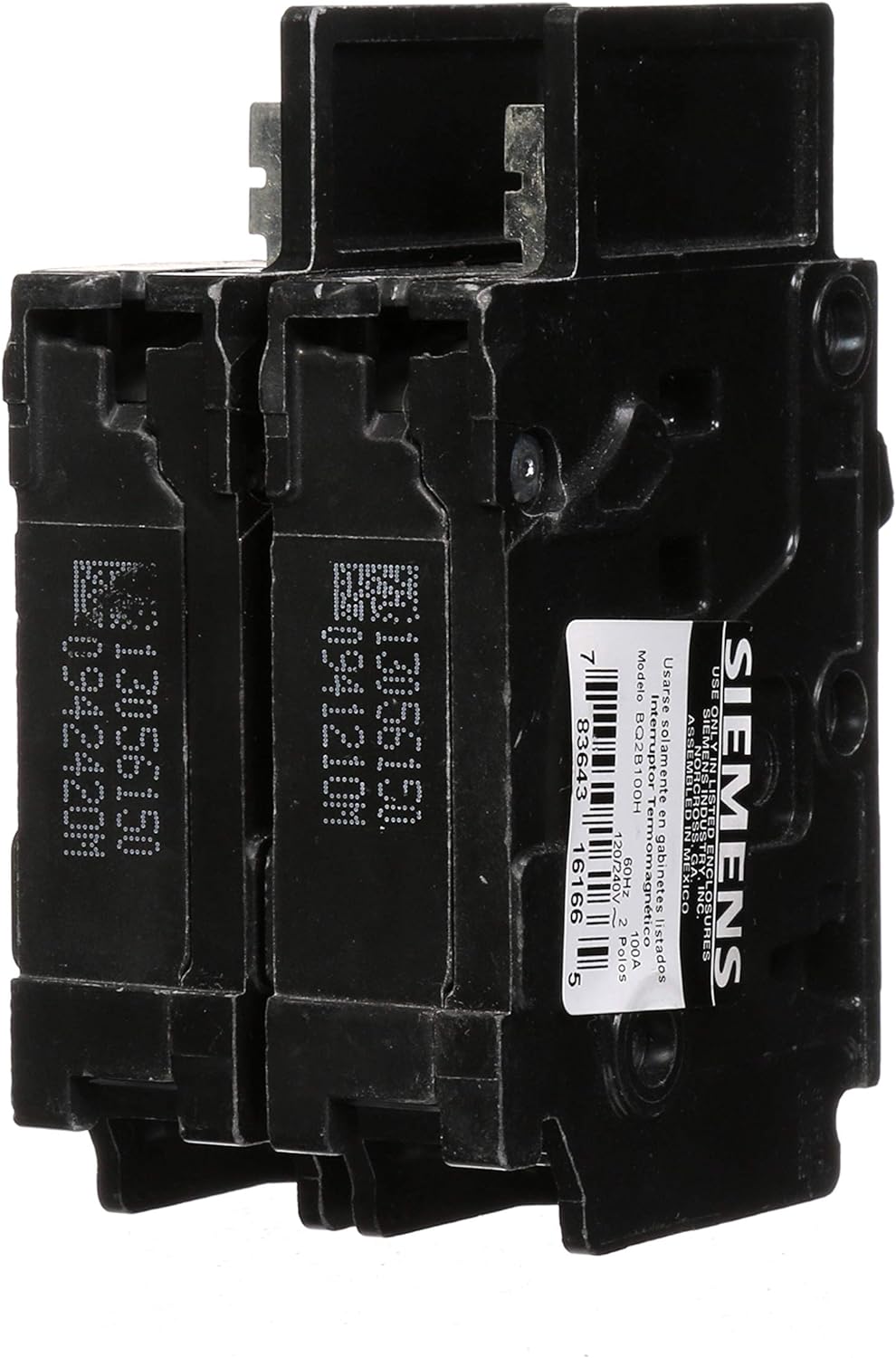

BQ2B080H is a Siemens 80 Amp, 240 Volt, 2 Pole bolt-on circuit breaker from the BQ Series designed for reliable circuit protection.This molded case circuit breaker features a thermal magnetic trip unit and a 22kA interrupting rating at 240 volts AC. It is engineered for bolt-on mounting and complies with industry standards for safety and performance.
- Manufacturer: Siemens
- Amperage: 80 Amp
- Voltage: 240 Volt AC
- Poles: 2
- Mounting Type: Bolt-On
- Interrupt Rating: 22,000 AIC @ 240V
- Series/Frame: BQ
- Trip Unit: Thermal Magnetic
- Type: Molded Case Circuit Breaker
- Compliance: Industry Standard Certifications
Specifications
- Part Number: BQ2B080H
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BQ Series
- Type : BQH
- Voltage : 120/240
- Amperage : 80
- Phase : 1
- Poles : 2
- AIC rating : 22kA@240V
- Connection : Bolt-on
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 125A/BQH
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- MCM Size : Min. Wire Size 2 AWG (Al), 4 AWG (Cu) Max. Wire Size 1/0 AWG
- Breaker Type : High Interrupting Capacity
- Protection : Thermal Magnetic
Product Data
- UPC : 783643226135
- GTIN : 00783643226135
- Country of Origin : Mexico
- Dimensions : 3.937 x 2.756 x 1.969 inch
- Weight : 0.705
- Panel Type : Siemens Panelboards
- Standards : HACR Rated, UL Listed
- Certification : CSA, HACR, UL
