Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
BQ2B060H

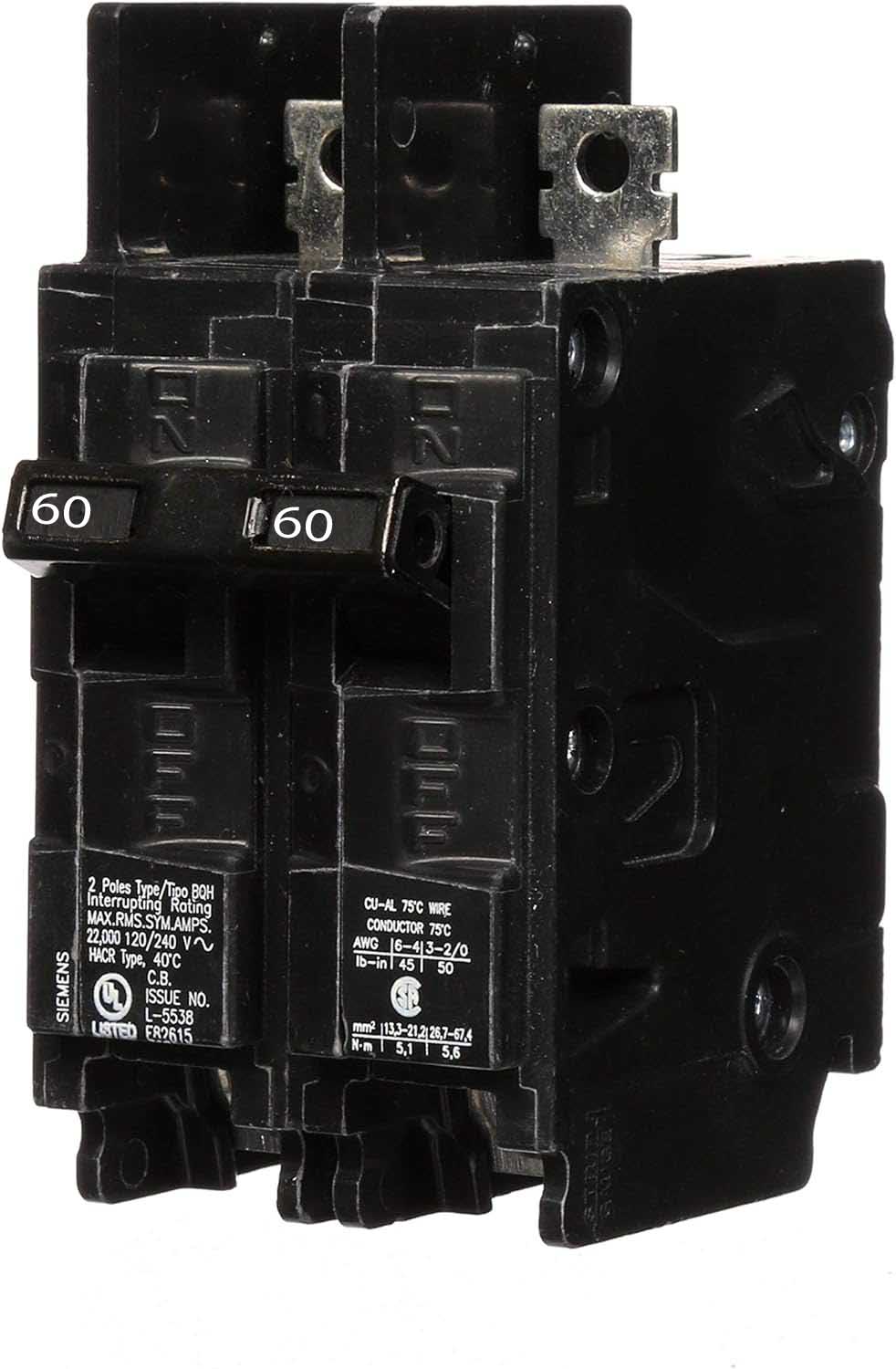

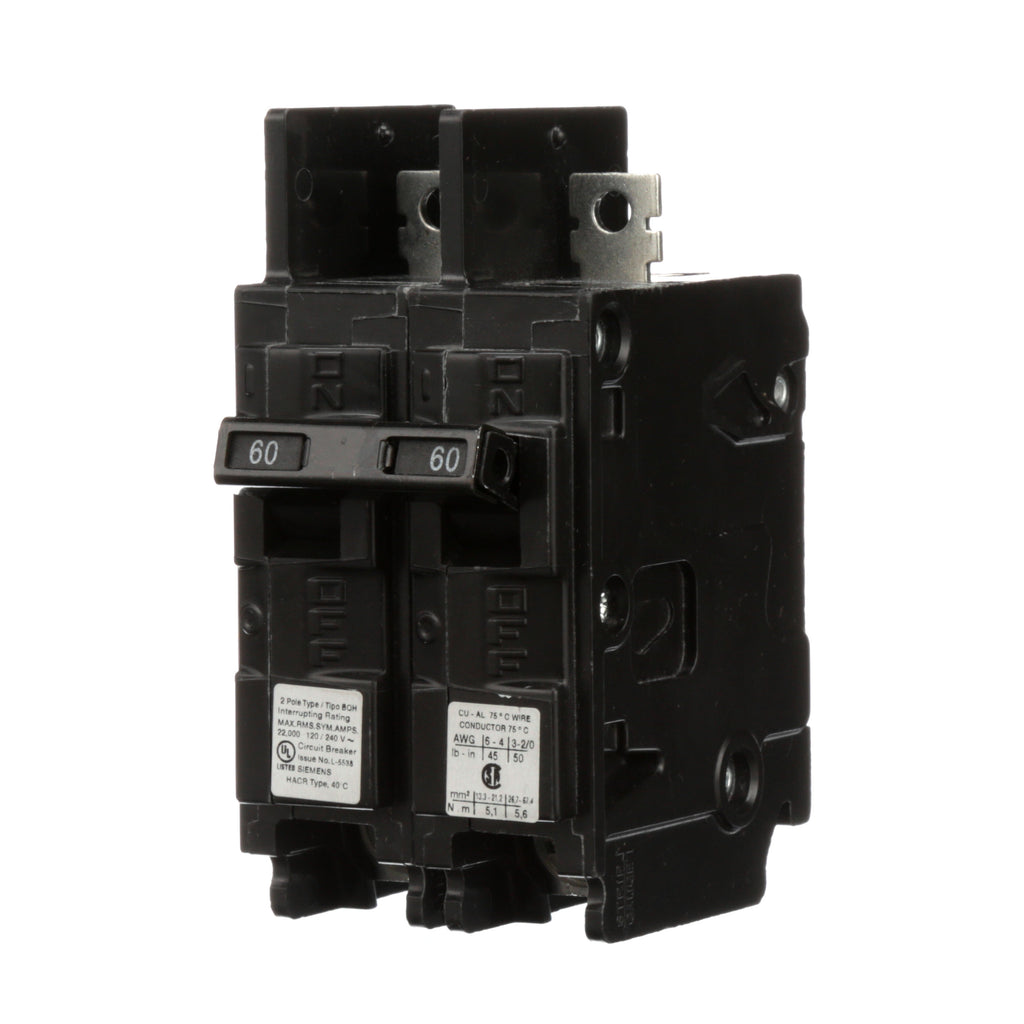

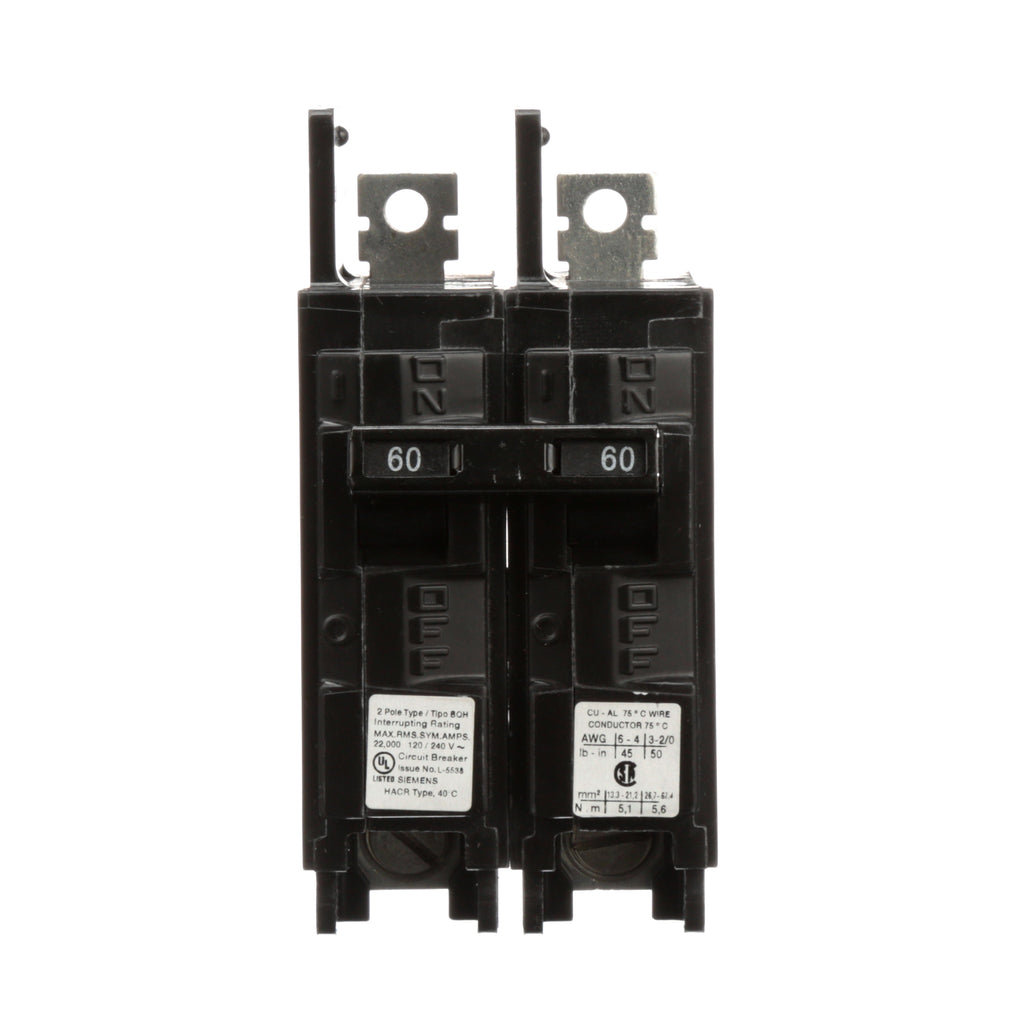

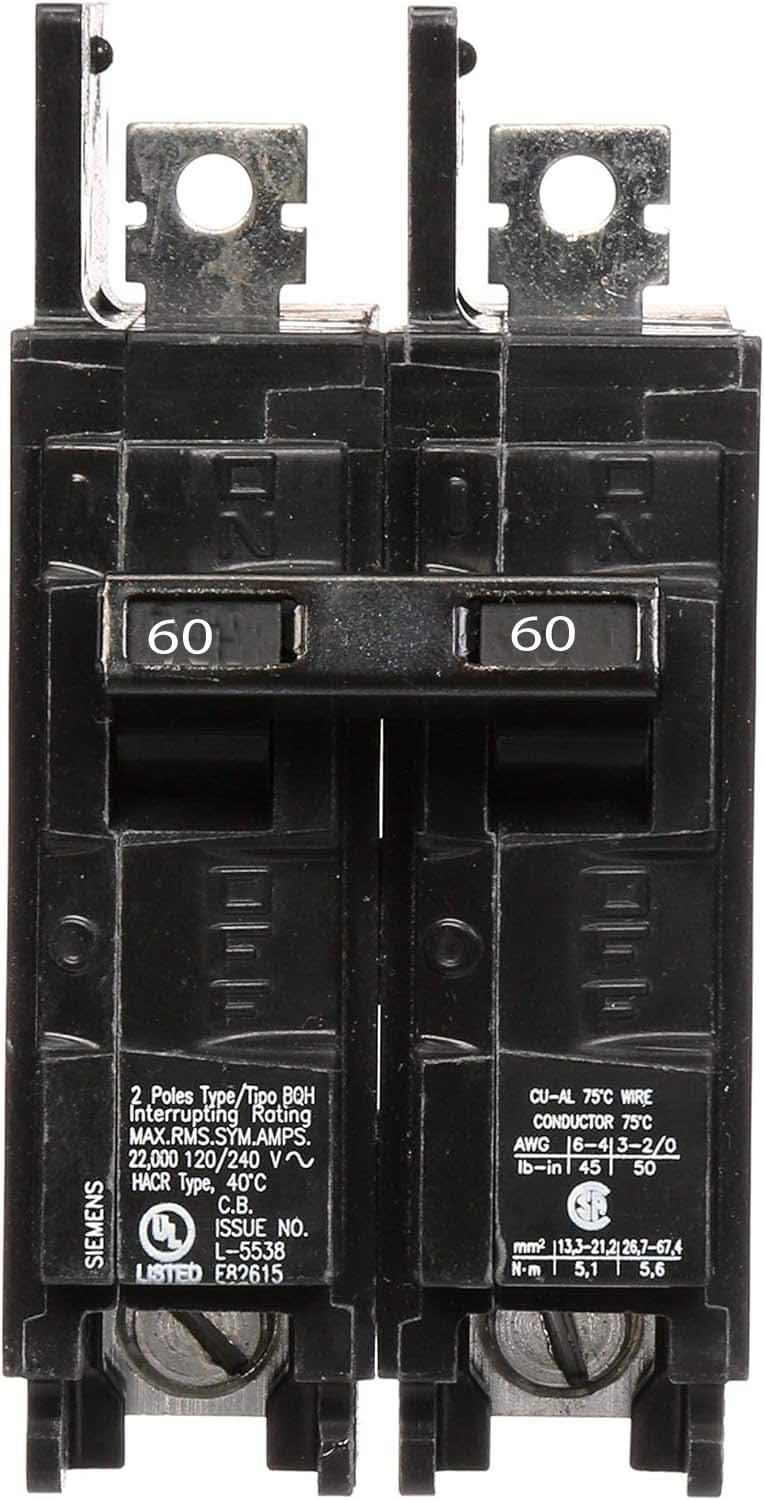

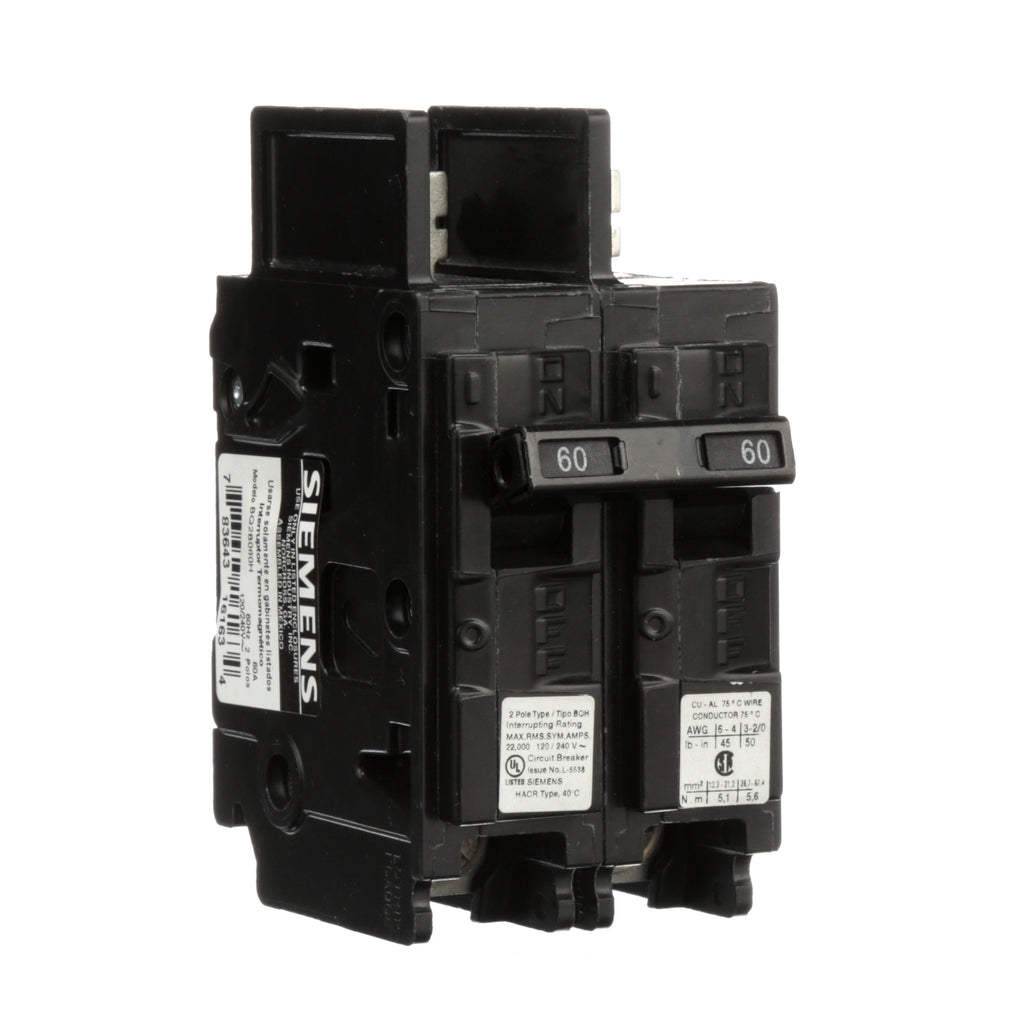

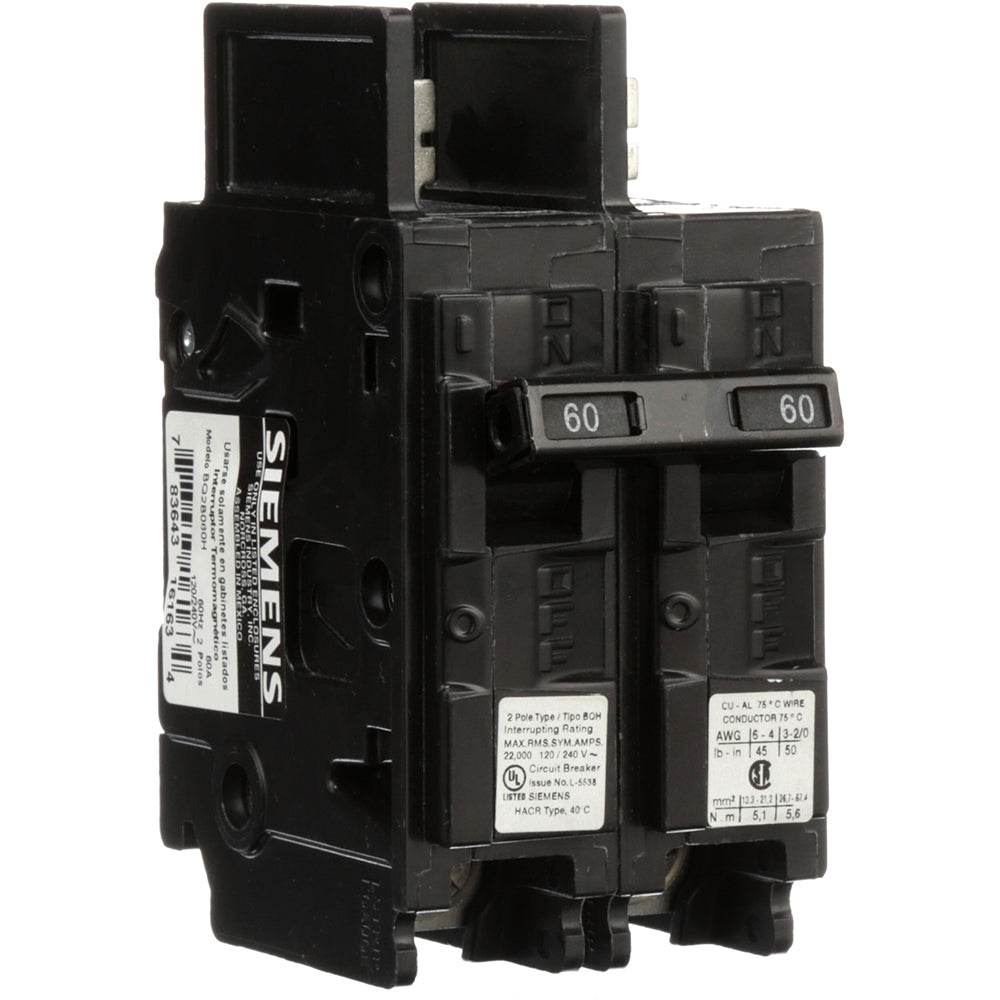

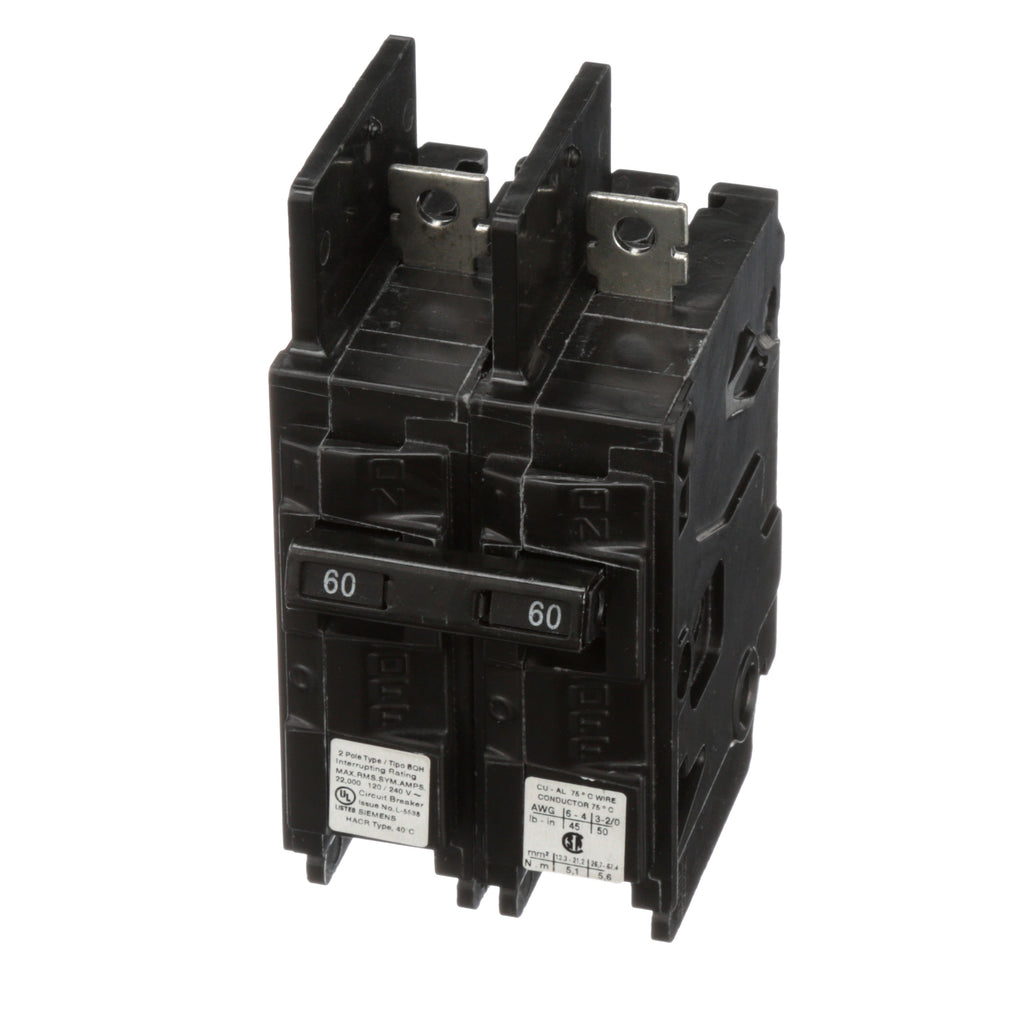

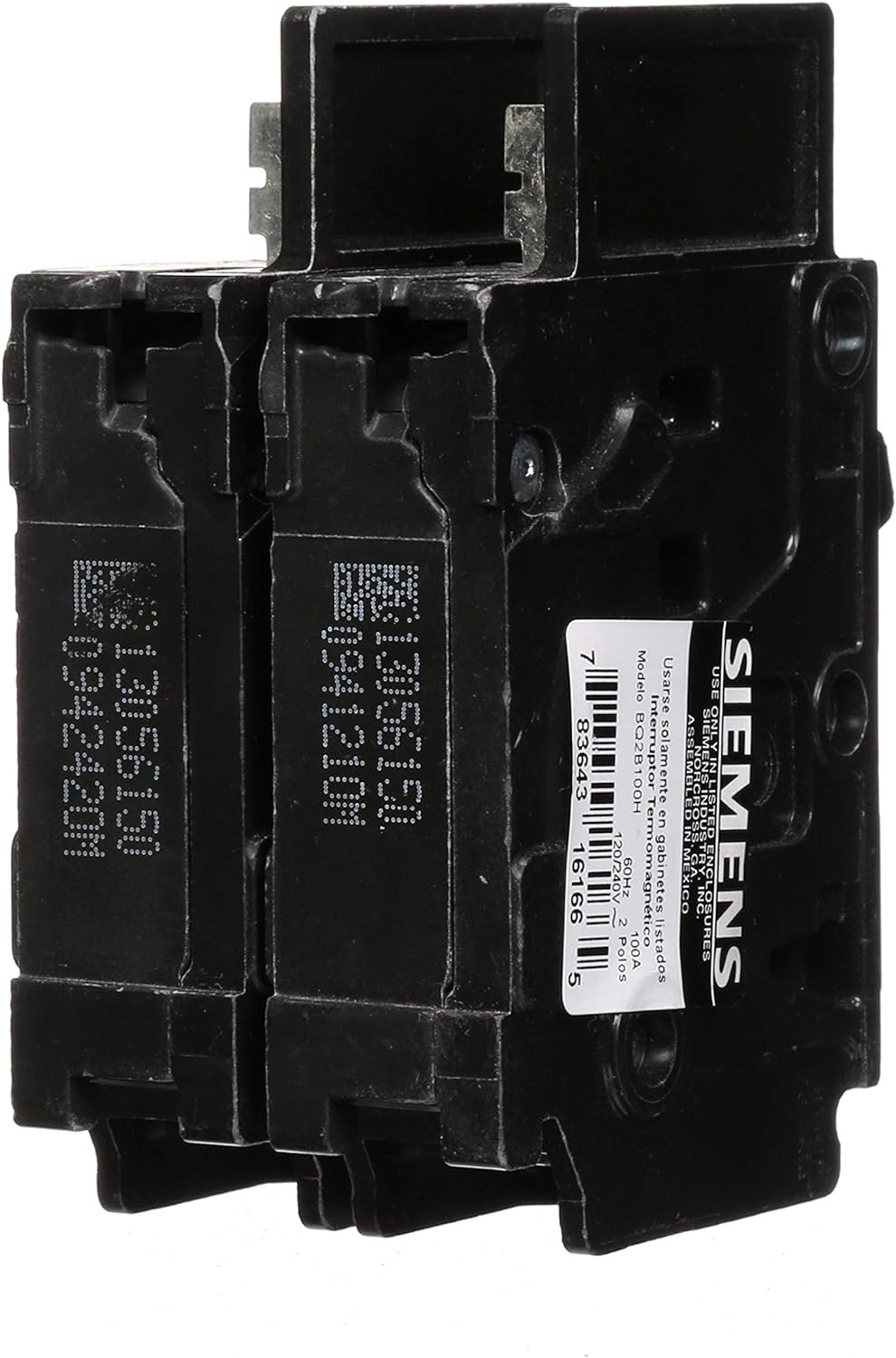

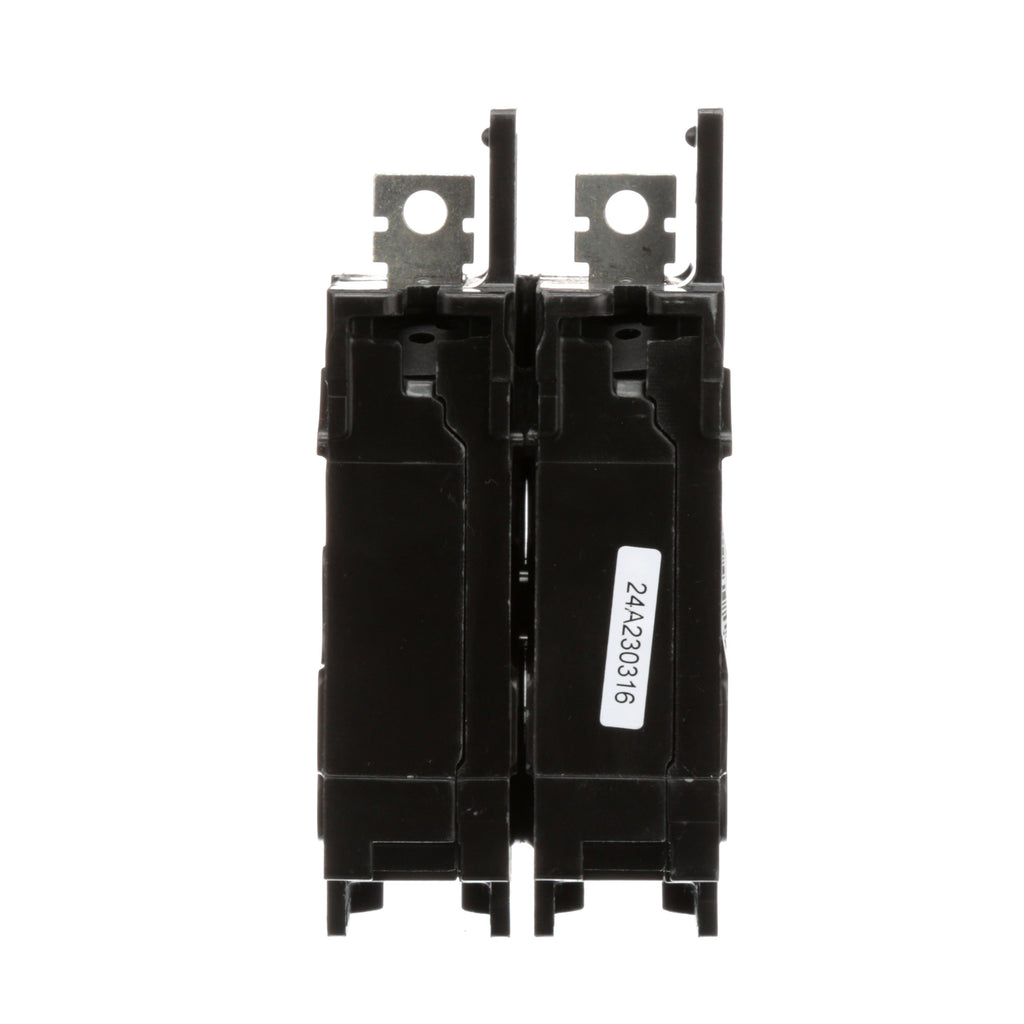

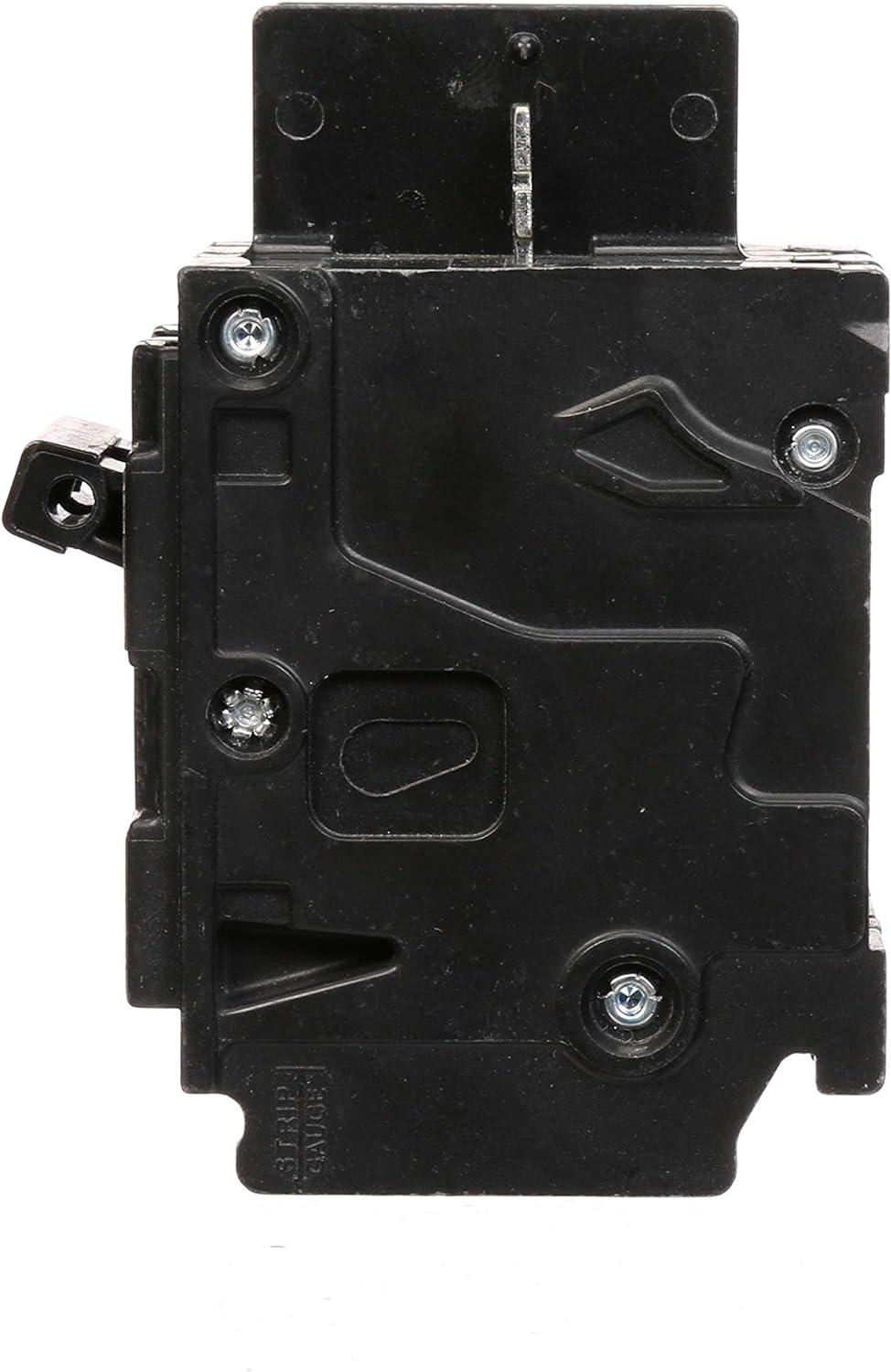

BQ2B060H is a Siemens 60 Amp, 2 Pole molded case circuit breaker designed for 120/240 VAC applications with a BQ frame and thermal magnetic trip unit.This circuit breaker features a bolt-on mounting type, a 22kA interrupting rating, and is suitable for single-phase low voltage power distribution. It provides reliable overcurrent protection with thermal magnetic trip technology and meets industry certifications for safety and performance.
- Amperage: 60 Amps
- Voltage: 120/240 VAC
- Poles: 2
- Mounting Type: Bolt-On
- Interrupting Rating: 22,000 Amps (22 kA)
- Frame/Series: BQ
- Trip Unit: Thermal Magnetic
- Phase: Single Phase
- Certifications: Industry Standard Compliant
Specifications
- Part Number: BQ2B060H
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BQ Series
- Type : BQH
- Voltage : 120/240
- Amperage : 60
- Phase : 1
- Poles : 2
- AIC rating : 22kA@240V
- Connection : Bolt-on
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 125A/BQH
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- MCM Size : Min. Wire Size 2 AWG (Al), 4 AWG (Cu) Max. Wire Size 1/0 AWG
- Breaker Type : High Interrupting Capacity
- Protection : Thermal Magnetic
Product Data
- UPC : 783643161634
- GTIN : 00783643161634
- Country of Origin : Mexico
- Dimensions : 2.563 x 2.00 x 3.122 inch
- Weight : 0.617
- Panel Type : Siemens Panelboards
- Standards : HACR Rated, UL Listed
- Certification : CSA, HACR, UL
