Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
BQ2B020H

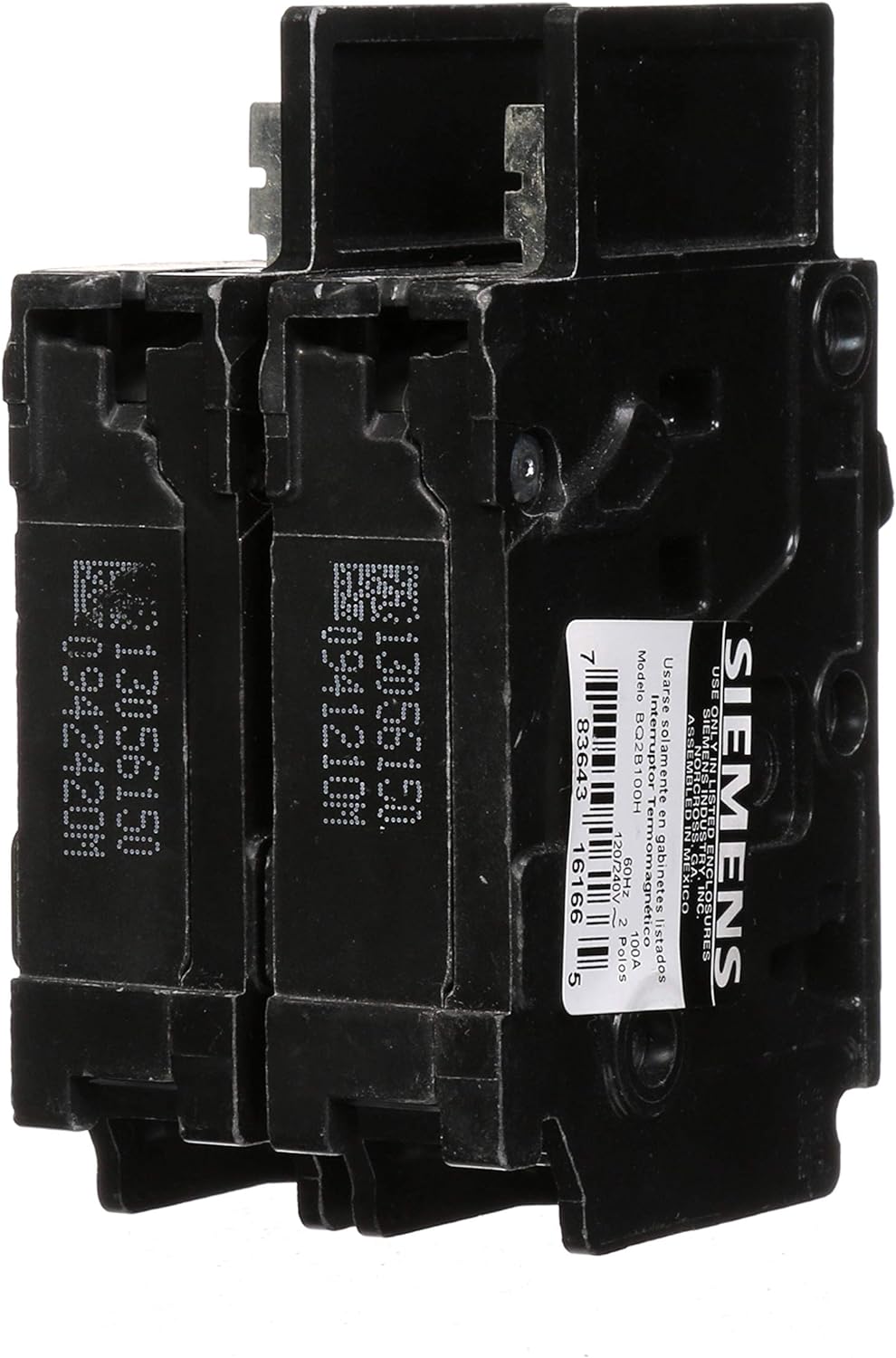

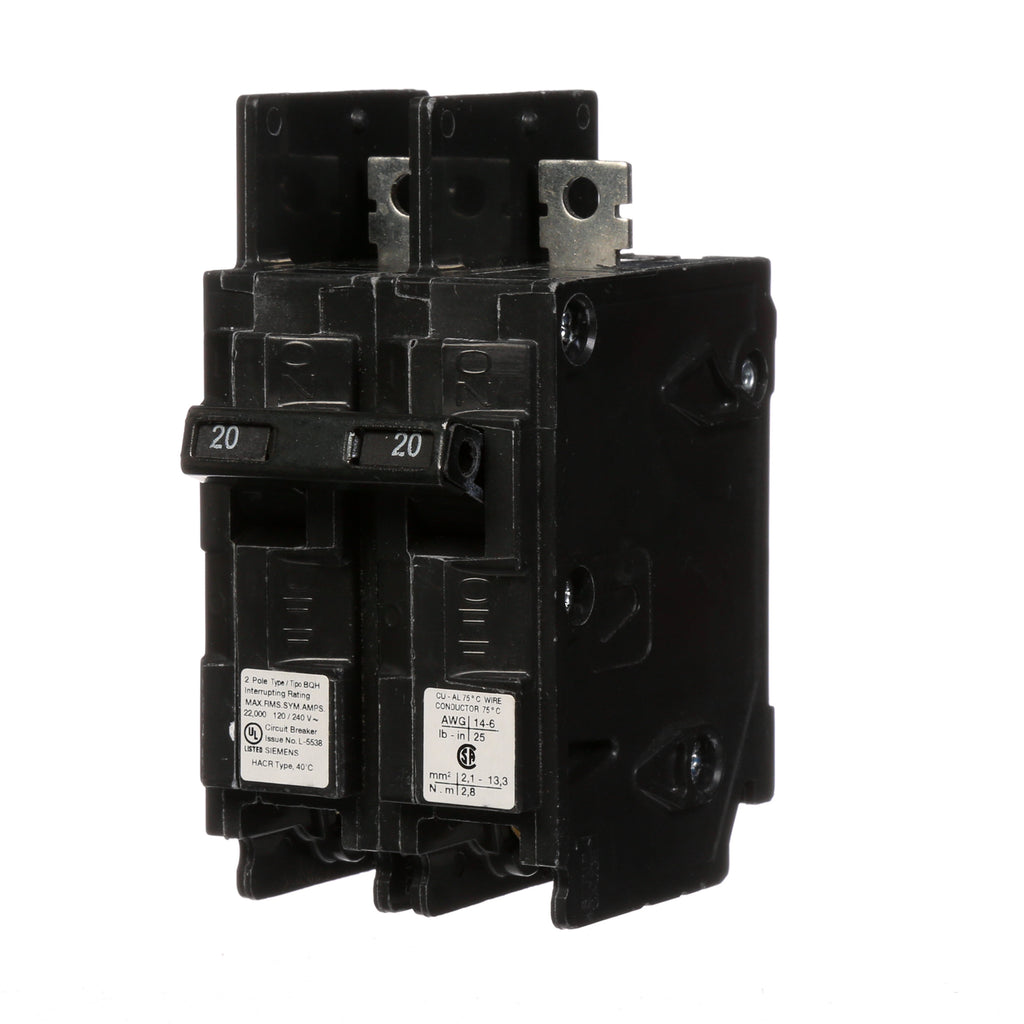

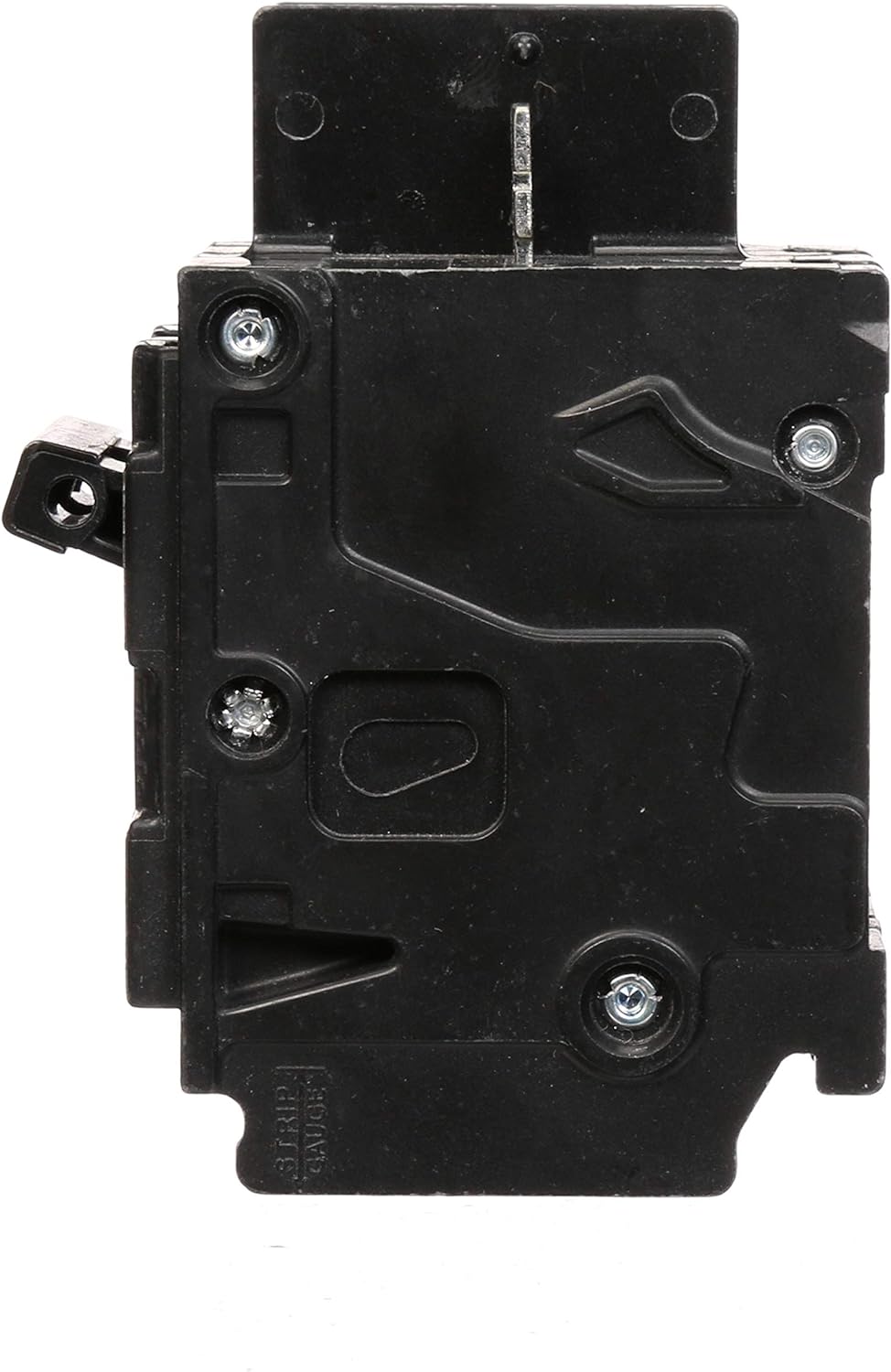

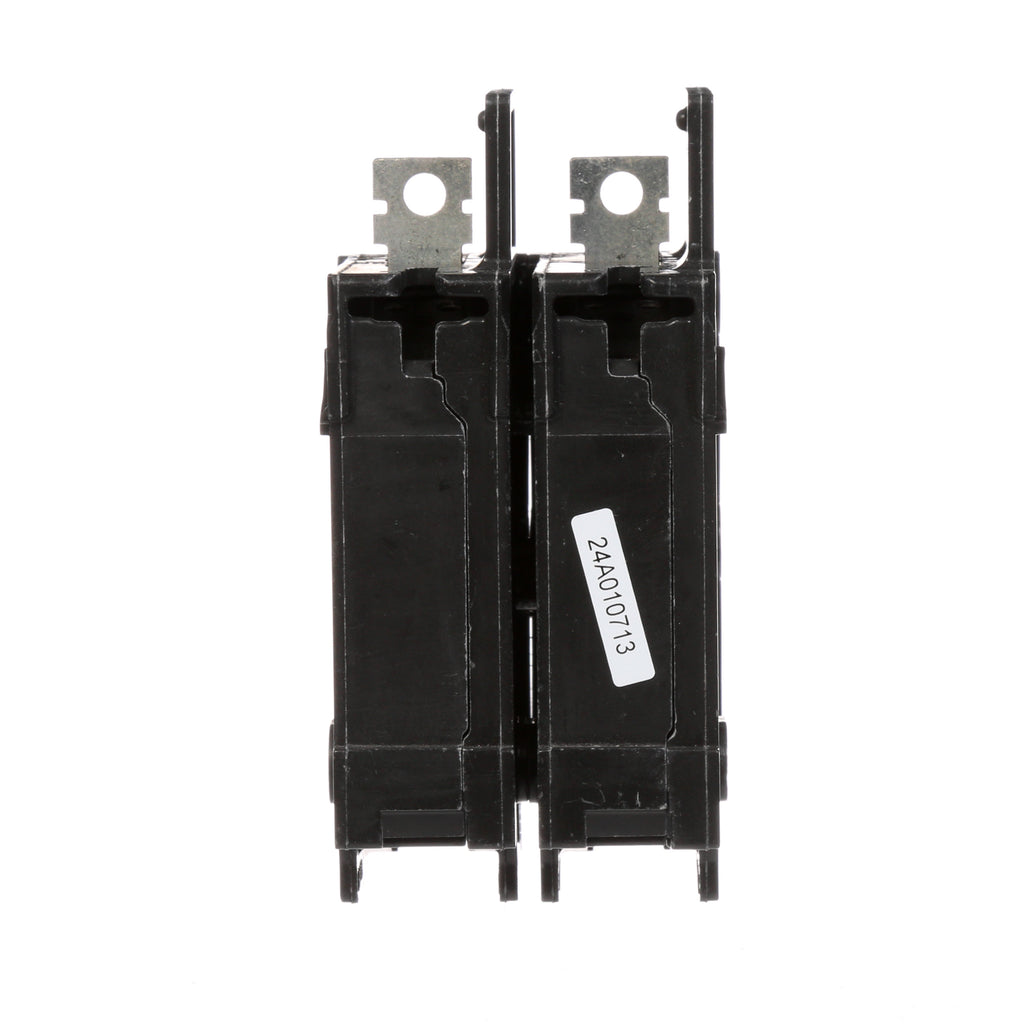

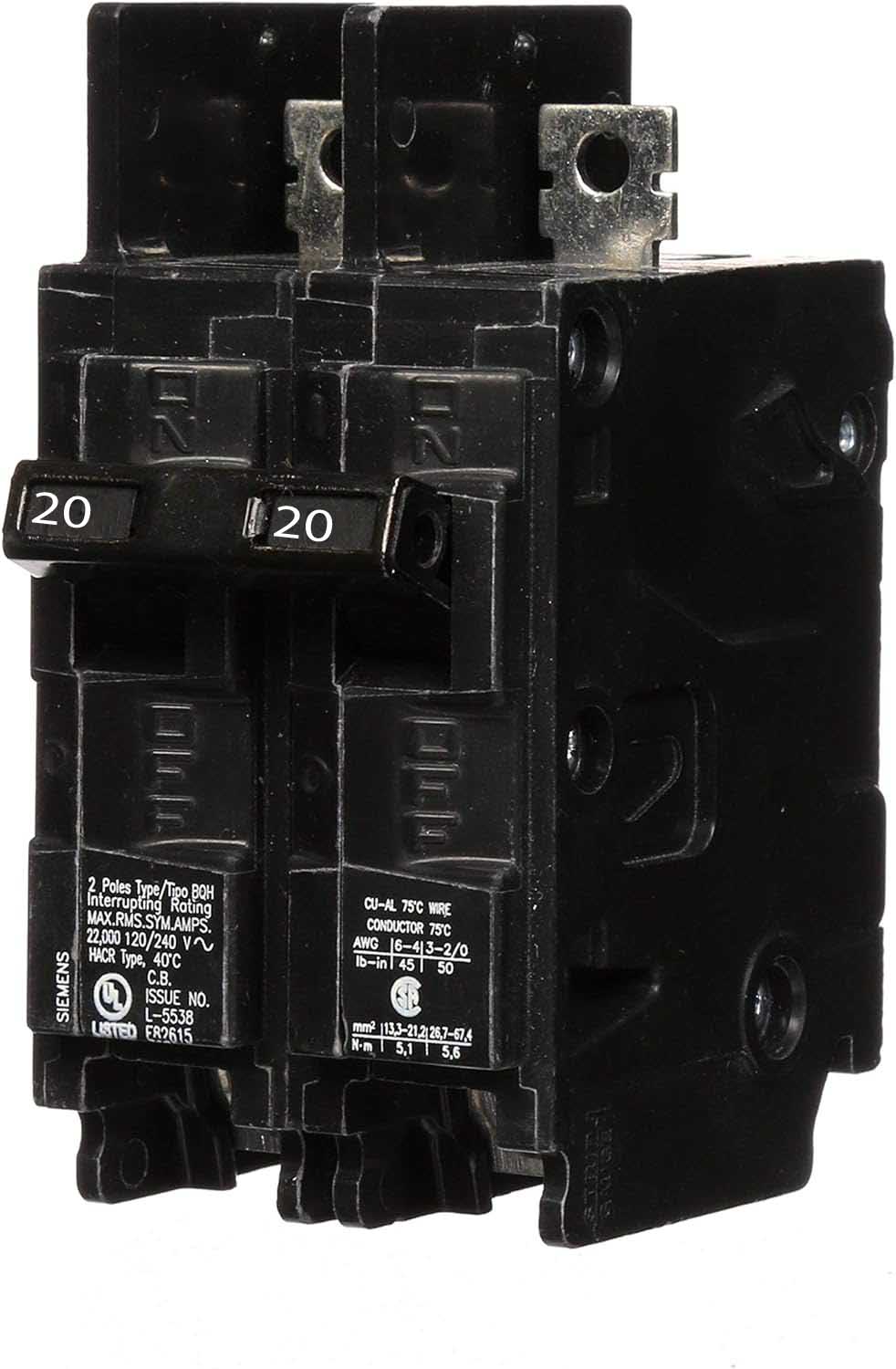

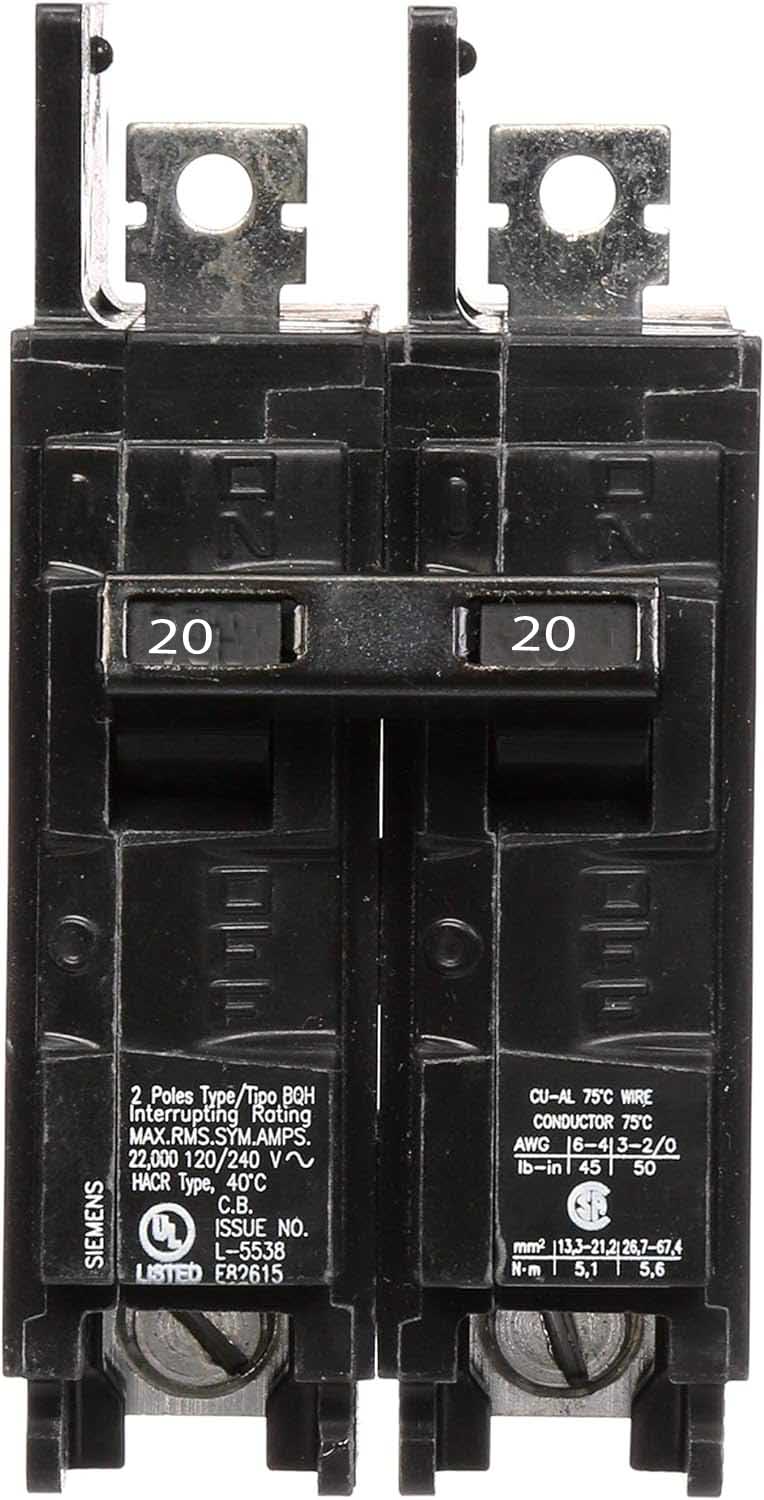

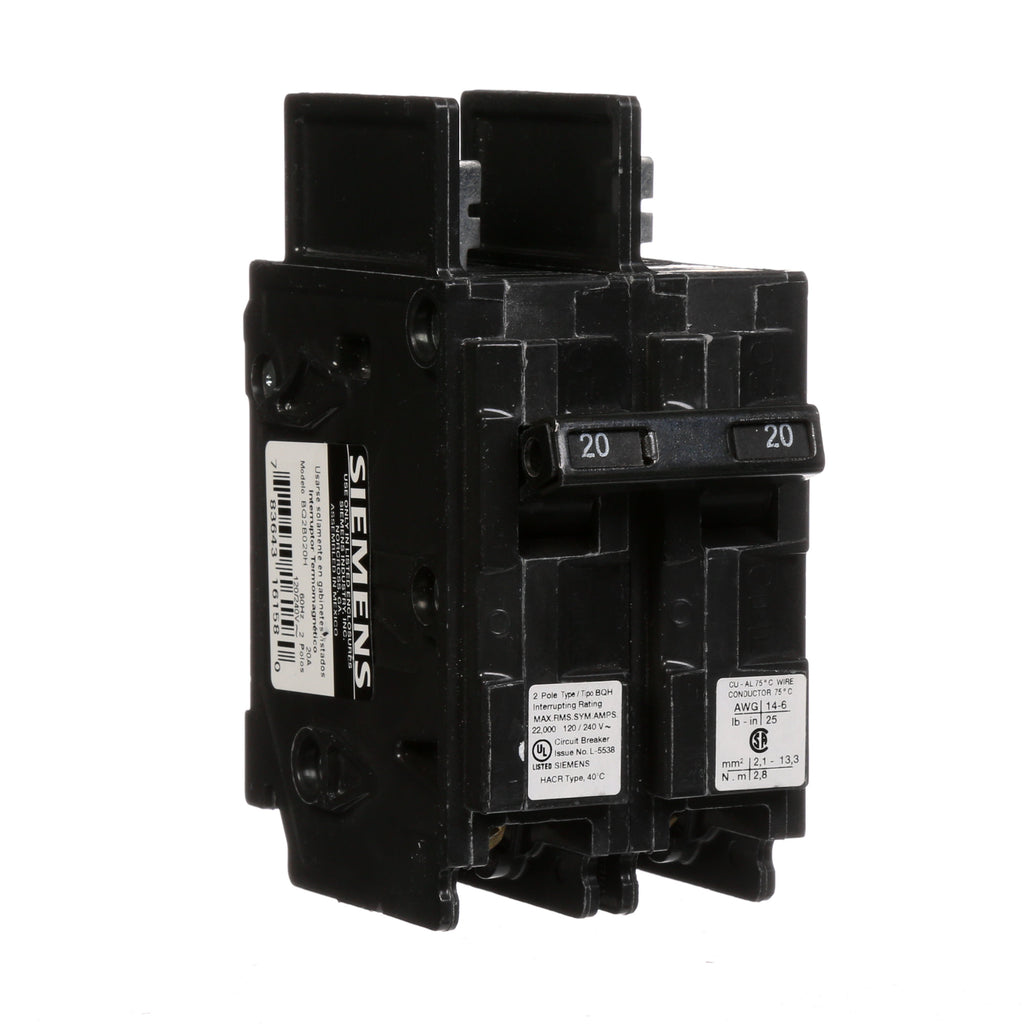

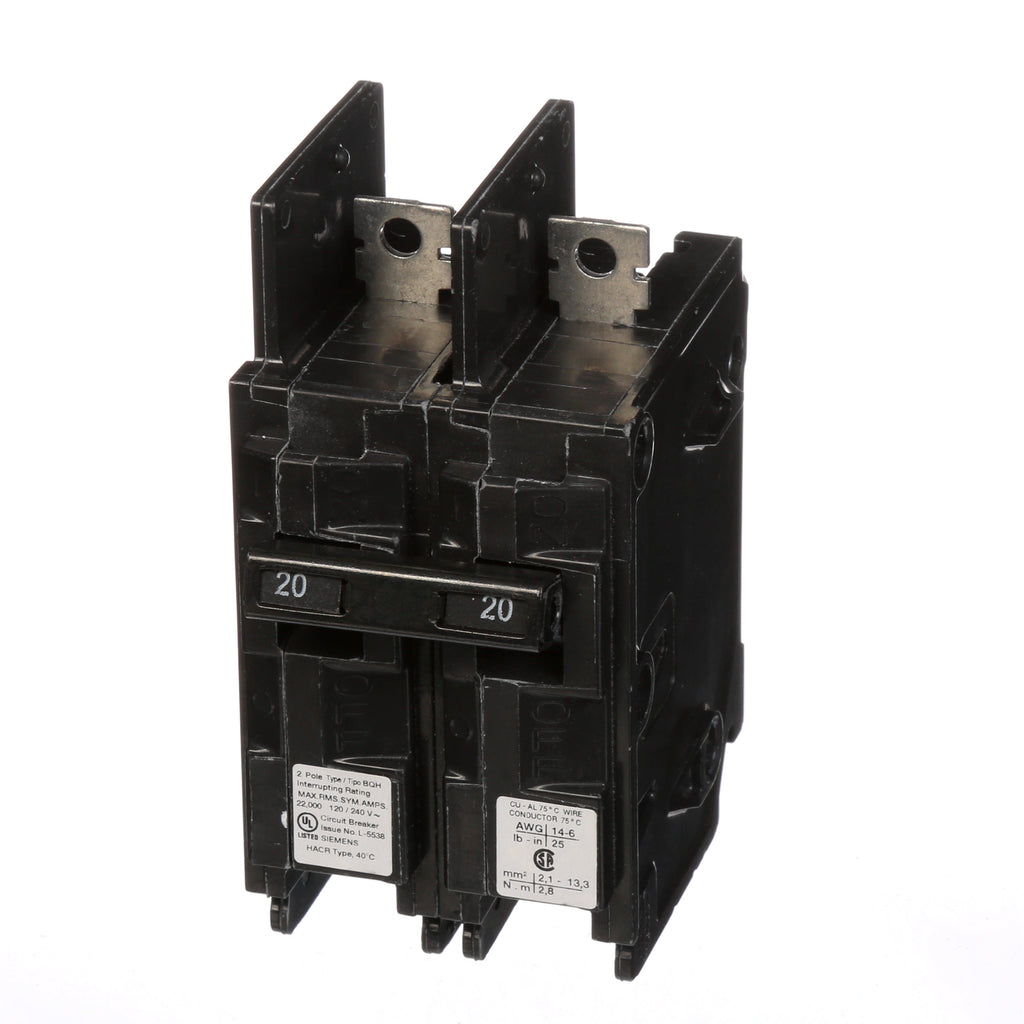

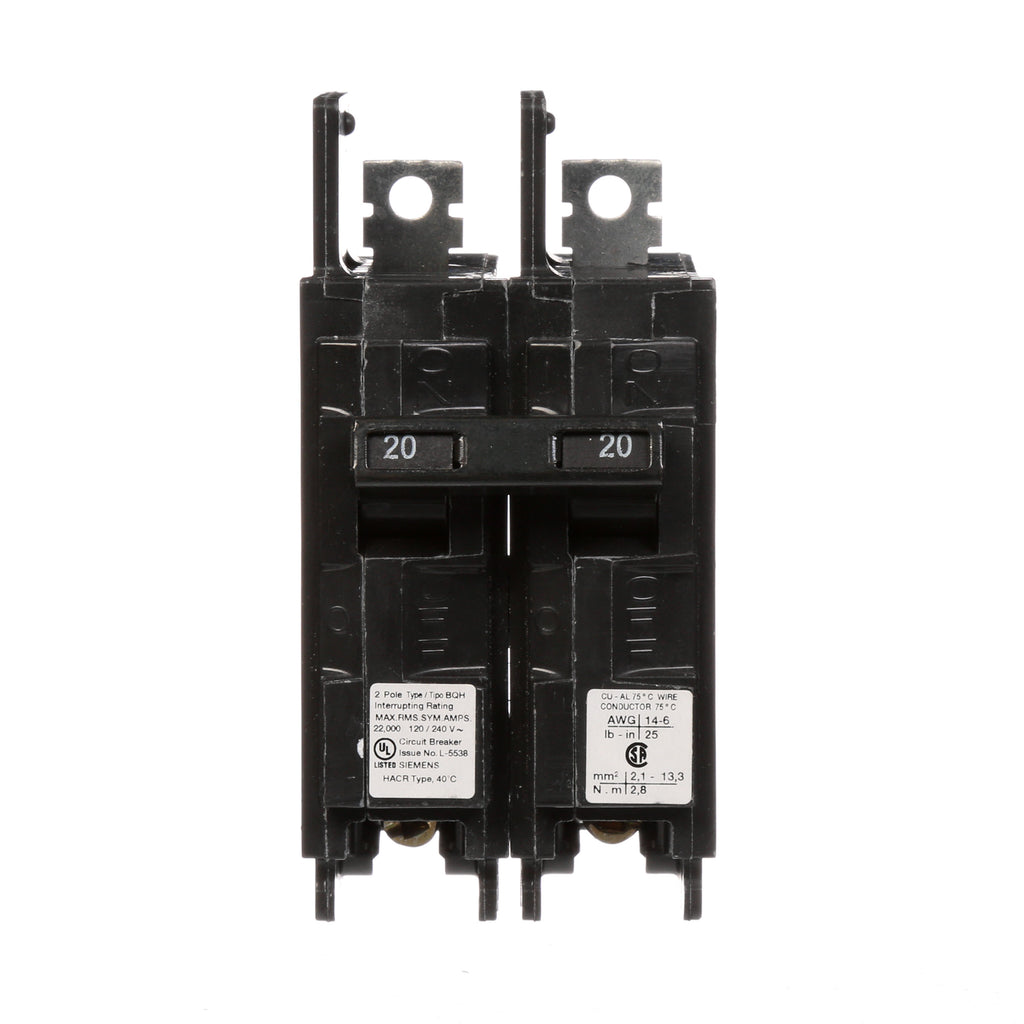

BQ2B020H - Siemens Type BQ molded case circuit breaker with thermal-magnetic trip protection.This 2-pole circuit breaker features a BQ frame, 20A rating at 40C, and 120/240VAC operation with 22kA interrupting capacity. It provides reliable overload and short-circuit protection in low voltage applications.
- Part Number: BQ2B020H
- Manufacturer: Siemens
- Type: Molded Case
- Frame/Series: BQ
- Poles: 2
- Amperage: 20A at 40C
- Voltage Rating: 120/240VAC, 60Hz
- Interrupt Rating: 22kA
- Trip Unit: Thermal-Magnetic
- Mounting: Bolt-On
Specifications
- Part Number: BQ2B020H
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BQ Series
- Type : BQH
- Voltage : 120/240
- Amperage : 20
- Phase : 1
- Poles : 2
- AIC rating : 22kA@240V
- Connection : Bolt-on
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 125A/BQH
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- MCM Size : Min. Wire Size 2 AWG (Al), 4 AWG (Cu) Max. Wire Size 1/0 AWG
- Breaker Type : High Interrupting Capacity
- Protection : Thermal Magnetic
Product Data
- UPC : 783643161580
- GTIN : 00783643161580
- Country of Origin : Mexico
- Dimensions : 2.563 x 2.00 x 3.122 inch
- Weight : 0.617
- Panel Type : Siemens Panelboards
- Standards : HACR Rated, UL Listed
- Certification : CSA, HACR, UL
