Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage
Description
BLN004

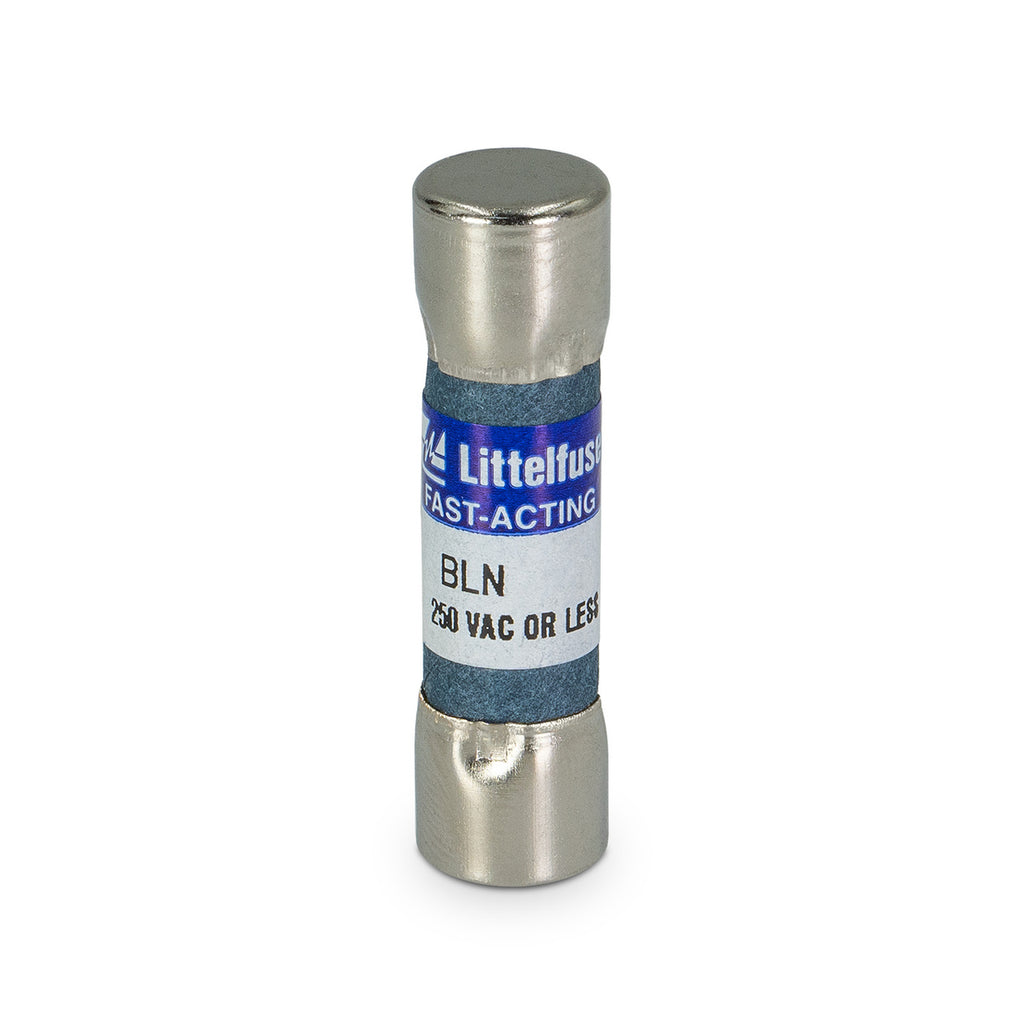

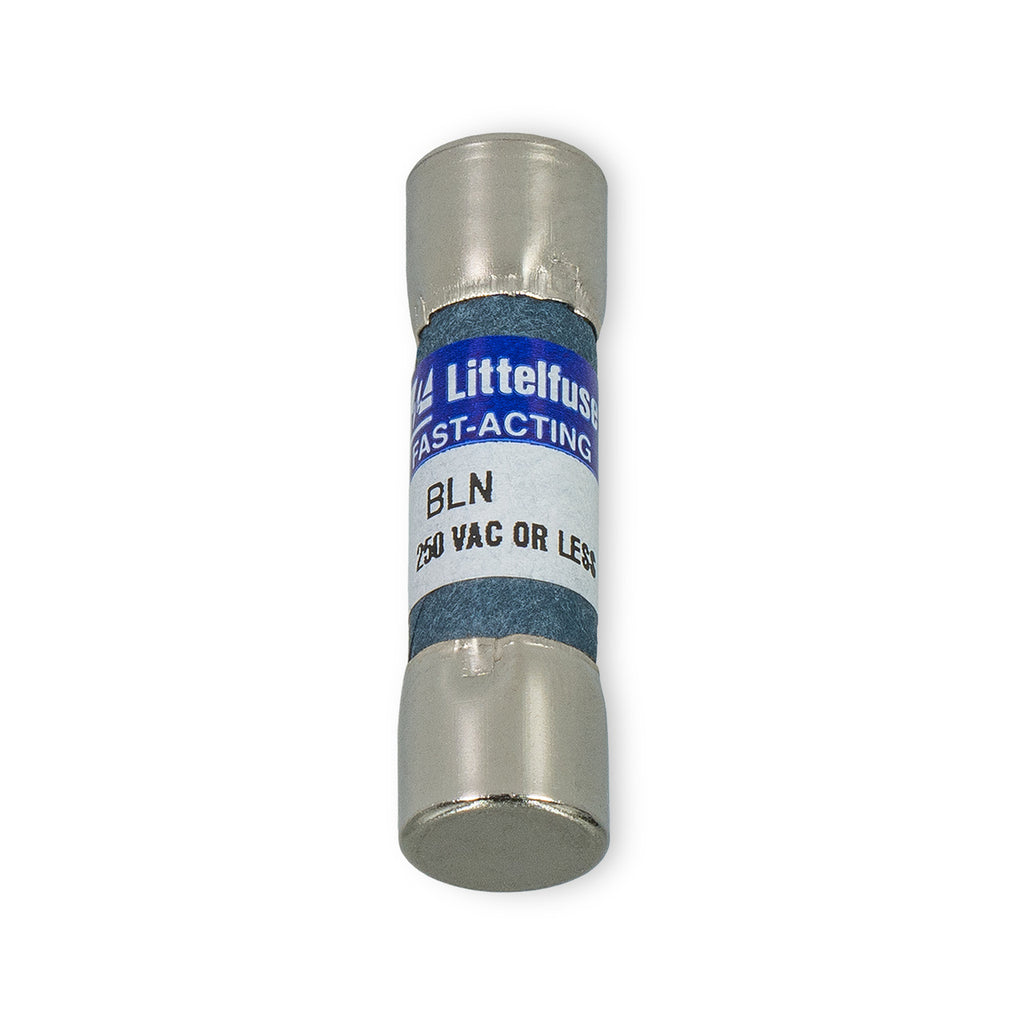

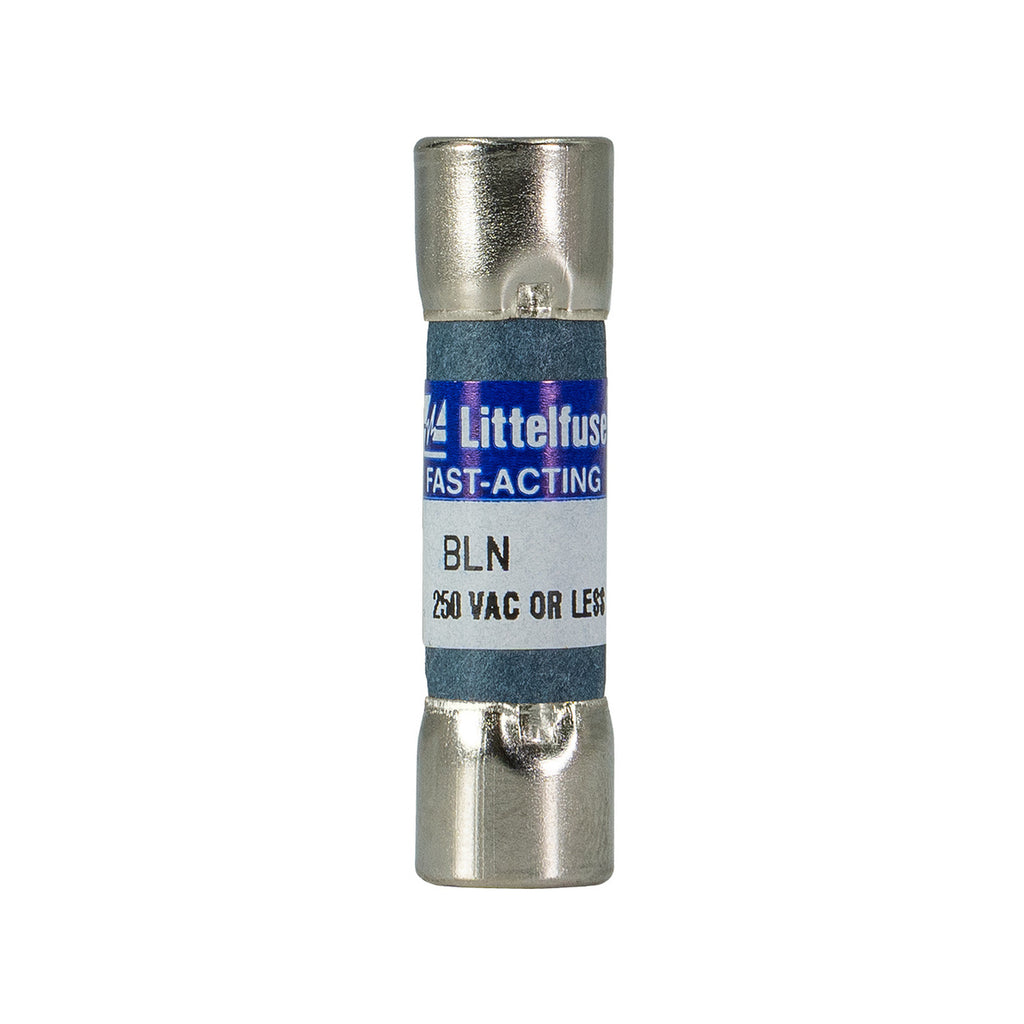

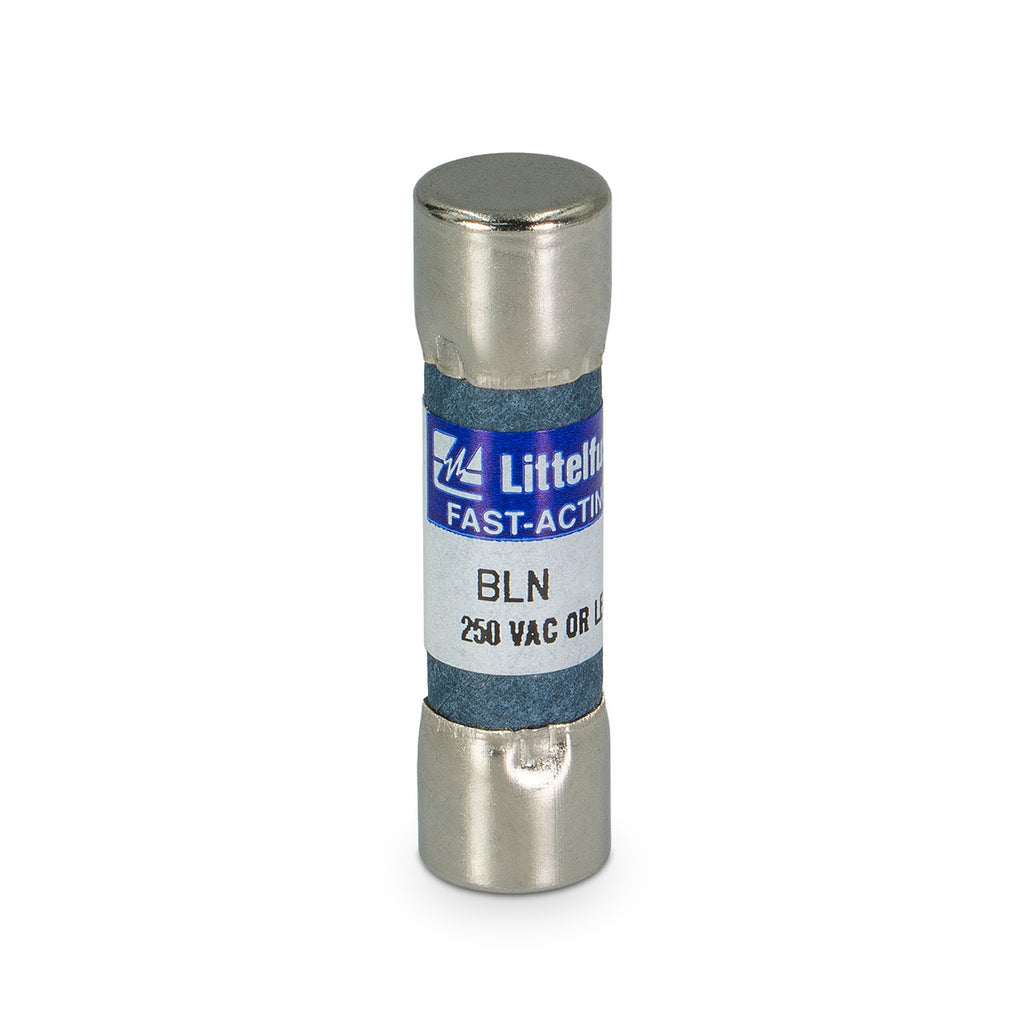

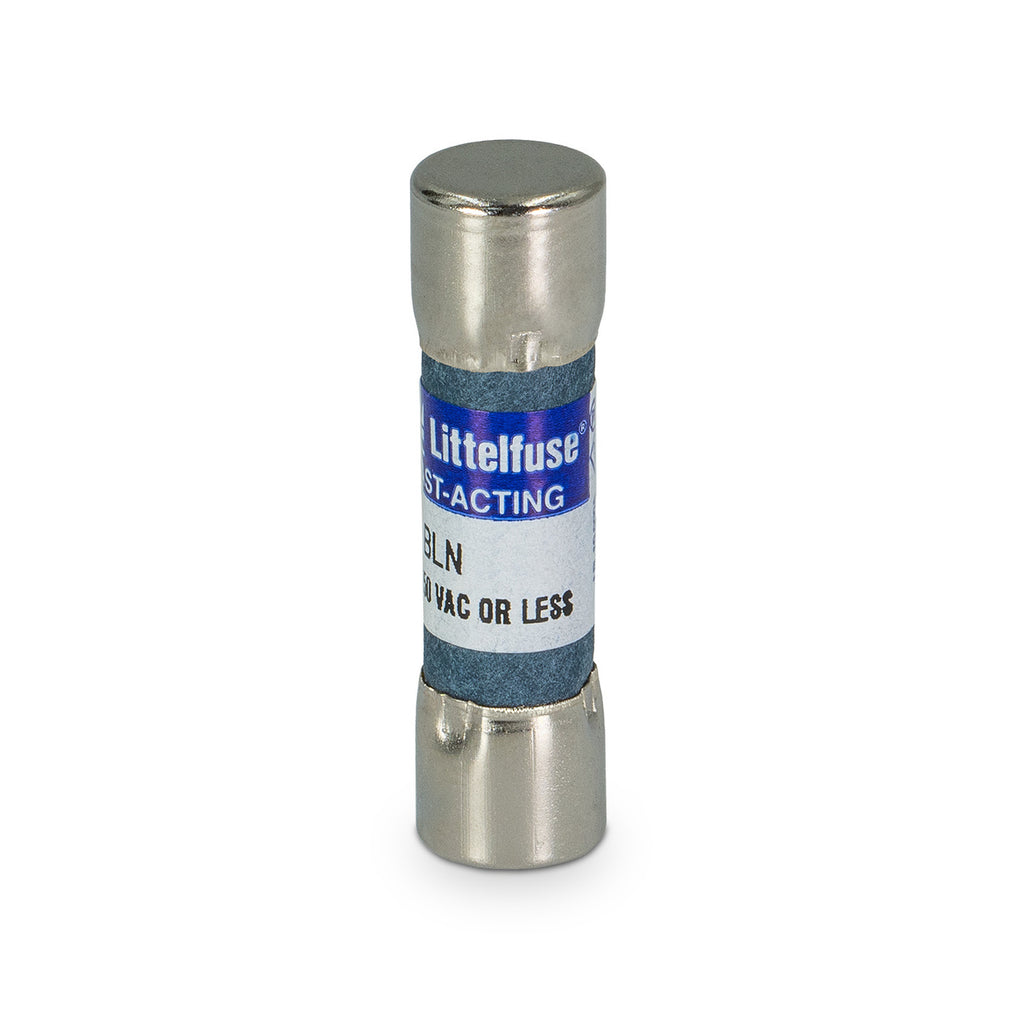

BLN004 is a Littelfuse 4 amp, 250 volt fast acting midget fuse designed for low voltage overcurrent protection.BLN004 features a cylindrical body with a 10,000 amp interrupt rating at 250 VAC, meeting UL 248-14, CSA, and PSE standards. It is part of the BLN series, providing reliable fast-acting fuse protection for control circuits and military applications.
- Amperage: 4 Amps
- Voltage Rating: 250 VAC
- Interrupt Rating: 10,000 Amps
- Fuse Type: Class Midget (5AG)
- Response Time: Fast Acting
- Body Material: Paper
- Cap Material: Nickel Plated Bronze
- Length: 1.5 inches (38.1 mm)
- Diameter: Approximately 0.41 inches (13/32 inch)
- Certifications: UL 248-14, CSA, PSE
- RoHS Compliant and Lead Free
Specifications
- Part Number: BLN004
- Manufacturer : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : BLN Series
- Type : BLN Series - Fast-Acting Fiber Body Midget Fuses
- Voltage : 250
- Amperage : 4
- AIC rating : 10kA@250V
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
Product Data
- UPC : 079458110531
- GTIN : 00079458110531
- Weight : 6.3
