Product Info
- Manufacturer:OZ/Gedney
Description
BLG2604

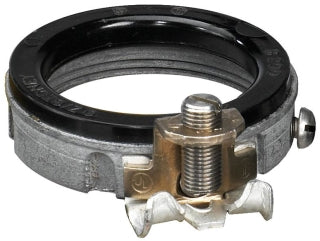

BLG2604 is an OZ/Gedney specification grade insulated grounding bushing designed for electrical construction applications.
This grounding bushing features a tin-plated copper saddle suitable for copper or aluminum conductors from 14 to 4 AWG. It has a phenolic insulated throat rated for 150°C, providing protection against abrasion and mechanical vibration. The bushing is threaded for rigid conduit and IMC, made of malleable iron with zinc plating, and includes a set screw for fixed alignment and positive ground continuity. It ensures a low grounding connector profile and maintains firm contact on the grounding conductor with a spring action design.
- Key Specifications
- Type: BLG insulated grounding bushing
- Size: 2-1/2 inch trade size
- Material: Malleable iron, zinc plated
- Throat Type: Phenolic insulated
- Temperature Rating: 150°C
- Conductor Range: Copper or aluminum, 14 to 4 AWG
- Connection: Threaded rigid conduit and IMC
- Grounding Saddle: Tin-plated copper
- Set Screw: Provides fixed alignment and positive ground continuity
- Application: Protects conductor insulation from abrasion and mechanical stress
- UL Standards: 514B, 467, 468
- CSA Standard: C22.2 No. 41
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: BLG2604
- Manufacturer : OZ/Gedney
- Brand : OZ/Gedney
Product Data
- UPC : 78312604236
- GTIN : 00783126042368
- Weight : 5.19
