Product Info
- Manufacturer:OZ/Gedney
Description
BLG1522

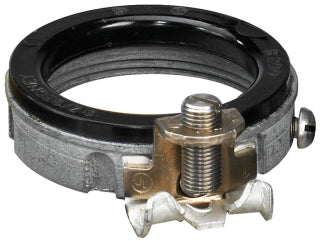

BLG1522 is a specification grade insulated grounding bushing designed for electrical construction applications. This grounding bushing features a phenolic insulated throat and a tin-plated copper saddle for reliable grounding connections. The BLG1522 is constructed from malleable iron with a zinc plated finish, providing durability and corrosion resistance. It is suitable for use with threaded rigid conduit, IMC, and EMT conduit. The grounding lug accommodates wire sizes from 8 AWG solid/stranded up to 2/0 AWG stranded, ensuring compatibility with a wide range of conductor types. The set screw design ensures fixed alignment and positive ground continuity, while the insulated throat protects conductors from abrasion during pulling and mechanical vibration.
- Trade Size: 1-1/2 inch
- Material: Malleable Iron, Zinc Plated
- Insulation Type: Phenolic Insulated Throat
- Wire Size Range: 8 AWG to 2/0 AWG
- Conduit Type: Threaded Rigid, IMC, EMT
- Connection Type: Set Screw
- Grounding Saddle: Tin Plated Copper
- UL Listed: UL 514B, UL 467, UL 468
- CSA Certified: C22.2 No. 41
- Federal Specification: W-F-408E
- NEMA Standard: FB-1
- Temperature Rating: 150°C
Specifications
- Part Number: BLG1522
- Manufacturer : OZ/Gedney
- Brand : OZ/Gedney
Product Data
- UPC : 78312604227
- GTIN : 00783126042276
- Weight : 5.19
