Product Info
- Manufacturer:OZ/Gedney
Description
BLG0504

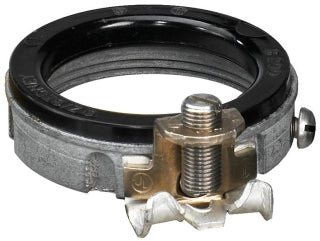

BLG0504 is a 1/2 inch insulated grounding bushing designed for use with threaded rigid conduit and IMC conduit.
This grounding bushing features a zinc-plated steel body with stainless steel screws and a phenolic insulated throat rated for 150°C. It includes a tin-plated copper saddle suitable for copper or aluminum conductors from #8 to 4/0 AWG, and copper conductors only for #14 to 4 AWG lugs. The set screw connection ensures fixed alignment and positive ground continuity while protecting insulated conductors from abrasion and mechanical vibration.
- Trade Size: 1/2 inch
- Material: Zinc Plated Steel Body with Stainless Steel Screws
- Throat Type: Phenolic Insulated, 150°C Rating
- Conductor Range: #8 to 4/0 AWG Copper or Aluminum (Tin-Plated Copper Saddle)
- Lug Connection: Set Screw
- Application: Threaded Rigid Conduit, IMC, and EMT Conduit
- Standards: UL 467, UL 514B, CSA C22.2 No. 41, NEMA FB-1, Fed. Spec. W-F-408E
- Height: Approximately 1/2 inch
- Diameter: Approximately 1-1/8 inch
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: BLG0504
- Manufacturer : OZ/Gedney
- Brand : OZ/Gedney
Product Data
- UPC : 783126042009
- Weight : 5.19
