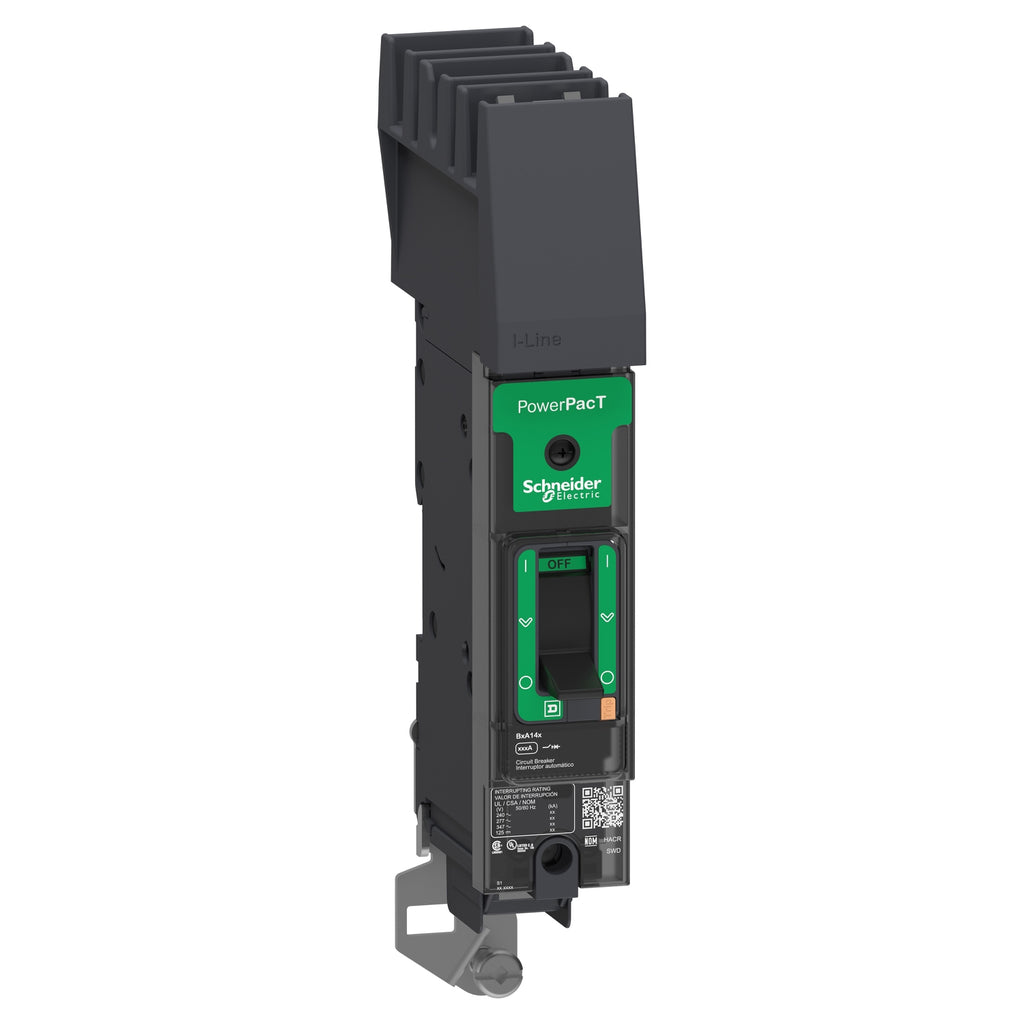

BKA160201 - Schneider Electric PowerPact B 20A 1 Pole 600V Thermal Magnetic Circuit Breaker

BKA160201

BKA160201 is a single-pole, 20A, 600V circuit breaker from Schneider Electric's PowerPact B series, designed for reliable protection in industrial and commercial power distribution systems. This breaker features a thermal magnetic trip unit and is built for I-Line plug-in mounting, making it ideal for use in panelboards and switchboards requiring high interrupt capacity and compact design. This breaker is rated for 20A continuous current and offers a 65kA interrupt rating at 480V, with a maximum voltage of 600V AC. It is UL listed and suitable for a wide range of applications where dependable circuit protection is required.

• Part Number: BKA160201
• Manufacturer: Schneider Electric
• Series: PowerPact B
• Amperage: 20A
• Poles: 1
• Voltage Rating: 600V AC
• Interrupt Rating: 65kA @ 480V
• Mounting Type: I-Line Plug-In
• Breaker Type: Thermal Magnetic
• UL Listed
• Continuous Current Rating: 80%
• Phase Connection: A

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BKA160201
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BKA
• Voltage : 600
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 100kA@240V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 606489779354
• GTIN : 03606490000000
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 1.06 in (27 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 1.61
• Standards : NEMA AB1, NMX J-266, GB 14048.2, EN/IEC 60947-2, EN/IEC 60947-5-1, CSA C22.2 No 5, UL 489
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
