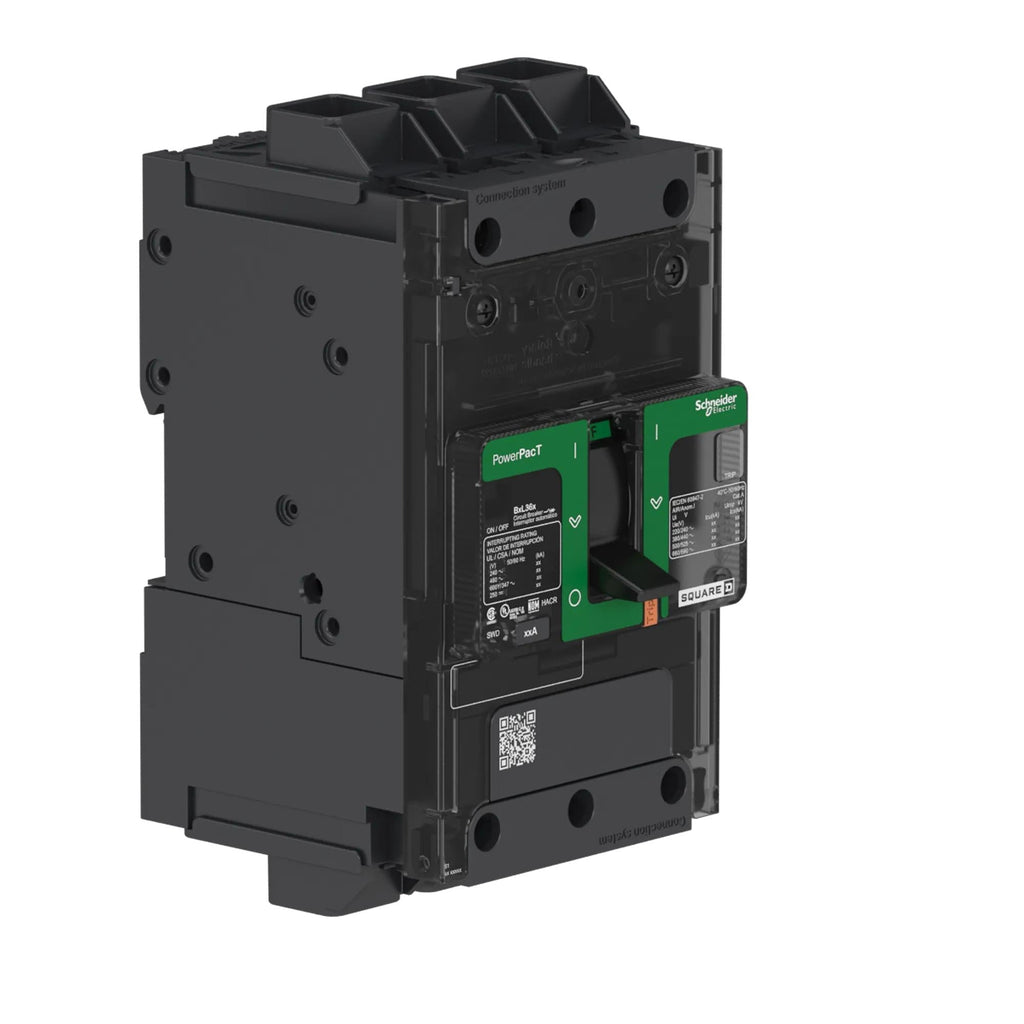

BJL36125 - Square D 125A 600V 3-Pole PowerPact B Molded Case Circuit Breaker

BJL36125

BJL36125 is a 3-pole, 125 amp, 600 volt PowerPact B-frame molded case circuit breaker by Square D designed for reliable circuit protection.This thermal magnetic circuit breaker features a compact B-frame design with toggle actuator, suitable for unit mount and DIN rail applications. It offers a 25kA interrupt rating at 600Y/347VAC, dual AC/DC rating, and is UL, CSA, NOM, IEC, CCC certified and CE marked. The breaker supports flexible mounting and termination options with field-installable accessories.

• Amperage: 125A
• Voltage Rating: 600Y/347VAC
• Poles: 3
• Frame: PowerPact B
• Interrupt Rating: 25kA at 600Y/347VAC
• Trip Unit: Thermal Magnetic

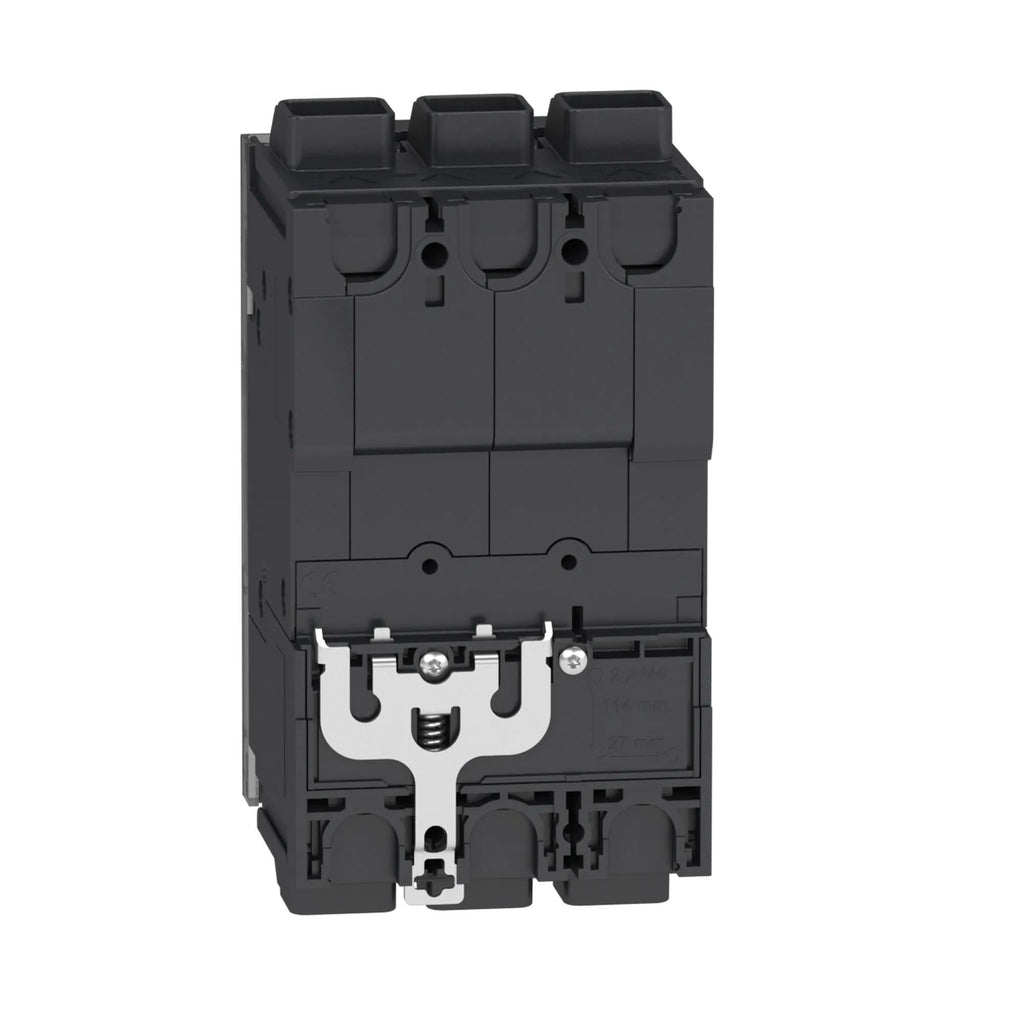

• Mounting Type: Unit mount with DIN rail and back pan capability
• Actuator Type: Toggle
• Certifications: UL, CSA, NOM, IEC, CCC, CE
• Dimensions: 5.39" H x 3.19" W x 4.09" D
• Environmental: Packaging made with recycled cardboard

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BJL36125
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BJL
• Voltage : 600
• Amperage : 125
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Everlink Lug Both Ends
• Frame Size : 125A/BJ
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 606481186082
• GTIN : 03606480000000
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.1 in (80 mm) (Height x Width x Depth)
• Weight : 3.13
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : NEMA AB1, NMX J-266, EN/IEC 60947-5-1, EN/IEC 60947-2, GB 14048.2, UL 489, CSA C22.2 No 5
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
  AWG 14...AWG 3/0 rigid or stranded aluminium/copper
