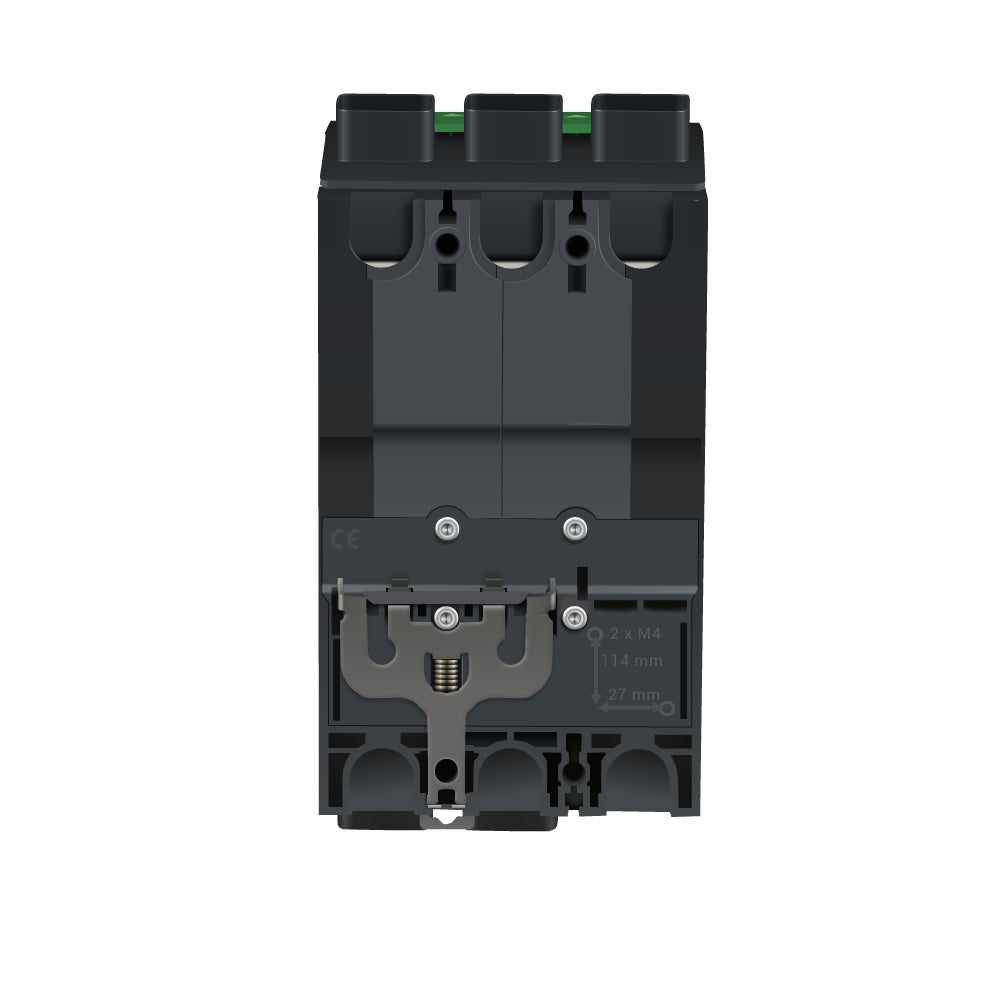

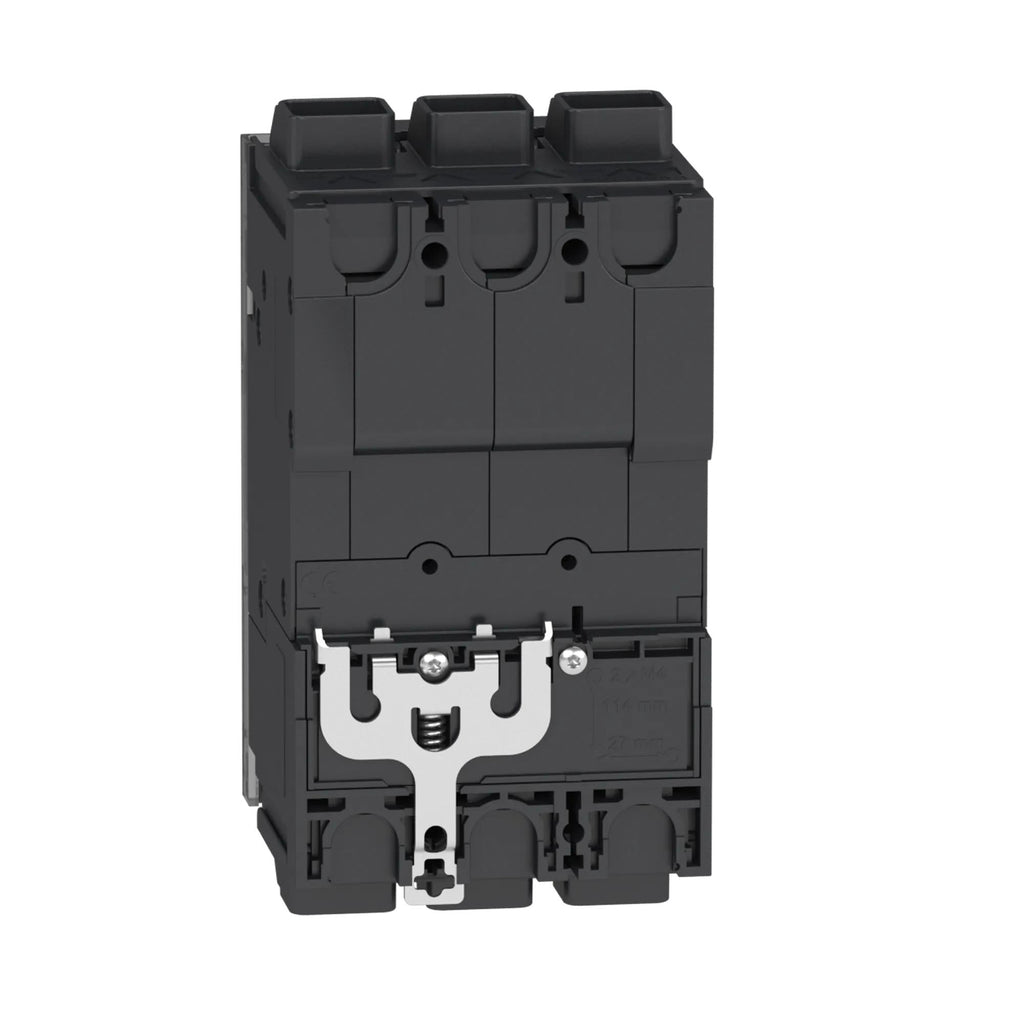

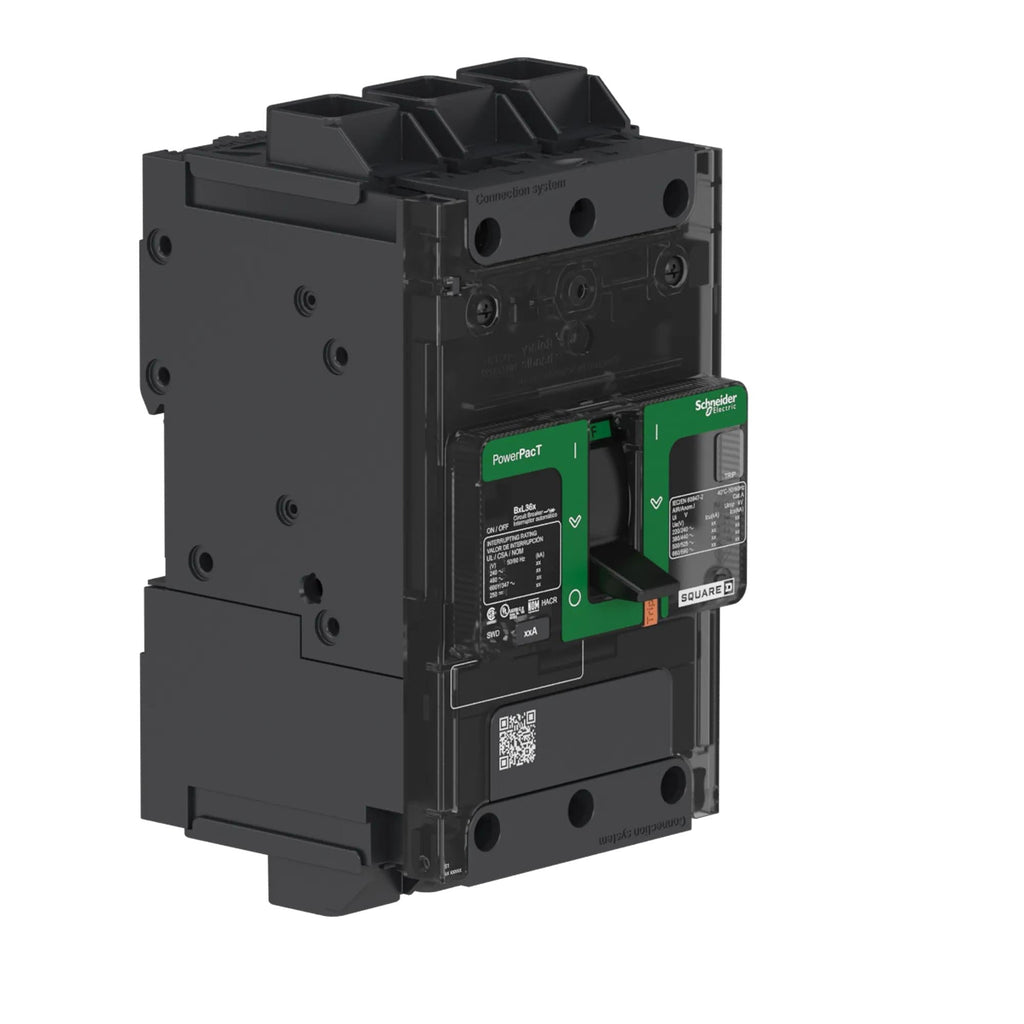

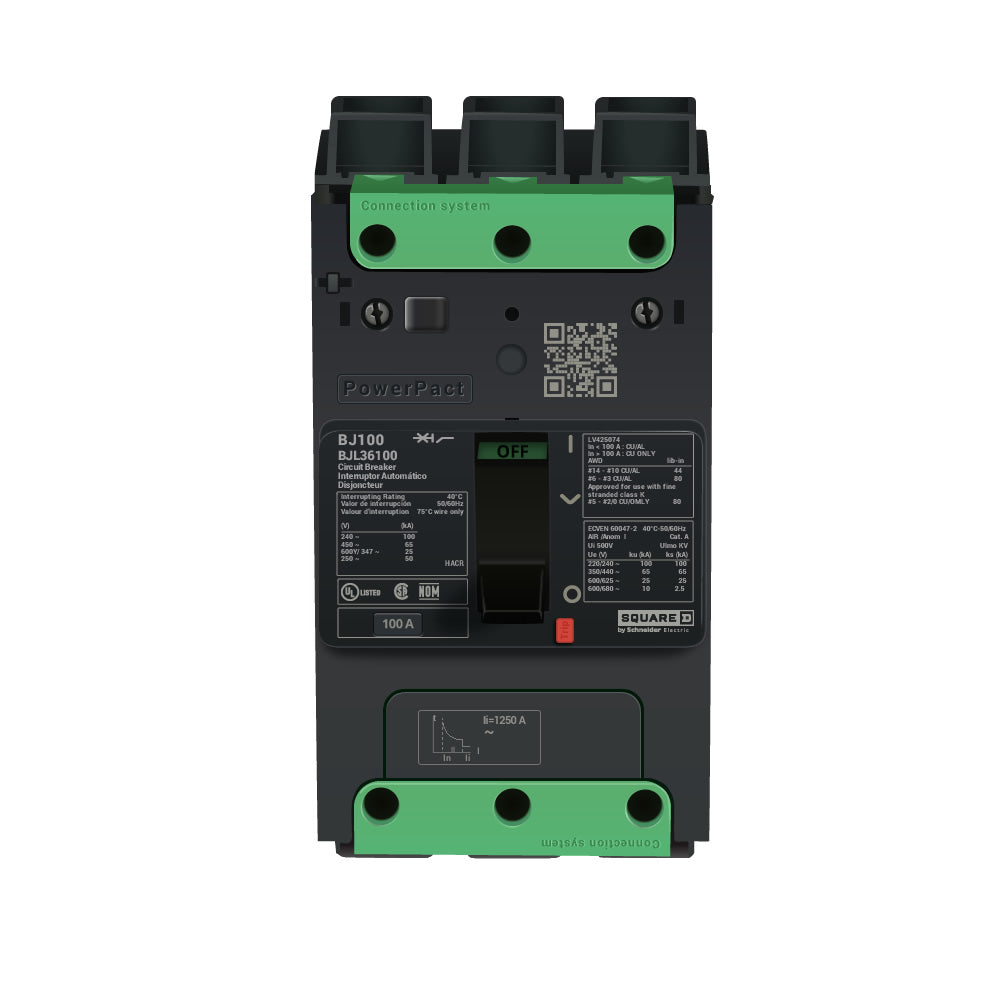

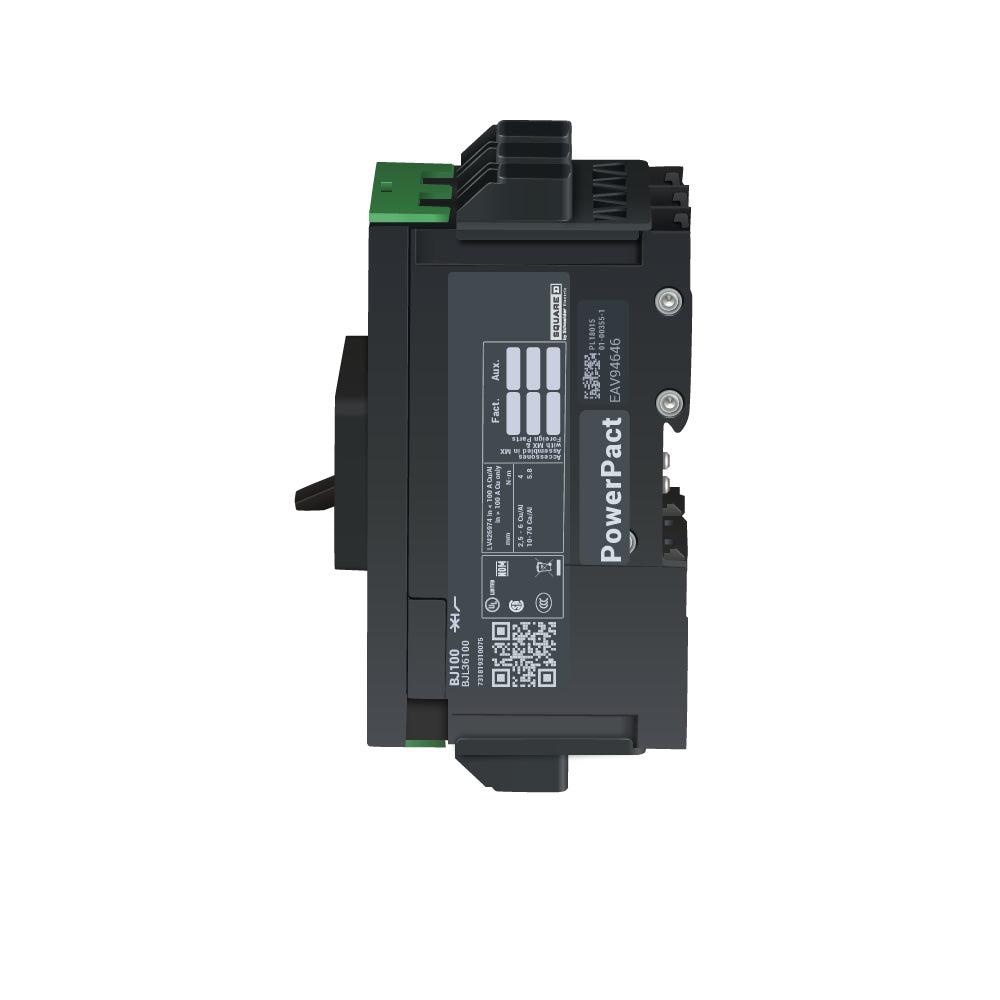

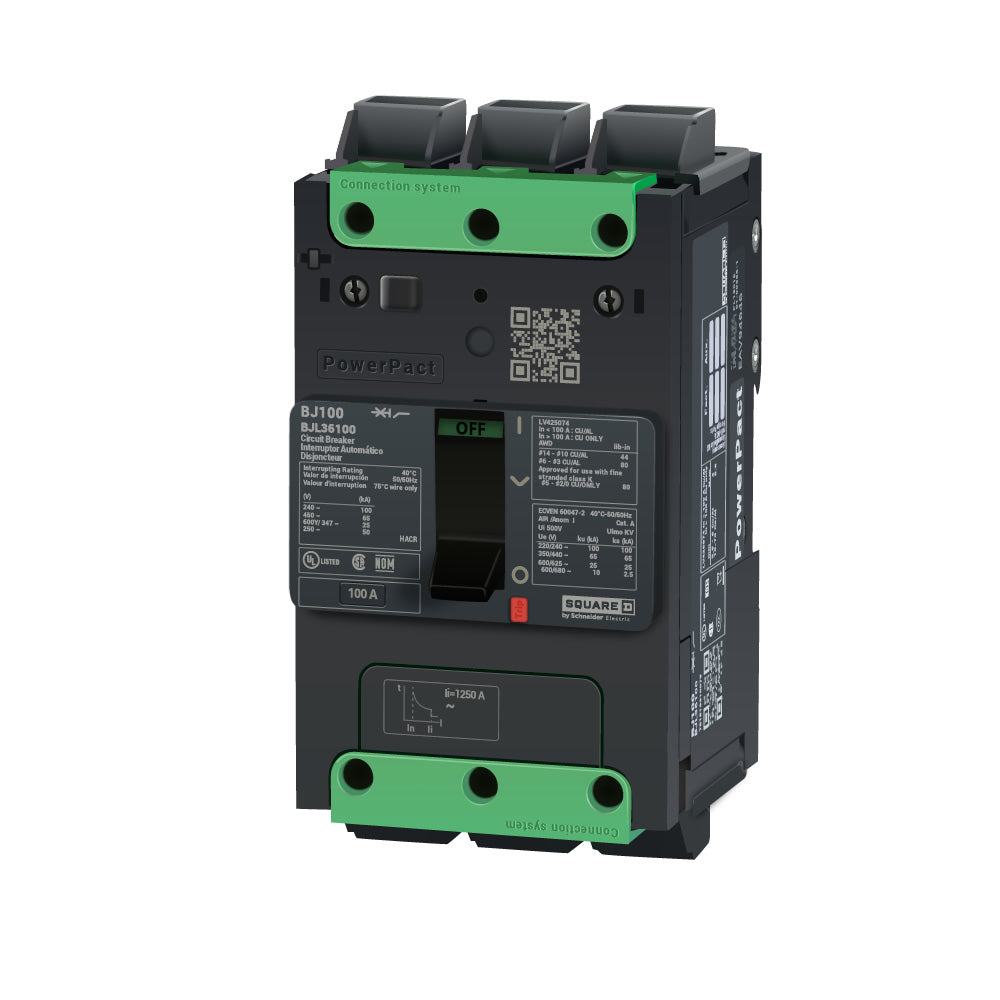

BJL36100 - Square D 100A 3 Pole 600Y/347VAC PowerPact B Frame Circuit Breaker

BJL36100

BJL36100 is a Square D PowerPact B Frame molded case circuit breaker rated for 100 amps and 3 poles, designed for 600Y/347VAC applications.This thermal magnetic circuit breaker features a 25kA interrupt rating at 600Y/347VAC and supports unit mounting with integrated DIN rail and back pan mounting capabilities. It is dual rated for AC/DC use and certified to UL, CSA, NOM, IEC, CCC standards, and CE marked.

Key Specifications
• Amperage: 100A
• Voltage Rating: 600Y/347VAC
• Poles: 3
• Frame Type: PowerPact B
• Interrupt Rating: 25kA at 600Y/347VAC
• Mounting Type: Unit mount with DIN rail and back pan
• Trip Unit: Thermal Magnetic
• Certifications: UL, CSA, NOM, IEC, CCC, CE
• Continuous Current Rating: 80%
• Dual AC/DC rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BJL36100
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BJL
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Everlink Lug Both Ends
• Frame Size : 125A/BJ
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 606481186075
• GTIN : 03606480000000
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.1 in (80 mm) (Height x Width x Depth)
• Weight : 3.11
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : CSA C22.2 No 5, NEMA AB1, GB 14048.2, EN/IEC 60947-5-1, NMX J-266, EN/IEC 60947-2, UL 489
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
  AWG 14...AWG 3/0 rigid or stranded aluminium/copper
