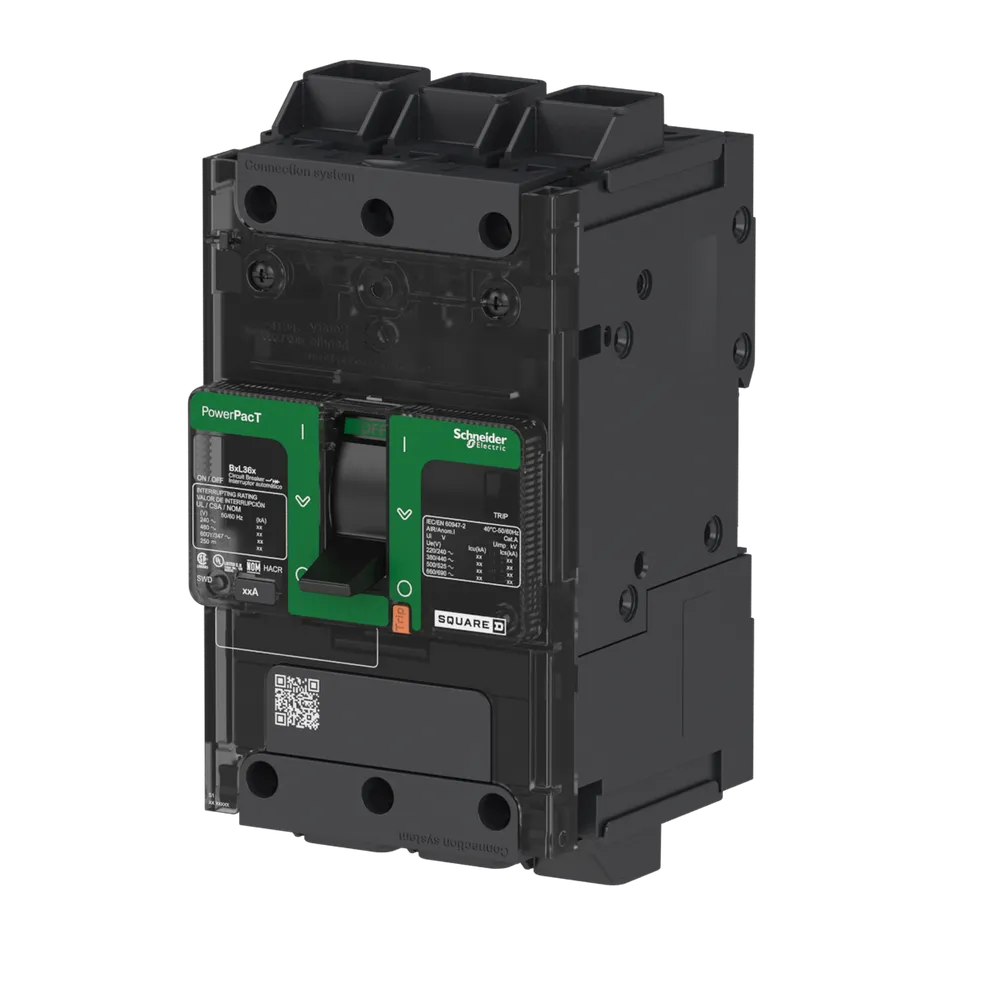

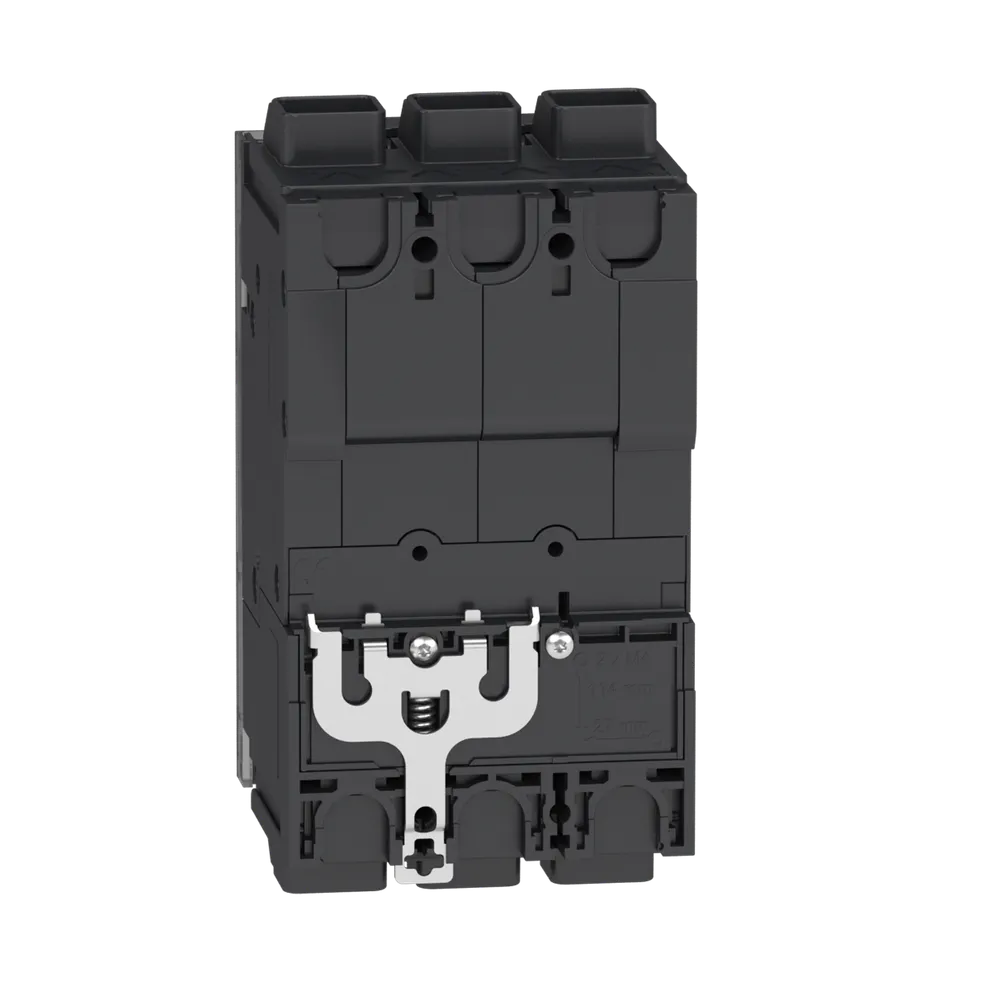

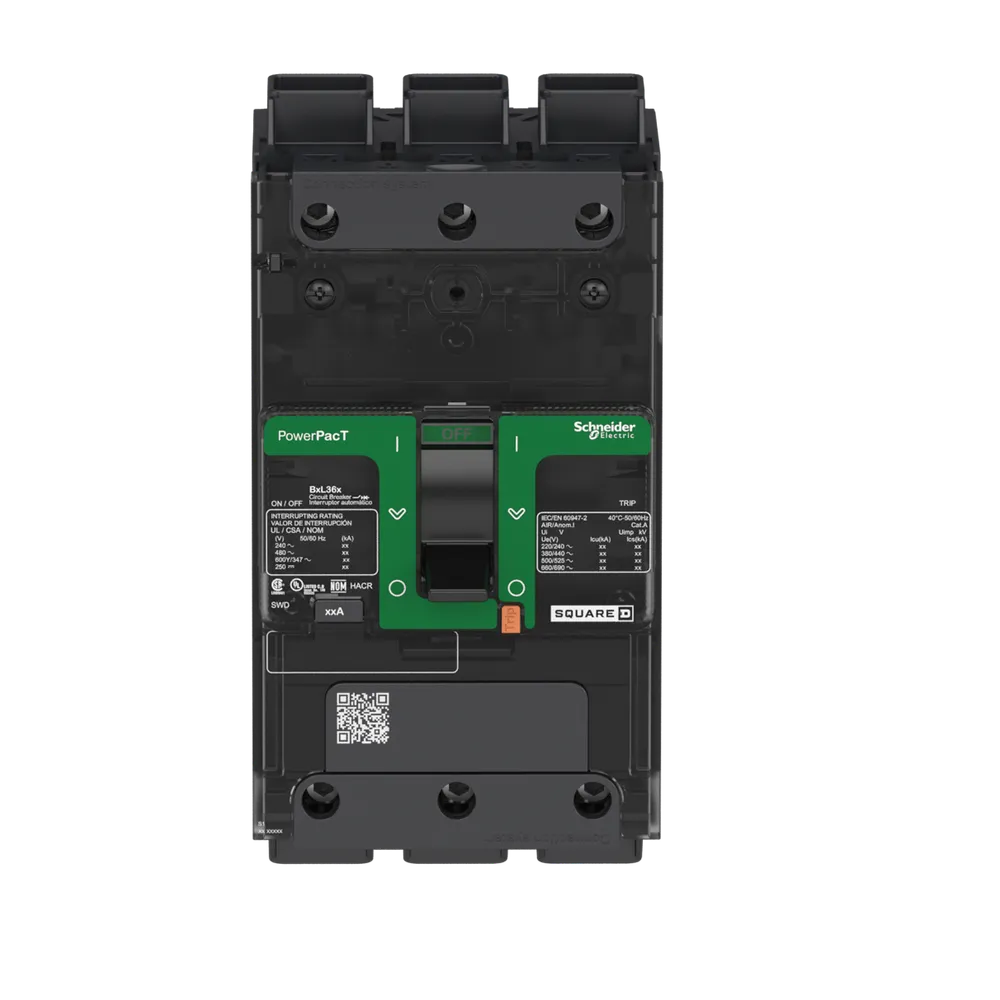

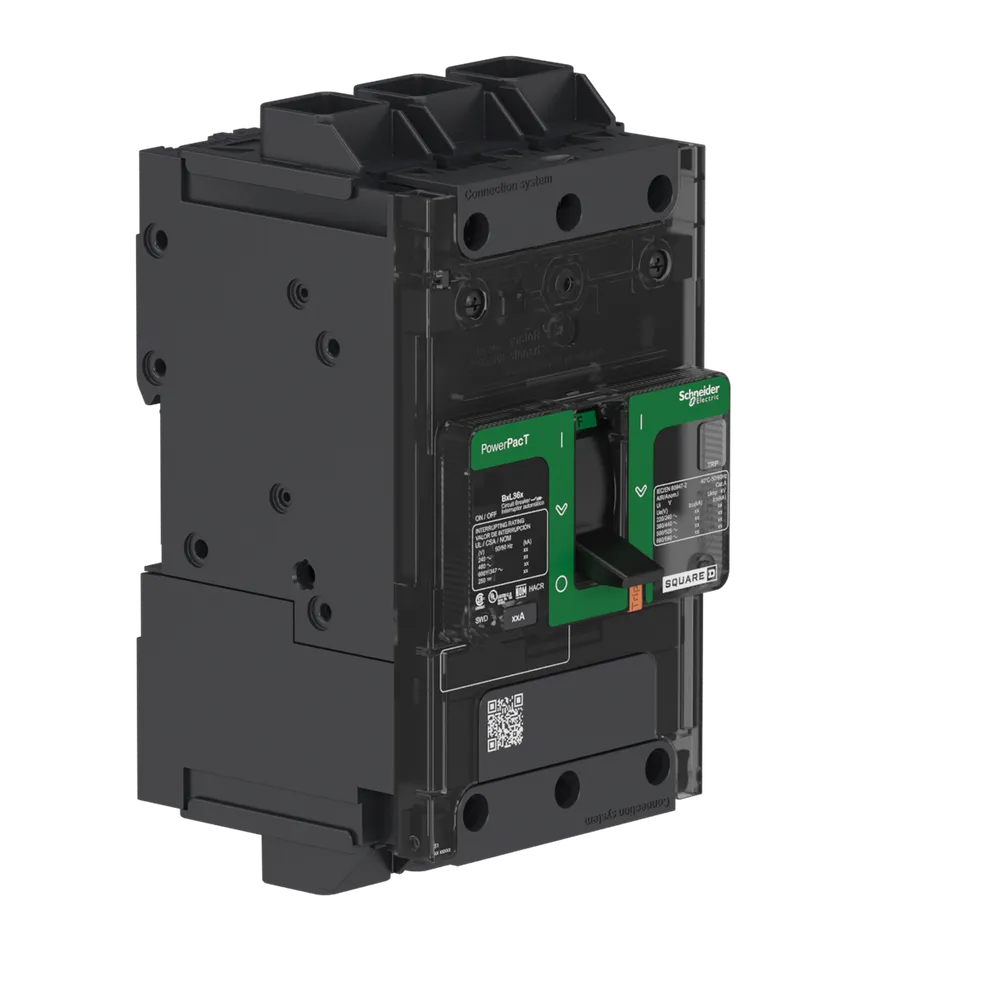

BJL36070 - Square D 70A 3 Pole 600Y/347VAC PowerPact B Molded Case Circuit Breaker

BJL36070

BJL36070 is a 70 amp, 3 pole molded case circuit breaker from Square D's PowerPact B series designed for 600Y/347VAC applications.This thermal magnetic breaker features an 80% continuous current rating, EverLink lugs, and a 25kA interrupt rating at 600Y/347VAC. It supports dual AC/DC ratings and is UL, CSA, and CE certified, suitable for unit mount or I-Line configurations.

• Amperage: 70A
• Voltage Rating: 600Y/347VAC
• Poles: 3
• Interrupt Rating: 25kA at 600Y/347VAC
• Trip Unit: Thermal Magnetic
• Mounting Type: Unit Mount / I-Line
• Frame/Series: PowerPact B
• Continuous Current Rating: 80%
• Certifications: UL, CSA, CE
• EverLink lugs for secure connections
• Dual AC/DC rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BJL36070
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BJL
• Voltage : 600
• Amperage : 70
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Everlink Lug Both Ends
• Frame Size : 125A/BJ
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901028819
• GTIN : 03606481186041
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.1 in (80 mm) (Height x Width x Depth)
• Weight : 2.919
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : CSA C22.2 No 5, EN/IEC 60947-2, UL 489, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
  AWG 14...AWG 3/0 rigid or stranded aluminium/copper
