BJL36050 - Square D PowerPact B-Frame 50A 3-Pole Molded Case Circuit Breaker 600Y/347V Thermal Magnetic

BJL36050

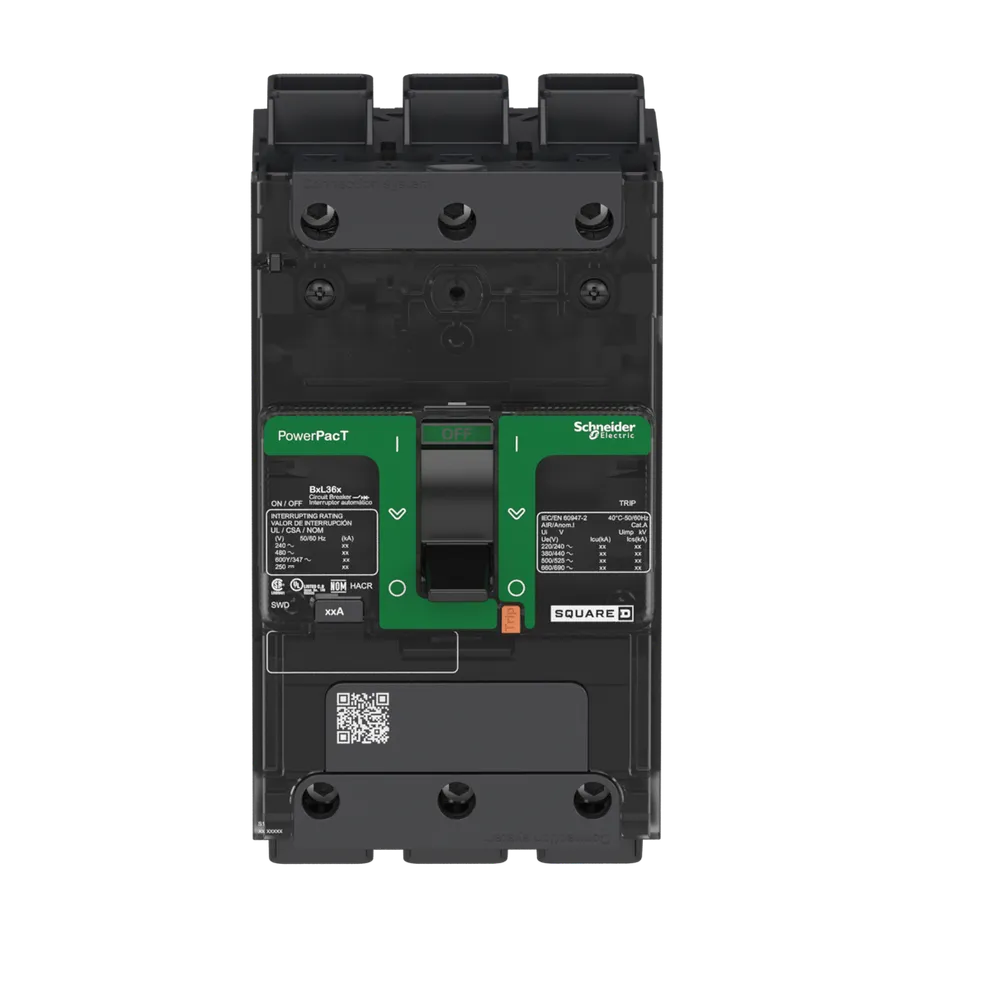

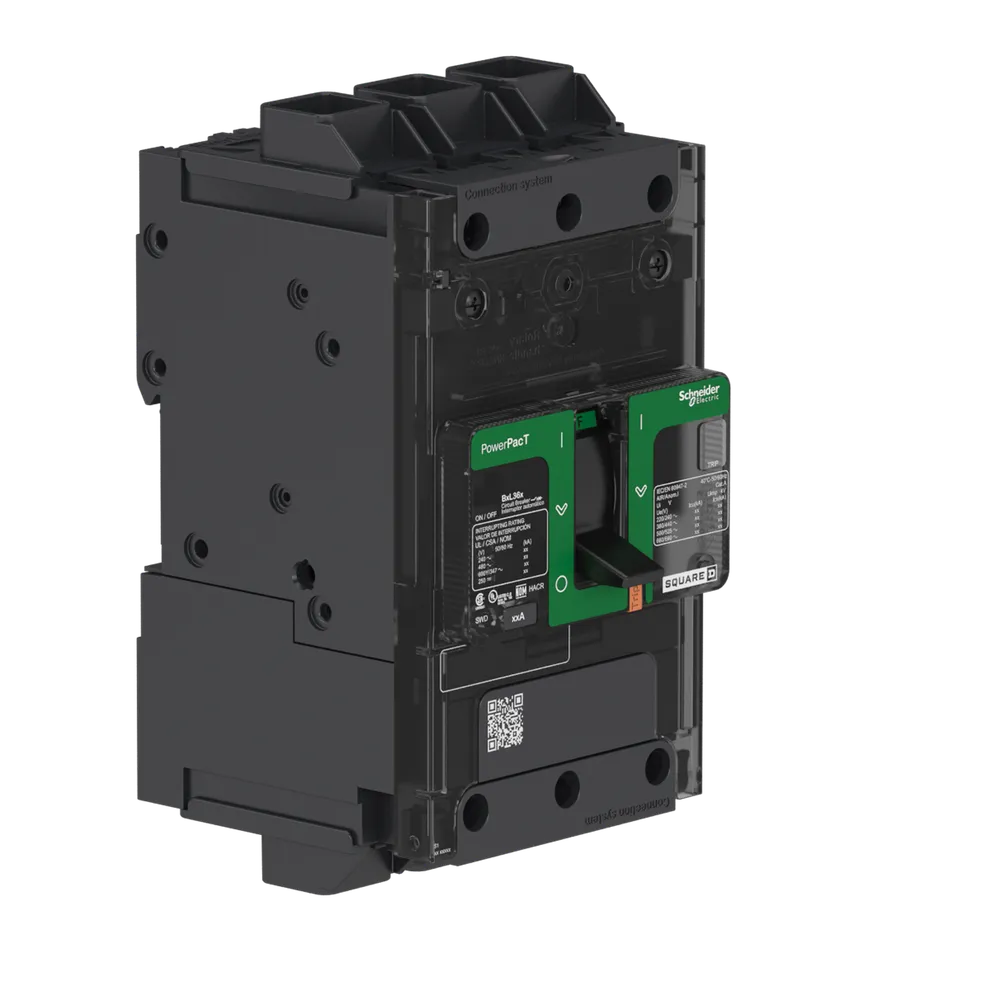

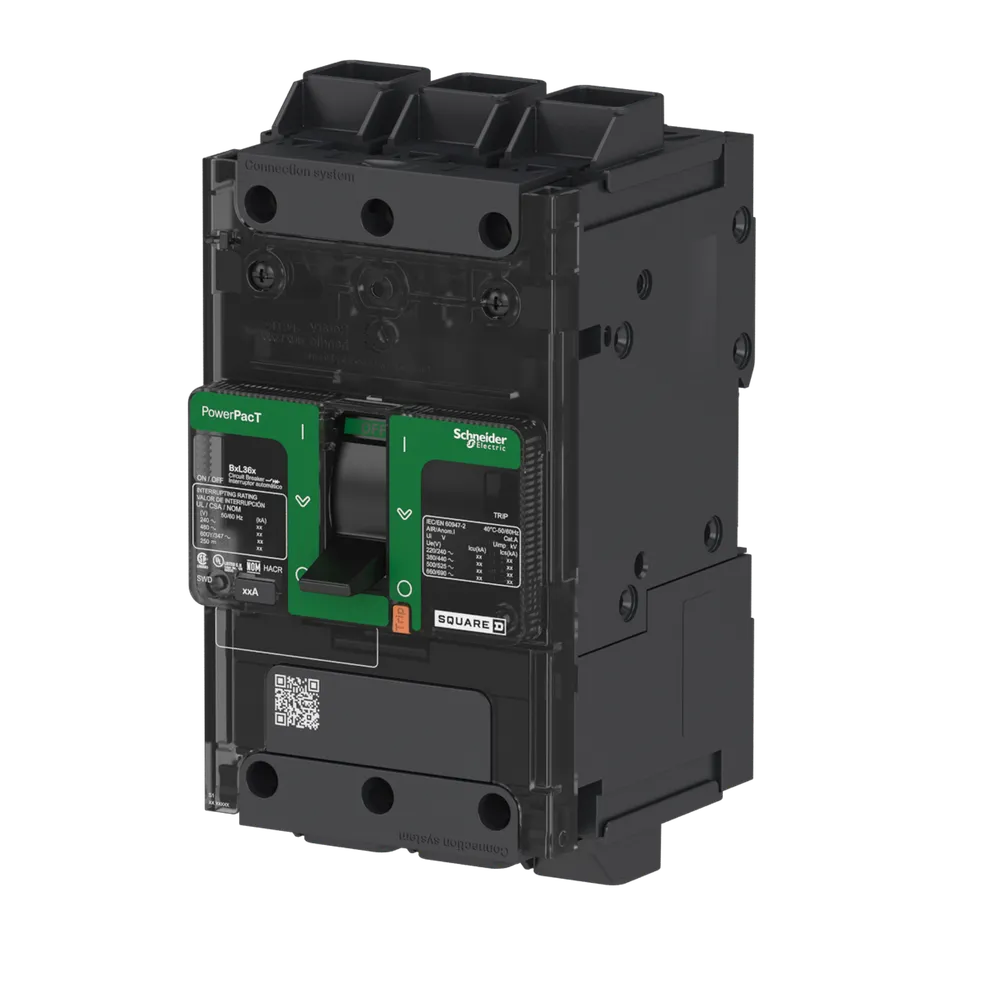

BJL36050 is a Square D PowerPact B-Frame molded case circuit breaker designed for reliable circuit protection with a 50 amp rating and 3 poles.This thermal magnetic circuit breaker features a 600Y/347 VAC voltage rating, a breaking capacity of 25kA at 600Y/347 VAC, and a compact B-frame design. It supports NEMA AB4/IP40 enclosure type and is suitable for industrial power distribution applications. The breaker includes EverLink connection technology and meets UL, CSA, and CE certifications.

Key Specifications
• Amperage: 50 A
• Voltage Rating: 600Y/347 VAC
• Poles: 3
• Frame: B-Frame
• Trip Unit: Thermal Magnetic
• Interrupt Rating: 25 kA at 600Y/347 VAC

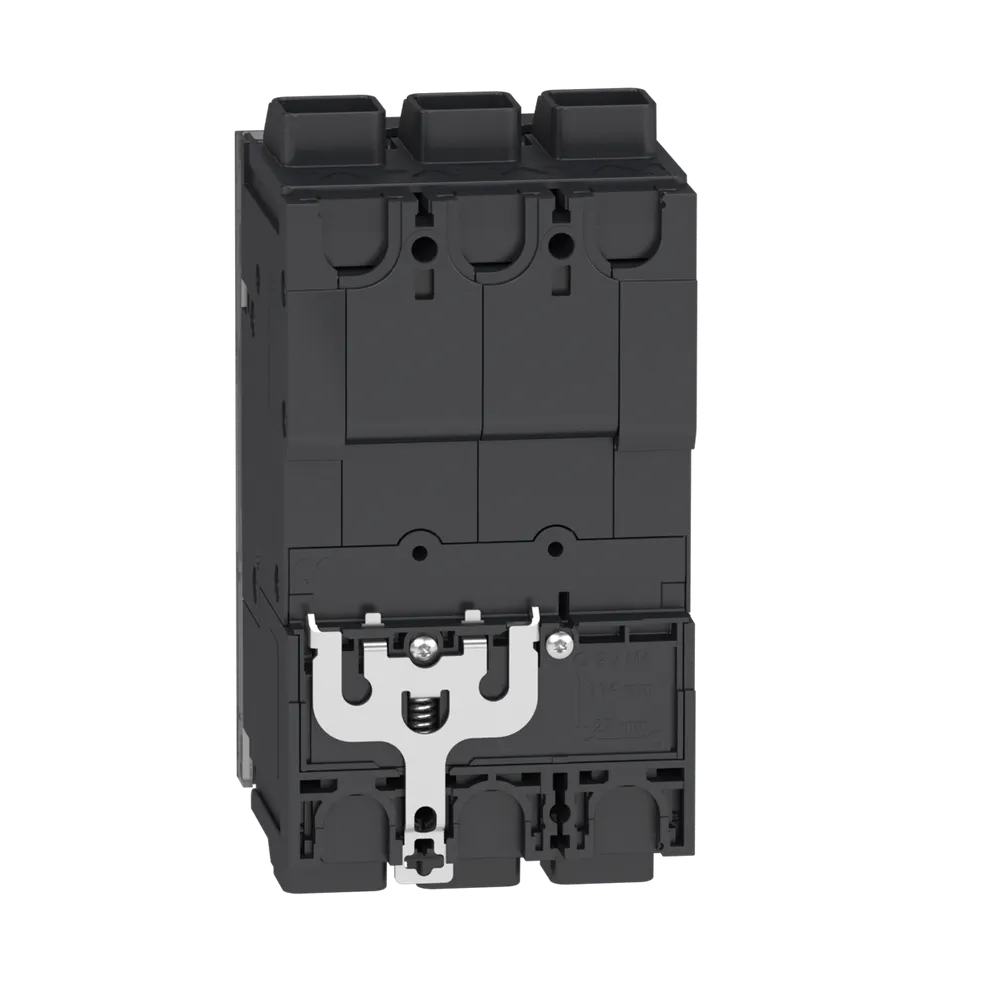

• Mounting Type: DIN Rail compatible
• Enclosure Type: NEMA AB4/IP40
• Dimensions: 5.39 in H x 3.19 in W x 4.09 in D
• Certifications: UL, CSA, CE

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BJL36050
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BJL
• Voltage : 600
• Amperage : 50
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Everlink Lug Both Ends
• Frame Size : 125A/BJ
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 606481186020
• GTIN : 03606480000000
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.1 in (80 mm) (Height x Width x Depth)
• Weight : 2.93
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : NEMA AB1, GB 14048.2, NMX J-266, EN/IEC 60947-2, EN/IEC 60947-5-1, UL 489, CSA C22.2 No 5
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
  AWG 14...AWG 3/0 rigid or stranded aluminium/copper
