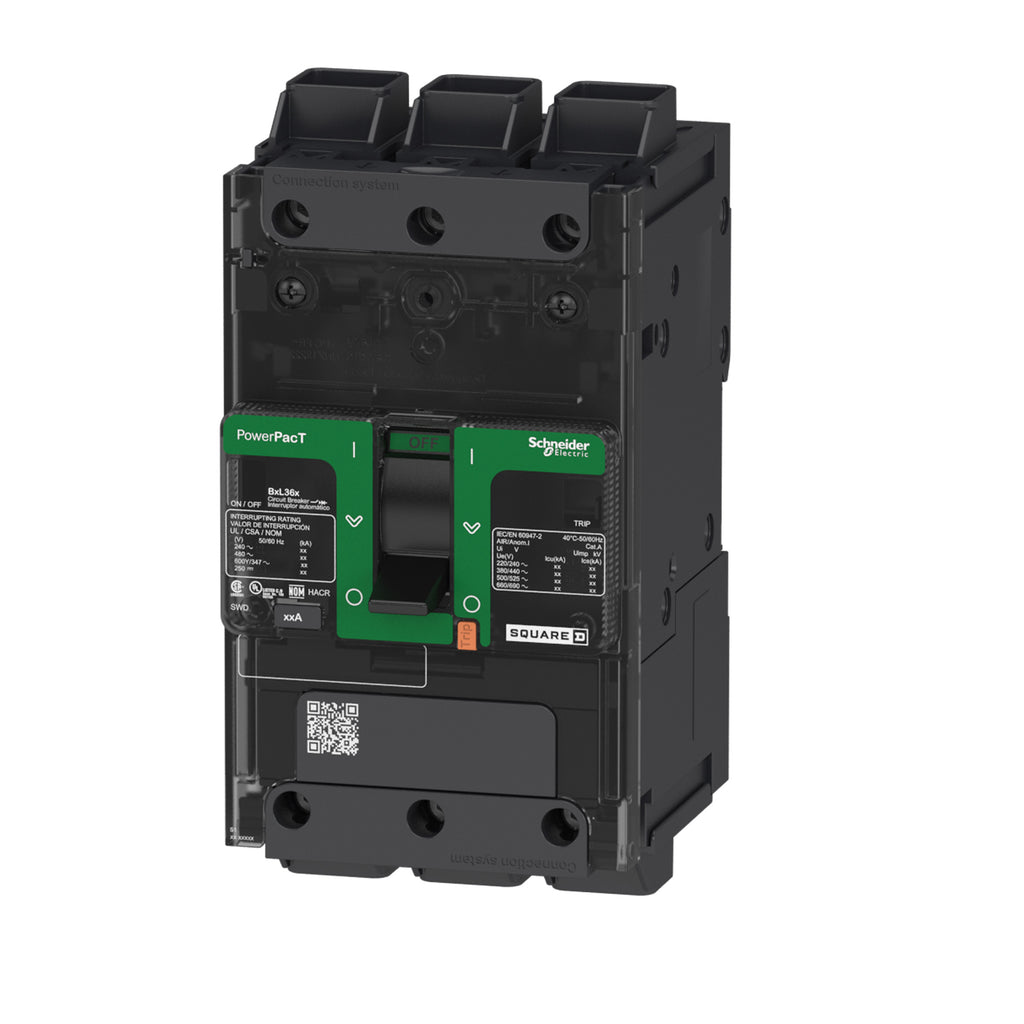

BJL36045 - Schneider Electric 45A 3-Pole PowerPact Molded Case Circuit Breaker 600Y/347VAC 25kA Interrupt Rating

BJL36045

BJL36045 is a Schneider Electric 45 Amp, 3-pole PowerPact molded case circuit breaker designed for reliable circuit protection.This circuit breaker features a thermal magnetic trip unit and is rated for 600Y/347 VAC operation with an interrupt rating of 25 kA at 600 VAC and 65 kA at 480 VAC. It includes EverLink lugs for secure connections and is suitable for industrial and commercial electrical distribution applications.

• Amperage: 45A
• Voltage Rating: 600Y/347 VAC
• Number of Poles: 3
• Interrupt Rating: 25 kA at 600 VAC, 65 kA at 480 VAC
• Breaker Type: Thermal Magnetic
• Mounting Type: Molded Case
• Trip Unit: Thermal Magnetic
• Connection Type: EverLink Lugs
• Series/Frame: PowerPact B
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BJL36045
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BJL
• Voltage : 600
• Amperage : 45
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Everlink Lug Both Ends
• Frame Size : 125A/BJ
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901078548
• Country of Origin : United States
• Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.1 in (80 mm) (Height x Width x Depth)
• Weight : 2.599
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : NEMA AB1, EN/IEC 60947-5-1, EN/IEC 60947-2, UL 489, GB 14048.2, CSA C22.2 No 5, NMX J-266
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
  AWG 14...AWG 3/0 rigid or stranded aluminium/copper
