BJL36030LU - Schneider Electric PowerPact B 30A 3 Pole 600Y/347VAC 25kA Thermal Magnetic Circuit Breaker with Lugs

Save $1,865.00
SKU: BJL36030LU-New
Condition: New
Price:
$0.00 $1,865.00
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

BJL36030LU - Schneider Electric Clip-On (35mm Symmetrical DIN Rail) 347V 30A 3 pole circuit breaker 25 - Essential Electric Supply
BJL36030LU - Schneider Electric Clip-On (35mm Symmetrical DIN Rail) 347V 30A 3 pole circuit breaker 25kA@240V - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
BJL36030LU - Schneider Electric Clip-On (35mm Symmetrical DIN Rail) 347V 30A 3 pole circuit breaker 25 - Essential Electric Supply
BJL36030LU - Schneider Electric Clip-On (35mm Symmetrical DIN Rail) 347V 30A 3 pole circuit breaker 25kA@240V - Essential Electric Supply

Description

BJL36030LU

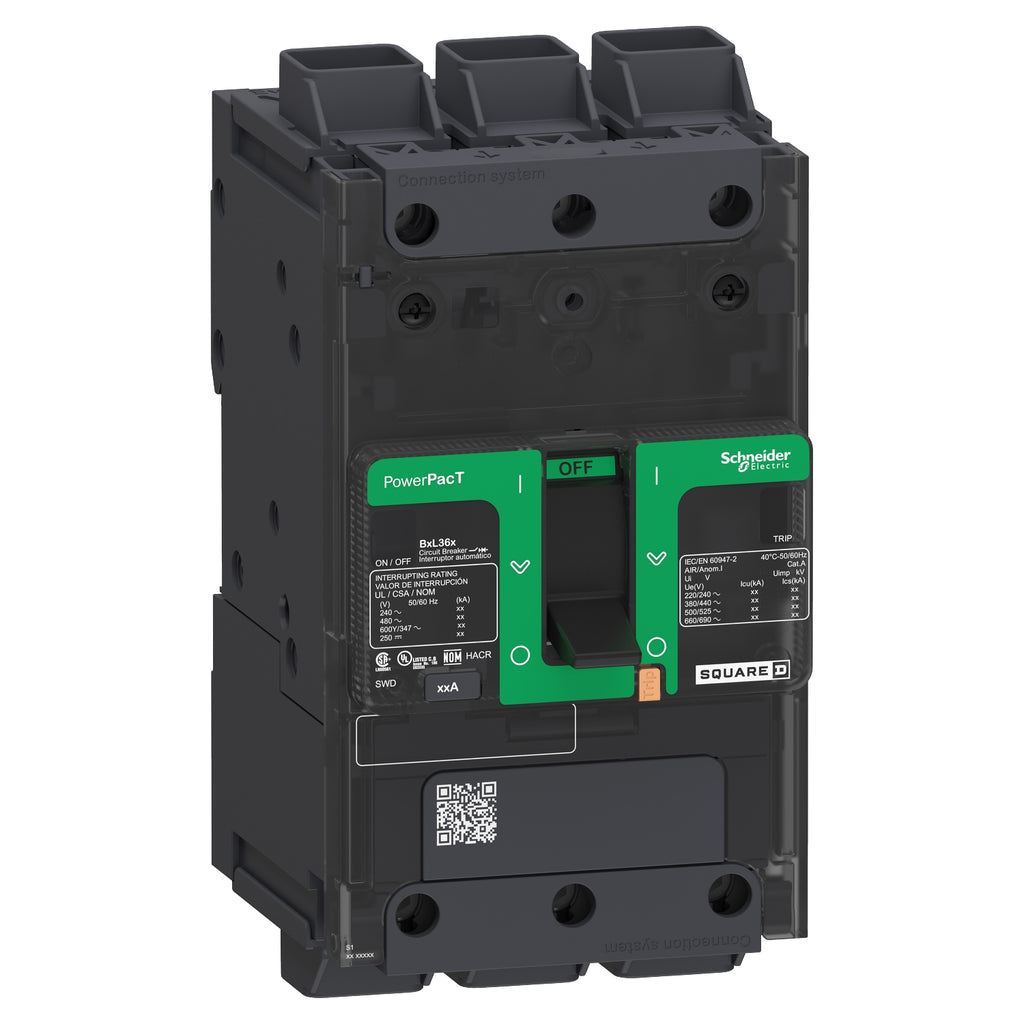

BJL36030LU is a PowerPact B series molded case circuit breaker designed for reliable protection in commercial and industrial applications. This 3-pole breaker features a 30A current rating, 600Y/347VAC voltage rating, and a 25kA interrupt rating, making it suitable for a wide range of electrical systems. It utilizes thermal magnetic trip technology for accurate overcurrent and short circuit protection and is equipped with EverLink lugs for secure connections. The control wire is located on the end for easy access and installation. This circuit breaker is part of the PowerPact B series, known for its durability and performance in demanding environments. The breaker is designed for panel mounting and features a toggle actuator for manual operation. It is suitable for use in systems requiring robust protection and easy maintenance.
  • Part Number: BJL36030LU
  • Manufacturer: Schneider Electric
  • Series: PowerPact B
  • Amperage: 30A
  • Poles: 3
  • Voltage Rating: 600Y/347VAC
  • Interrupt Rating: 25kA
  • Mounting Type: Panel Mount
  • Connection Type: EverLink Lugs
  • Trip Unit: Thermal Magnetic
  • Actuator Type: Toggle
  • Control Wire Location: On End
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: BJL36030LU
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : PowerPact B
  • Type : BJL
  • Voltage : 347
  • Amperage : 30
  • Poles : 3
  • AIC rating : 25kA@240V
  • Connection : Clip-On (35mm Symmetrical DIN Rail)
  • Protection : Thermal Magnetic

Product Data

  • UPC : 606481149681
  • GTIN : 00606481149681
  • Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.1 in (80 mm) (Height x Width x Depth)
  • Weight : 2.599
  • Standards : GB 14048.2, EN/IEC 60947-2, CSA C22.2 No 5, EN/IEC 60947-5-1, NMX J-266, NEMA AB1, UL 489
  • Certification : UL, IEC, CCC, EAC, CSA, NOM
  • Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
    AWG 14...AWG 3/0 rigid or stranded aluminium/copper
