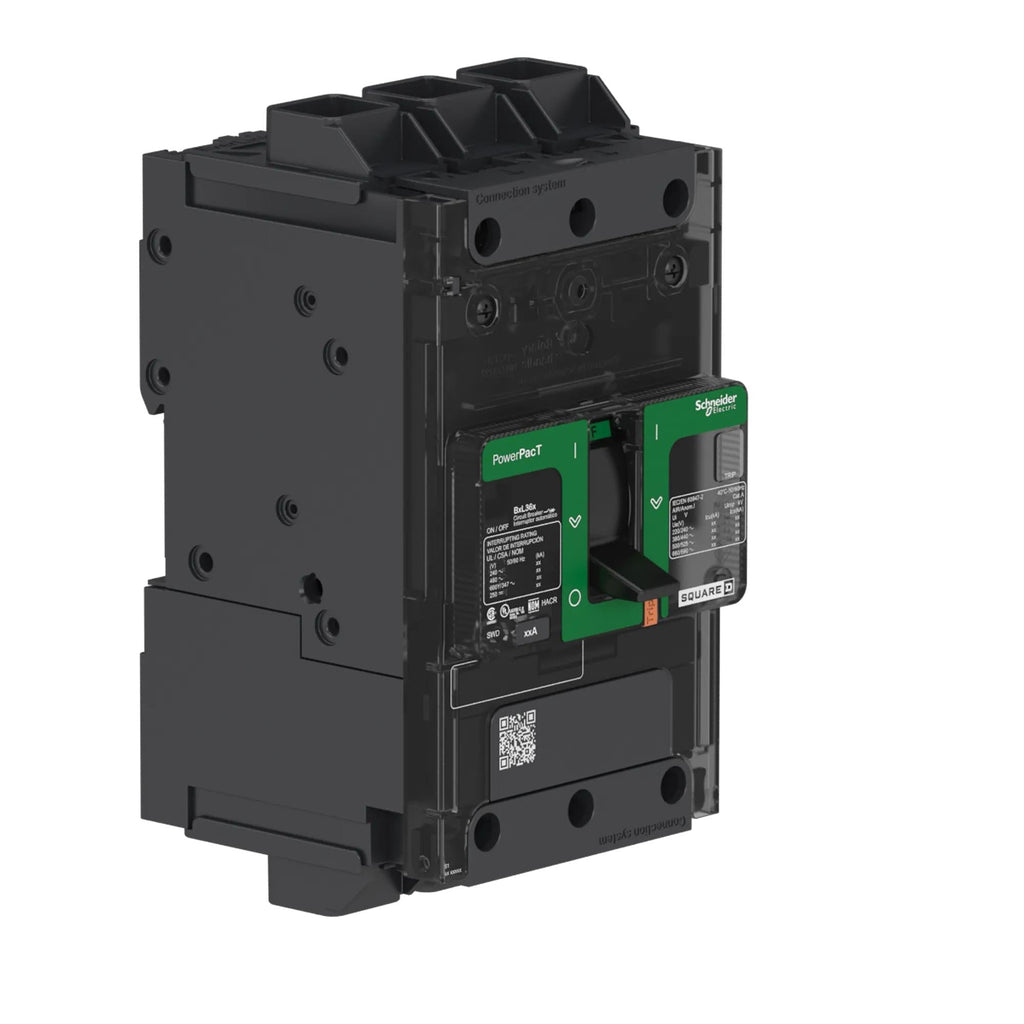

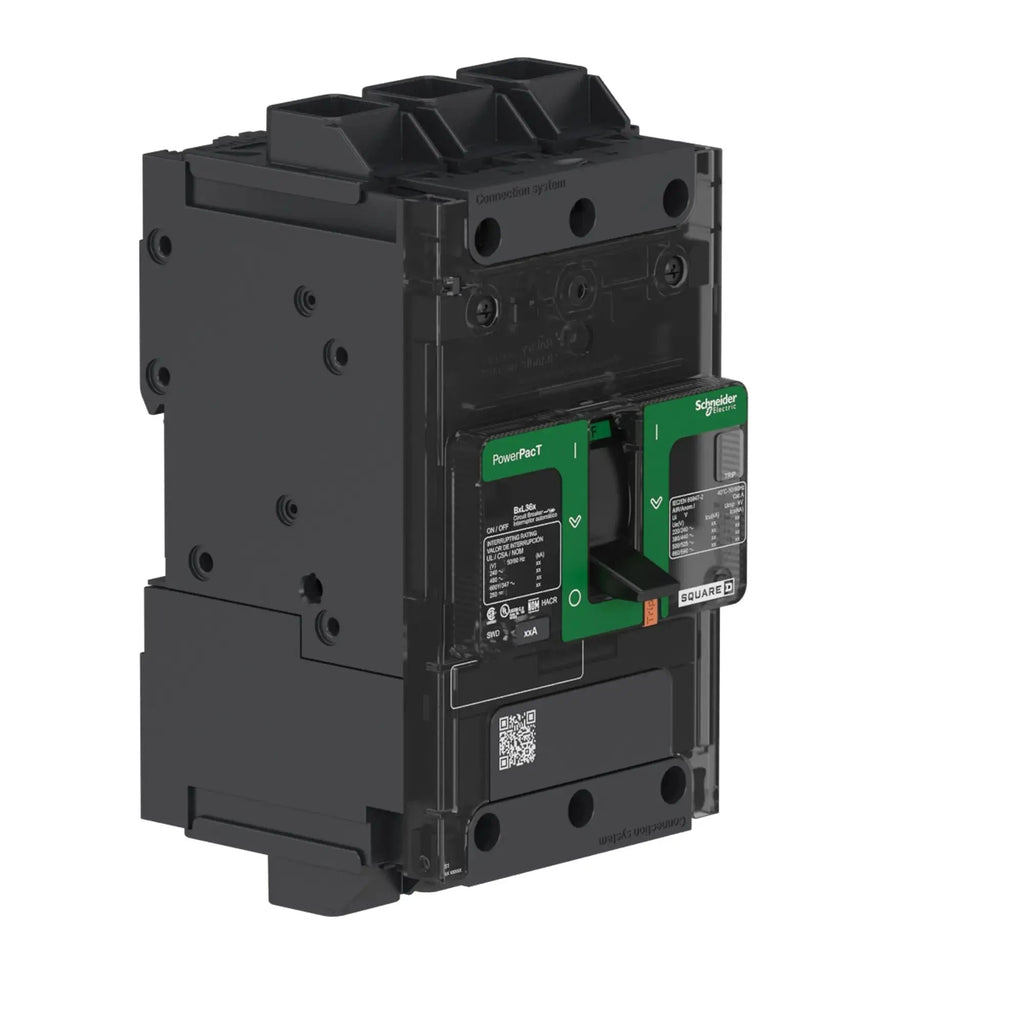

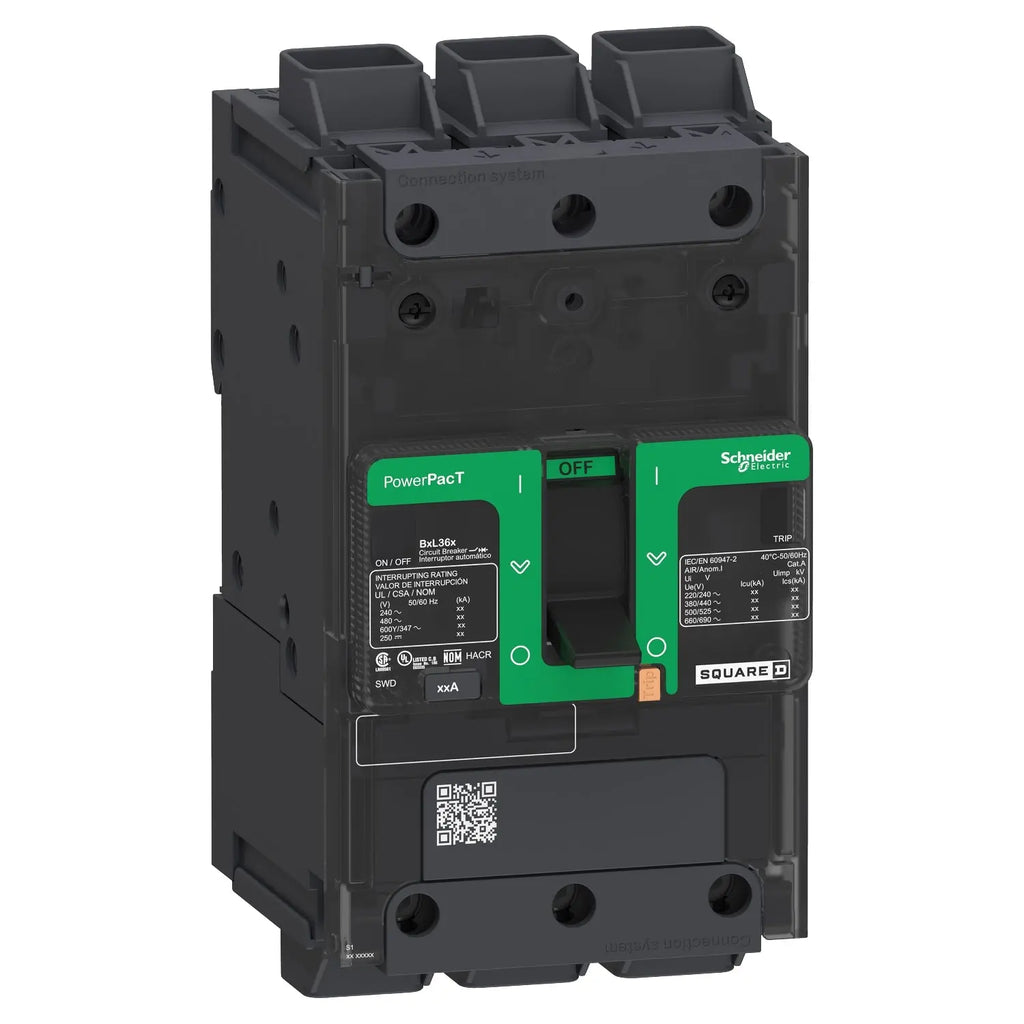

BJL36030 - Square D 30A 600V 3-Pole PowerPact B-Frame Molded Case Circuit Breaker

BJL36030

BJL36030 is a 30 amp, 600 volt, 3-pole molded case circuit breaker from Square D's PowerPact B-Frame series designed for reliable thermal magnetic circuit protection.This PowerPact B-Frame circuit breaker features thermal magnetic trip units with a breaking capacity of 25kA at 600Y/347VAC and 65kA at 480VAC. It offers unit mount construction with integrated DIN rail and back pan mounting options for flexible installation. The breaker includes EverLink lugs to reduce cable loosening and a push-to-trip button for manual testing. Certified to UL, CSA, NOM, IEC standards and CE marked, it is suitable for industrial power distribution applications.

Key Specifications
• Amperage: 30 Amps
• Voltage Rating: 600Y/347 VAC
• Poles: 3
• Frame Type: PowerPact B-Frame
• Trip Unit: Thermal Magnetic
• Interrupt Rating: 25kA at 600Y/347VAC, 65kA at 480VAC

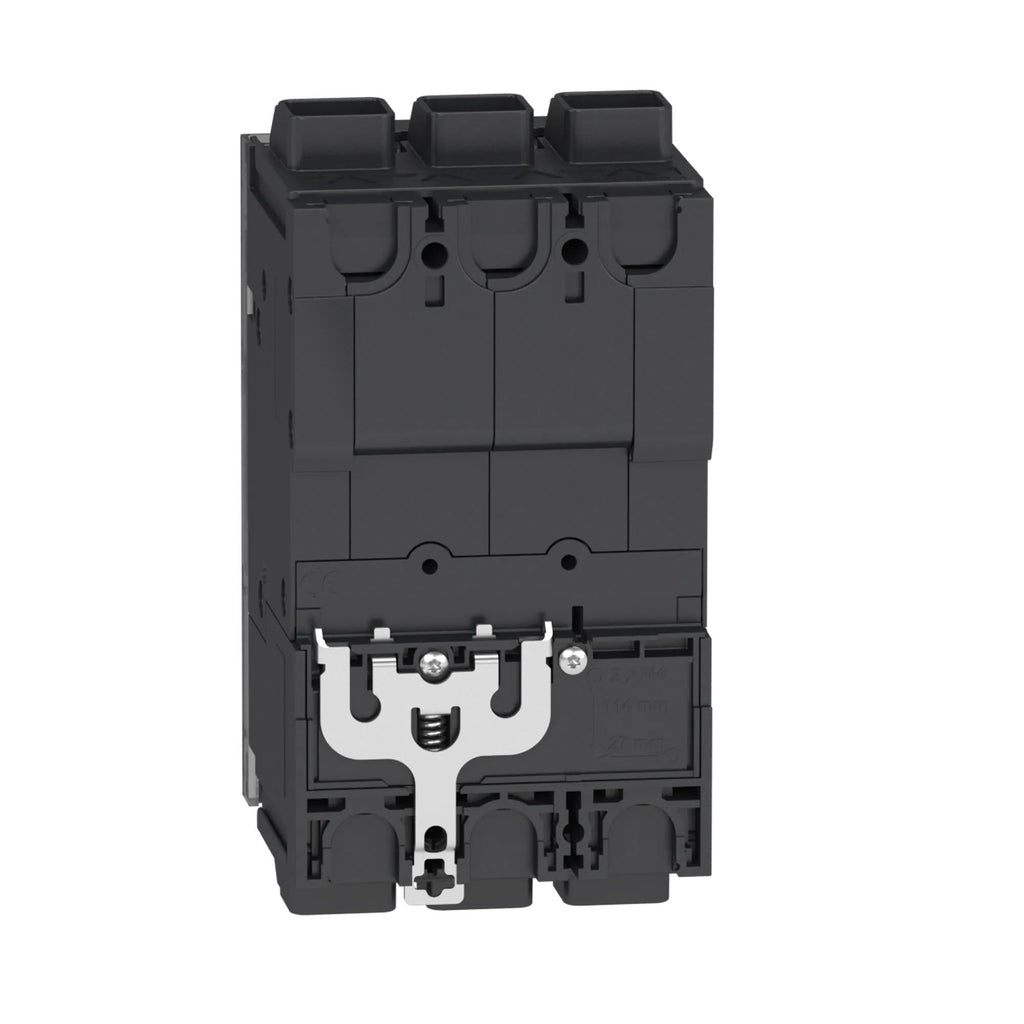

• Mounting Type: Unit mount with integrated DIN rail and back pan mounting
• Connection Type: Feed-Thru with EverLink lugs
• Standards: UL, CSA, NOM, IEC certified, CE marked
• Dimensions (HxWxD): 5.39 x 3.19 x 3.15 inches
• Weight: 2.37 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BJL36030
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BJL
• Voltage : 600
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Everlink Lug Both Ends
• Frame Size : 125A/BJ
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901017028
• GTIN : 03606481186003
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.1 in (80 mm) (Height x Width x Depth)
• Weight : 2.95
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : UL 489, GB 14048.2, NMX J-266, NEMA AB1, EN/IEC 60947-5-1, CSA C22.2 No 5, EN/IEC 60947-2
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
  AWG 14...AWG 3/0 rigid or stranded aluminium/copper
