BJL36025 - Square D PowerPact B 25A 3-Pole Circuit Breaker 600V Thermal Magnetic 25kA

Save $739.14
SKU: BJL36025-New
Condition: New
Price:
$1,014.86 $1,754.00
Stock:
1 in stock
Limited availability — we'll confirm stock immediately after your order.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

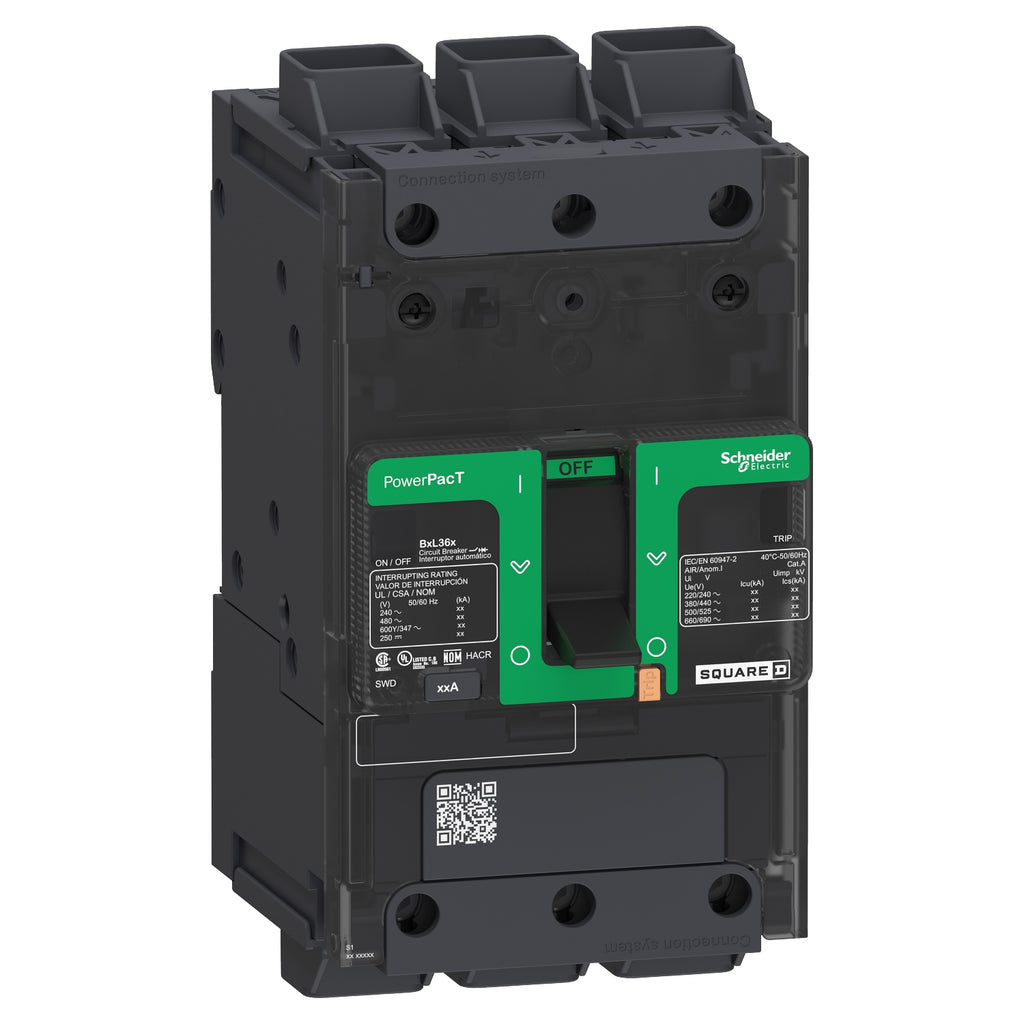

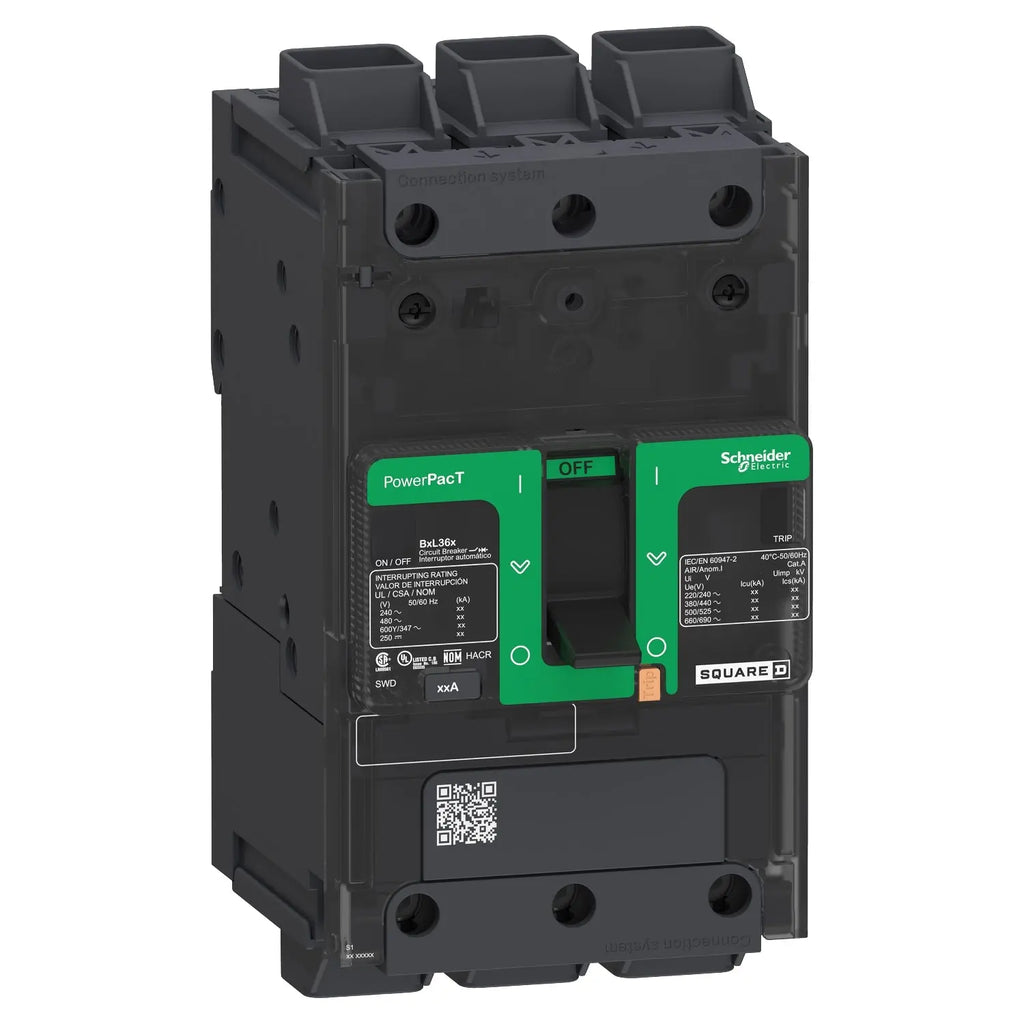

BJL36025 - Square D Feed-Thru 600V 25A 3 pole circuit breaker 65kA@480V - Essential Electric Supply
BJL36025 - Square D Feed-Thru 600V 25A 3 pole circuit breaker 65kA@480V - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
BJL36025 - Square D Feed-Thru 600V 25A 3 pole circuit breaker 65kA@480V - Essential Electric Supply
BJL36025 - Square D Feed-Thru 600V 25A 3 pole circuit breaker 65kA@480V - Essential Electric Supply

Description

BJL36025


BJL36025 is a 3-pole, 25 amp, 600VAC circuit breaker from the Square D PowerPact B series, designed for reliable protection in commercial and industrial power distribution systems. This breaker features a thermal magnetic trip unit and is suitable for use in a variety of mounting configurations including unit mount with integrated DIN rail and back pan mounting. The BJL36025 is rated for 25kA interrupt capacity at 600Y/347VAC and is dual rated for AC/DC applications. It is certified to UL, CSA, NOM, IEC, CCC standards and carries the CE mark. The breaker is designed for easy installation and offers robust protection for branch circuits.
  • 25A rated current
  • 3 pole configuration
  • 600Y/347VAC maximum voltage
  • Thermal magnetic trip unit
  • 25kA interrupt rating at 600Y/347VAC
  • 65kA interrupt rating at 480VAC
  • 100kA interrupt rating at 240VAC
  • Unit mount with DIN rail and back pan mounting
  • PowerPact B series frame
  • UL, CSA, NOM, IEC, CCC certified
  • CE marked
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: BJL36025
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : BJL
  • Voltage : 600
  • Amperage : 25
  • Phase : 3
  • Poles : 3
  • AIC rating : 65kA@480V
  • Connection : Feed-Thru
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : Everlink Lug Both Ends
  • Frame Size : 125A/BJ
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : ABC

Product Data

  • UPC : 785901078517
  • GTIN : 00785901078517
  • Country of Origin : United States
  • Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.1 in (80 mm) (Height x Width x Depth)
  • Weight : 2.998
  • Panel Type : Electrical Distribution Equipment, Industrial Control Panels
  • Standards : EN/IEC 60947-2, EN/IEC 60947-5-1, CSA C22.2 No 5, GB 14048.2, UL 489, NMX J-266, NEMA AB1
  • Certification : UL, IEC, CCC, EAC, CSA, NOM
  • Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
    AWG 14...AWG 3/0 rigid or stranded aluminium/copper
