BJL26080 - Square D PowerPact B Frame 80 Amp Two Pole 690VAC Molded Case Circuit Breaker

SKU: BJL26080-New
Condition: New
Price:
$944.83
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

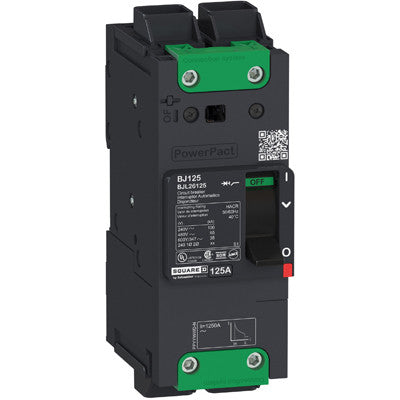

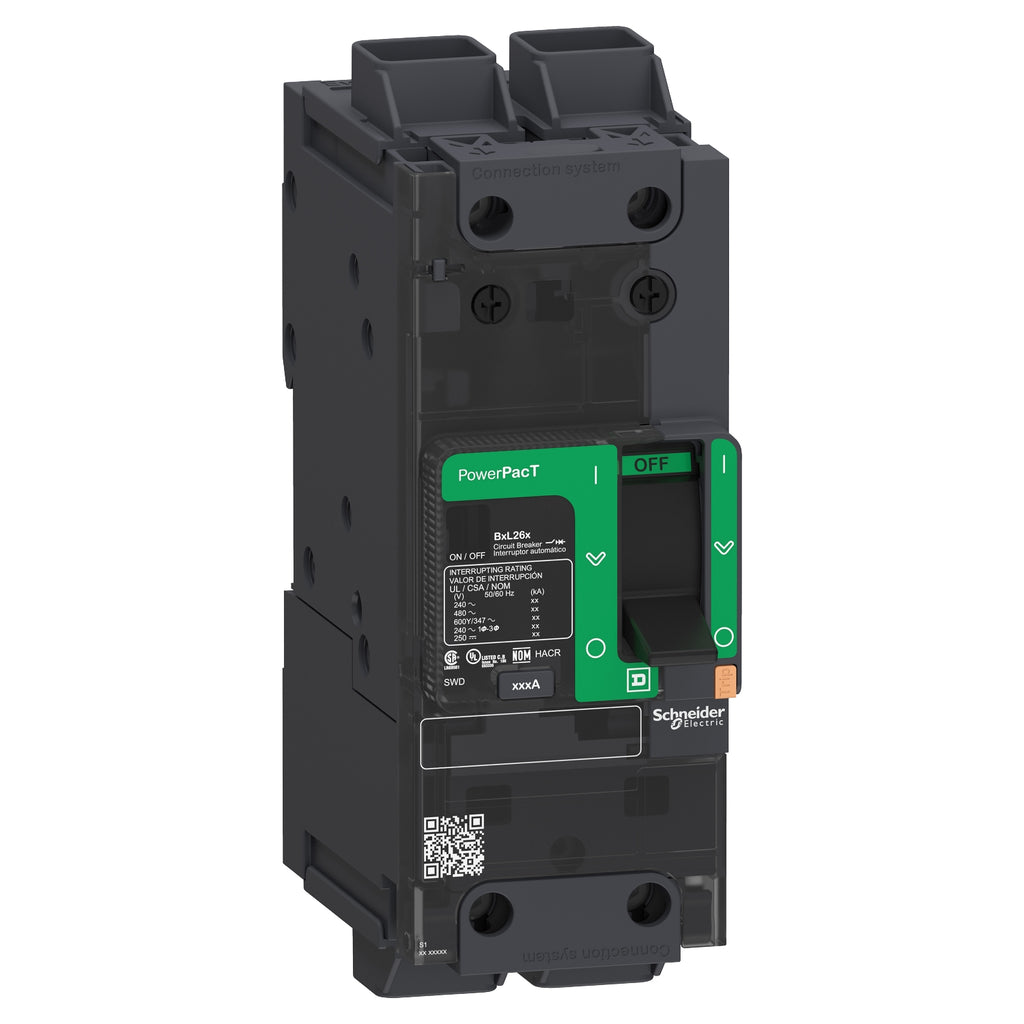

BJL26080 - Essential Electric Supply
BJL26080 - Square D Feed-Thru 600V 80A 2 pole circuit breaker 65kA@480V - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only

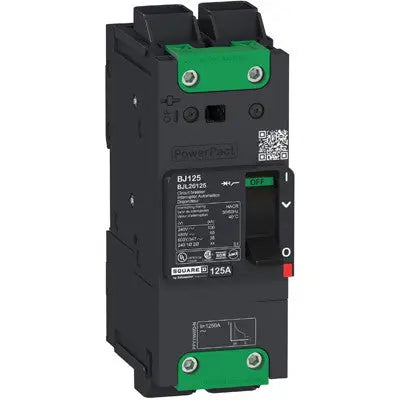

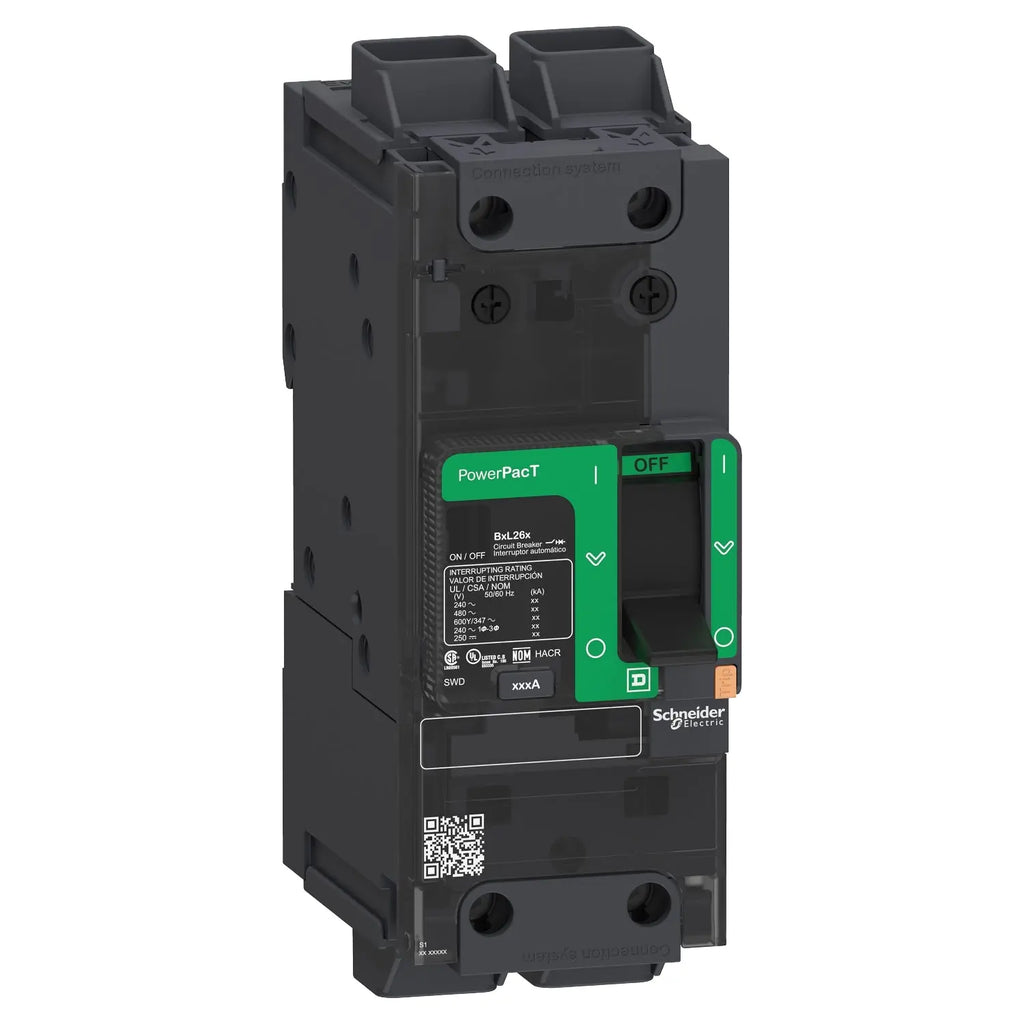

BJL26080 - Essential Electric Supply
BJL26080 - Square D Feed-Thru 600V 80A 2 pole circuit breaker 65kA@480V - Essential Electric Supply

Description

BJL26080


BJL26080 is a Square D PowerPact B Frame molded case circuit breaker rated for 80 amperes at up to 690 VAC with two poles and DIN rail mounting. This thermal-magnetic trip unit breaker is UL 489 listed and designed for electrical distribution equipment and industrial control panels with field-installable accessories and integrated control wire terminals. Key Specifications
  • Amperage: 80 Amp
  • Poles: 2 Pole
  • Frame Type: B Frame (125A/BJ)
  • Voltage Rating: 690 VAC
  • Interrupt Rating: 100 kA at 240V AC, 65 kA at 480V AC, 25 kA at 600V AC
  • Mounting: DIN Rail Unit Mount
  • Trip Type: Thermal Magnetic
  • Wire Size: 14 AWG to 3/0 AWG
  • UL Listing: UL 489
  • Operating Temperature: -13 Degrees F to 158 Degrees F
  • Features: Mercury Free, PVC Free, HACR Rated
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: BJL26080
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : BJL
  • Voltage : 600
  • Amperage : 80
  • Phase : 1
  • Poles : 2
  • AIC rating : 65kA@480V
  • Connection : Feed-Thru
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : Everlink Lug Both Ends
  • Frame Size : 125A/BJ
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : Not Applicable

Product Data

  • UPC : 785901078340
  • GTIN : 00785901078340
  • Country of Origin : United States
  • Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.1 in (80 mm) (Height x Width x Depth)
  • Weight : 2
  • Panel Type : Electrical Distribution Equipment, Industrial Control Panels
  • Standards : NEMA AB1, CSA C22.2 No 5, EN/IEC 60947-5-1, GB 14048.2, UL 489, EN/IEC 60947-2, NMX J-266
  • Certification : UL, IEC, CCC, EAC, CSA, NOM
  • Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
    AWG 14...AWG 3/0 rigid or stranded aluminium/copper
