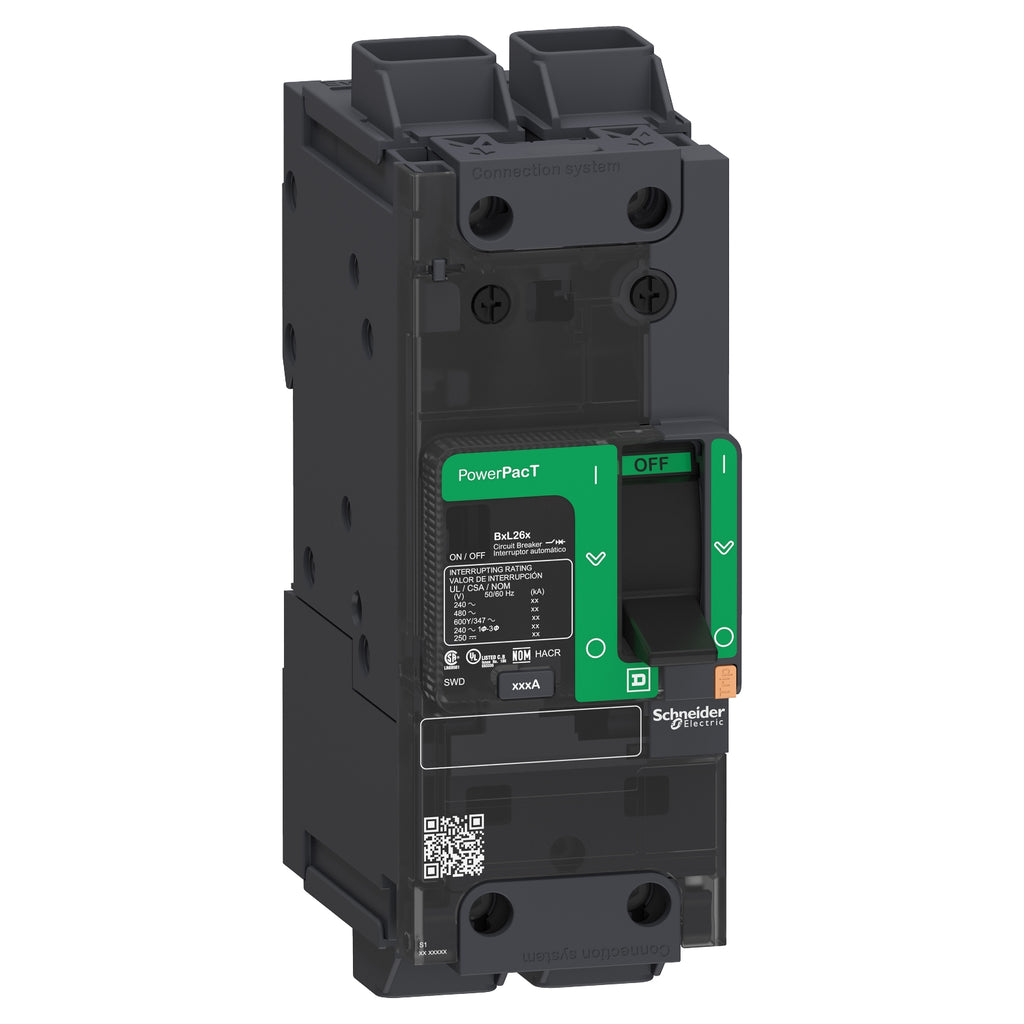

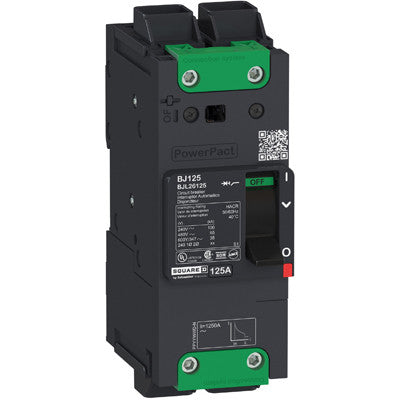

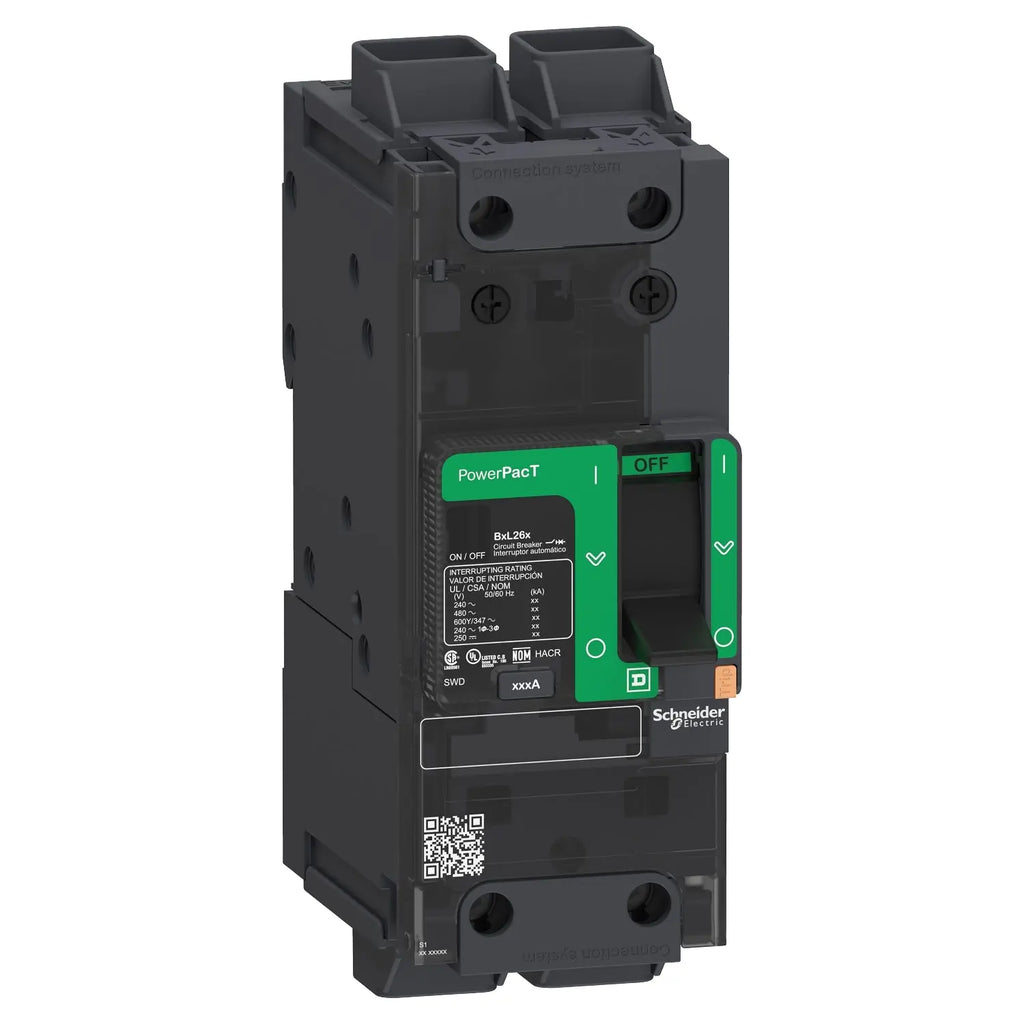

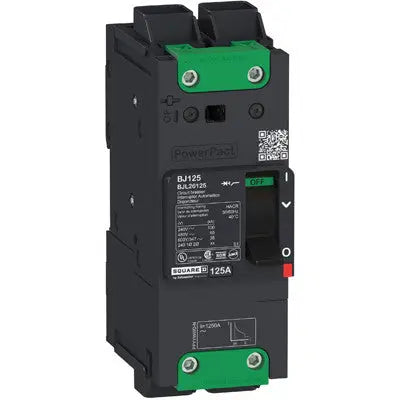

BJL26060 - Square D PowerPact B 60A 2-Pole 600V Molded Case Circuit Breaker 80% Rated

SKU: BJL26060-New
Condition: New
Price:
$705.53
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

BJL26060 - Essential Electric Supply
BJL26060 - Square D Feed-Thru 600V 60A 2 pole circuit breaker 65kA@480V - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
BJL26060 - Essential Electric Supply
BJL26060 - Square D Feed-Thru 600V 60A 2 pole circuit breaker 65kA@480V - Essential Electric Supply

Description

BJL26060


BJL26060 is a 2-pole, 60 amp, 600 volt molded case circuit breaker from the Square D PowerPact B series, designed for reliable protection in commercial and industrial applications. This breaker features a thermal magnetic trip unit and is rated for 80% continuous current, making it suitable for a wide range of electrical systems. The BJL26060 offers robust interrupt ratings: 100kA at 240VAC, 65kA at 480VAC, and 25kA at 600VAC. It is constructed with a cast iron housing for durability and is designed for fixed mounting. The breaker is UL listed and meets relevant safety standards for North American installations.
  • Part Number: BJL26060
  • Manufacturer: Square D
  • Series/Frame: PowerPact B
  • Amperage: 60A
  • Poles: 2
  • Voltage: 600V
  • Interrupt Rating: 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC
  • Mounting Type: Fixed
  • Trip Unit: Thermal Magnetic
  • Continuous Current Rating: 80%
  • Construction: Cast Iron
  • Certifications: UL Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: BJL26060
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : BJL
  • Voltage : 600
  • Amperage : 60
  • Phase : 1
  • Poles : 2
  • AIC rating : 65kA@480V
  • Connection : Feed-Thru
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : Everlink Lug Both Ends
  • Frame Size : 125A/BJ
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : Not Applicable

Product Data

  • UPC : 785901078319
  • GTIN : 00785901078319
  • Country of Origin : United States
  • Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.1 in (80 mm) (Height x Width x Depth)
  • Weight : 1.5
  • Panel Type : Electrical Distribution Equipment, Industrial Control Panels
  • Standards : CSA C22.2 No 5, NMX J-266, EN/IEC 60947-5-1, GB 14048.2, UL 489, NEMA AB1, EN/IEC 60947-2
  • Certification : UL, IEC, CCC, EAC, CSA, NOM
  • Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
    AWG 14...AWG 3/0 rigid or stranded aluminium/copper
