BJL26040 - Square D 40 Amp 2 Pole B Frame Circuit Breaker 600V 65kA DIN Rail Mount

Save $897.69
SKU: BJL26040-New
Condition: New
Price:
$505.31 $1,403.00
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

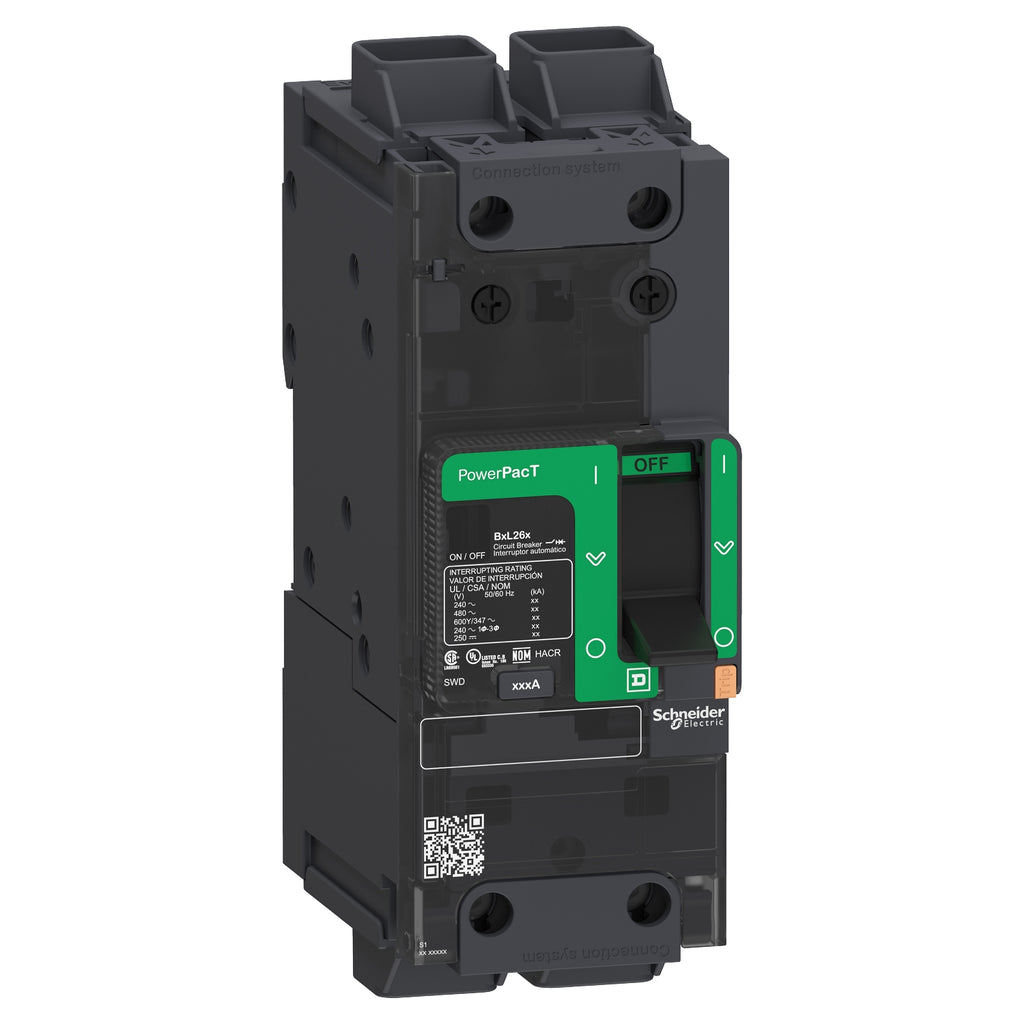

BJL26040 - Square D Feed-Thru 600V 40A 2 pole circuit breaker 65kA@480V - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only

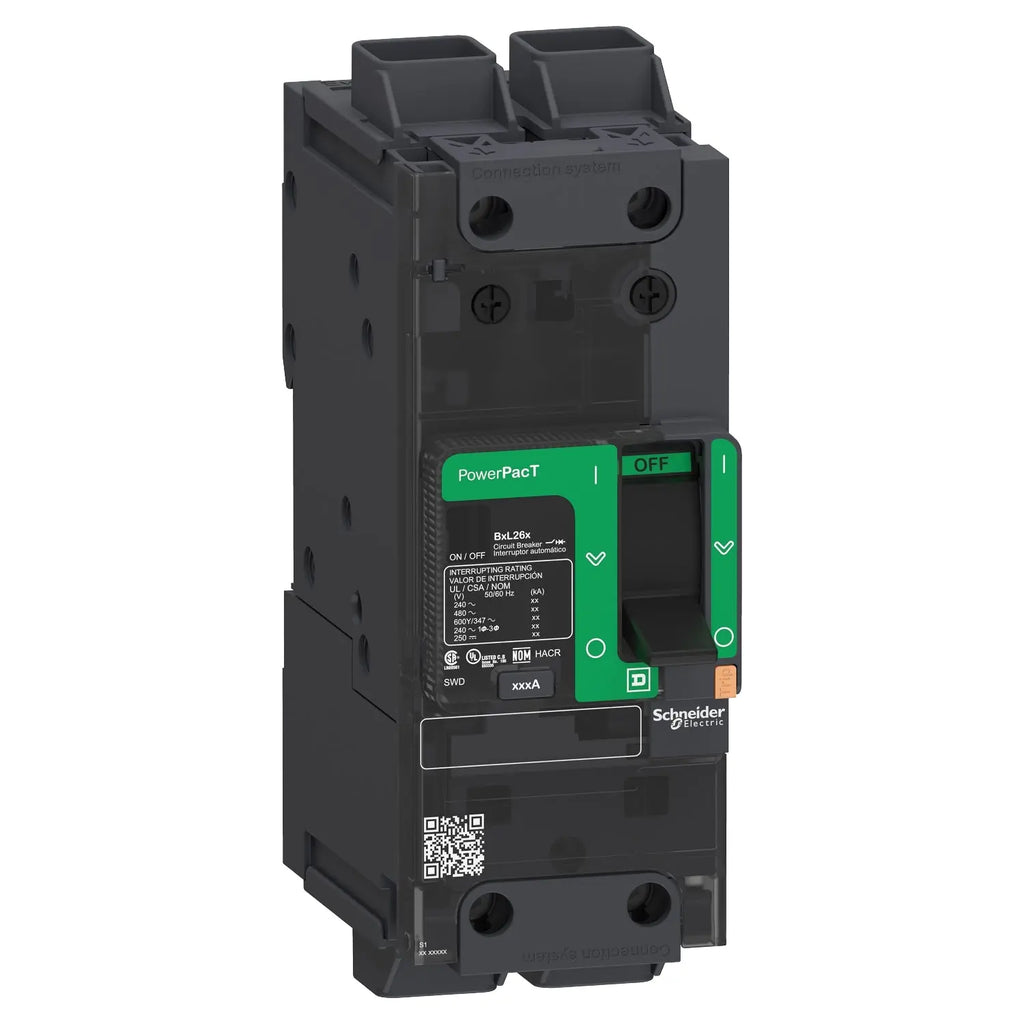

BJL26040 - Square D Feed-Thru 600V 40A 2 pole circuit breaker 65kA@480V - Essential Electric Supply

Description

BJL26040


BJL26040 is a Square D 40 Amp, 2 Pole B Frame molded case circuit breaker designed for reliable power distribution protection.This circuit breaker features a 600 Volt maximum rating with a 65kA interrupt rating at 480V, UL 489 listing, and DIN rail mounting for easy installation. It uses a thermal-magnetic trip unit and offers robust protection in a compact B frame design.
  • Amperage: 40 Amp
  • Voltage: Up to 600V AC / 250V DC
  • Poles: 2 Pole
  • Frame Type: B Frame
  • Interrupt Rating: 65kA @ 480V, 25kA @ 600V
  • Mounting Type: DIN Rail
  • Trip Unit: Thermal-Magnetic
  • UL Listed: UL 489
  • Dimensions: Approx. 2.13" W x 3.15" D x 5.39" H
  • Manufacturer: Square D (Schneider Electric)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: BJL26040
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : BJL
  • Voltage : 600
  • Amperage : 40
  • Phase : 1
  • Poles : 2
  • AIC rating : 65kA@480V
  • Connection : Feed-Thru
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Everlink Lug Both Ends
  • Frame Size : 125A/BJ
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : Not Applicable

Product Data

  • UPC : 785901078272
  • GTIN : 00785901078272
  • Country of Origin : Mexico
  • Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.1 in (80 mm) (Height x Width x Depth)
  • Weight : 1.5
  • Panel Type : Electrical Distribution Equipment, Industrial Control Panels
  • Standards : EN/IEC 60947-5-1, UL 489, NEMA AB1, CSA C22.2 No 5, GB 14048.2, NMX J-266, EN/IEC 60947-2
  • Certification : UL, IEC, CCC, EAC, CSA, NOM
  • Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
    AWG 14...AWG 3/0 rigid or stranded aluminium/copper

Accesories

Part Manufacture Sub Category
9422A1
