BJL26015 - Square D 15 Amp 600/347V 2 Pole PowerPact Molded Case Circuit Breaker B Frame

SKU: BJL26015-New
Condition: New
Price:
$1,558.77
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

BJL26015 - Essential Electric Supply

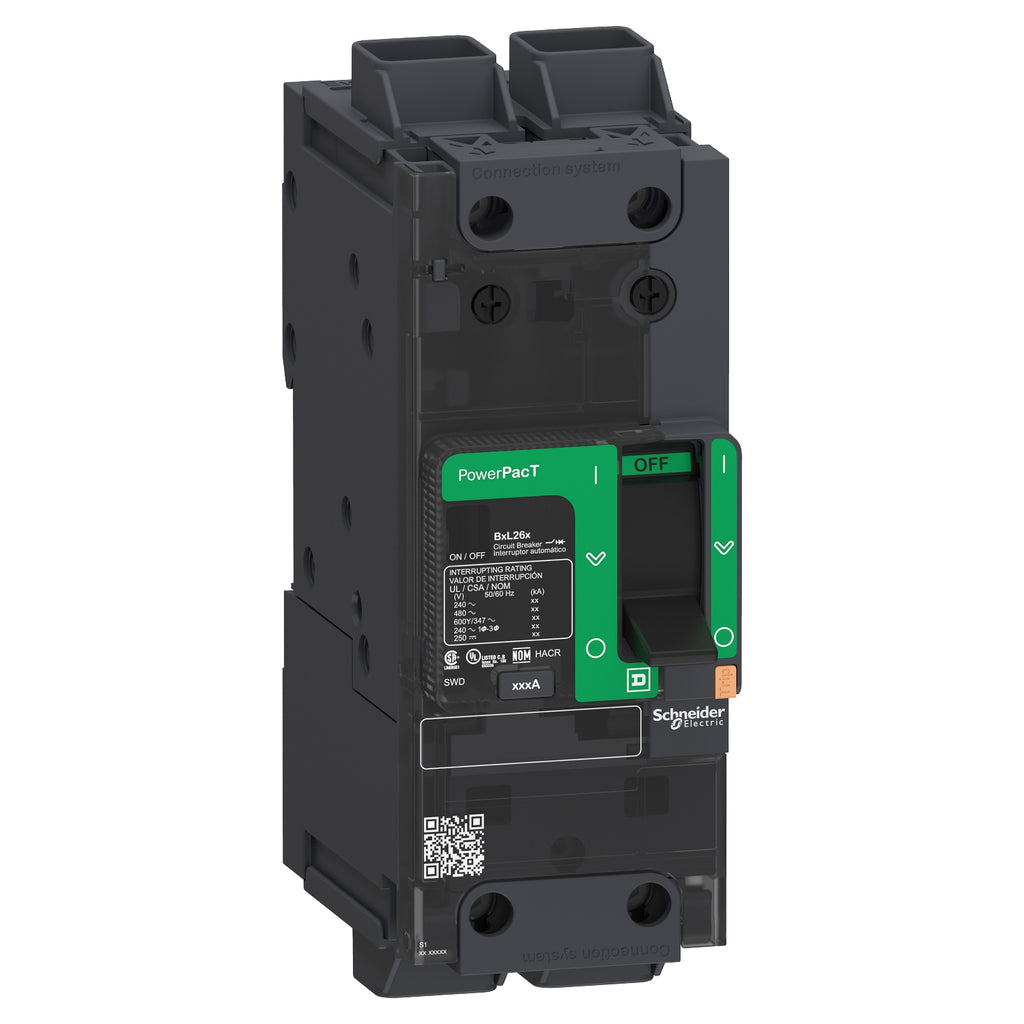

BJL26015 - Square D Feed-Thru 600V 15A 2 pole circuit breaker 65kA@480V - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
BJL26015 - Essential Electric Supply

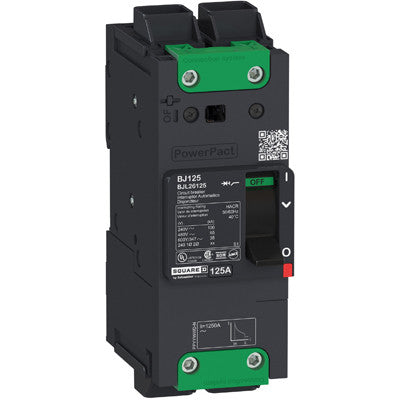

BJL26015 - Square D Feed-Thru 600V 15A 2 pole circuit breaker 65kA@480V - Essential Electric Supply

Description

BJL26015


BJL26015 is a Square D PowerPact molded case circuit breaker designed for reliable circuit protection.This 2 pole breaker features a 15 amp trip rating and supports voltages up to 600V AC or 347V AC (600Y/347V). It is part of the B Frame series and uses a thermal magnetic trip unit for dependable performance. The breaker is UL 489 listed and suitable for DIN rail mounting. It offers a high interrupt rating with 100 kA at 240 VAC and 65 kA at 480 VAC, ensuring robust fault current interruption. Mechanical durability is rated at 20,000 operations at no load.
    Key Specifications
    • Manufacturer: Square D
    • Part Number: BJL26015
    • Amperage: 15 Amp
    • Voltage Rating: 600V AC / 347V AC (600Y/347V)
    • Poles: 2
    • Frame/Series: B Frame PowerPact
    • Trip Unit: Thermal Magnetic
    • Interrupt Rating: 100 kA at 240 VAC, 65 kA at 480 VAC
    • Mounting Type: DIN Rail
    • Certifications: UL 489 Listed
    • Mechanical Durability: 20,000 operations at no load
    At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

    Specifications

    • Part Number: BJL26015
    • Manufacturer : Schneider Electric
    • Brand : Square D
    • Category : Circuit Breaker
    • Item Subcategory : Molded Case
    • Family : Powerpact
    • Type : BJL
    • Voltage : 600
    • Amperage : 15
    • Phase : 1
    • Poles : 2
    • AIC rating : 65kA@480V
    • Connection : Feed-Thru
    • Functions : LI - Long-Time and Instantaneous
    • Terminal Connection : Everlink Lug Both Ends
    • Frame Size : 125A/BJ
    • Temp Rating : -13–158 °F (-25–70 °C)
    • MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
    • Breaker Type : Standard
    • Protection : Thermal Magnetic
    • Phase Connection : Not Applicable

    Product Data

    • UPC : 606481185979
    • Country of Origin : Mexico
    • Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.1 in (80 mm) (Height x Width x Depth)
    • Weight : 2.2
    • Panel Type : Electrical Distribution Equipment, Industrial Control Panels
    • Standards : CSA C22.2 No 5, EN/IEC 60947-5-1, NEMA AB1, GB 14048.2, NMX J-266, EN/IEC 60947-2, UL 489
    • Certification : UL, IEC, CCC, EAC, CSA, NOM
    • Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
      AWG 14...AWG 3/0 rigid or stranded aluminium/copper
