BJL16100 - Square D PowerPact B Frame 100A 1-Pole Molded Case Circuit Breaker 600V Thermal Magnetic

BJL16100

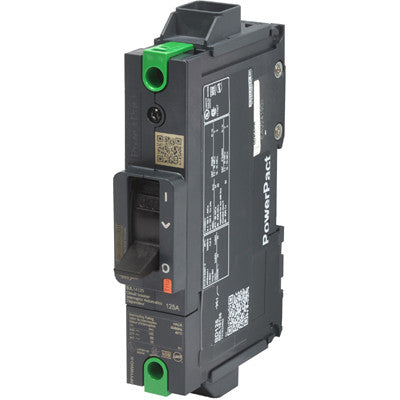

BJL16100 is a single-pole, 100 amp, 600 volt molded case circuit breaker from Square D's PowerPact B Frame series, designed for reliable electrical protection in industrial and commercial applications. This breaker features a thermal magnetic trip unit for precise overcurrent protection and is UL 489 listed for safety and compliance. The compact design allows for efficient DIN rail mounting, making it ideal for panelboards and control panels where space is limited. The BJL16100 offers a high interrupt rating and is suitable for use in systems up to 600 volts.

• Part Number: BJL16100
• Manufacturer: Square D
• Series/Frame: PowerPact B Frame
• Amperage: 100A
• Poles: 1
• Voltage Rating: 600V AC
• Interrupt Rating: 25kA at 240V AC
• Mounting Type: DIN Rail
• Series/Frame: PowerPact B Frame
• Trip Unit: Thermal Magnetic
• Certifications: UL 489 Listed
• Dimensions: 137 mm (H) x 27 mm (W) x 80 mm (D)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BJL16100
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BJL
• Voltage : 600
• Amperage : 100
• Phase : 1
• Poles : 1
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Everlink Lug Both Ends
• Frame Size : 125A/BJ
• Temp Rating : Minimum Operating Temp -13 Degrees F Max. Operating Temp.158 Degrees F
• MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Any

Product Data

• UPC : 785901008897
• GTIN : 03606481194008
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 1.06 in (27 mm) x 3.1 in (80 mm) (Height x Width x Depth)
• Weight : 1
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : EN/IEC 60947-5-1, NMX J-266, EN/IEC 60947-2, UL 489, GB 14048.2, CSA C22.2 No 5, NEMA AB1
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
  AWG 14...AWG 3/0 rigid or stranded aluminium/copper
