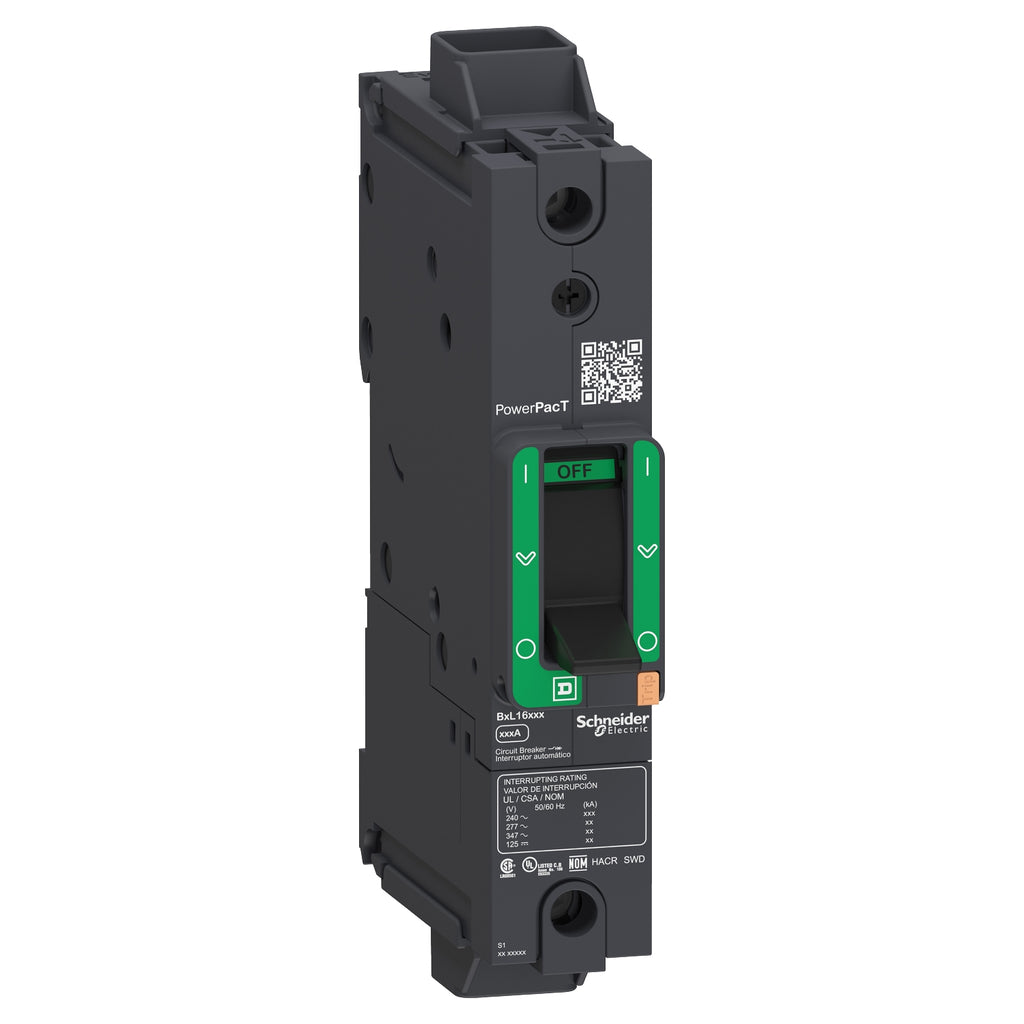

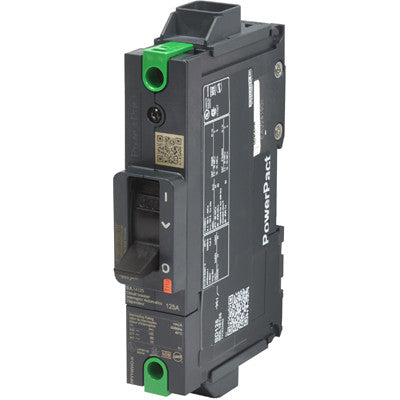

BJL16060 - Square D PowerPact B Frame 60A 1 Pole Molded Case Circuit Breaker 240VAC 100kA DIN Rail Mount

BJL16060

BJL16060 is a single-pole molded case circuit breaker from the Square D PowerPact B series, designed for reliable protection in industrial and commercial electrical systems. This breaker features a fixed thermal-magnetic trip unit and is suitable for DIN rail or surface mounting applications. It provides robust protection for circuits up to 240VAC with a high interrupt rating and is UL 489 listed for safety and compliance. The BJL16060 breaker is engineered for durability and ease of installation, supporting fast and secure connections with integrated DIN rail mounting and built-in control wire terminals. Its compact design allows for efficient panel space utilization while maintaining high performance under demanding conditions.

• 60A rated current
• 1 pole configuration
• 240VAC maximum voltage
• DIN rail and surface mount options
• 100kA interrupt rating at 240VAC
• 65kA interrupt rating at 480VAC
• 25kA interrupt rating at 600Y/347VAC
• PowerPact B frame series
• Thermal-magnetic trip unit
• UL 489 listed
• Toggle (manual) operating mode
• Dimensions: 137 mm height, 27 mm width, 80 mm depth

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BJL16060
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BJL
• Voltage : 600
• Amperage : 60
• Phase : 1
• Poles : 1
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Everlink Lug Both Ends
• Frame Size : 125A/BJ
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Any

Product Data

• UPC : 785901008897
• GTIN : 00606481193967
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 1.06 in (27 mm) x 3.1 in (80 mm) (Height x Width x Depth)
• Weight : 1
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : NMX J-266, EN/IEC 60947-5-1, UL 489, CSA C22.2 No 5, NEMA AB1, EN/IEC 60947-2, GB 14048.2
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
  AWG 14...AWG 3/0 rigid or stranded aluminium/copper
