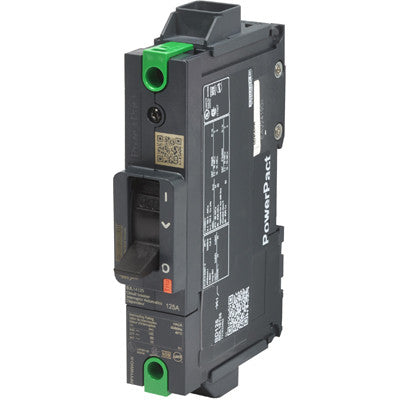

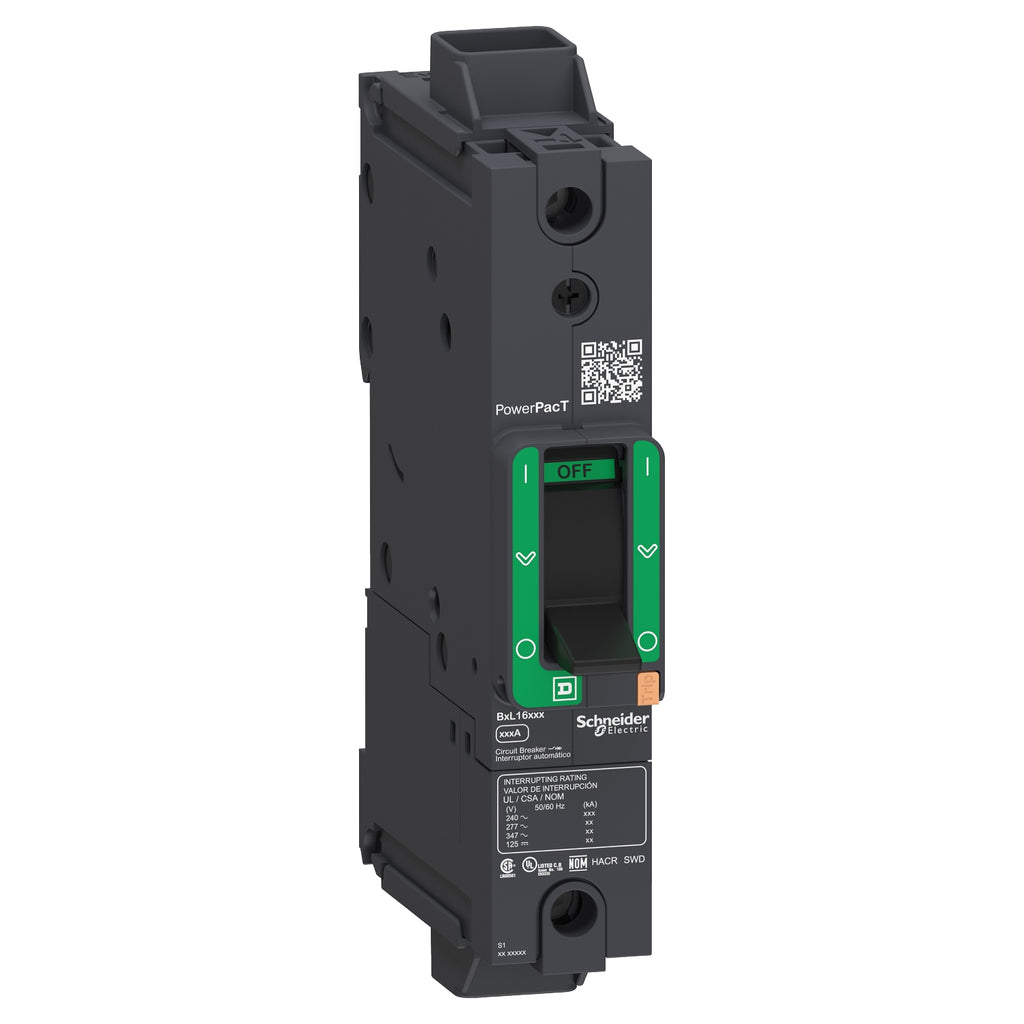

BJL16020 - Square D PowerPact B Frame 20 Amp Single Pole Molded Case Circuit Breaker DIN Rail Mount 240VAC J Interrupt Rating

BJL16020

BJL16020 is a Square D PowerPact B Frame molded case circuit breaker designed for reliable electrical protection in industrial and commercial applications. This single pole breaker features a 20 amp rating, DIN rail mounting, and is suitable for use up to 240 VAC. It offers a J interrupt rating and is UL 489 listed for safety and compliance.Engineered for efficient installation and operation, the BJL16020 breaker supports thermal magnetic trip functionality and is ideal for use in electrical distribution equipment and industrial control panels. Its compact design saves space while delivering robust performance.

• 20 Amp amperage
• Single pole configuration
• 240 VAC maximum voltage
• DIN rail mounting
• J interrupt rating
• PowerPact B Frame series
• Thermal magnetic trip unit
• UL 489 listed
• Mercury free
• PVC free
• 1.06 in width
• 5.39 in height

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BJL16020
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BJL
• Voltage : 600
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Everlink Lug Both Ends
• Frame Size : 125A/BJ
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Any

Product Data

• UPC : 785901008897
• GTIN : 03606481193896
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 1.06 in (27 mm) x 3.1 in (80 mm) (Height x Width x Depth)
• Weight : 1
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : UL 489, EN/IEC 60947-2, NMX J-266, CSA C22.2 No 5, EN/IEC 60947-5-1, NEMA AB1, GB 14048.2
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
  AWG 14...AWG 3/0 rigid or stranded aluminium/copper
