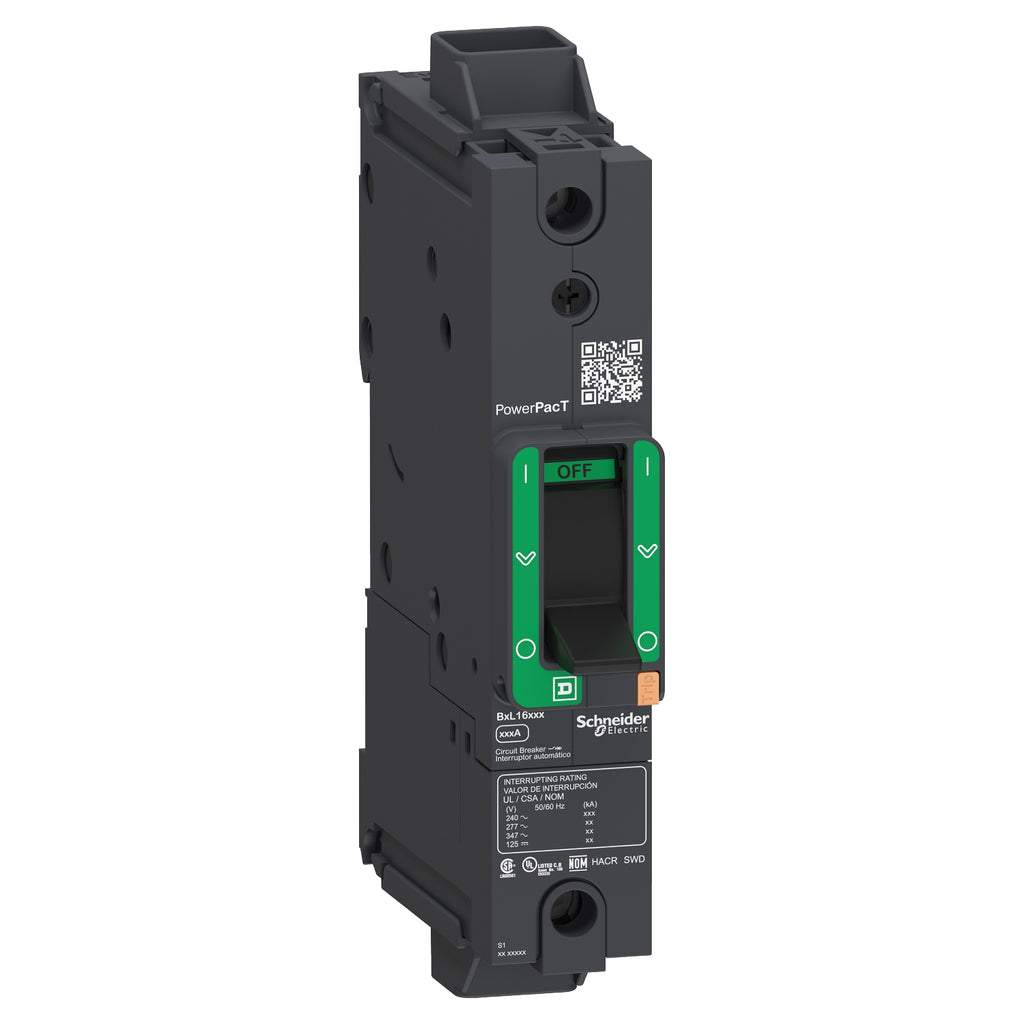

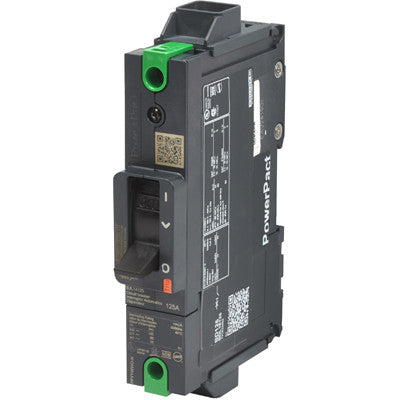

BJL16015 - Square D 15 Amp 1 Pole B Frame Molded Case Circuit Breaker 600V 25kA Interrupt Rating

BJL16015

BJL16015 is a Square D 15 Amp single pole molded case circuit breaker designed for reliable circuit protection.This B Frame breaker features a thermal magnetic trip unit and is rated for up to 600 volts AC with a 25kA interrupt rating at 600Y/347VAC. It mounts on DIN rail and offers an 80% continuous current rating, making it suitable for various industrial and commercial applications. The breaker complies with UL 489 standards for safety and performance.

• Amperage: 15 Amp
• Poles: 1
• Voltage Rating: Up to 600 VAC
• Interrupt Rating: 25kA at 600Y/347VAC
• Frame/Series: B Frame (PowerPact EverLink)
• Trip Unit: Thermal Magnetic
• Mounting Type: DIN Rail
• Continuous Current Rating: 80%
• UL 489 Listed
• Actuator Type: Toggle
• Dimensions: 5.39" H x 1.06" W x 4.01" D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BJL16015
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BJL
• Voltage : 600
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Everlink Lug Both Ends
• Frame Size : 125A/BJ
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Any

Product Data

• UPC : 60648119388
• GTIN : 03606481193889
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 1.06 in (27 mm) x 3.1 in (80 mm) (Height x Width x Depth)
• Weight : 1
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : EN/IEC 60947-5-1, NEMA AB1, CSA C22.2 No 5, EN/IEC 60947-2, NMX J-266, GB 14048.2, UL 489
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
  AWG 14...AWG 3/0 rigid or stranded aluminium/copper
