BJF46125 - Square D PowerPact B 125A 4P 600VAC 65kA Interrupt Molded Case Circuit Breaker, Thermal Magnetic, DIN Rail Mount, UL 489

BJF46125

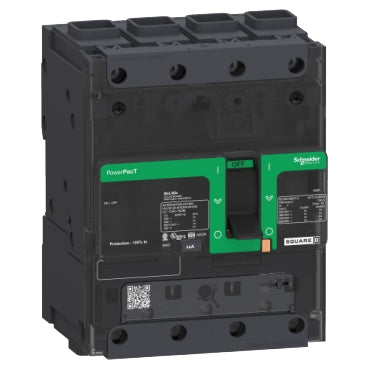

BJF46125 is a Square D PowerPact B-frame molded case circuit breaker designed for reliable protection in industrial and commercial electrical systems.

This thermal magnetic circuit breaker features a 125A amperage rating, 4 poles, and a voltage rating up to 600VAC. It offers a high interrupting capacity of 65kA at 480V, is UL 489 listed, and is suitable for DIN rail mounting. The compact B-frame design ensures efficient use of panel space while delivering robust circuit protection.

Key Specifications
• Part Number: BJF46125
• Manufacturer: Square D by Schneider Electric
• Amperage: 125A
• Poles: 4
• Voltage: Up to 600VAC
• Mounting Type: DIN Rail
• Interrupt Rating: 65kA at 480V
• Series/Frame: PowerPact B
• Trip Unit: Thermal Magnetic
• Certifications: UL 489 Listed
• Termination: Compression Lug
• Width: 4.25 inches
• Depth: 3.15 inches
• Height: 5.39 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BJF46125
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BJF
• Voltage : 600
• Amperage : 125
• Phase : 3
• Poles : 4
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 4.3 in (108 mm) x 3.1 in (80 mm) (Height x Width x Depth)
• Weight : 2.736
• Standards : NMX J-266, NEMA AB1, EN/IEC 60947-5-1, UL 489, EN/IEC 60947-2, GB 14048.2, CSA C22.2 No 5
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 8 aluminium/copper
  AWG 6...AWG 3/0 aluminium/copper
