BJA160401 - Schneider Electric PowerPact B 40A 1-Pole 600Y/347VAC Circuit Breaker I-Line Thermal Magnetic

BJA160401

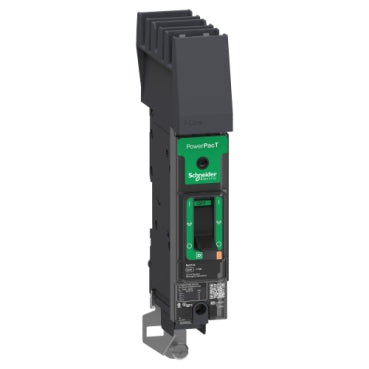

BJA160401 is a Schneider Electric PowerPact B circuit breaker designed for reliable power distribution protection.This 40 amp, 1-pole circuit breaker operates at 600Y/347VAC with a 25kA interrupt rating. It features an I-Line frame and a thermal magnetic trip unit for dependable overload and short circuit protection. The breaker is UL listed and suitable for industrial and commercial applications requiring high performance and safety.

• Amperage: 40A
• Voltage: 600Y/347VAC
• Poles: 1
• Interrupt Rating: 25kA
• Series/Frame: PowerPact B
• Trip Unit: Thermal Magnetic
• Mounting Type: I-Line
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BJA160401
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BJA
• Voltage : 600
• Amperage : 40
• Phase : 1
• Poles : 1
• AIC rating : 100kA@240V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
• Frame Size : 125A/BJ
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : A

Product Data

• UPC : 785901067443
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 1.06 in (27 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 1.1
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : UL 489, EN/IEC 60947-2, EN/IEC 60947-5-1, CSA C22.2 No 5, NEMA AB1, NMX J-266, GB 14048.2
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
