BJA160203 - Square D 20A 600Y/347VAC 1 Pole Circuit Breaker I-Line Thermal Magnetic

Save $264.14
SKU: BJA160203-New
Condition: New
Price:
$336.86 $601.00
Stock:
5 in stock
Limited availability — we'll confirm stock immediately after your order.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

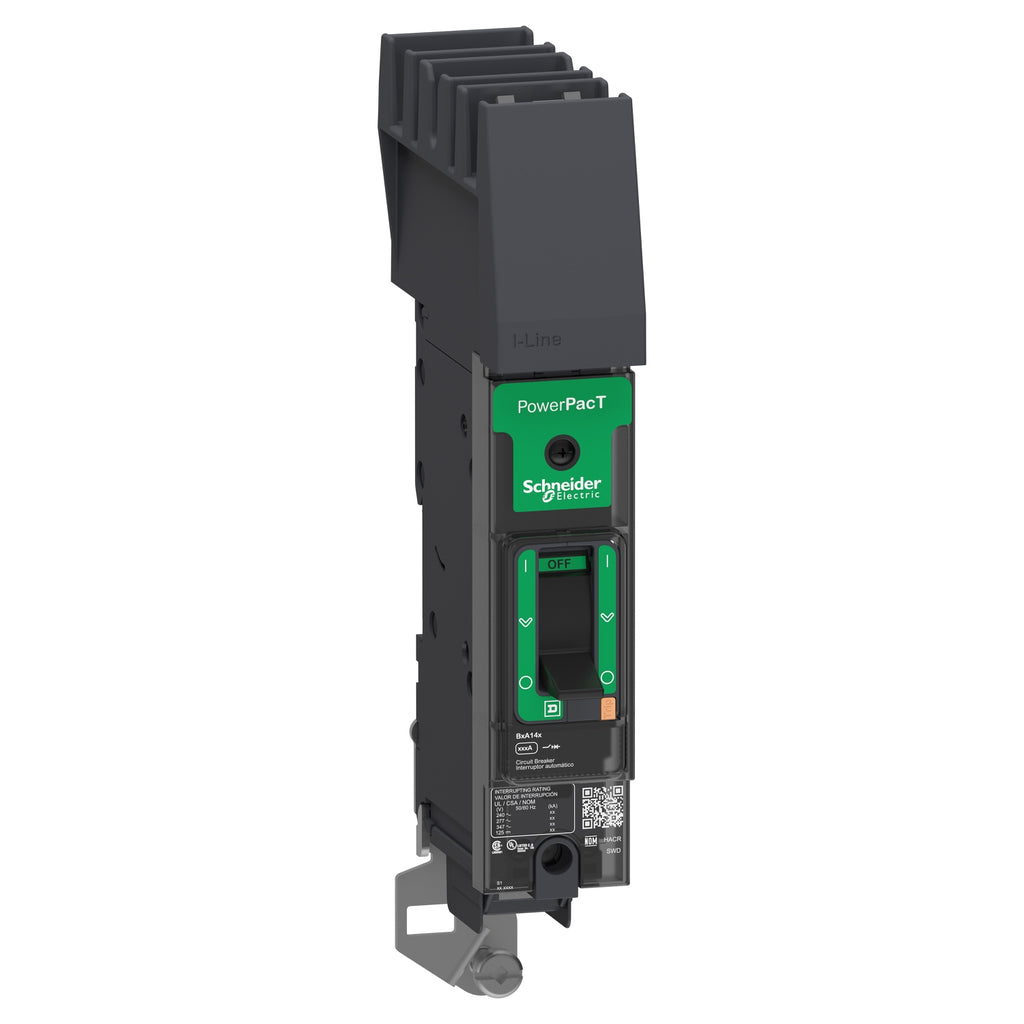

BJA160203 - Square D I-Line Style Plug-In 600V 20A 1 pole circuit breaker 100kA@240V - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
BJA160203 - Square D I-Line Style Plug-In 600V 20A 1 pole circuit breaker 100kA@240V - Essential Electric Supply

Description

BJA160203


BJA160203 is a 1 pole thermal magnetic molded case circuit breaker from Square D designed for reliable power distribution protection.This Square D BJA160203 circuit breaker features a 20 ampere rating, 600Y/347VAC voltage, and a 25kA interrupting rating with an I-Line style plug-in connection. It includes long time and instantaneous trip functions, supports wire gauges from AWG 14 to AWG 2/0 for aluminum and copper, and meets multiple certifications including UL, CSA, IEC, and NOM.
    Key Specifications
    • Amperage: 20A
    • Voltage Rating: 600Y/347VAC
    • Poles: 1
    • Interrupting Rating: 25kA at 600Y/347VAC
    • Connection Type: I-Line Style Plug-In
    • Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
    • Frame/Series: BJA
    • Terminal Connection: Line and Load Lug
    • Wire Gauge Range: AWG 14 to AWG 2/0 Aluminum/Copper
    • Certifications: UL, CSA, IEC, NOM, CCC, CE, RoHS
    • Actuator Type: Toggle
    • Color: Gray
    At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

    Specifications

    • Part Number: BJA160203
    • Manufacturer : Schneider Electric
    • Brand : Square D
    • Category : Circuit Breaker
    • Item Subcategory : Molded Case
    • Family : Powerpact
    • Type : BJA
    • Voltage : 600
    • Amperage : 20
    • Phase : 1
    • Poles : 1
    • AIC rating : 100kA@240V
    • Connection : I-Line Style Plug-In
    • Functions : Long Time and Instantaneous Trip
    • Terminal Connection : I-Line, Lug
    • Frame Size : J
    • Temp Rating : -13–158 °F (-25–70 °C)
    • MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 2/0 AWG (Cu/Al)
    • Protection : Thermal Magnetic
    • Phase Connection : B

    Product Data

    • UPC : 606481154170
    • GTIN : 03606481154170
    • Country of Origin : Mexico
    • Dimensions : 5.4 in (137 mm) x 1.06 in (27 mm) x 3.5 in (89 mm) (Height x Width x Depth)
    • Weight : 1.781 lb
    • Standards : EN/IEC 60947-2, CSA C22.2 No 5, UL 489, GB 14048.2, NEMA AB1, EN/IEC 60947-5-1, NMX J-266
    • Certification : UL, IEC, CCC, EAC, CSA, NOM
    • Wire Size : AWG 14...AWG 2/0 aluminium/copper
