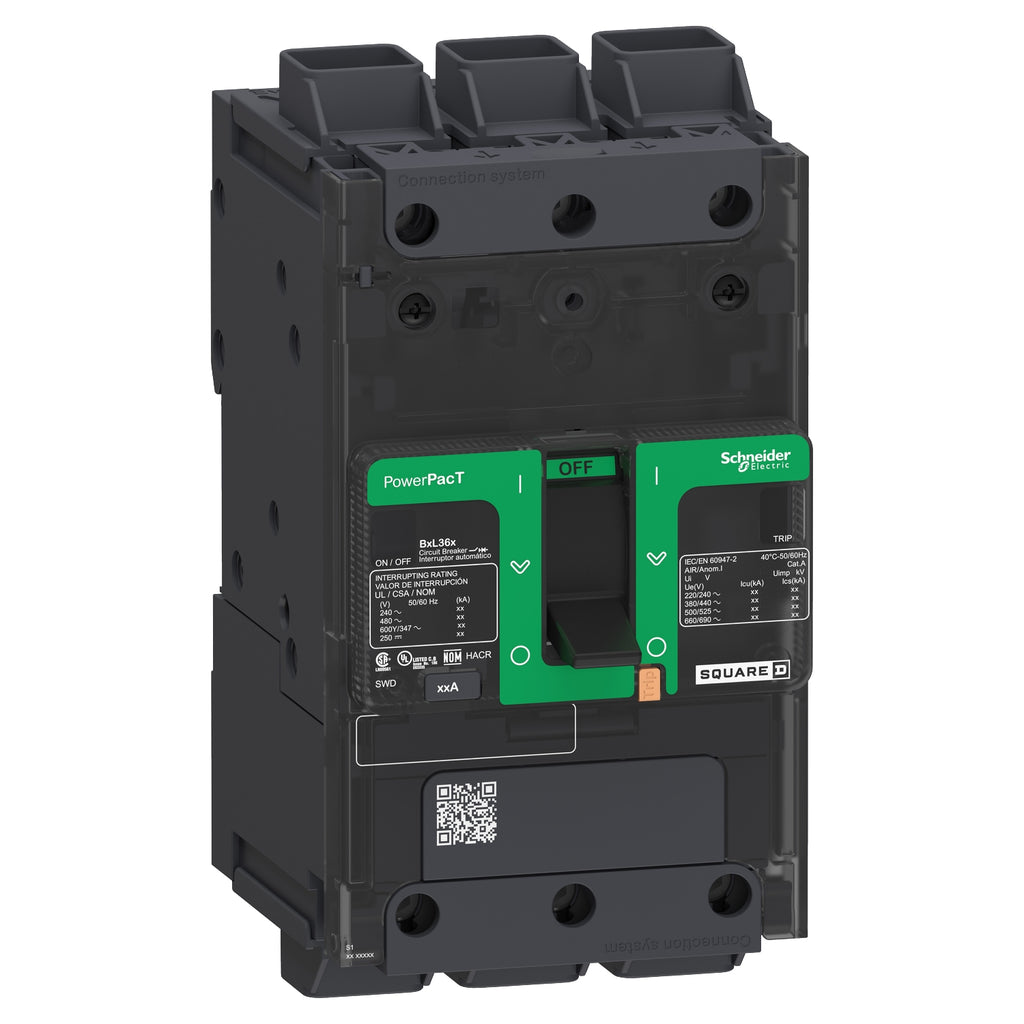

BGL36070LU - Schneider Electric PowerPact B 70A 3-Pole 600Y/347VAC Thermal Magnetic Circuit Breaker

BGL36070LU

BGL36070LU is a Schneider Electric PowerPact B series 3-pole circuit breaker rated for 70 amps and 600Y/347VAC voltage. It features a thermal magnetic trip unit and is designed for reliable circuit protection.This molded case circuit breaker offers an 18kA interrupt rating at 600Y/347VAC and supports 80% continuous current rating. It includes lugs for wiring and a control wire on the end for enhanced control. The breaker mounts on DIN rail and is certified to CSA C22.2 No 5 and EN standards.

• Amperage: 70A
• Voltage Rating: 600Y/347VAC
• Poles: 3
• Mounting Type: DIN Rail
• Interrupt Rating: 18kA at 600Y/347VAC
• Series/Frame: PowerPact B
• Trip Unit: Thermal Magnetic
• Continuous Current Rating: 80%
• Actuator Type: Toggle
• Certifications: CSA C22.2 No 5, EN
• Includes lugs and control wire on end

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BGL36070LU
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Temp Rating : -13–158 °F (-25–70 °C)

Product Data

• UPC : 606481149445
• Country of Origin : United States
• Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.1 in (80 mm) (Height x Width x Depth)
• Weight : 2.599
• Standards : UL 489, EN/IEC 60947-5-1, NEMA AB1, GB 14048.2, CSA C22.2 No 5, NMX J-266, EN/IEC 60947-2
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
  AWG 14...AWG 3/0 rigid or stranded aluminium/copper
