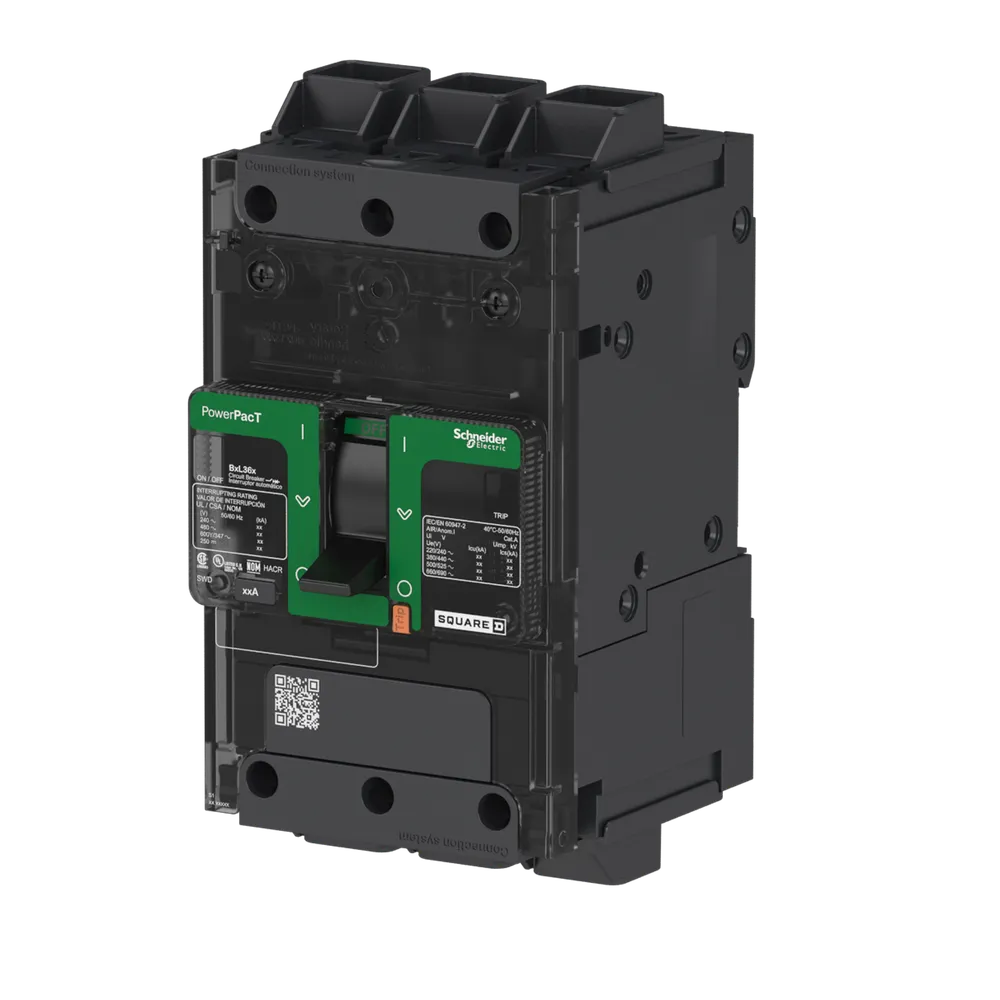

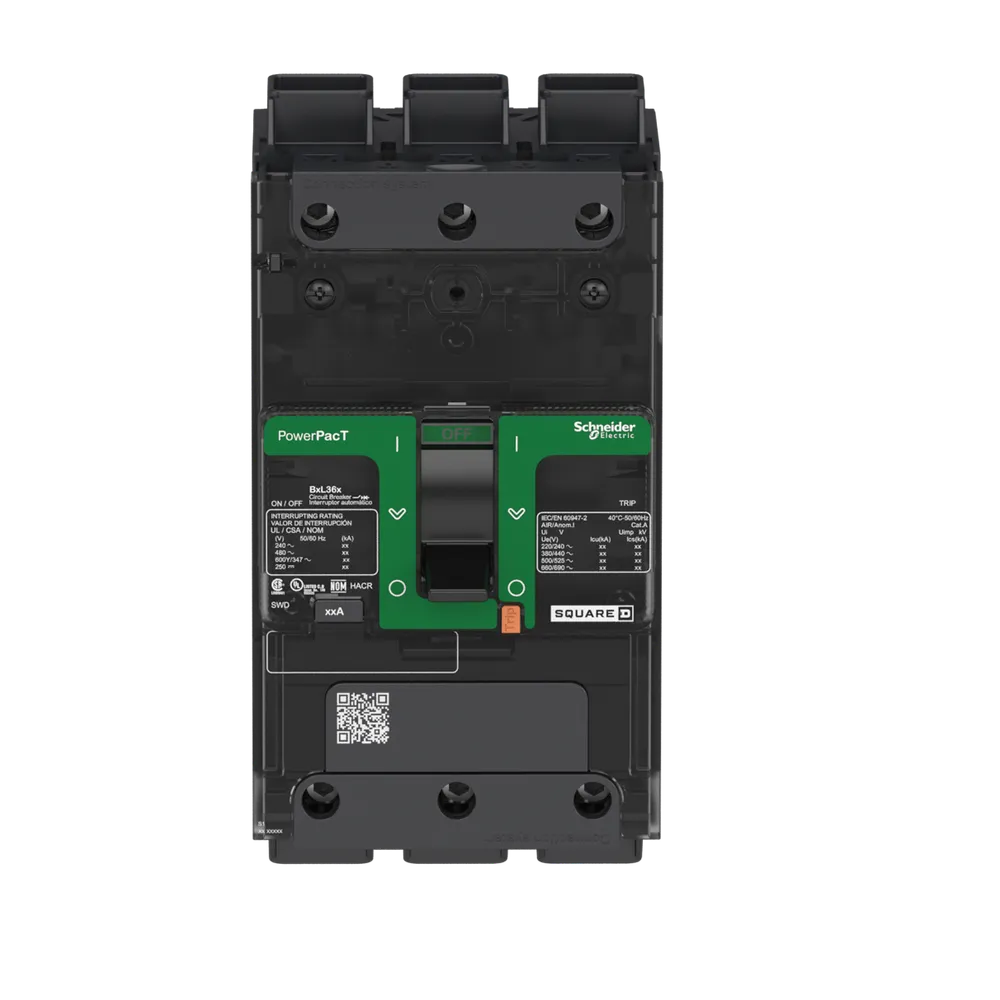

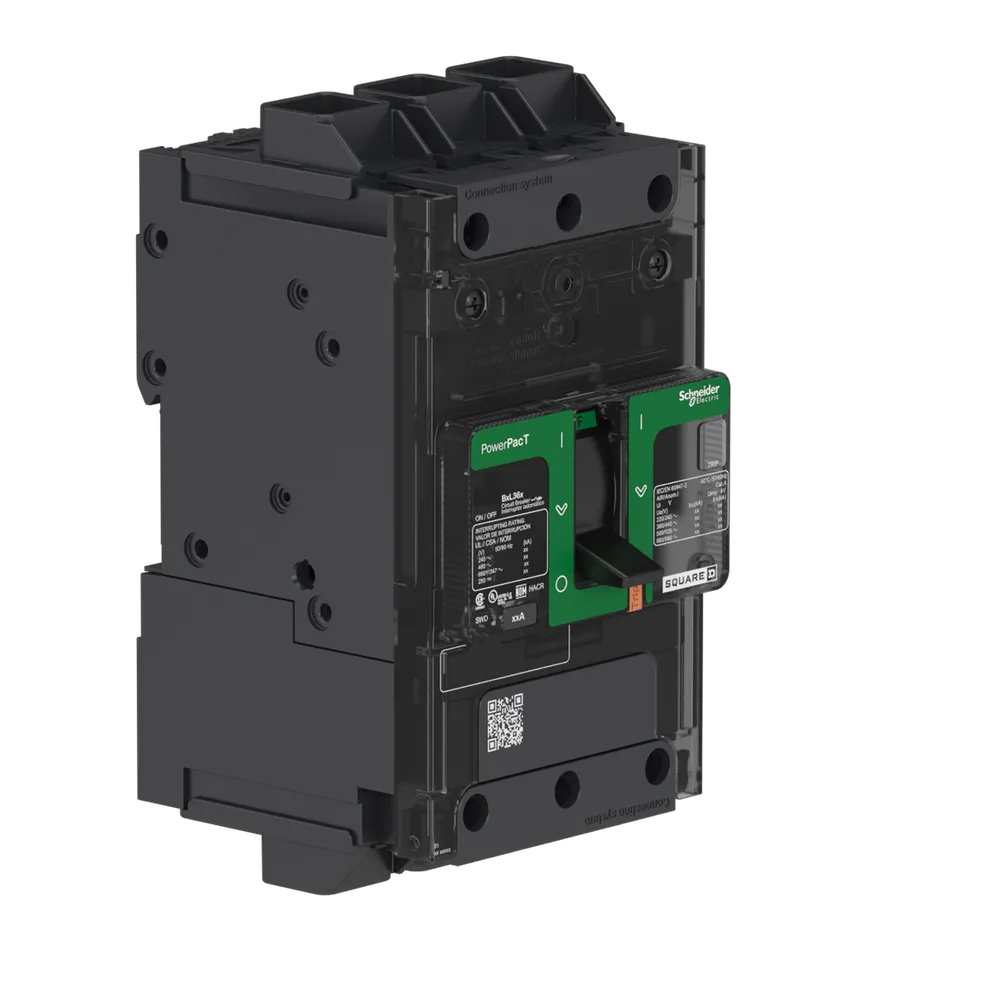

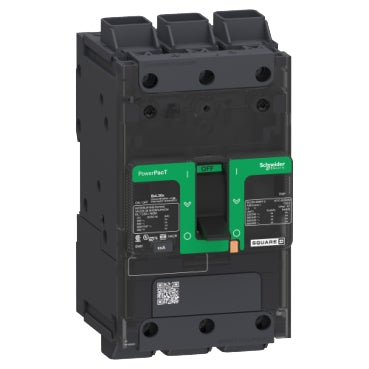

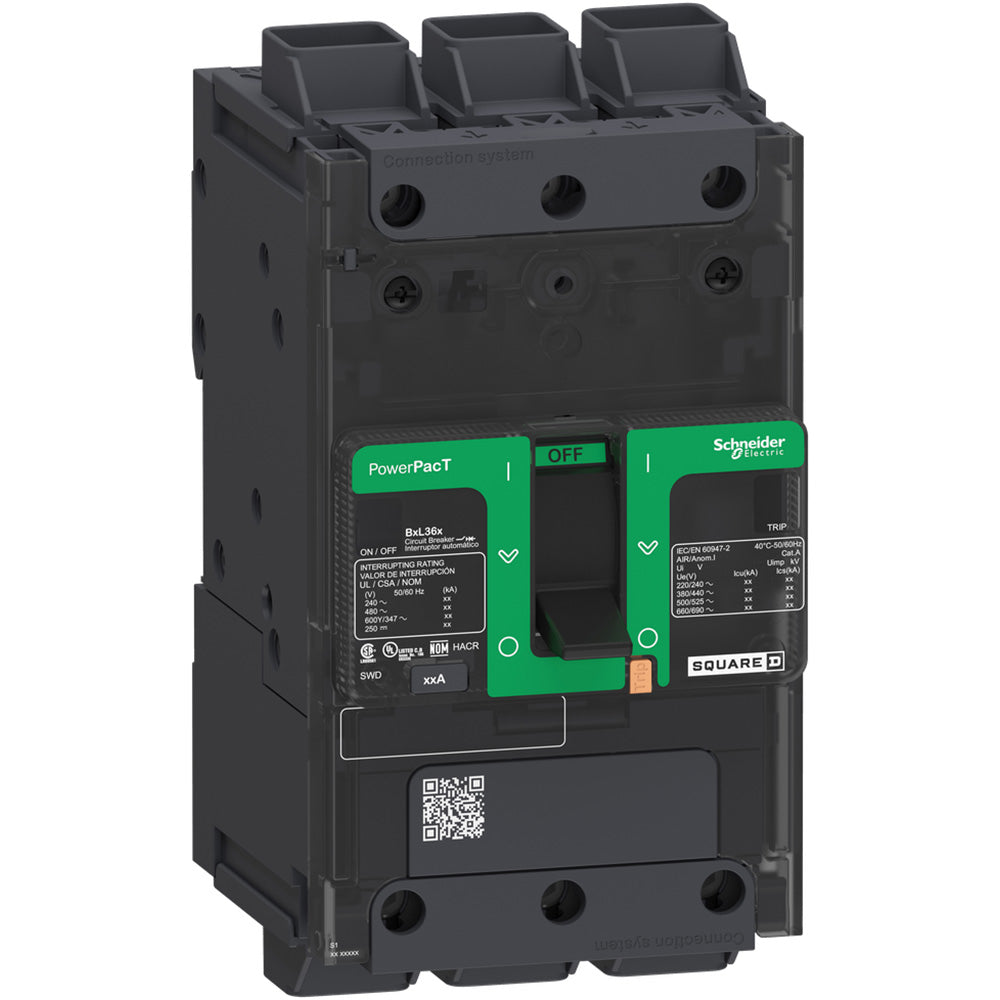

BGL36070 - Schneider Electric 70A 3-Pole Molded Case Circuit Breaker B Frame DIN Rail Mount

BGL36070

BGL36070 is a Schneider Electric 70 Amp, 3-pole molded case circuit breaker designed for reliable power distribution protection.This B Frame breaker features thermal magnetic trip units and supports a maximum voltage of 480 VAC or 250 VDC. It is UL 489 listed and designed for DIN rail mounting, making installation straightforward. The breaker offers interrupt ratings of 65kA at 240VAC, 35kA at 480VAC, and 18kA at 600VAC, suitable for various industrial and commercial applications.

Key Specifications
• Amperage: 70 Amps
• Poles: 3
• Voltage Rating: 480 VAC / 250 VDC max
• Interrupt Rating: 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC
• Frame/Series: B Frame
• Trip Unit: Thermal Magnetic

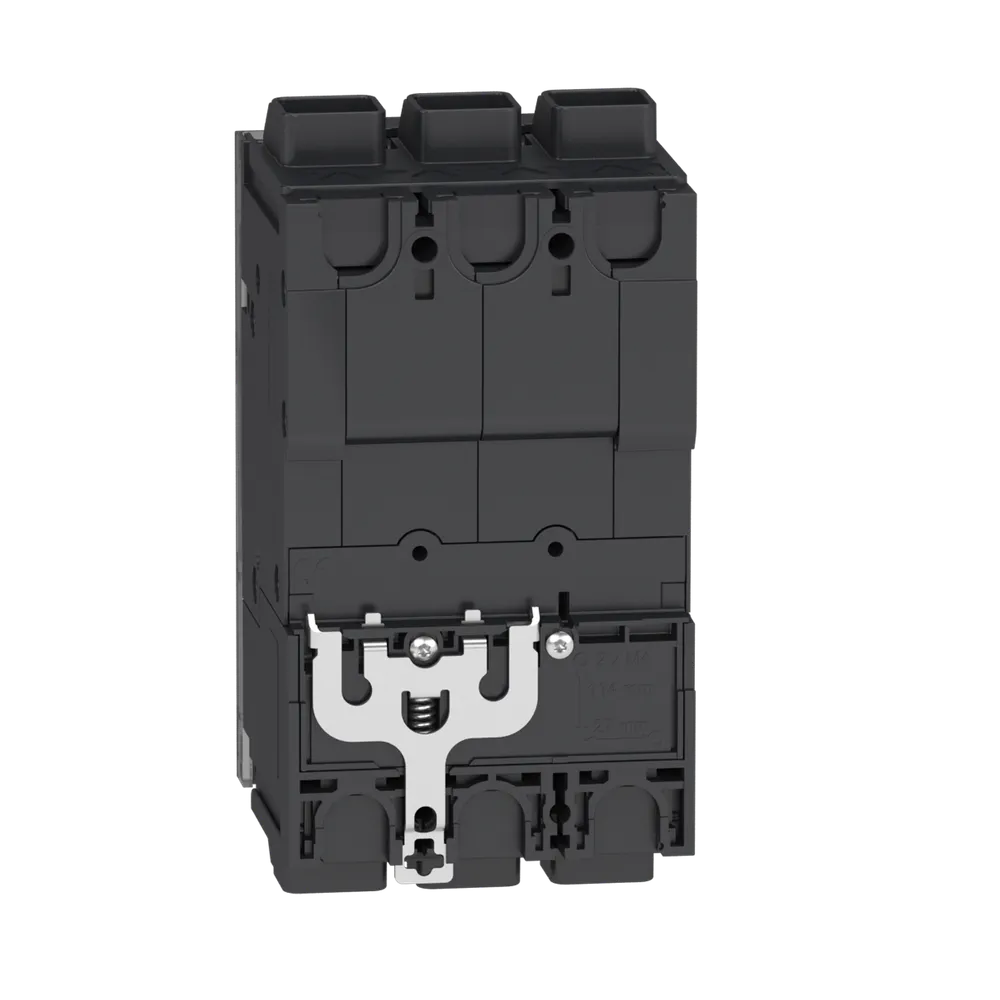

• Mounting Type: DIN Rail
• Certifications: UL 489 Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: BGL36070
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BGL
• Voltage : 600
• Amperage : 70
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Everlink Lug Both Ends
• Frame Size : 125A/BG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC



Product Data

• UPC : 785901076292
• GTIN : 00785901076292
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.1 in (80 mm) (Height x Width x Depth)
• Weight : 1.5
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : NEMA AB1, GB 14048.2, UL 489, EN/IEC 60947-2, EN/IEC 60947-5-1, NMX J-266, CSA C22.2 No 5
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
  AWG 14...AWG 3/0 rigid or stranded aluminium/copper
